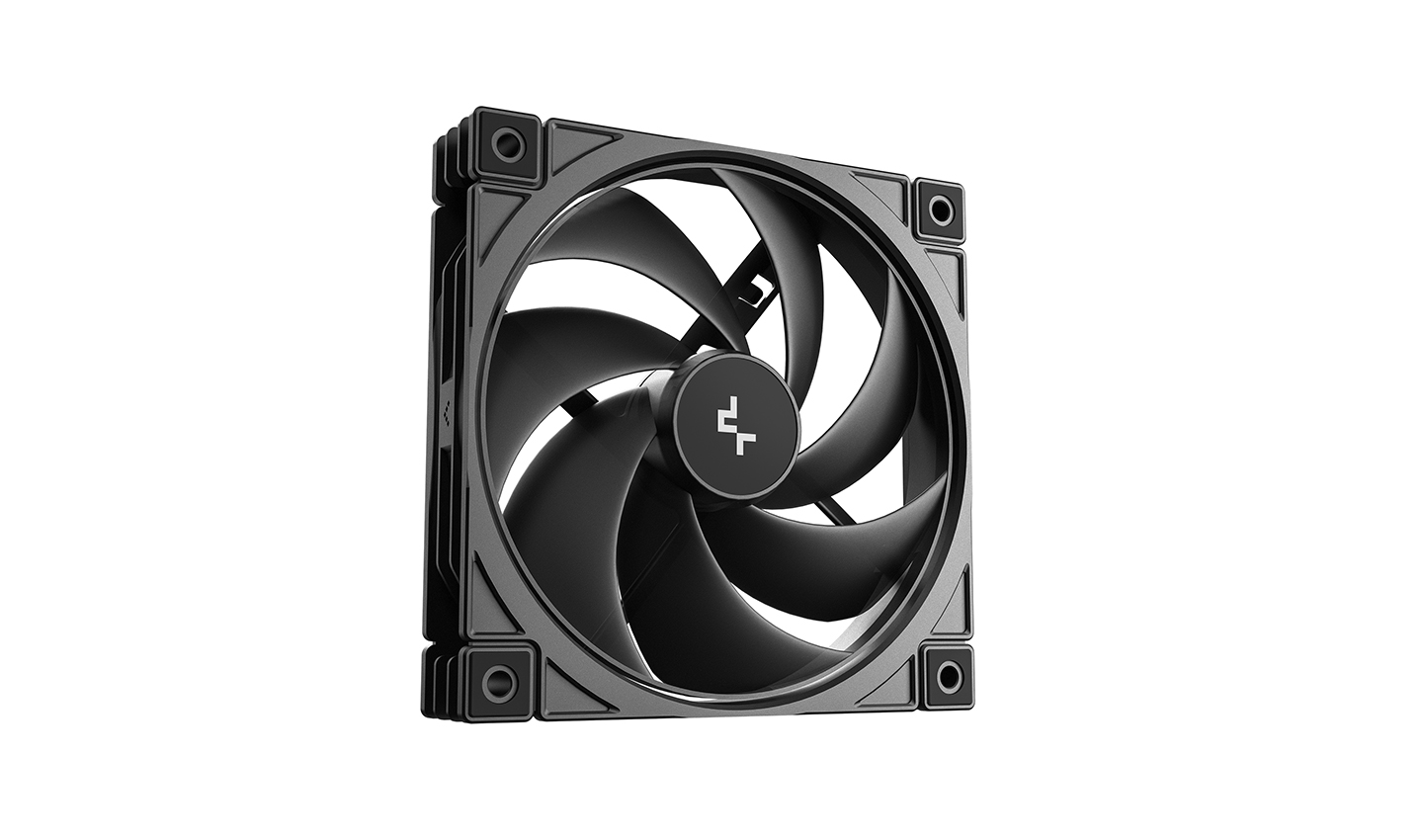

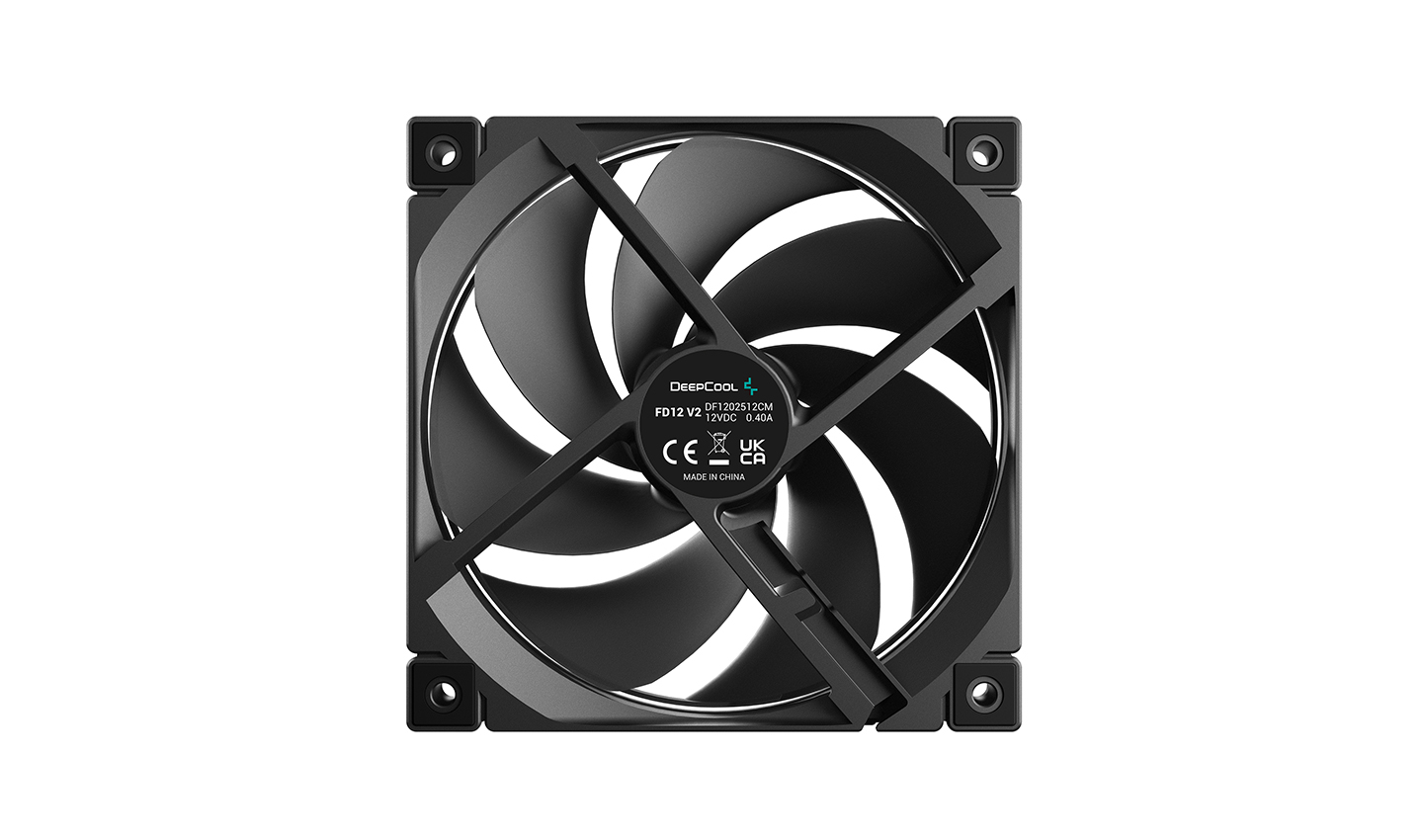

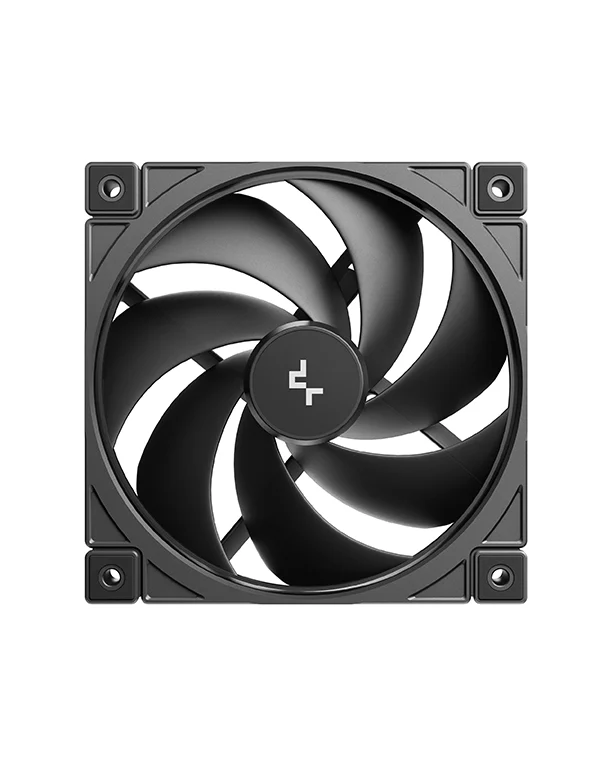

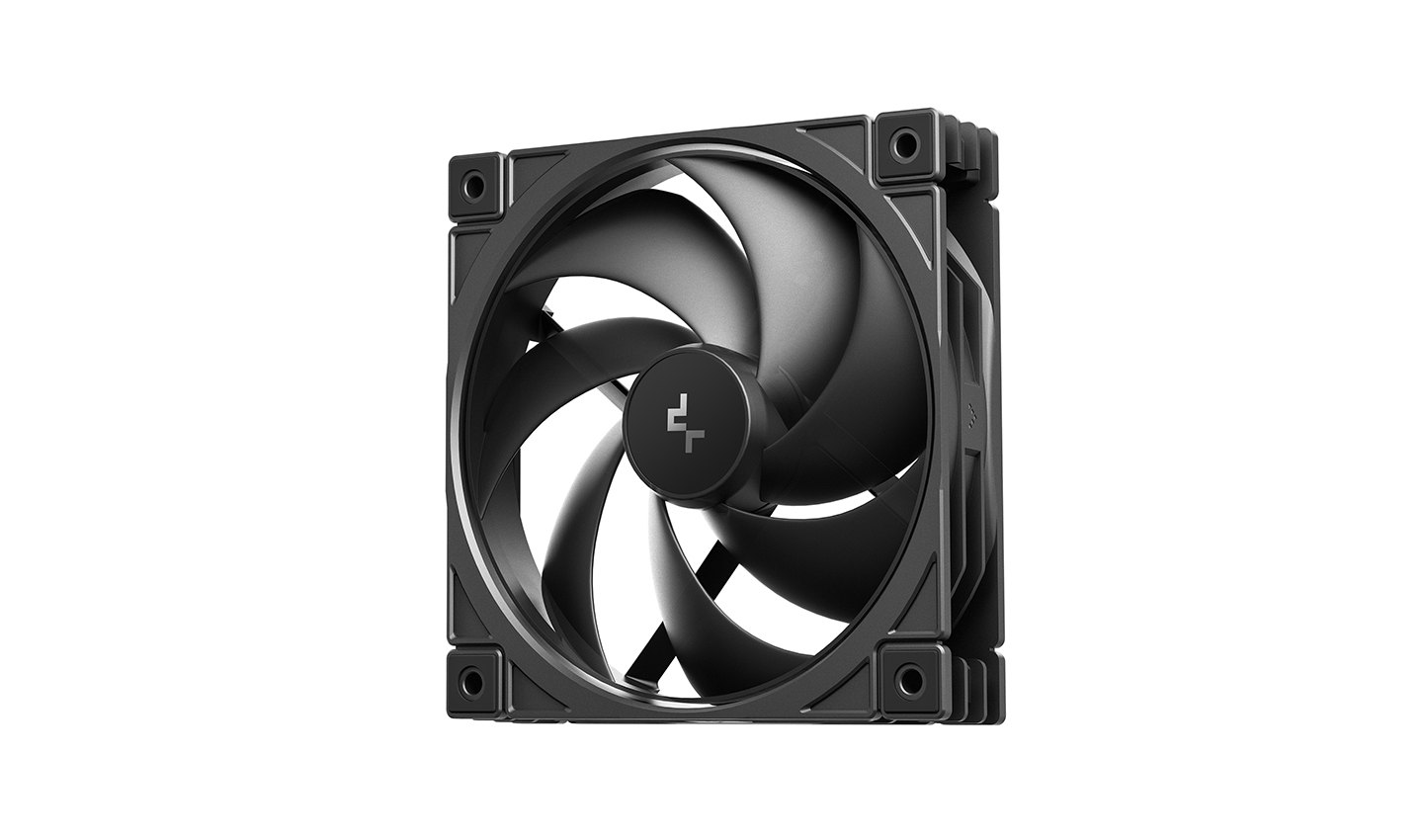

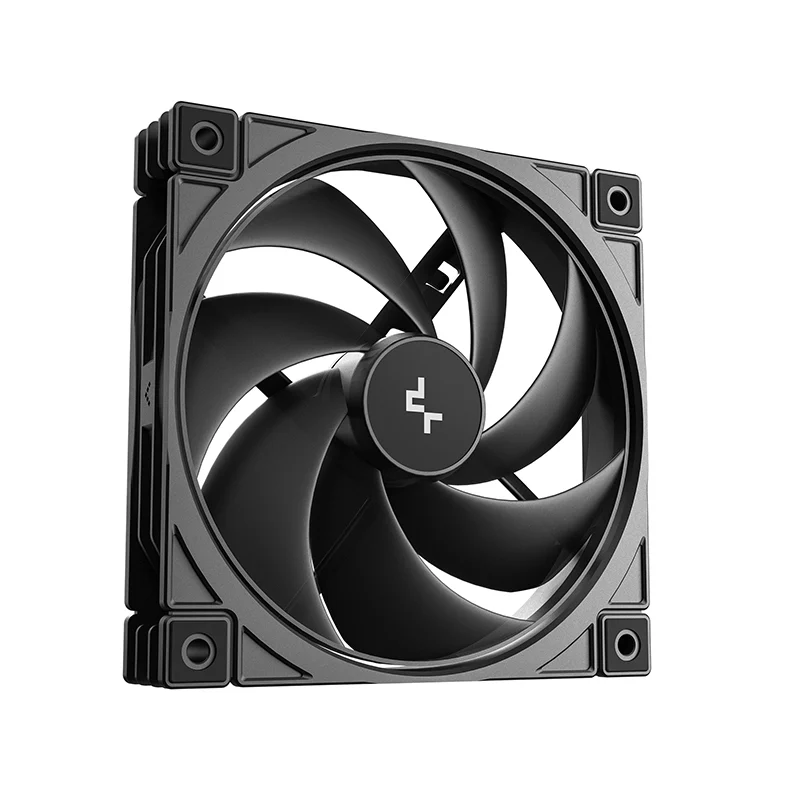

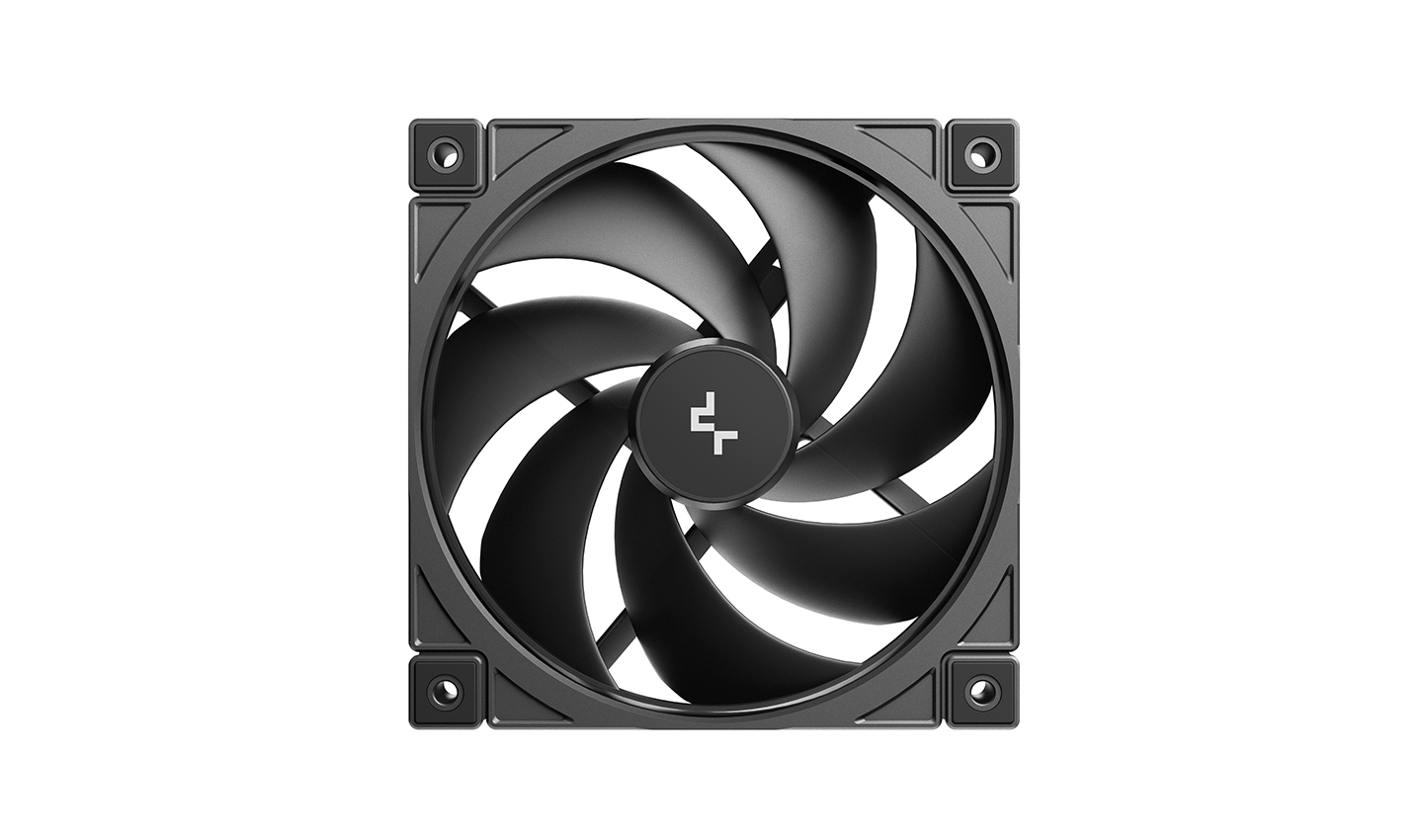

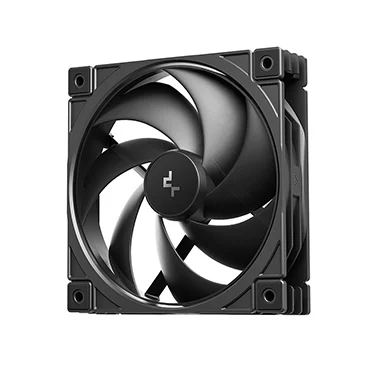

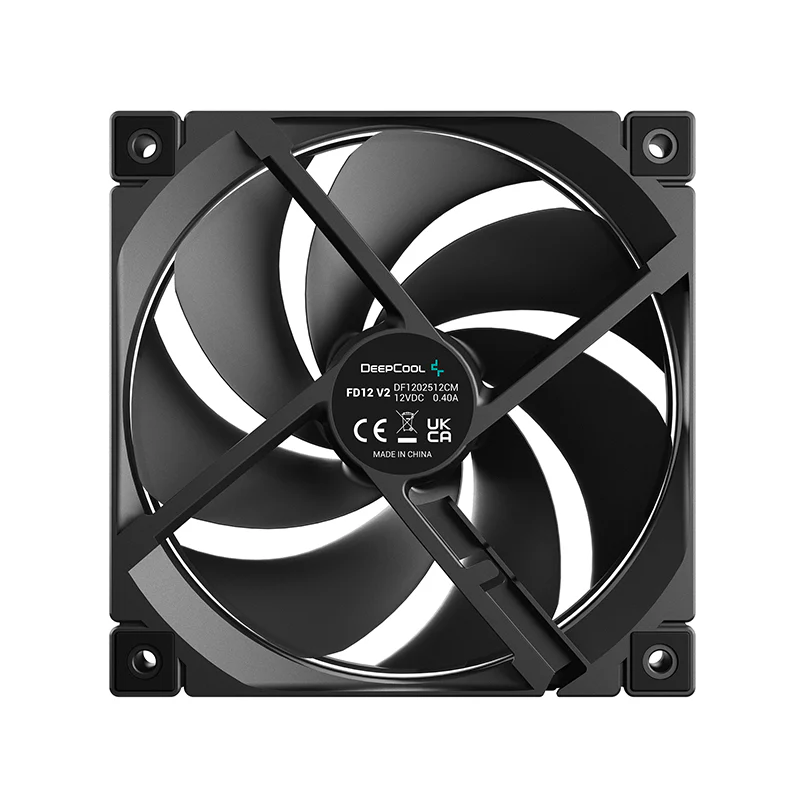

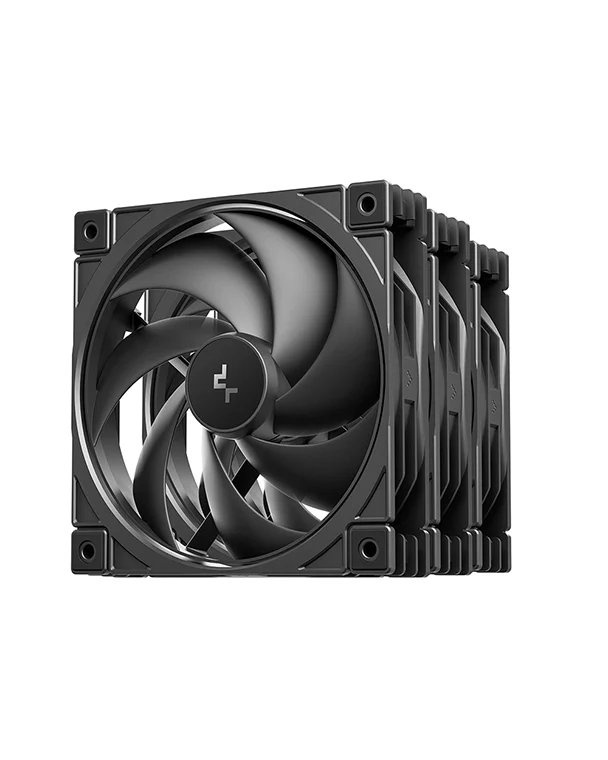

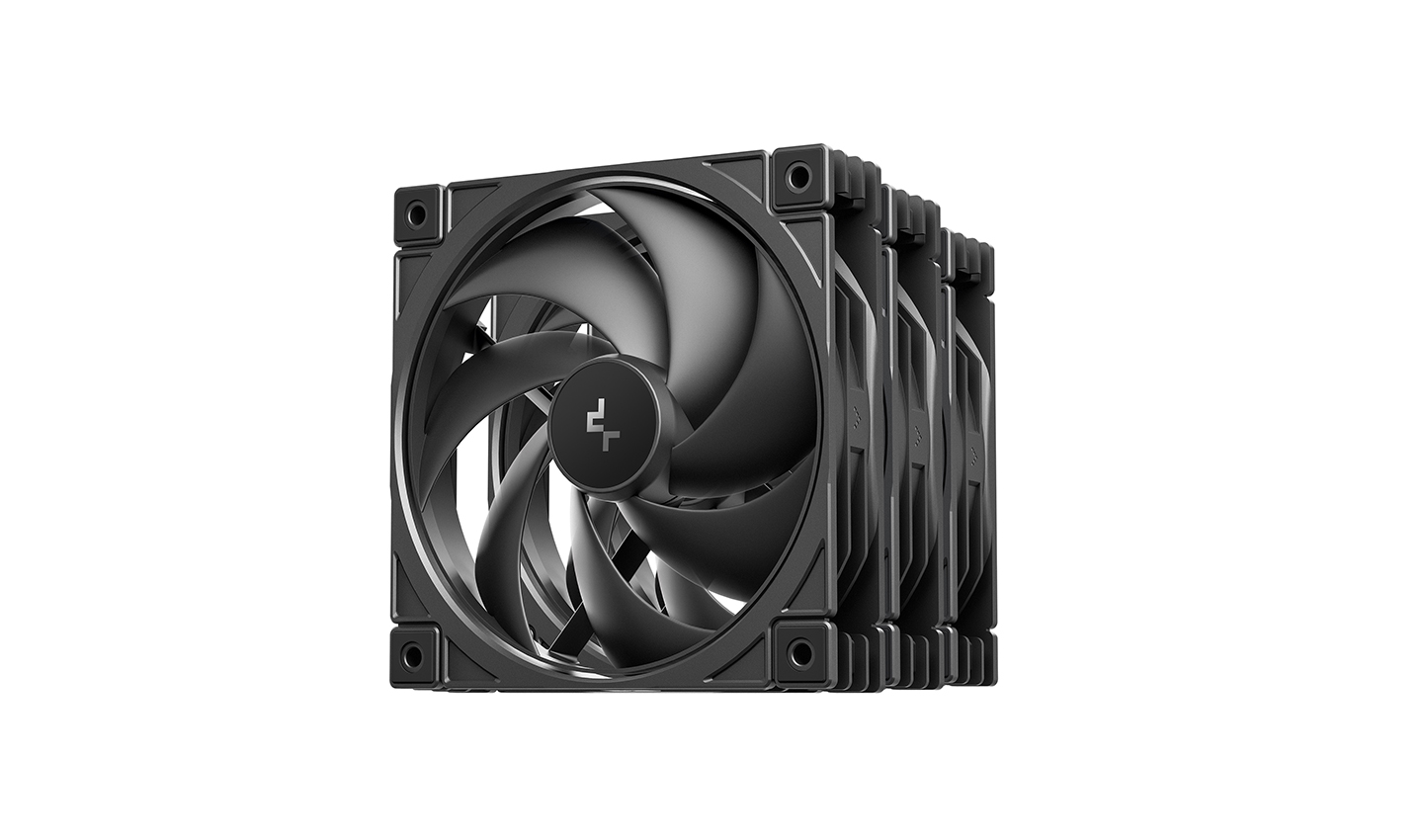

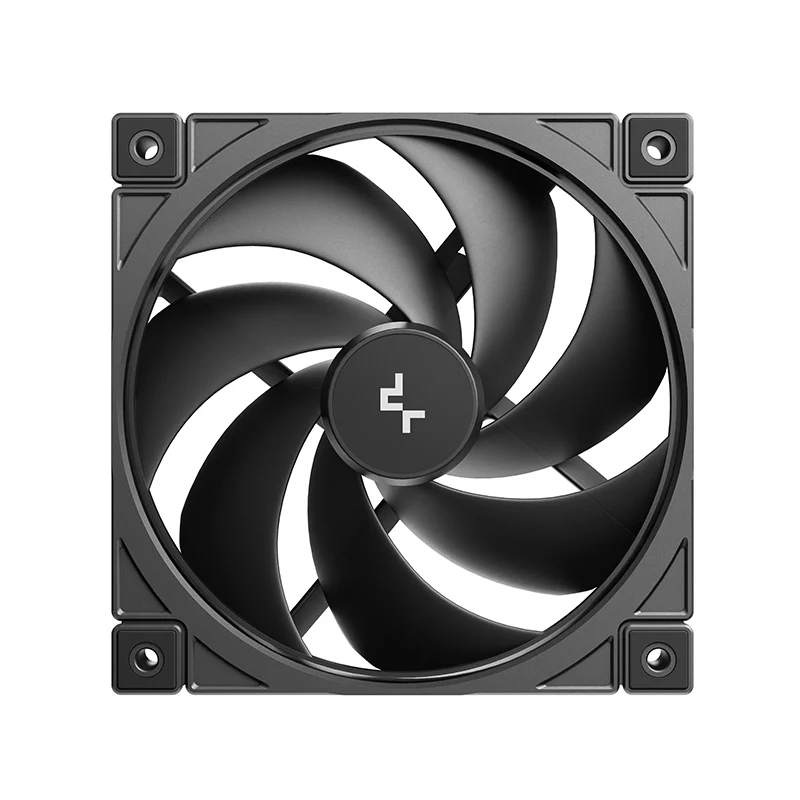

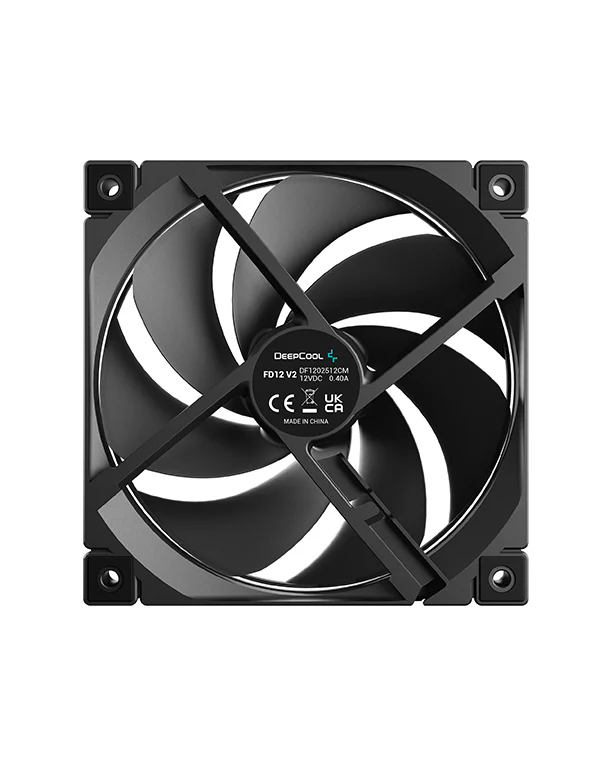

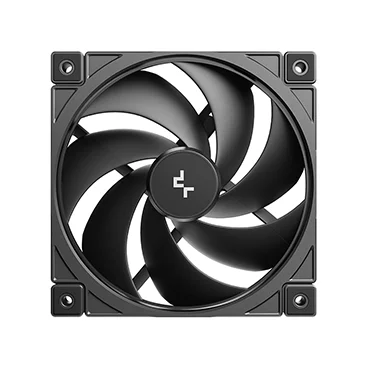

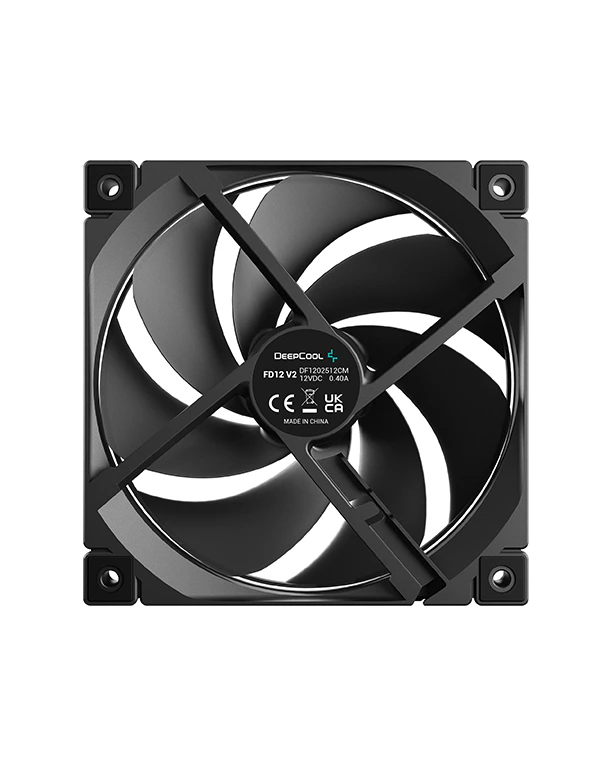

FD12 V2 3IN1

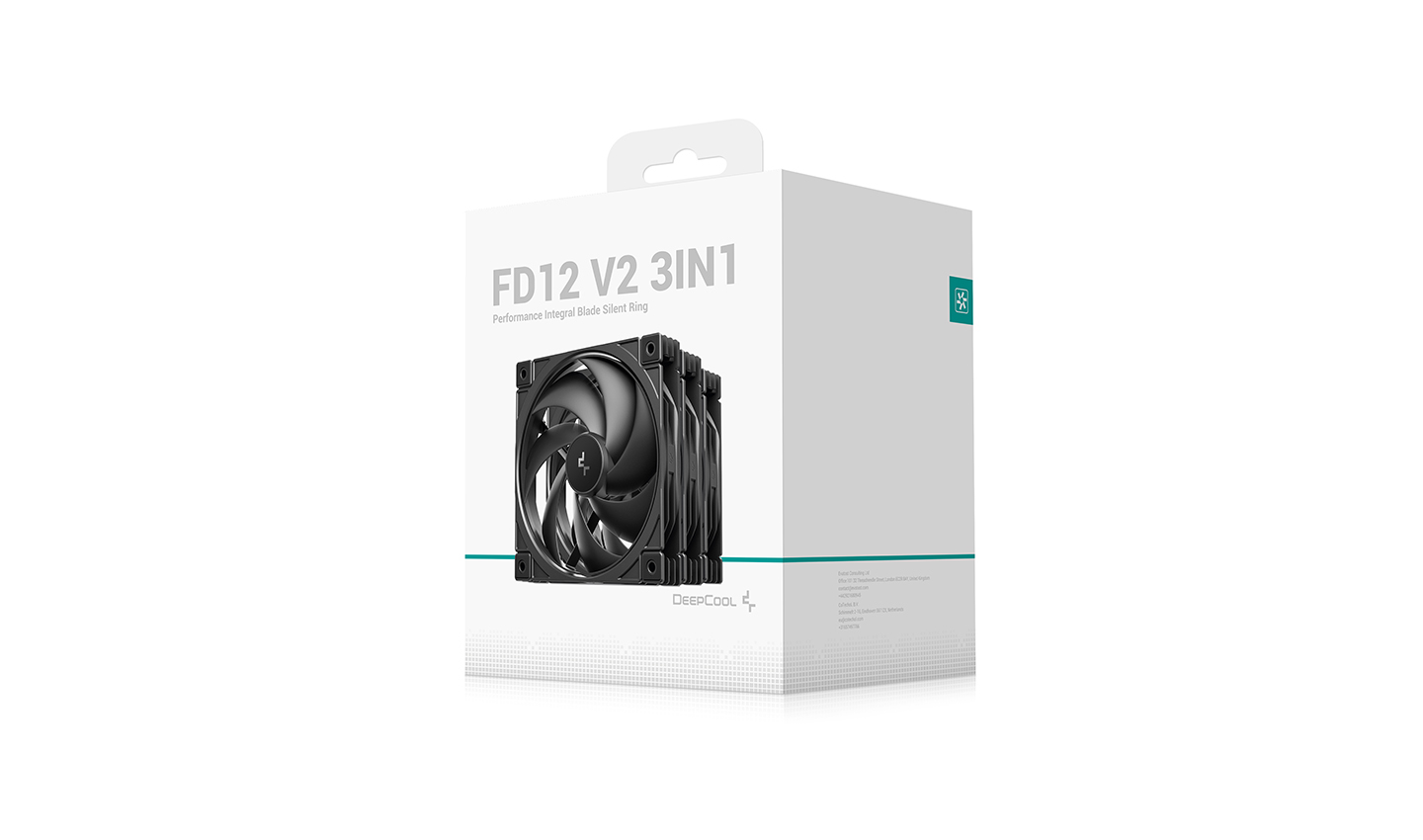

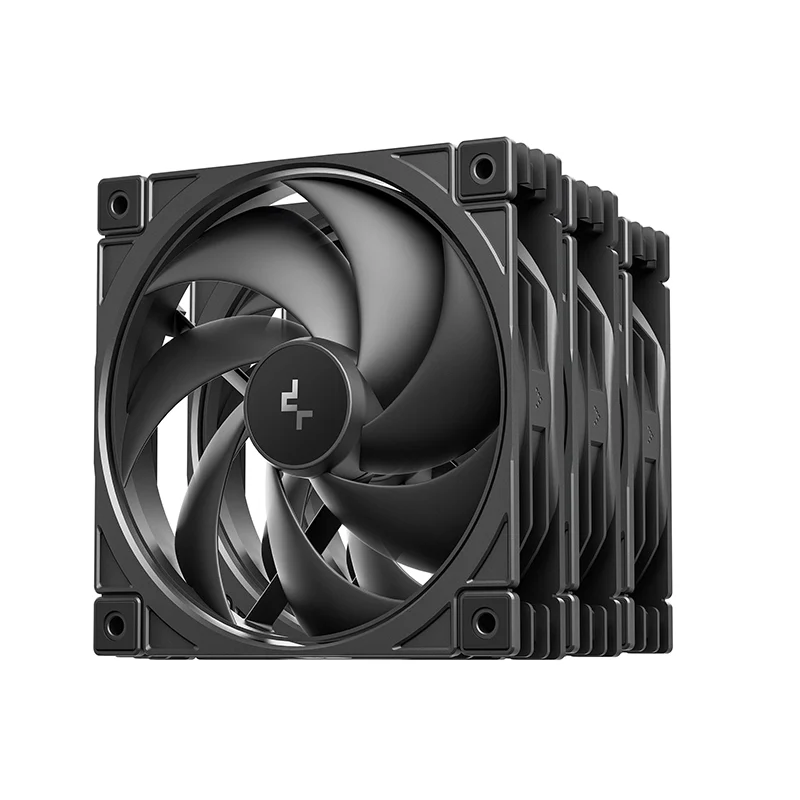

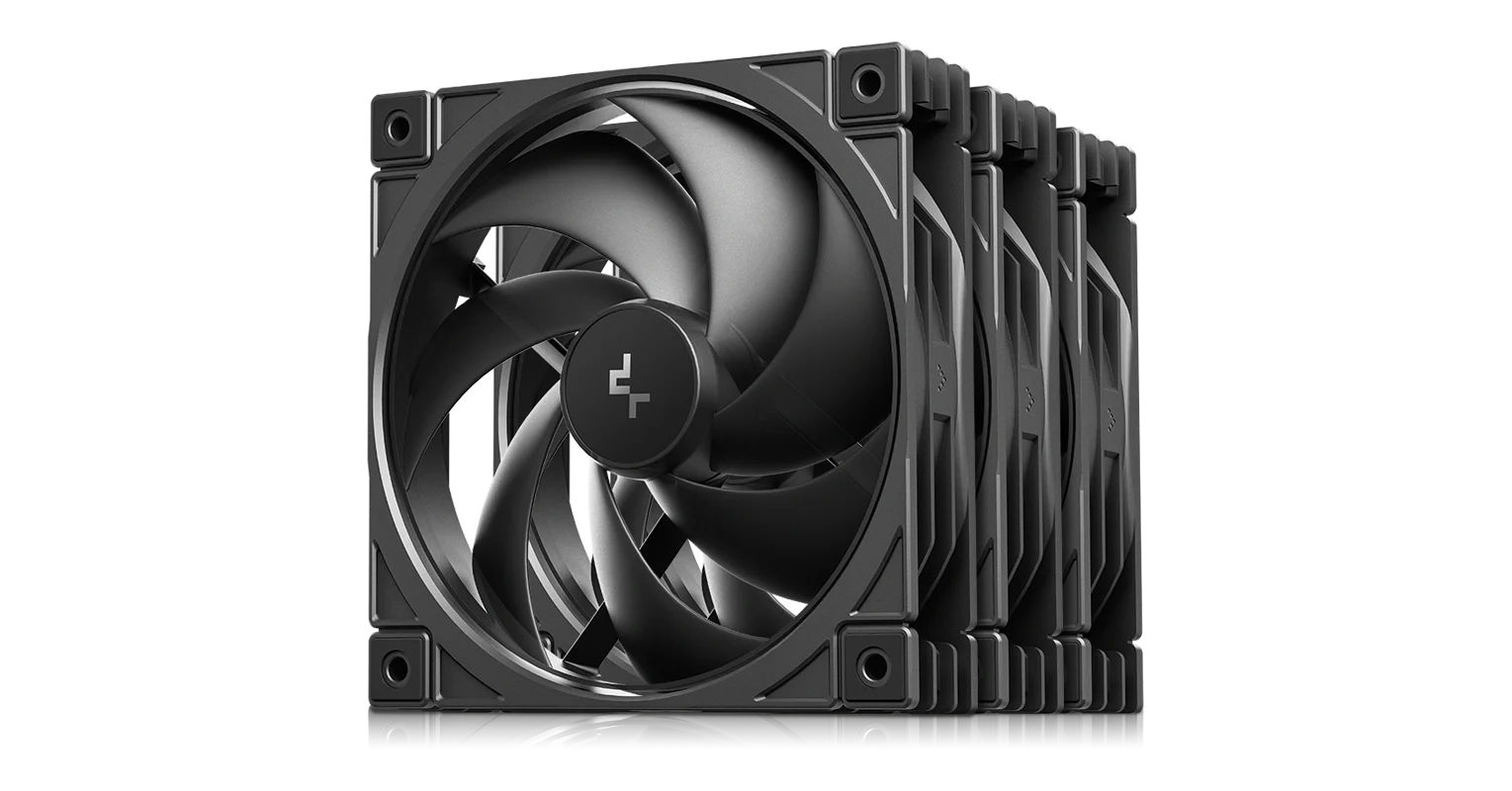

The new DeepCool FD12 V2 performance fans are the next evolution of the popular FD12 cooling fans. Revamped with a performance semi-integral fan blade design and tuned aerodynamic engineering ensuring power without the din. Three FD12 V2 fans are included in this package.
MODEL
FD12 V2 3IN1
SILENT STRENGTH
NEXT WAVE OF SEMI-INTEGRAL COOLING

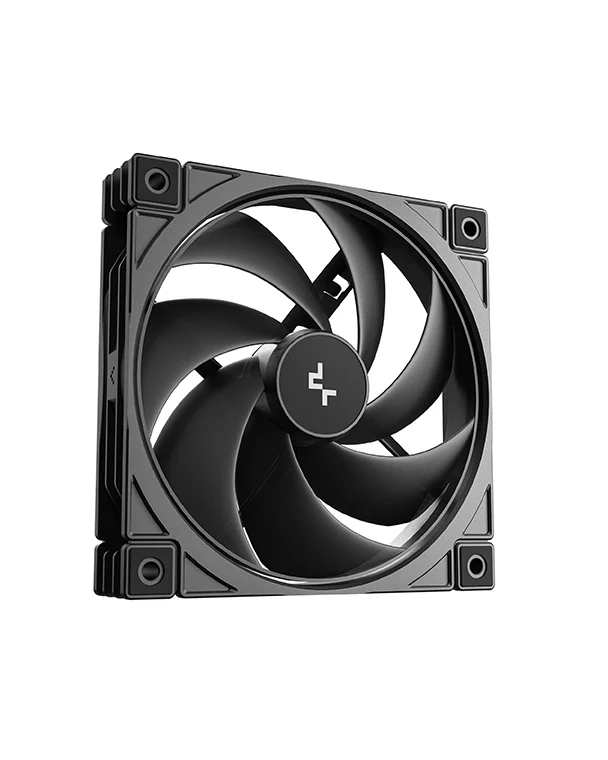

Optimized for performance and acoustics, the semi-integral blade structure for each of the FD V2 fans closes the blade-frame gap to reduce noise, boosts air pressure, and provides reinforced blade strength for better durability and less vibration.
ENGINEERED FOR ELITE PERFORMANCE
The FD12 V2 delivers extraordinary air pressure by reducing the central control area's dead zone, and significant increases in the system's performance. Its enlarged fan blades enhance airflow and static pressure, enabling the system to handle even the most demanding applications with ease.
COOLING YOU CAN TRUST
Equipped with a 3-Phase, 4-Pole, and 6-Slot motor and a long-life hydraulic bearing. The FD12 V2 PWM fans boast exceptional cooling specs while remaining relatively quiet.
500-2500 RPM ±10%
＜5% PWM (PWM Stop Duty Cycle)
＞10% PWM (PWM Start Duty Cycle)
Fan Speed
79.89 CFM
Fan Airflow
4.15 mmAq
Fan Air Pressure
≤35.66 dB(A)
Noise Level In Front
≤32.32 dB(A)
Noise Level On The Side
ENHANCED MATERIALS
By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile.
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
OUTSTANDING COVERAGE
The quality of these fans will last quite some time, but if anything arises, fear not, as all FD V2 series fans are backed by DeepCool's limited warranty for five full years.
Technical Spec
Fan Dimensions120×120×25 mm(L×W×H)
Net Weight411g
Fan Speed500~2500 RPM±10%
Fan Airflow79.89 CFM
Fan Air Pressure4.15 mmAq
PWM Stop Duty Cycle<5% PWM
PWM Start Duty Cycle>10% PWM
Noise level in front≤35.66 dB(A)
Noise level on the side≤32.32 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.4 A
Fan Power Consumption4.8 W
EAN6933412785392
P/NR-FD12V2-BKNPN3-G
Download
FD12 V2 3IN1 Manual.pdf
