FD12 WH-3 IN 1

SIMPLE AND CLEAN

NEXT WAVE OF DAISY CHAINS

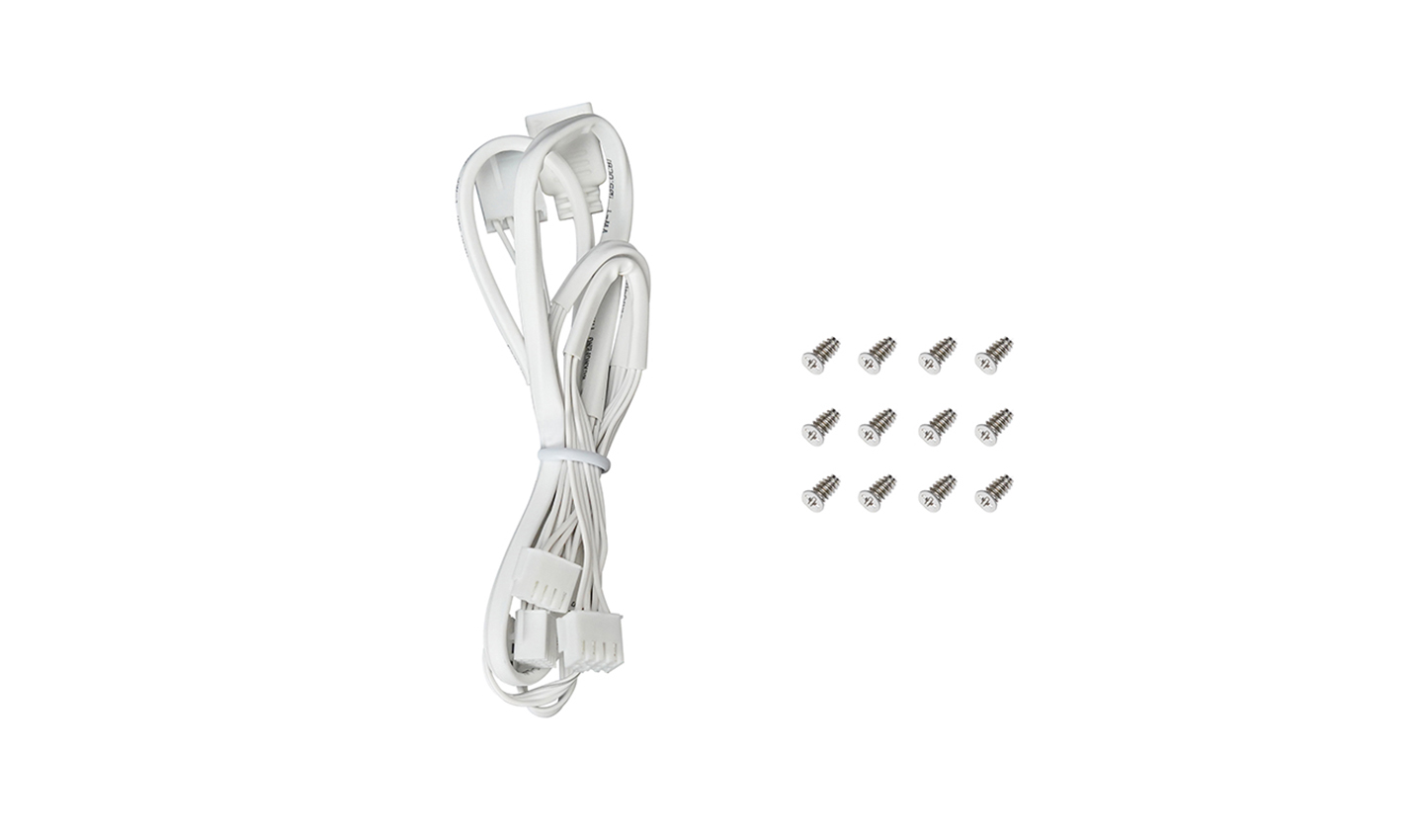

Outfitted with an easy-to-manage 8-pin cable that can be chained to each of the FD fans, this greatly reduces the mess of fan wires that need to be managed.

SECURE CONNECTION

The 8-pin connectors in the fan frames have been greatly improved to utilize a block-shaped connection rather than the straight line found with the FC series. Quick, secure, and simple.

COOLING YOU CAN TRUST

Equipped with a long-life hydraulic bearing. The FD12 WH PWM fans boast exceptional cooling specs while remaining relatively quiet.

400-2050 RPM±10%

Fan Speed

64.2 CFM

Air Volume

2.49 mmAq

Static Pressure

≤27.6 dB(A)

Fan Noise

ENHANCED MATERIALS

By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile.

REDUCED VIBRATIONS

Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

FANS YOU CAN DEPEND ON

The quality of these fans will last quite some time, but if anything arises, fear not, as all FD series fans are backed by DeepCool's limited warranty for three full years.

Technical Spec

Fan Dimensions	120×120×25 mm(L×W×H)
Net Weight	525g
Fan Speed	400~2050 RPM±10%
Fan Airflow	64.2 CFM
Fan Air Pressure	2.49 mmAq
Fan Noise	≤27.6 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.13A
Fan Power Consumption	1.56 W
EAN	6933412710943
P/N	R-FD12-WHNPN3-G

Download

FD12 WH-3 IN 1 Manual.pdf
