FD14-3 IN 1

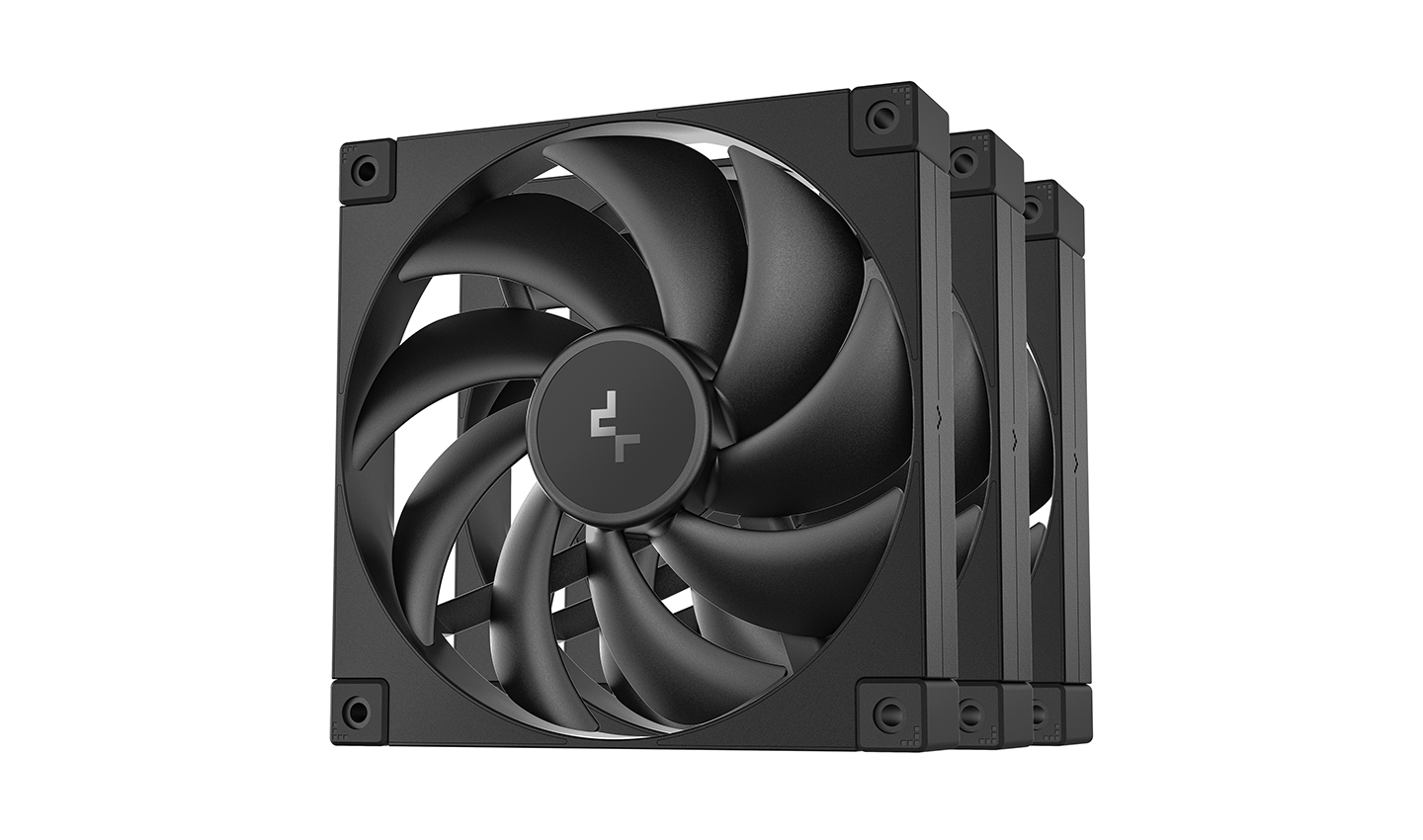

The new DeepCool FD14 performance fans are the next evolution of the popular FK120 cooling fans, but enlarged for quiet performance and to add compatibility to hardware that supports 140mm fans. Revamped with a clean daisy chaincable and secure connectors, as well as a more durable and cleaner-looking frame. This package includes three FD14 performance fans.

COLOR

black

MODEL

FD14-3 IN 1

SIMPLE AND CLEAN

NEXT WAVE OF DAISY CHAINS

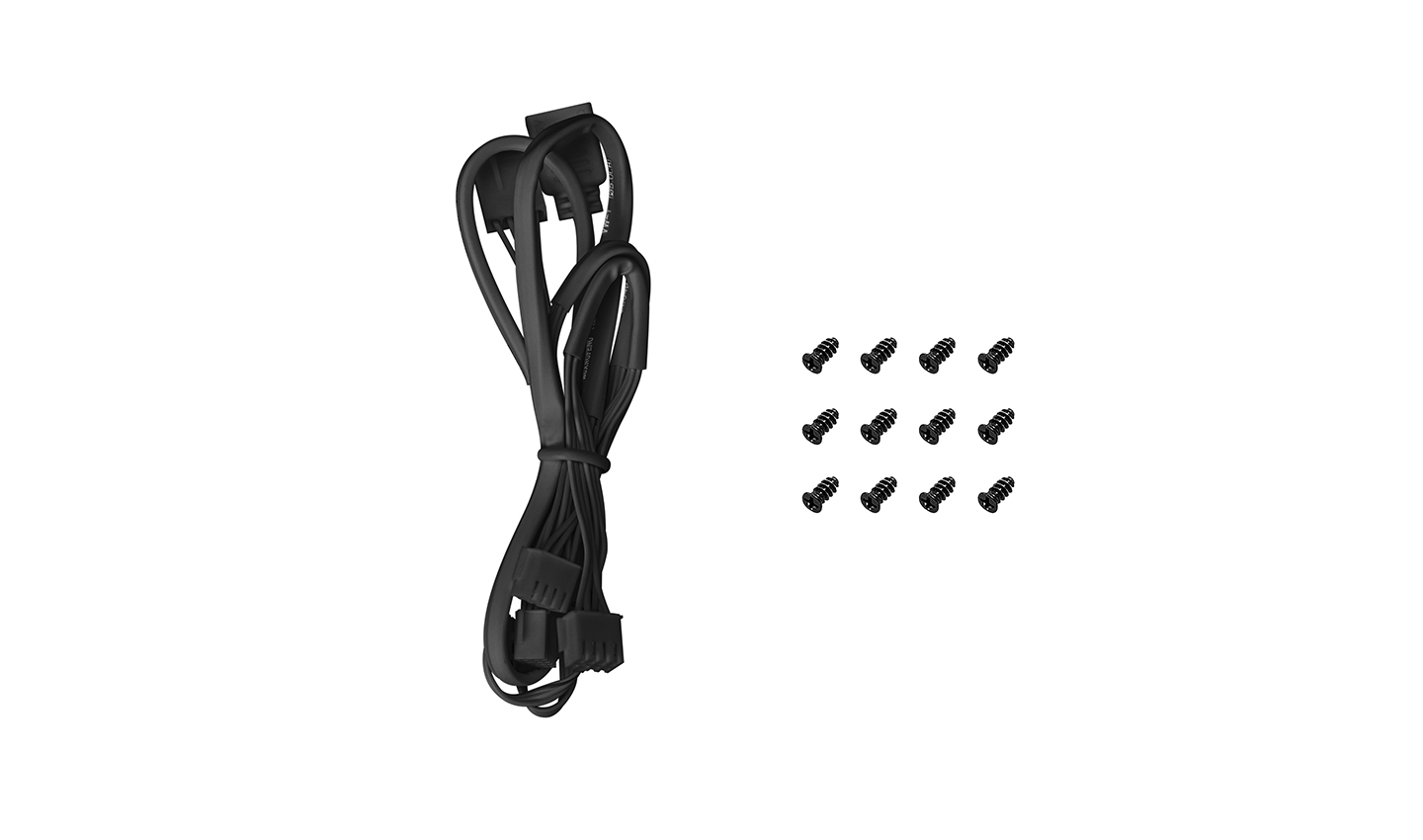

Outfitted with an easy-to-manage 8-pin cable that can be chained to each of the FD fans, this greatly reduces the mess of fan wires that need to be managed.

SECURE CONNECTION

The 8-pin connectors in the fan frames have been greatly improved to utilize a block-shaped connection rather than the straight line found with the FC series. Quick, secure, and simple.

COOLING YOU CAN TRUST

Equipped with a long-life hydraulic bearing. The FD14 PWM fans boast exceptional cooling specs while remaining relatively quiet.

400-1650 RPM±10%

Fan Speed

84.81 CFM

Air Volume

1.97 mmAq

Static Pressure

≤25.6 dB(A)

Fan Noise

ENHANCED MATERIALS

By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile.

REDUCED VIBRATIONS

Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

FANS YOU CAN DEPEND ON

The quality of these fans will last quite some time, but if anything arises, fear not, as all FD series fans are backed by DeepCool's limited warranty for three full years.

Technical Spec

Fan Dimensions	140×140×25 mm(L×W×H)
Net Weight	627g
Fan Speed	400~1650 RPM±10%
Fan Airflow	84.81 CFM
Fan Air Pressure	1.97 mmAq
Fan Noise	≤25.6 dB(A)
Fan Connector	4-pin PWM

Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.17A
Fan Power Consumption	2.04 W
EAN	6933412711001
P/N	R-FD14-BKNPN3-G
