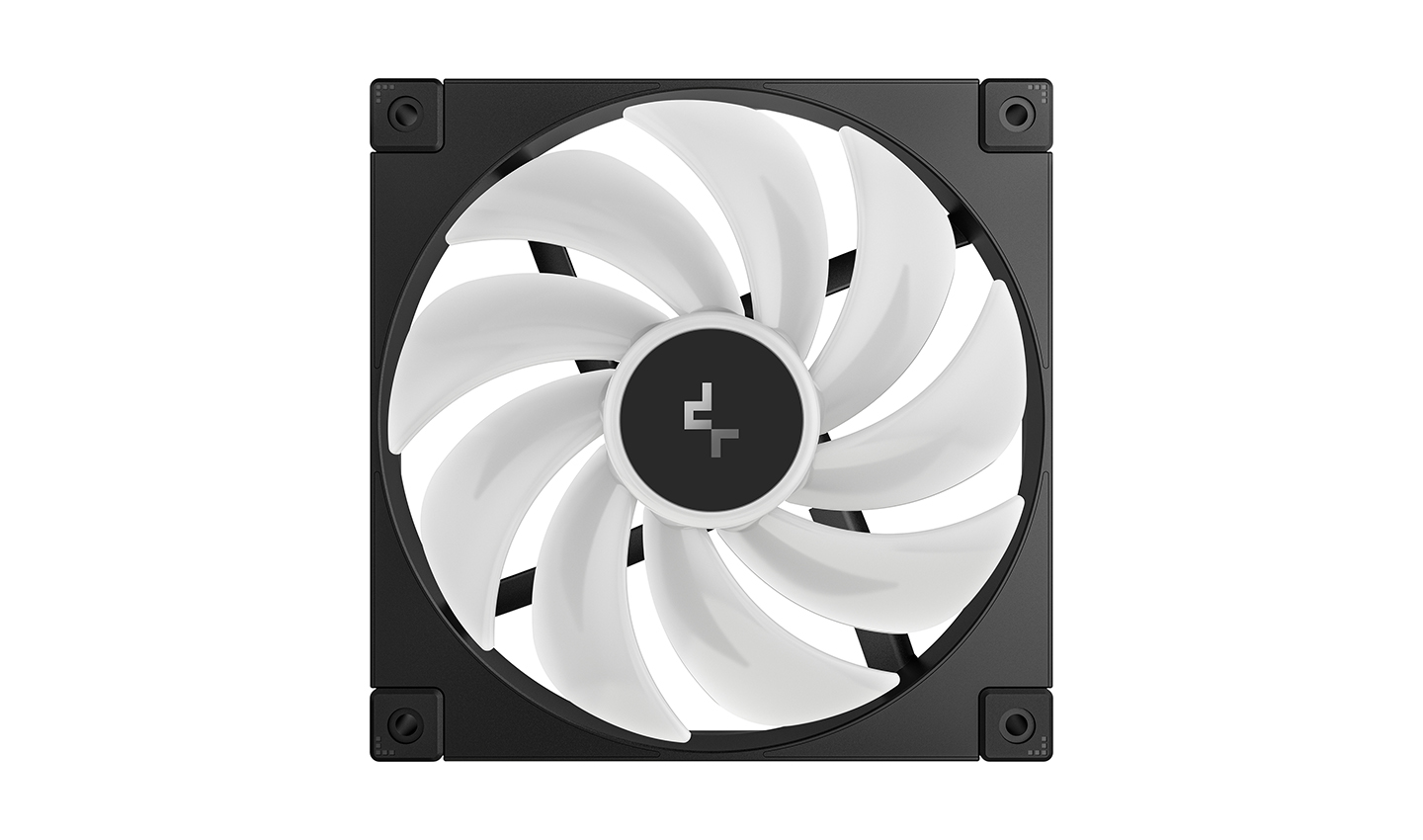

FD14 ARGB

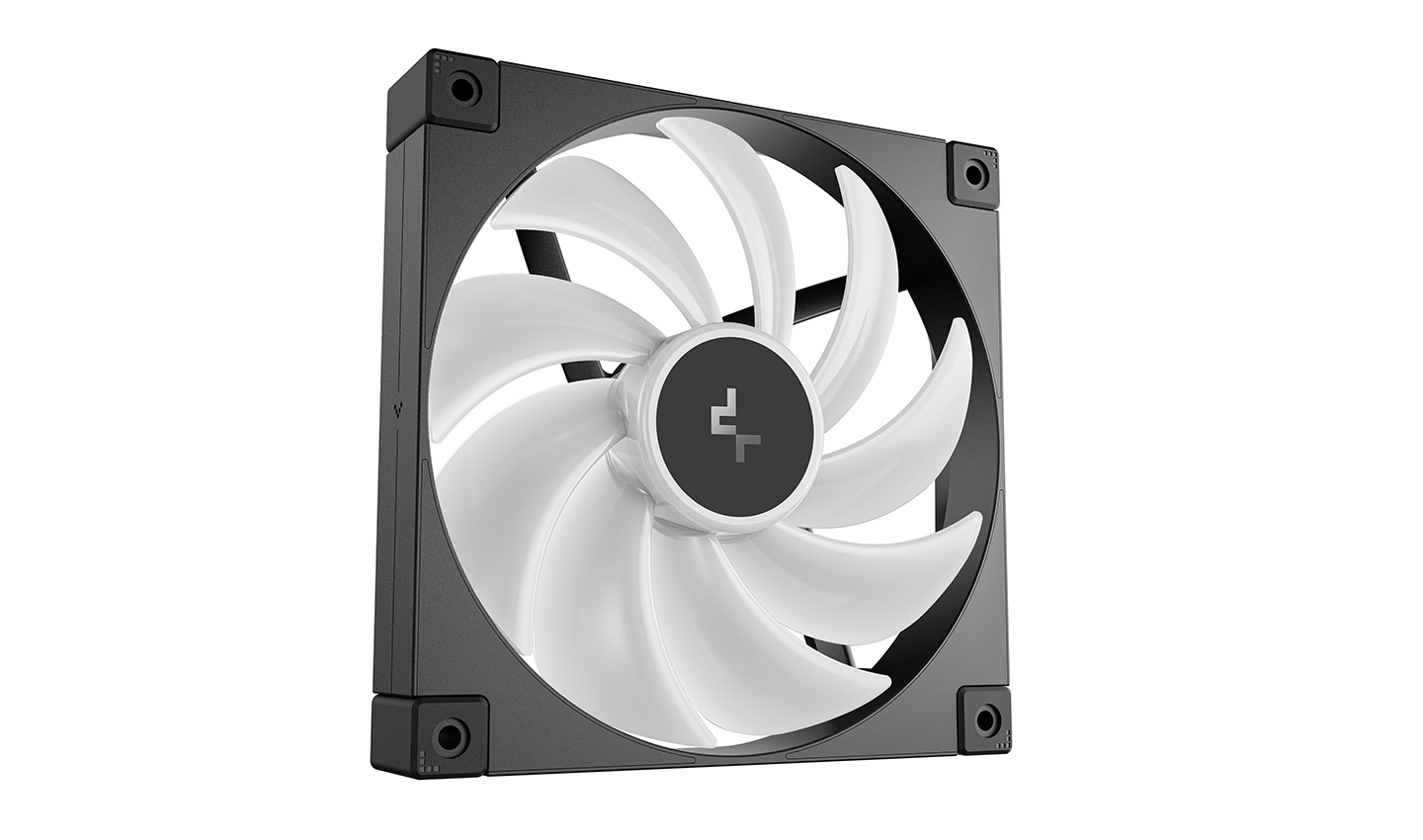

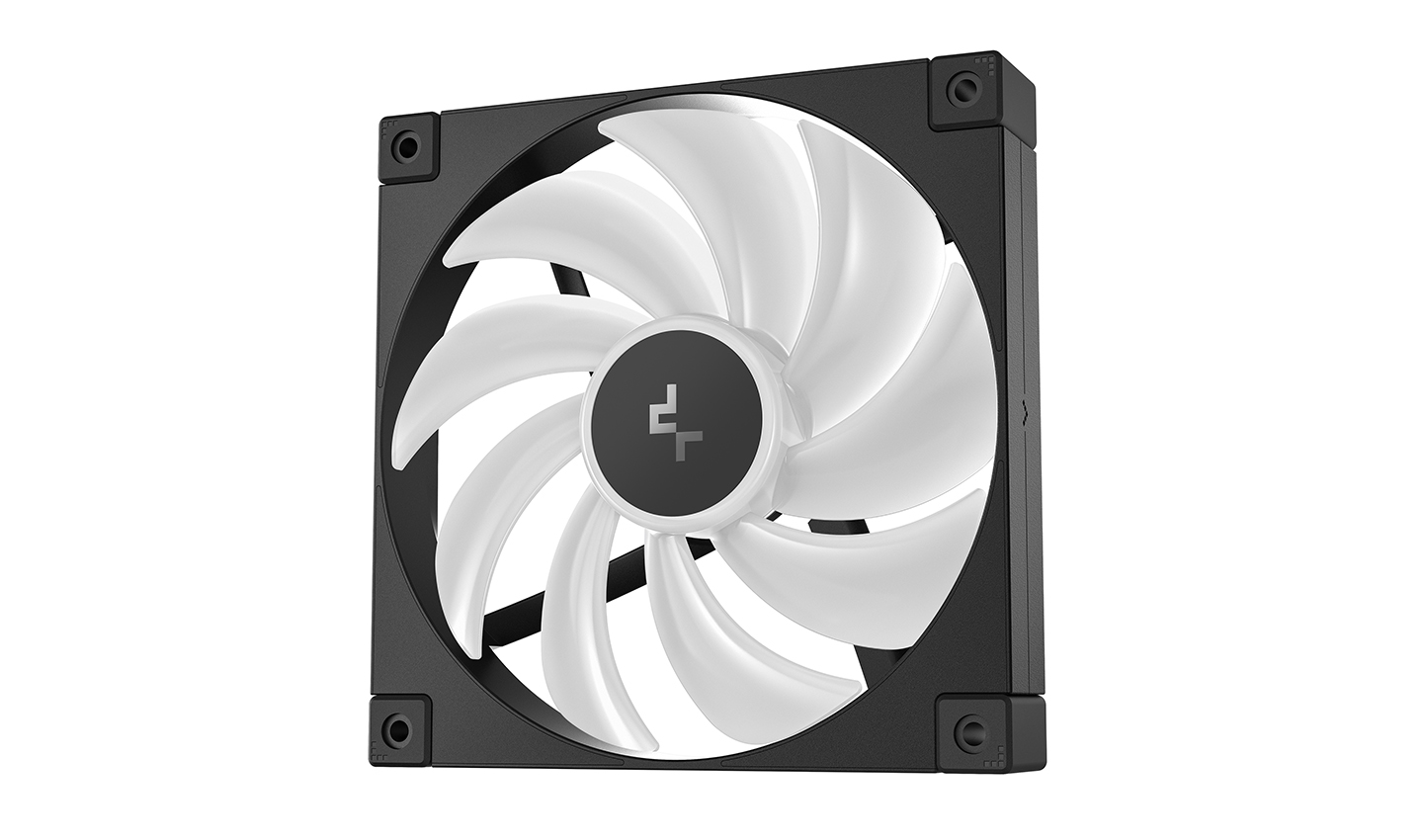

The new DeepCool FD14 ARGB fans are the next evolution of the popular FC120 addressable RGB fans, but enlarged for quiet performance and to add compatibility to hardware that supports 140mm fans. Revamped with a cleaner daisy chain cable and secure connectors, as well as a more durable and cleaner-looking frame.
COLOR
black
MODEL
FD14 ARGB
SIMPLE AND CLEAN
NEXT WAVE OF DAISY CHAINS

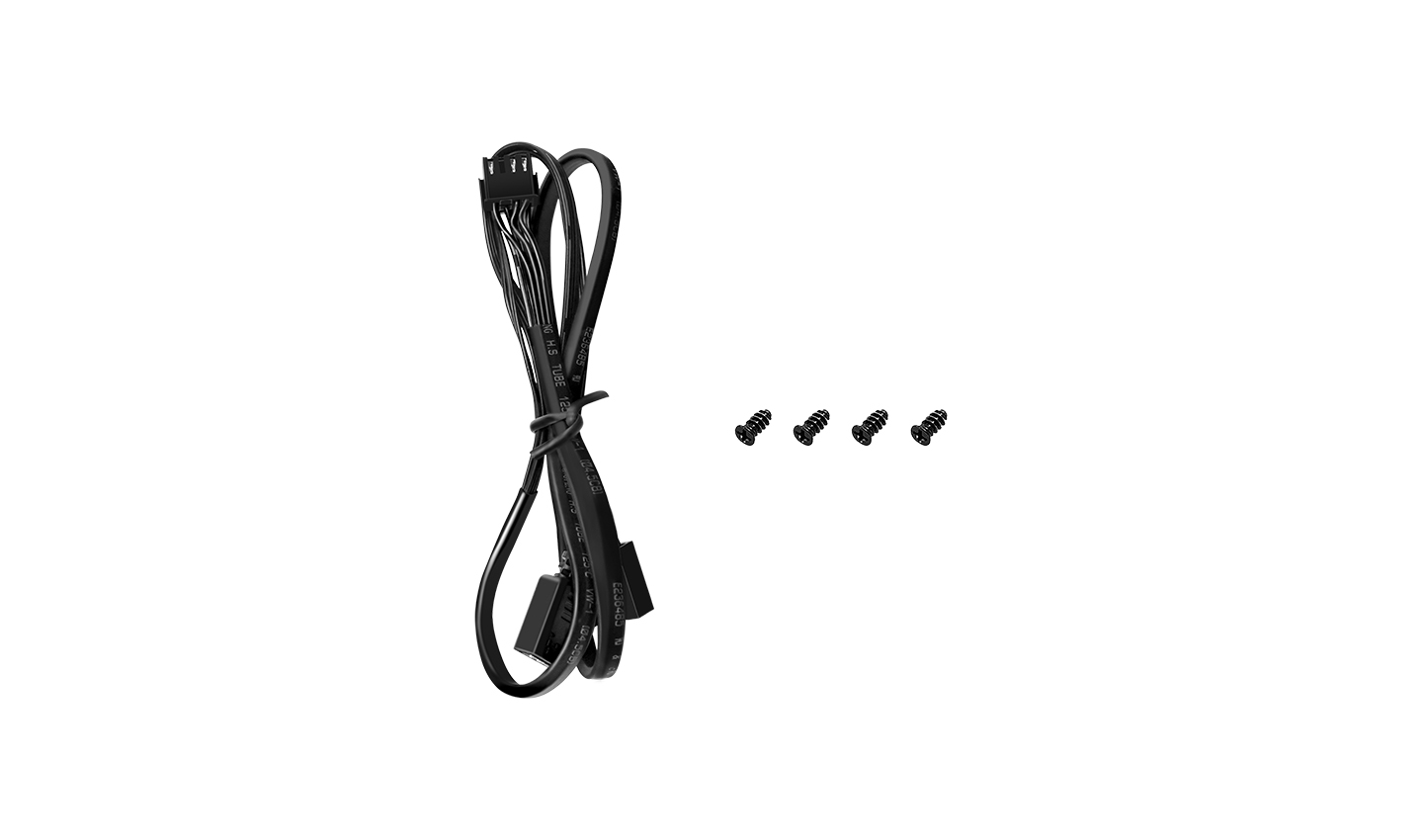

Outfitted with an easy-to-manage 8-pin cable that can be chained to each of the FD fans, this greatly reduces the mess of fan wires that need to be managed.
SECURE CONNECTION
The 8-pin connectors in the fan frames have been greatly improved to utilize a block-shaped connection rather than the straight line found with the FC series. Quick, secure, and simple.
VIVID ARGB LIGHTING

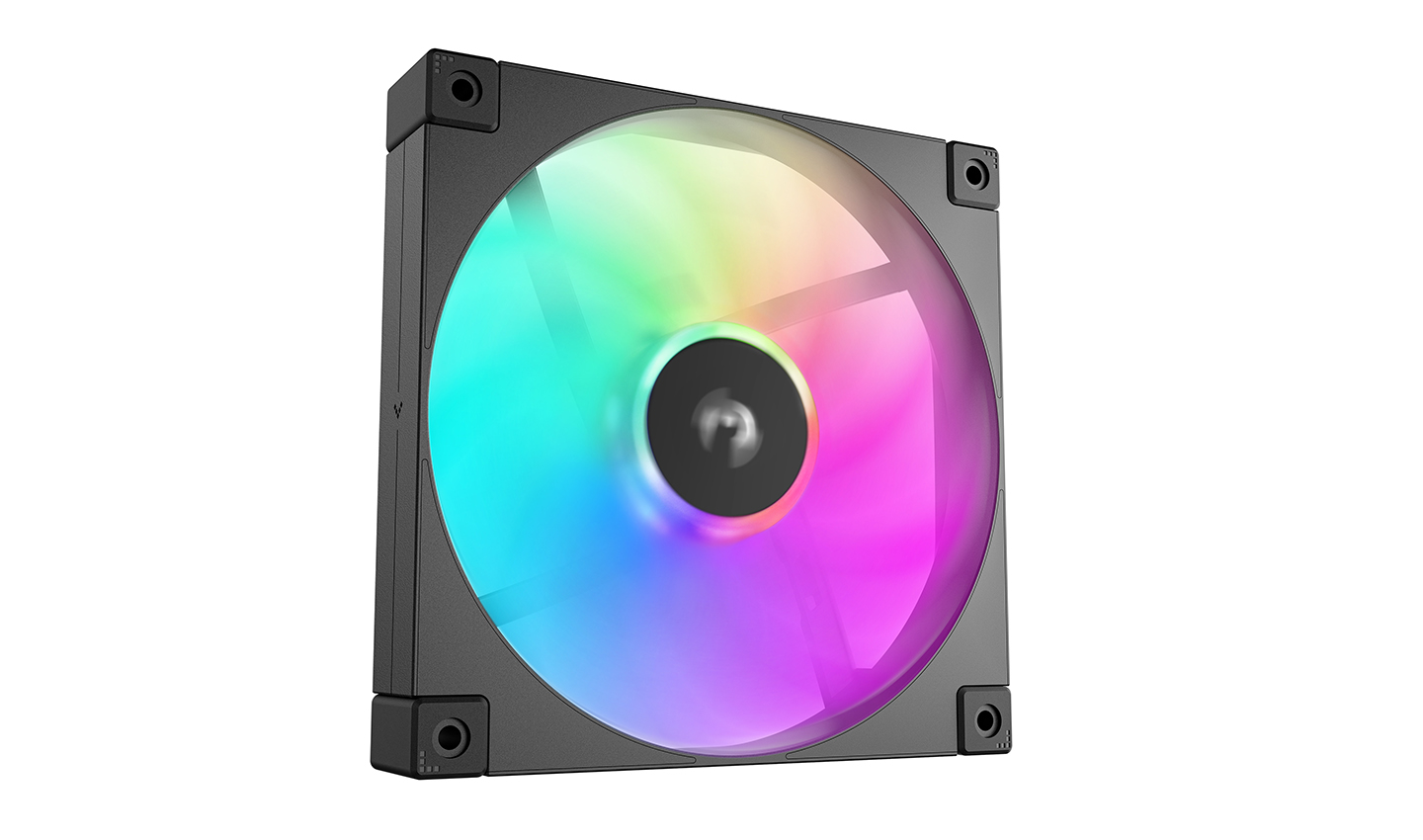

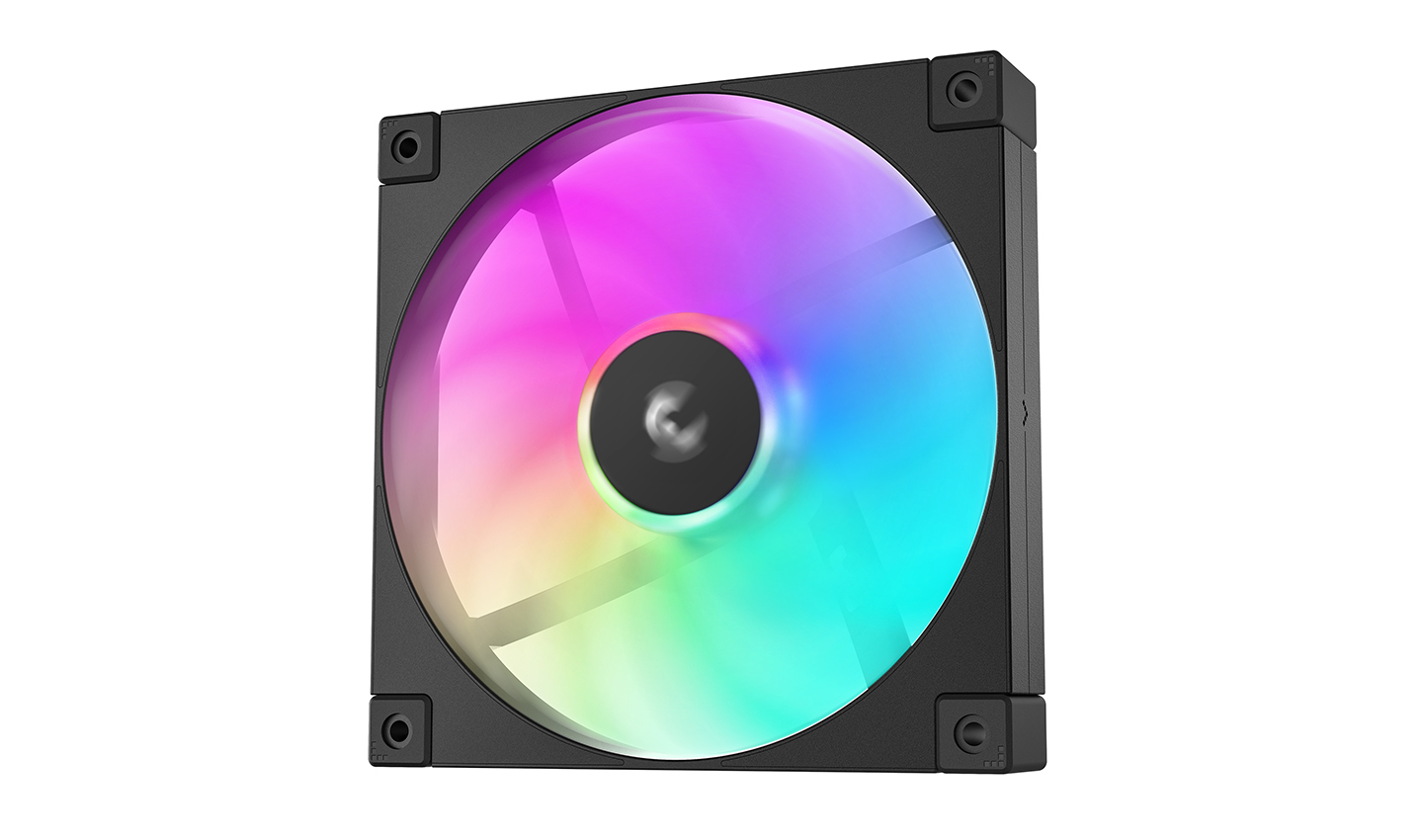

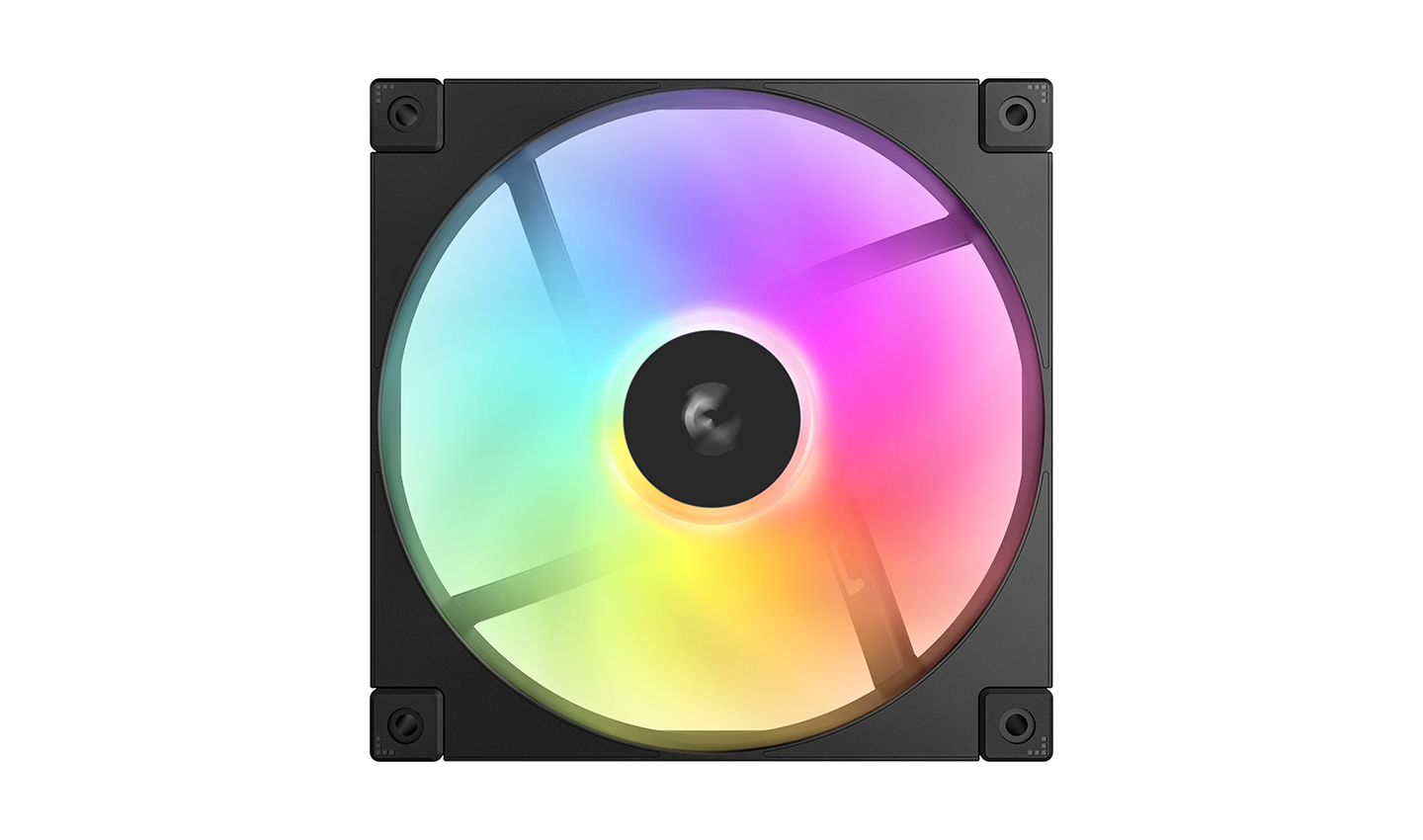

Six bright LEDs surround the center hub of each FD ARGB fan and are easily coordinated with your entire system through compatible ARGB headers on your motherboard. With the update to ARGB Gen 2, these FD ARGB fans will have more control over your lighting than any previous DeepCool ARGB fans.
COOLING YOU CAN TRUST
Equipped with a long-life hydraulic bearing. The FD14 ARGB PWM fans boast exceptional cooling specs while remaining relatively quiet.
400-1650 RPM±10%
Fan Speed
82.53 CFM
Air Volume
1.96 mmAq
Static Pressure
≤25.2 dB(A)
Fan Noise
ENHANCED MATERIALS
By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile.
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
FANS YOU CAN DEPEND ON
The quality of these fans will last quite some time, but if anything arises, fear not, as all FD series fans are backed by DeepCool's limited warranty for three full years.
Technical Spec

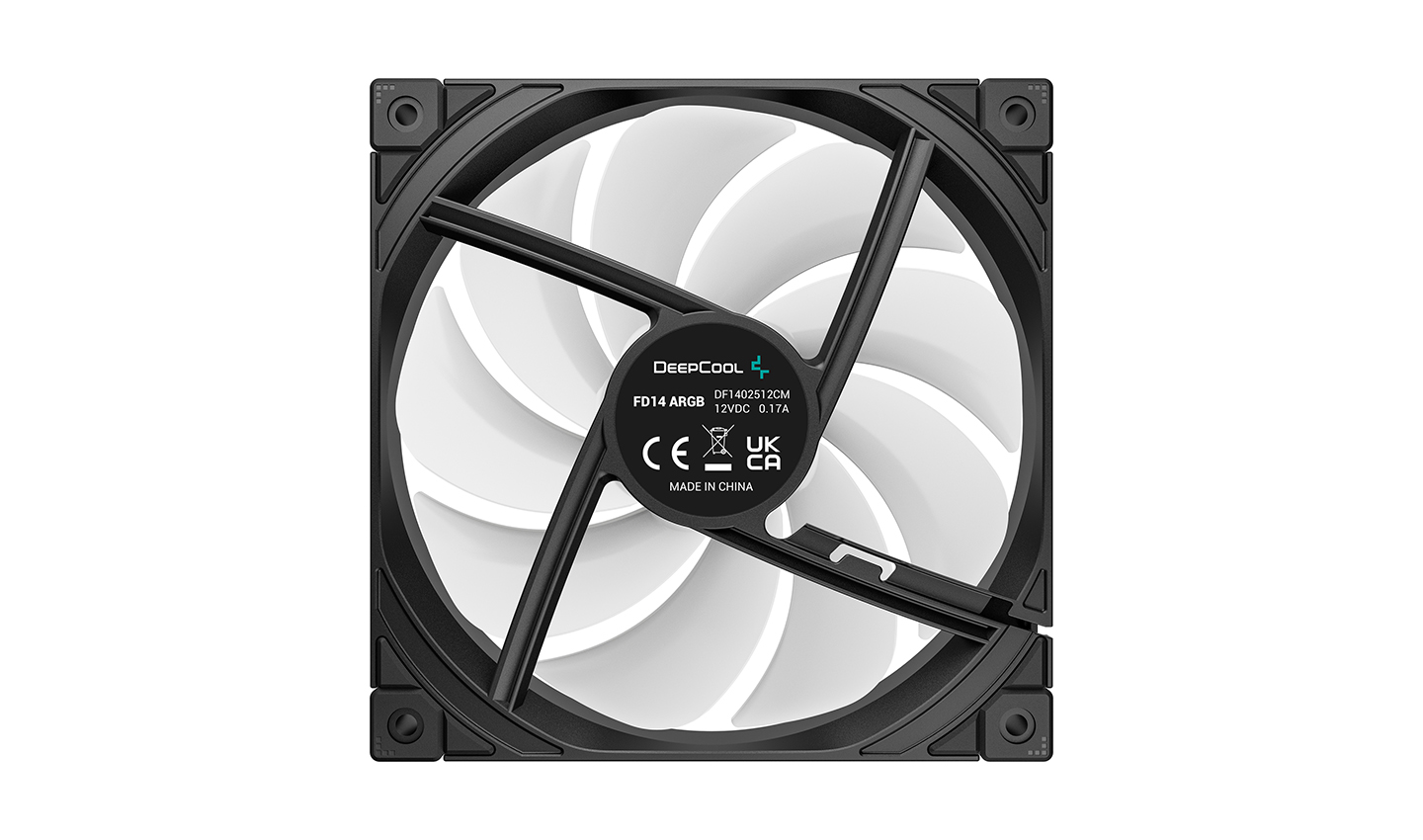

Fan Dimensions140×140×25 mm(L×W×H)
Net Weight196g
Fan Speed400~1650 RPM±10%
Fan Airflow82.53 CFM
Fan Air Pressure1.96 mmAq
Fan Noise≤25.2 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.17A
Fan Power Consumption2.04 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5V DC
LED Power Consumption1.05W
EAN6933412710950
P/NR-FD14-BKAPN1-G
Download
FD14 ARGB Manual.pdf
