FL12R

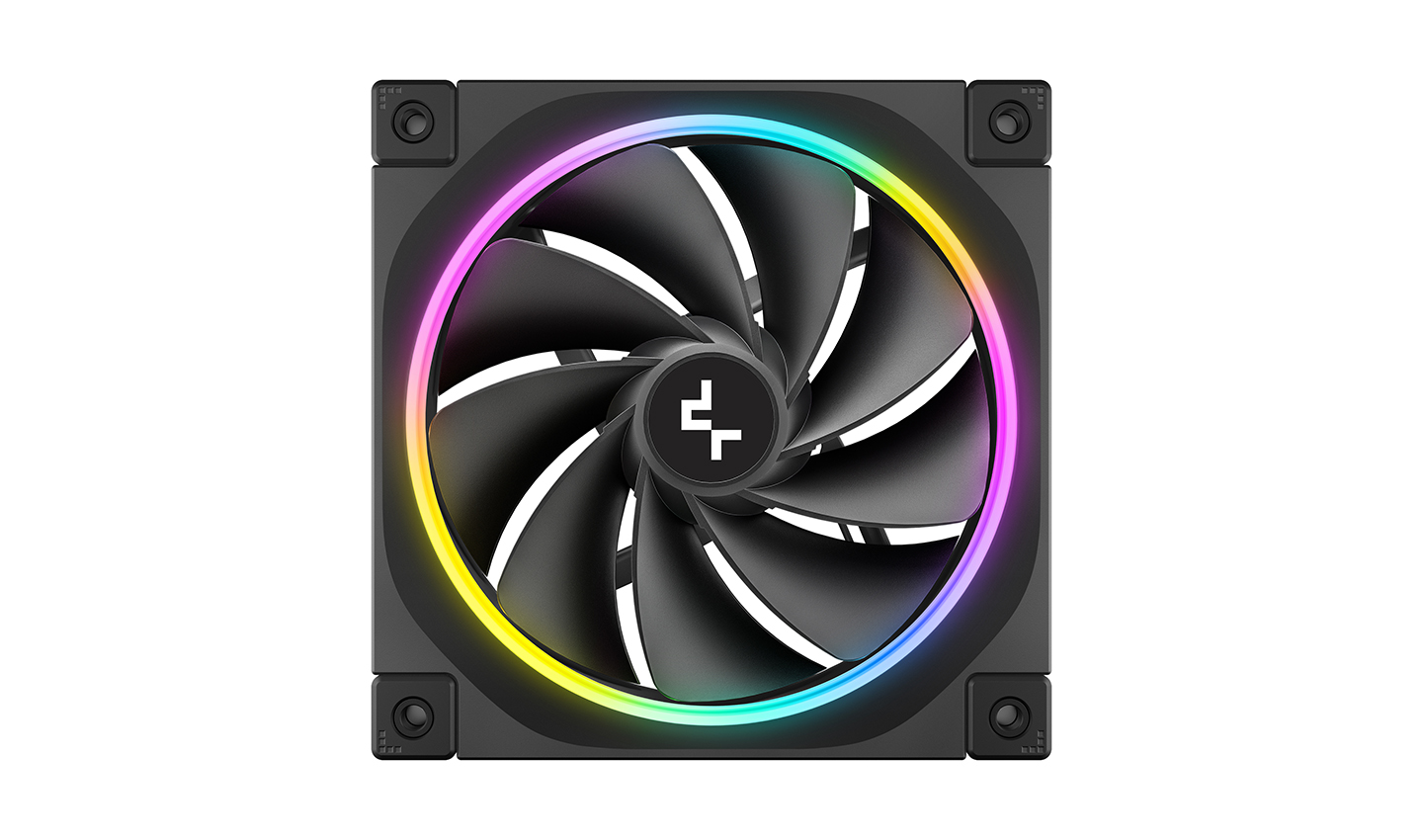

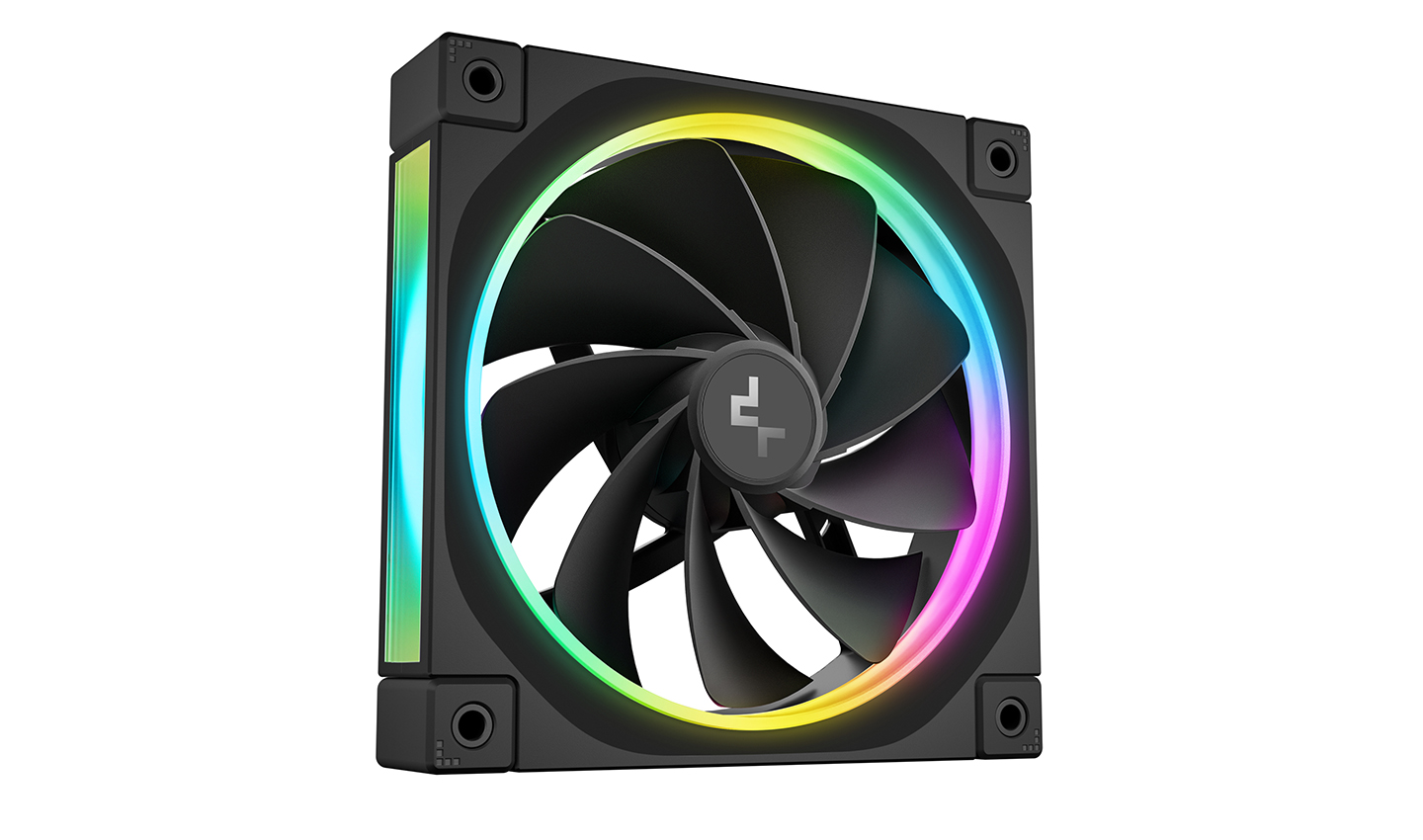

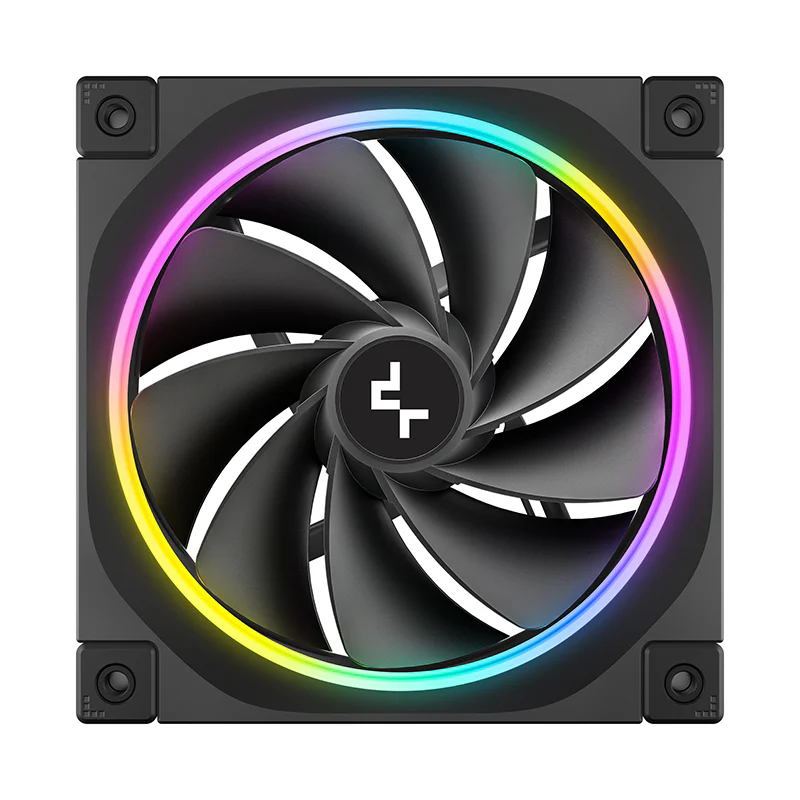

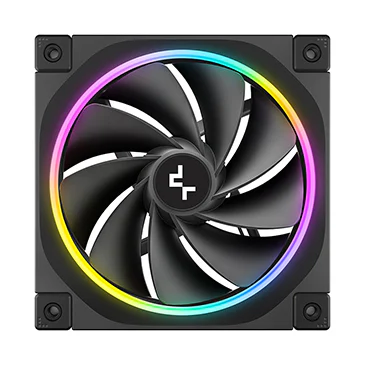

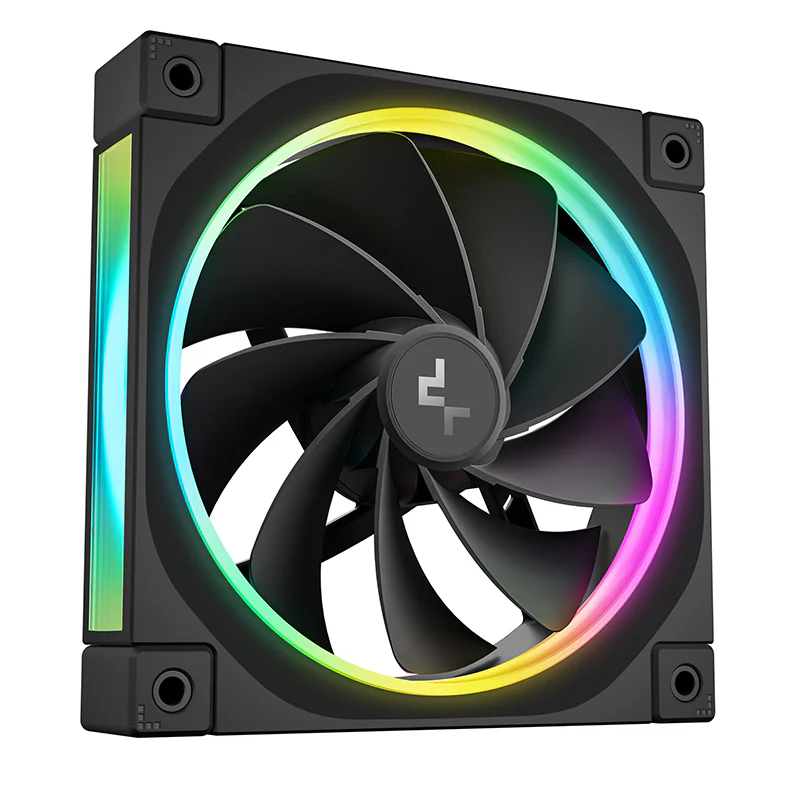

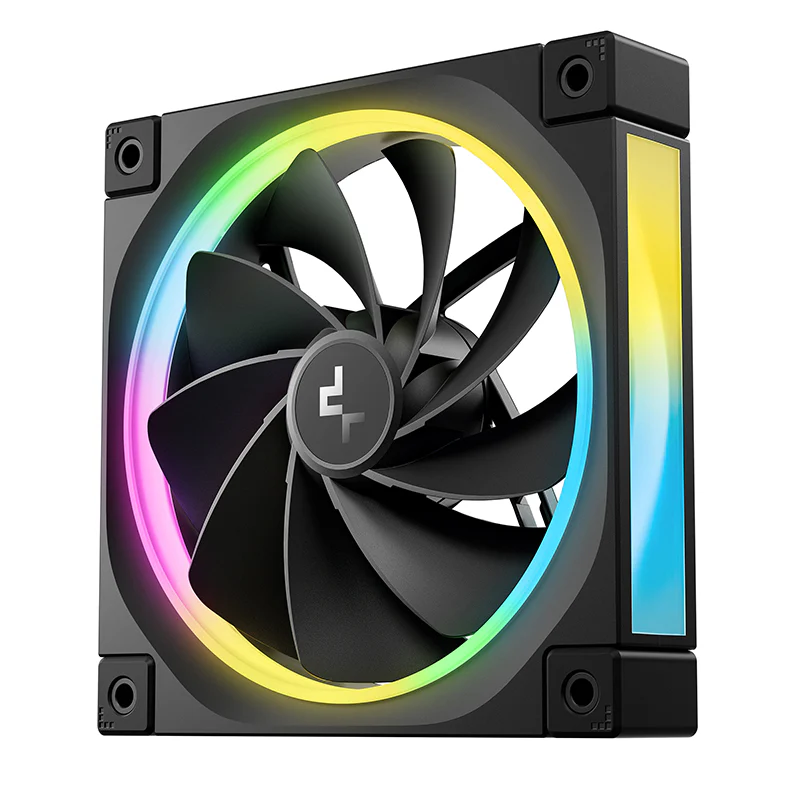

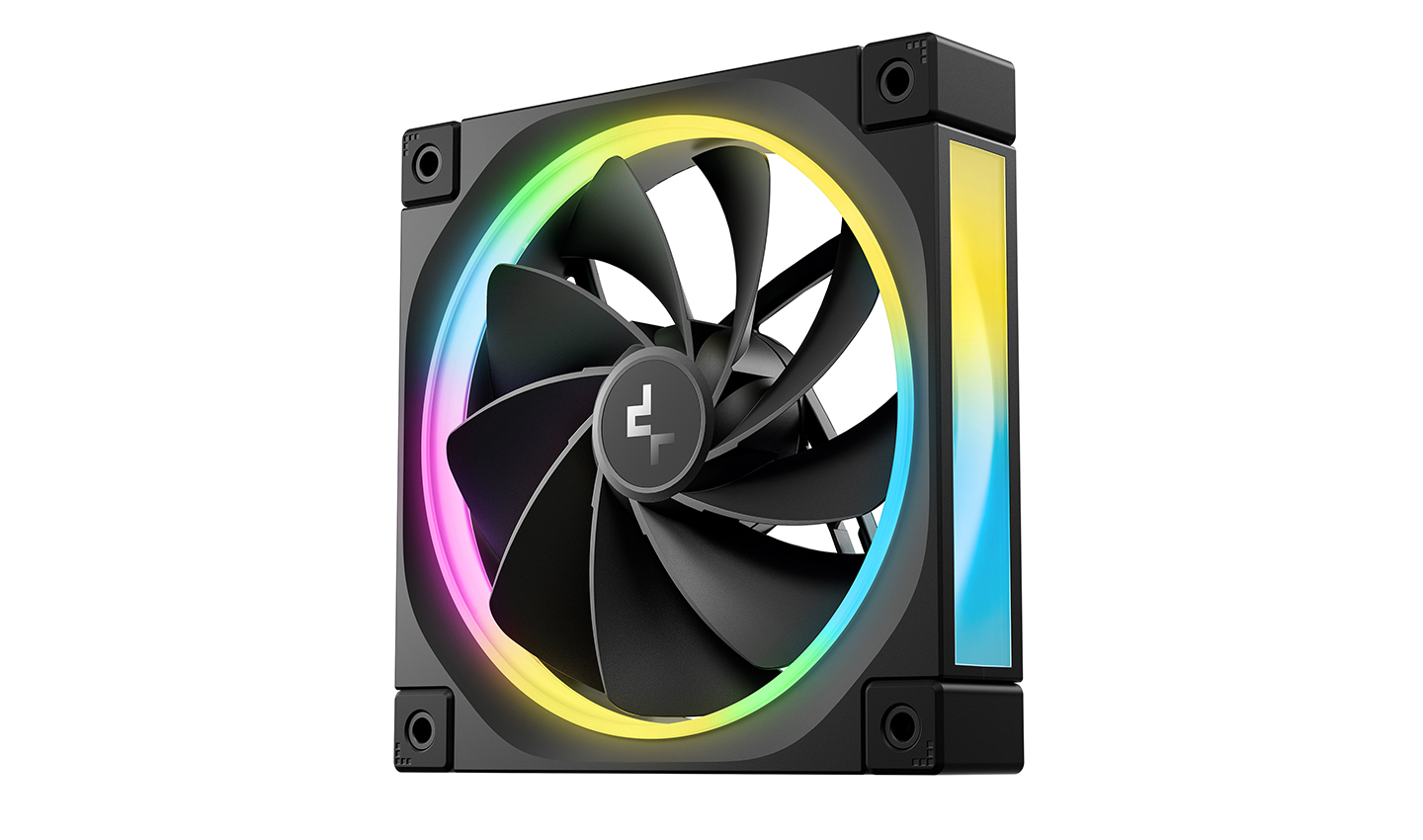

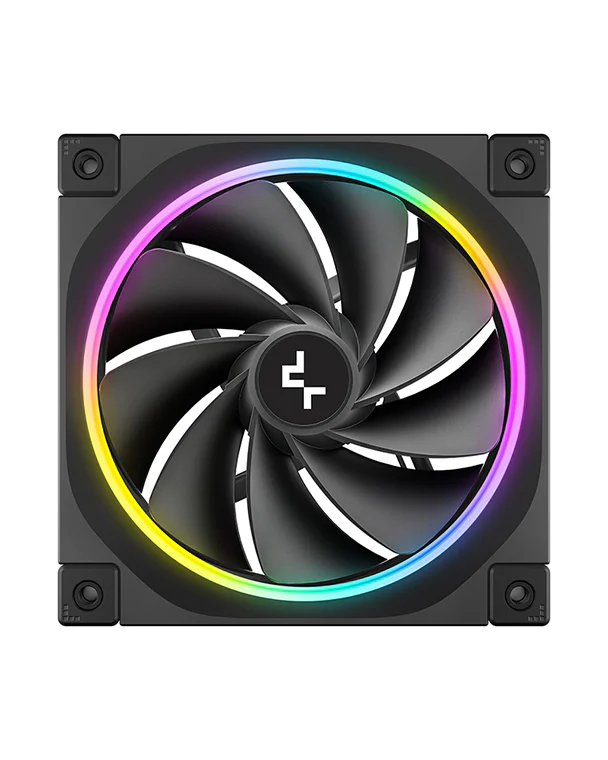

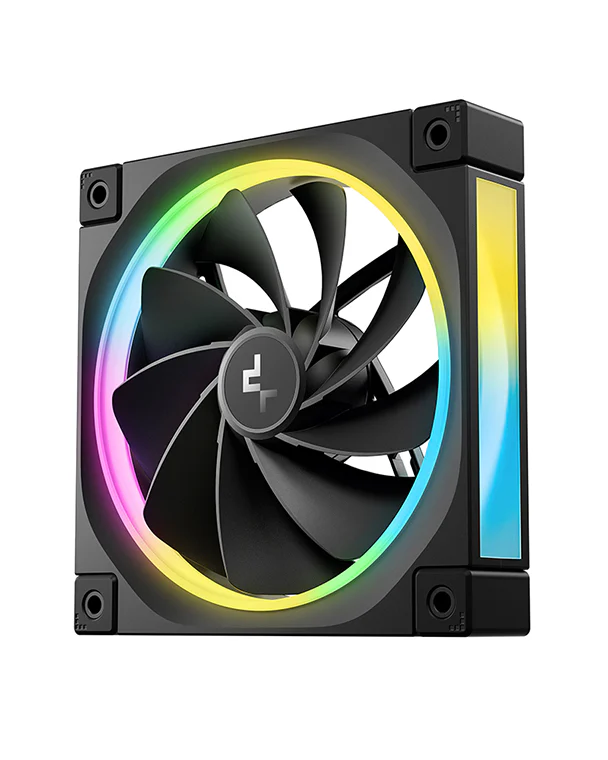

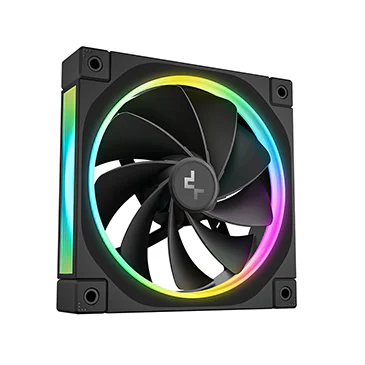

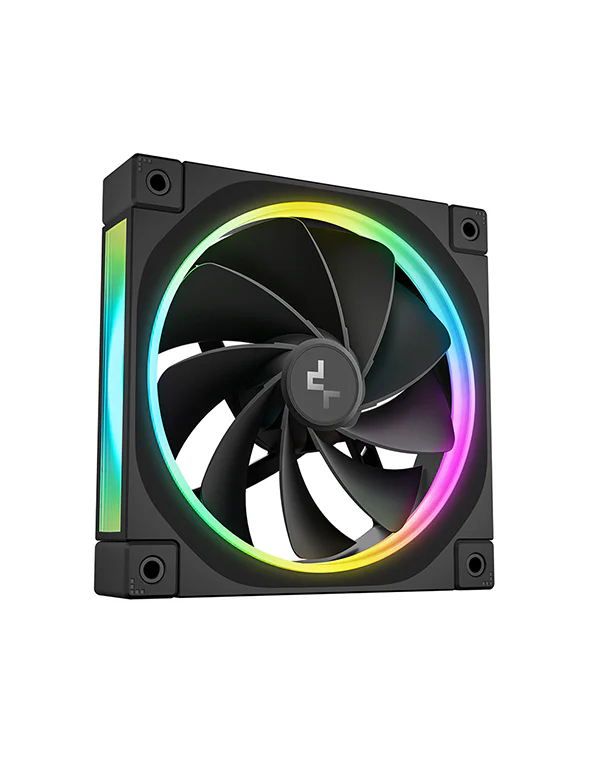

A LUMINOUS HALO

FL12R integrates a total of 36 ARGB Gen2 LEDs, with the halo ring elevating its design aesthetics to a whole new level.

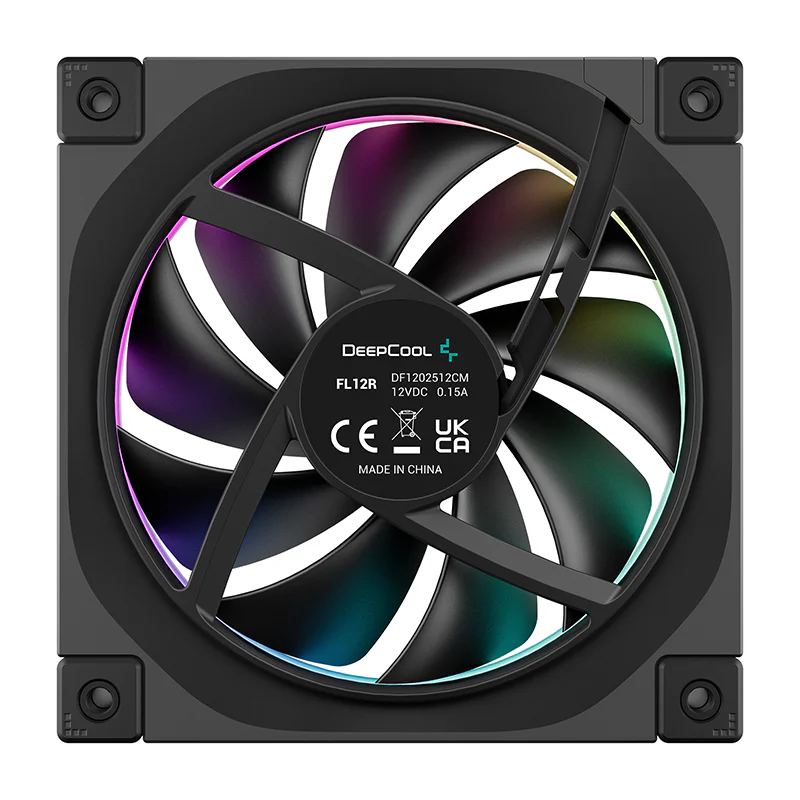

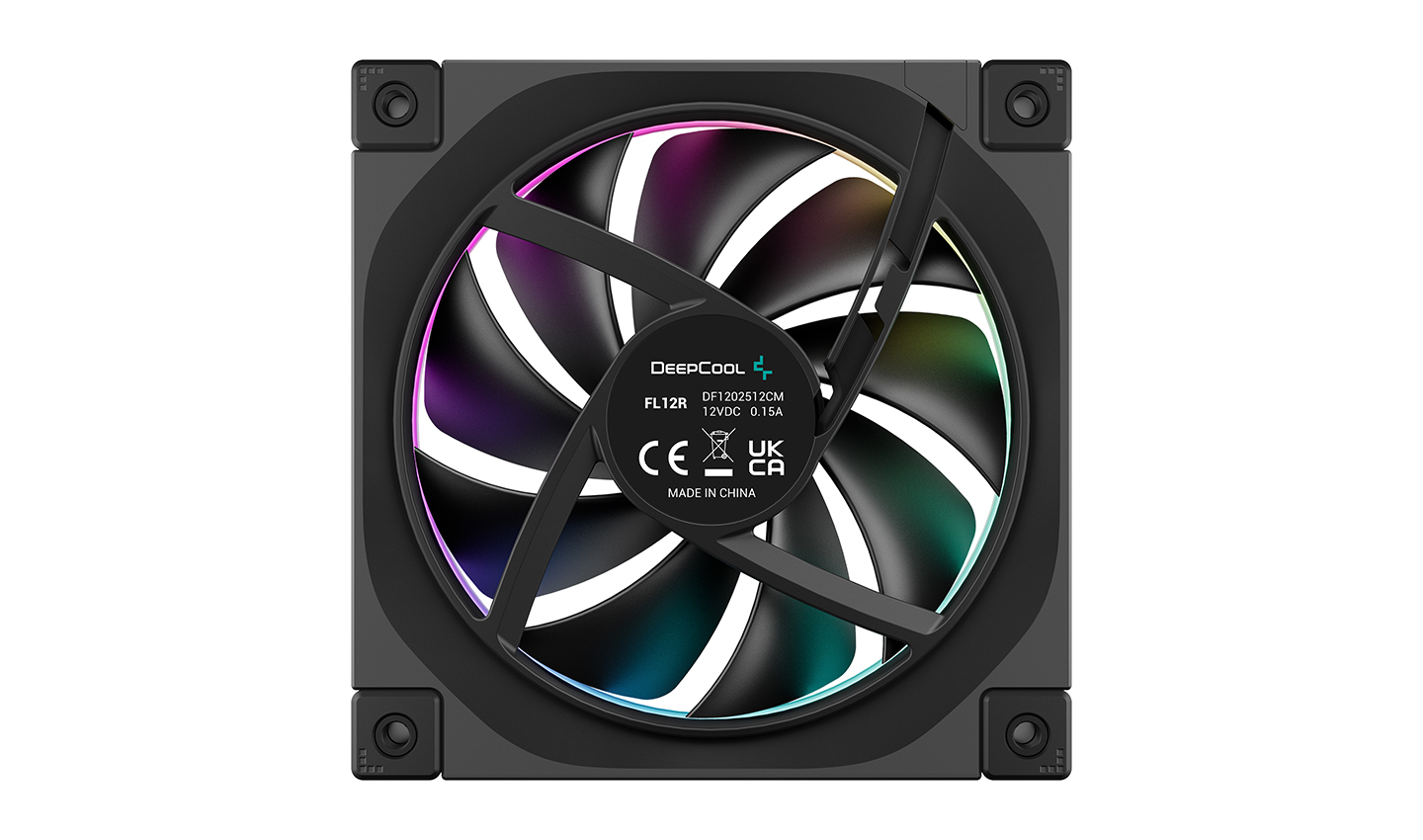

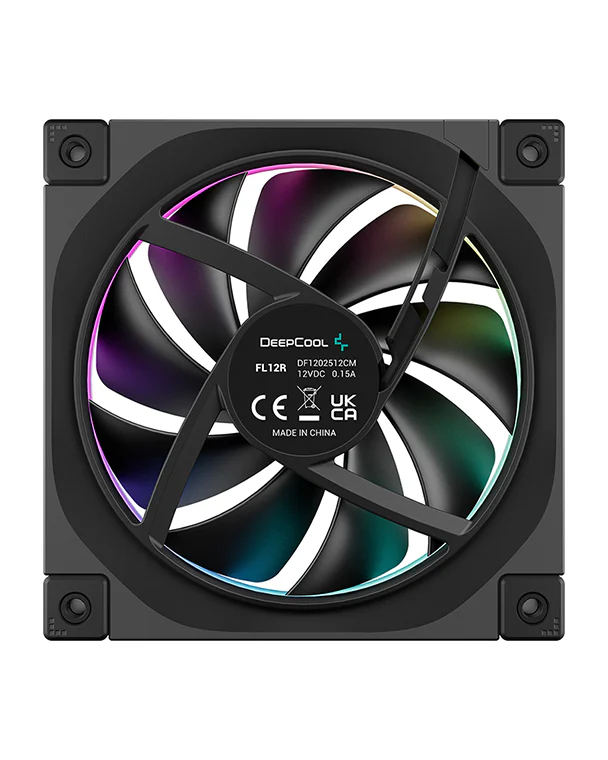

REVERSE FAN BLADE

Say goodbye to the “cross” on the other side - now you can use the fan as an intake fan and enjoy uninterrupted RGB fan look on both intake and exhaust.

UNCOMPROMISED PERFORMANCE

Equipped with a long-life fluid dynamic bearing. The FL12R PWM fans boast exceptional cooling specs while remaining relatively quiet.

500-2150 RPM±10%

55 CFM

2.29 mmAq

≤35 dB(A)

DURABLE MATERIALS

The entire structure and dynamic balance are further strengthened by using an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades.

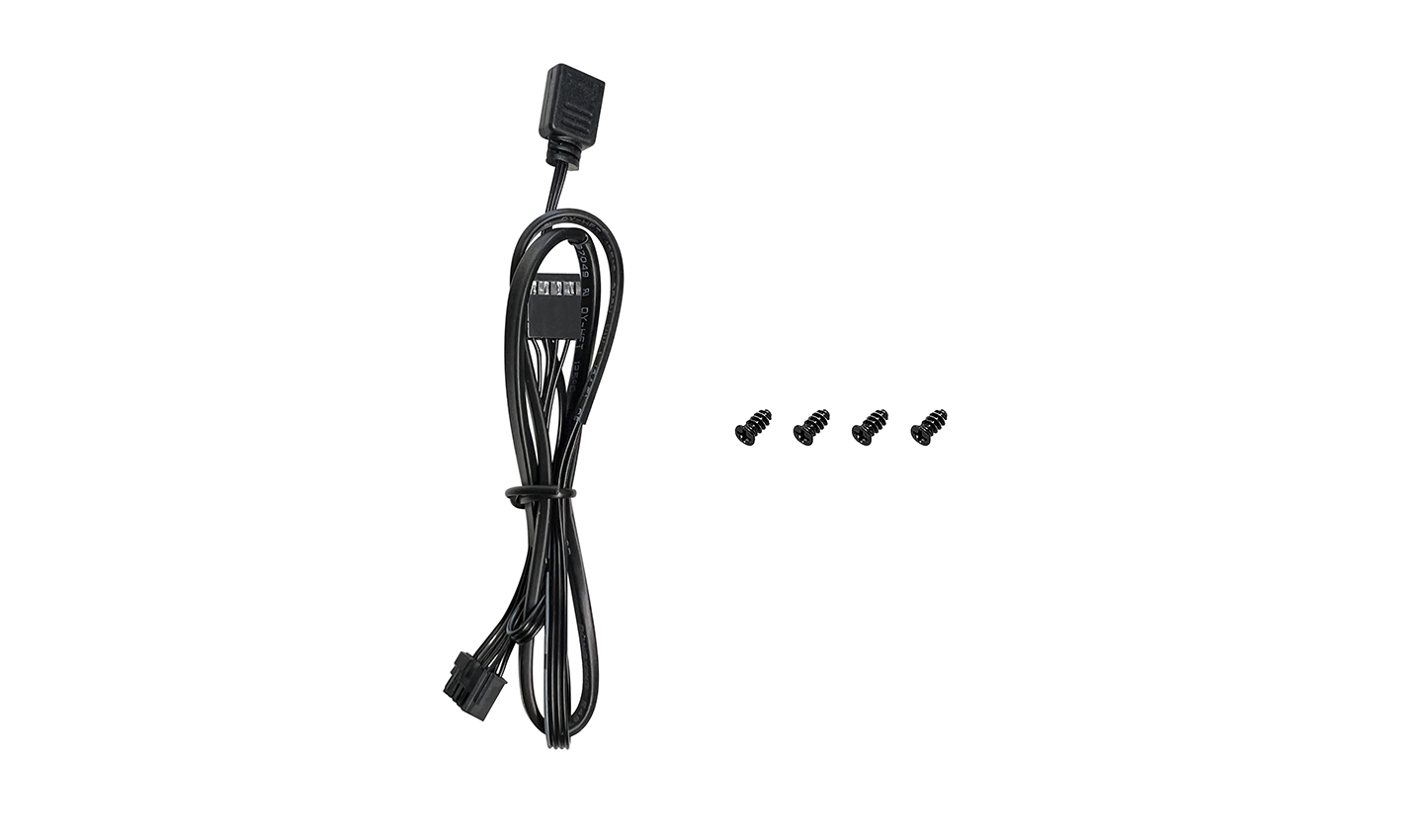

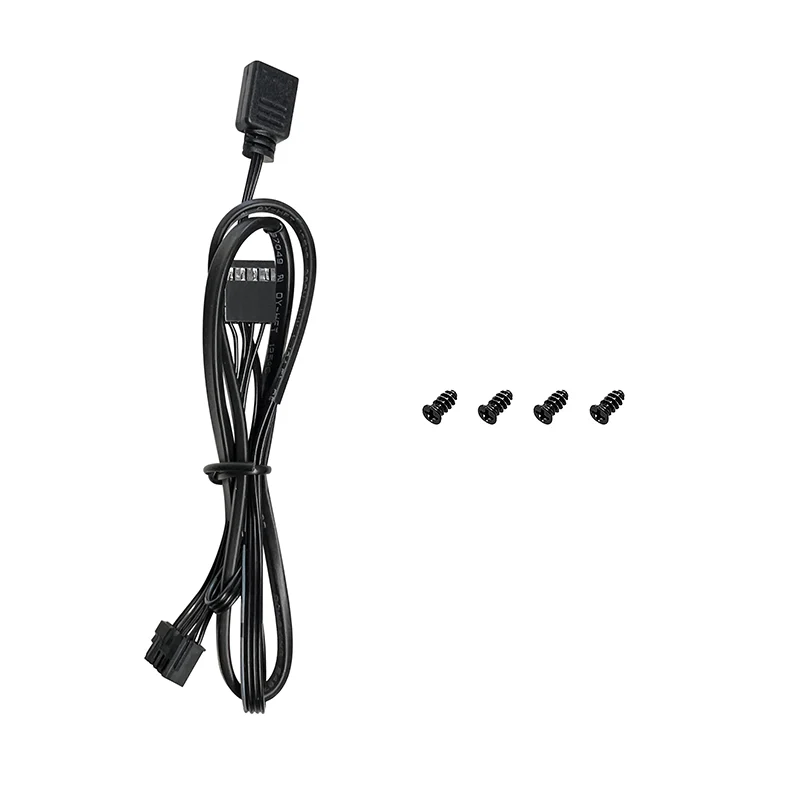

SECURE CONNECTION

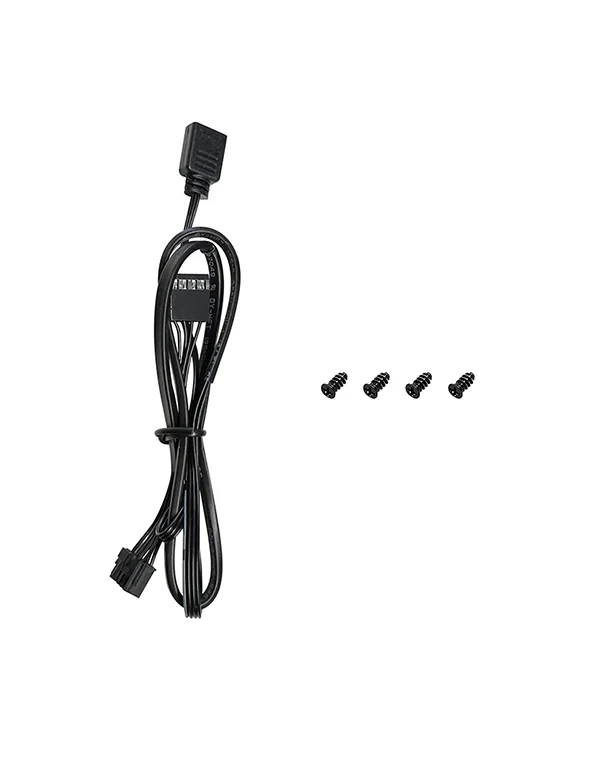

The 8-pin connectors, integrated with PWM and ARGB SYNC, provide a more accessible and safer user installation experience.

REDUCED VIBRATIONS

Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

Technical Spec

Fan Dimensions	120×120×25 mm(L×W×H)
Net Weight	181g
Fan Speed	500~2150 RPM±10%
Fan Airflow	55 CFM
Fan Air Pressure	2.59 mmAq
Fan Noise	≤33.9 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.15 A
Fan Power Consumption	1.8 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.75 W
EAN	6933412785156
P/N	R-FL12R-BKAPN1-G

Download

FL12R Manual.pdf
