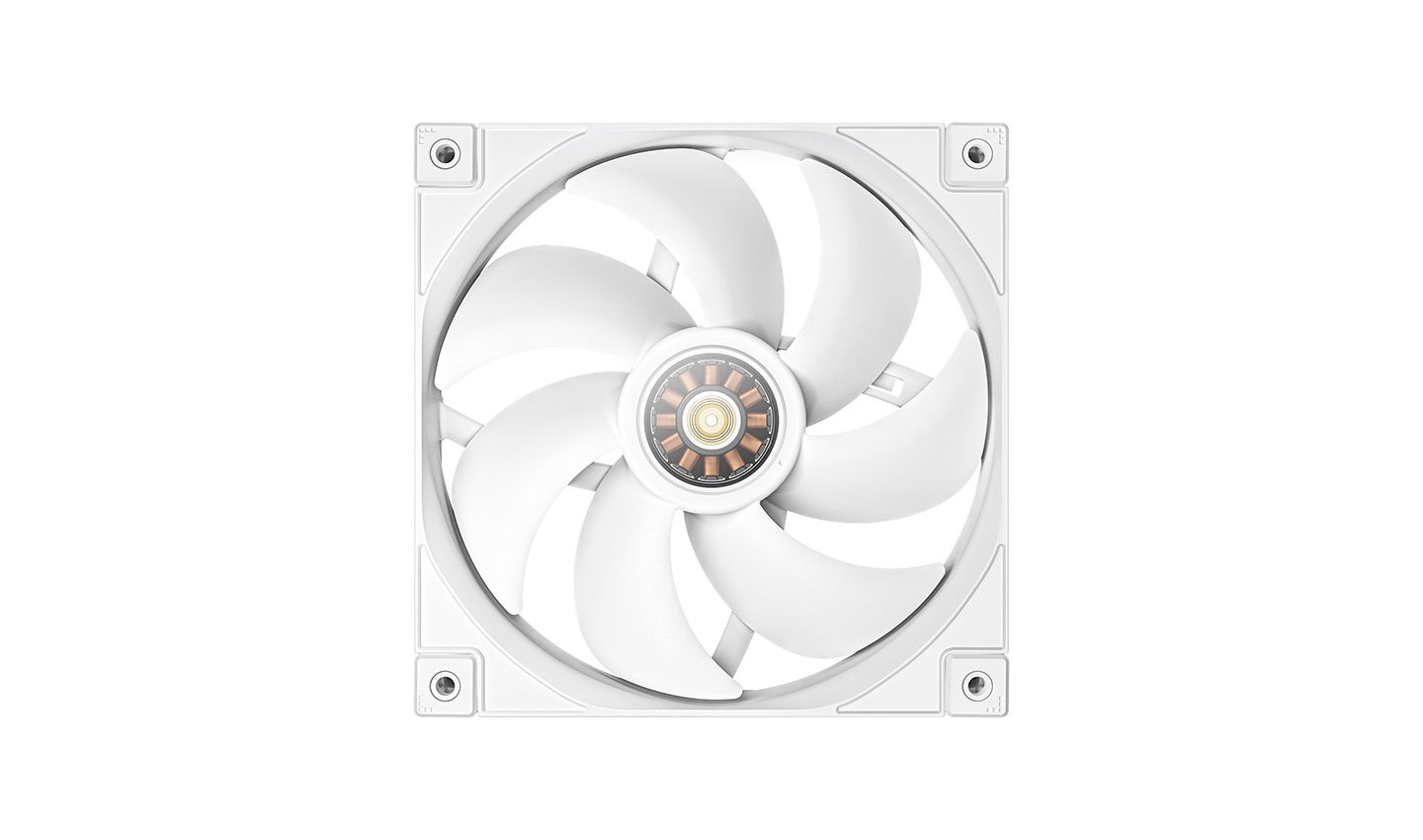

FT14 WH
The FT14 WH 140mm white fans were meticulously designed by the DeepCool team to provide low-noise, high-performance cooling solutions with excellent durability.
COLOR
white
MODEL
FT14 WH
POWERFUL, QUIET, AND DURABLE
ENGINEERING PERFECTION
Each FT14 WH 140mm fan features a powerful 3-phase, 10-pole, 12-slot FOC closed-loop control motor with high-quality MQ magnets. A design combination rarely found in case fans that minimizes vibrations by reducing the force produced between wide gaps between poles and slots.
QUALITY YOU CAN SEE

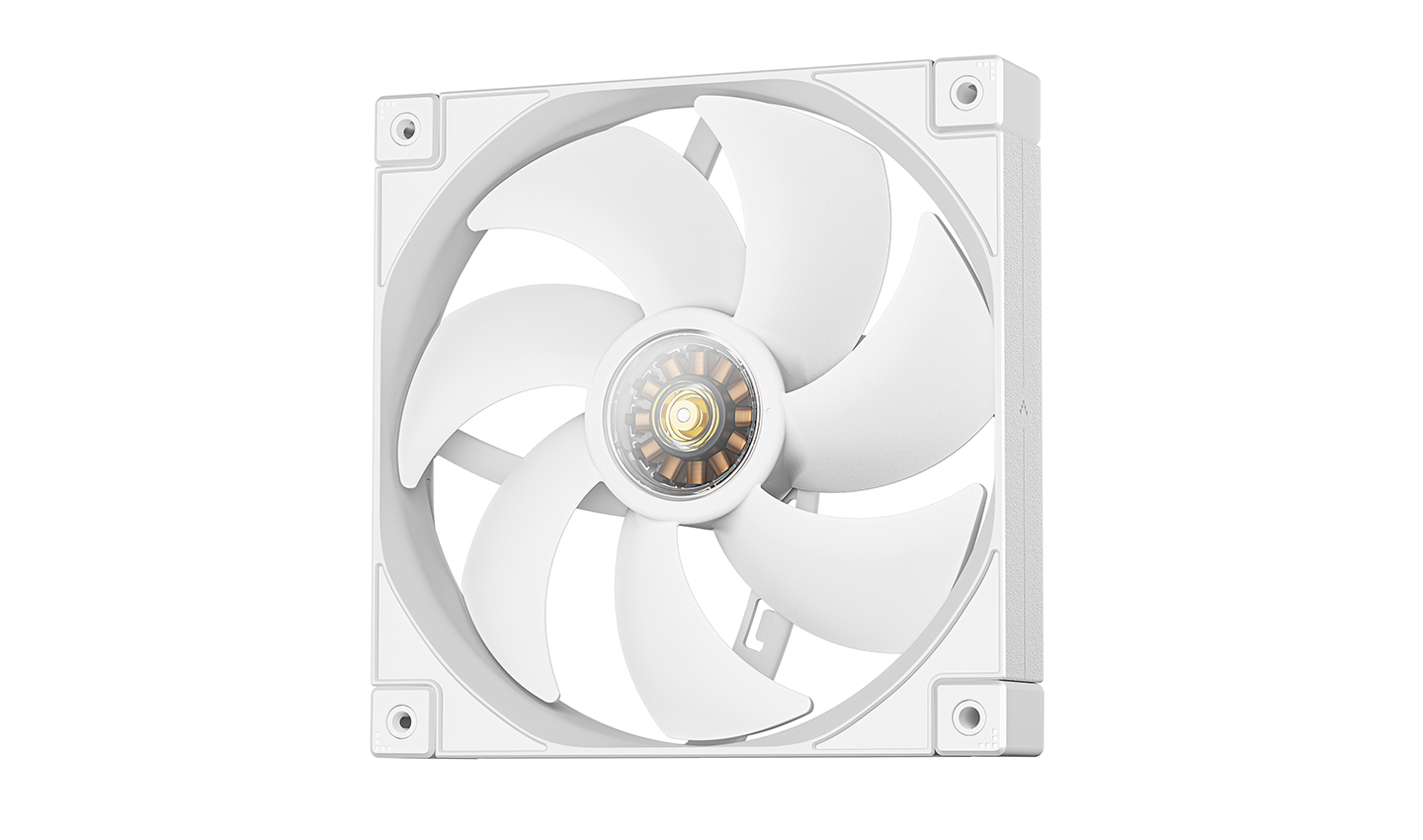

Don't just believe the marketing pitch; each FT14 WH fan has a transparent window that showcases the high-quality engineering of the fan motor while putting the true Fluid Dynamic Bearing on display. Subtle white LEDs are positioned behind the bearing to highlight every detail and can be turned off with a quick flick of a tiny switch in the rear of the fan hub frame.
ENHANCED MATERIALS
By utilizing an enhanced composite material made up of a fine mix of fiberglass and PBT, the fan blades and frame are extremely consistent, which also reduces the overall sound profile.
Fiberglass
PBT
IMPRESSIVE IN MANY ASPECTS
All of the research and development results in an impressive performance fan package that focuses on outstanding airflow, concentrated static pressure, and relatively quiet operation.
500-1650 RPM±10%
Fan Speed
78.83 CFM
Air Volume
3.6 mmAq
Static Pressure
≤25.1 dB(A)
Fan Noise
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
OUTSTANDING COVERAGE
DeepCool is so confident in the design of the FT series of fans that we provide five full years of limited warranty coverage.
Technical Spec
Fan Dimensions140×140×25 mm(L×W×H)
Net Weight206 g
Fan Speed500±200 RPM-1650 RPM±10%
Fan Airflow78.83 CFM
Fan Air Pressure3.6 mmAq
Fan Noise≤25.1 dB(A)

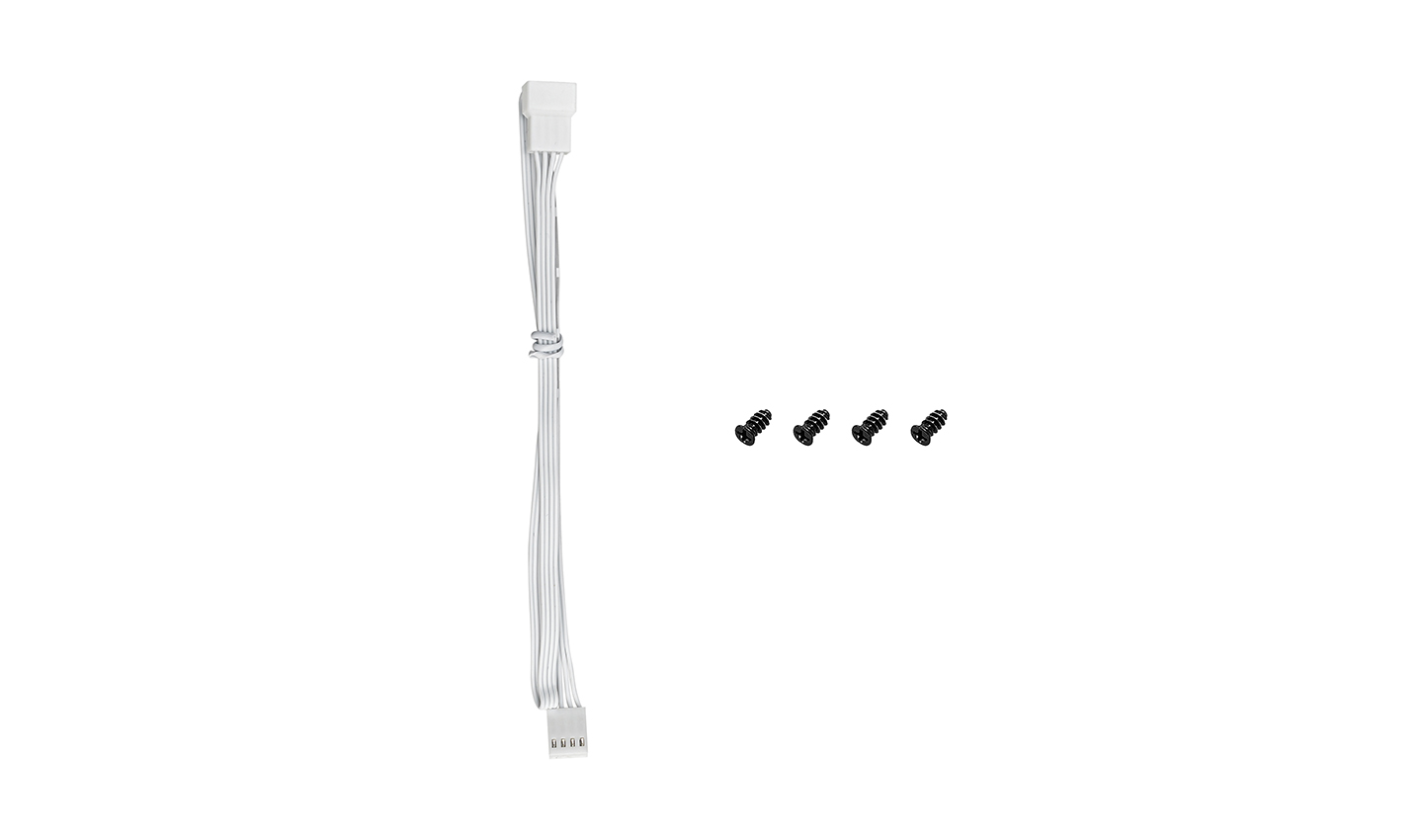

Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.15 A-0.45 A(MAX)
Fan Power Consumption5.4 W
LED TypeWHITE LED
EAN6933412710752
P/NR-FT14-WHWPN1-G
