DA500
DA500 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.
COLOR
black
MODEL
DA500
80PLUS Bronze certified 500W power supply PSU with 120mm Silent Fan.
Description
DA500 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.
80PLUS BRONZE
80PLUS Bronze certified provide high energy efficiency up to 85%. Click here to view the certification.

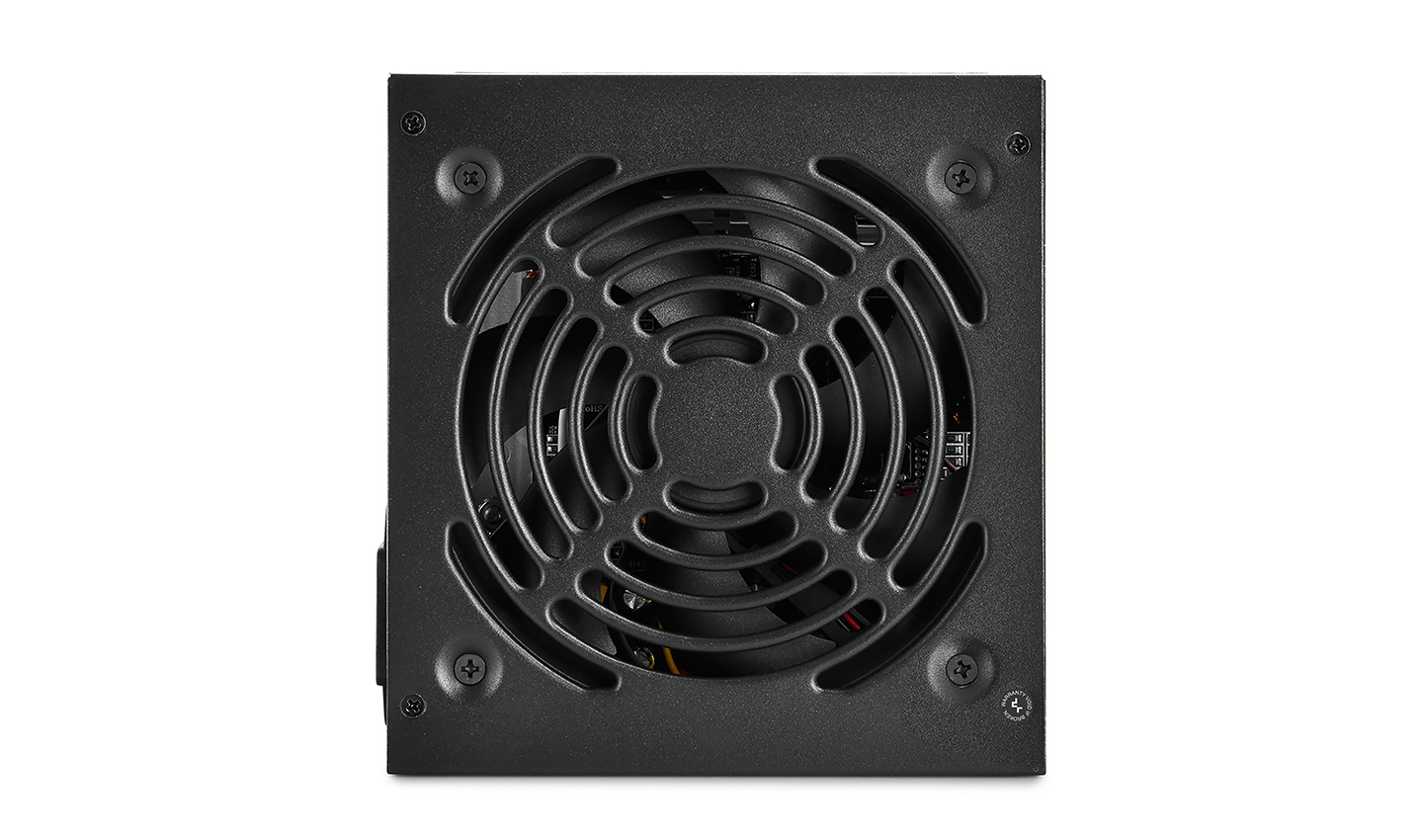

Silent and High Performance Fan
120mm silent fan to provide incredible performance-noise ratio.
Voltage Regulation
Idle/Standby Efficiency
Certification and Support

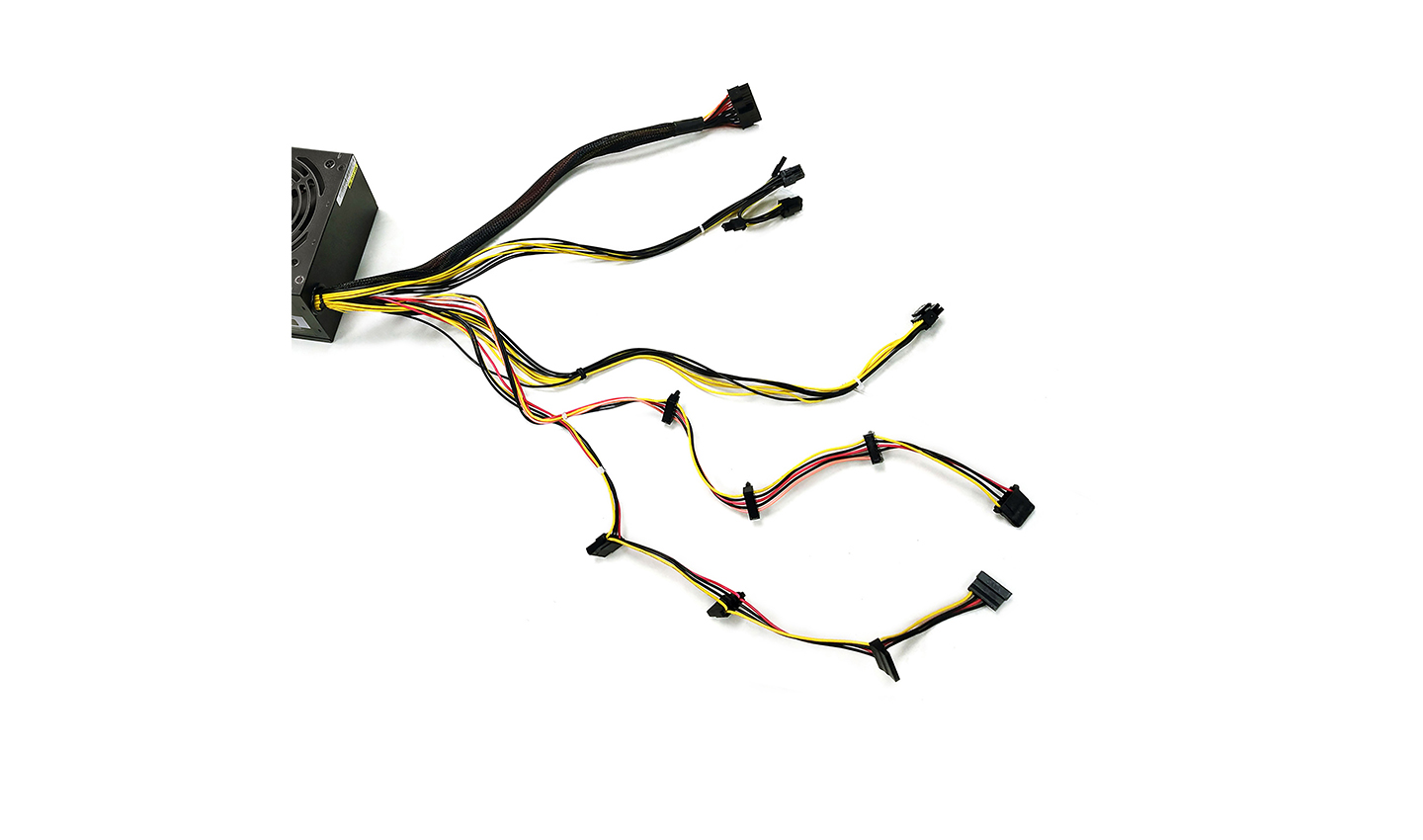

Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATA×3+4pin Peripheral×1
X1
4pin Peripheral×2+SATA×2
X1
Technical Spec
Model DA500
Type ATX 12V V2.4
Certifications 80PLUS Bronze
Dimension 150×140×86mm (W x L x H)
Output Capacity 500W
Input Voltage 100~240V
Input Current 8A
Input Frequency Range 45~60Hz
Fan Size 120mm Black Fan
PFC Active PFC (>0.99)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Under Typical Load
Protection OVP / UVP / SCP / OPP
Operation Temperature 0~40°C
Regulatory CE / FCC / CCC / CB / EAC / TUV
MTBF 100,000 Hours
EAN 6933412798699
P/N DP-BZ-DA500N
