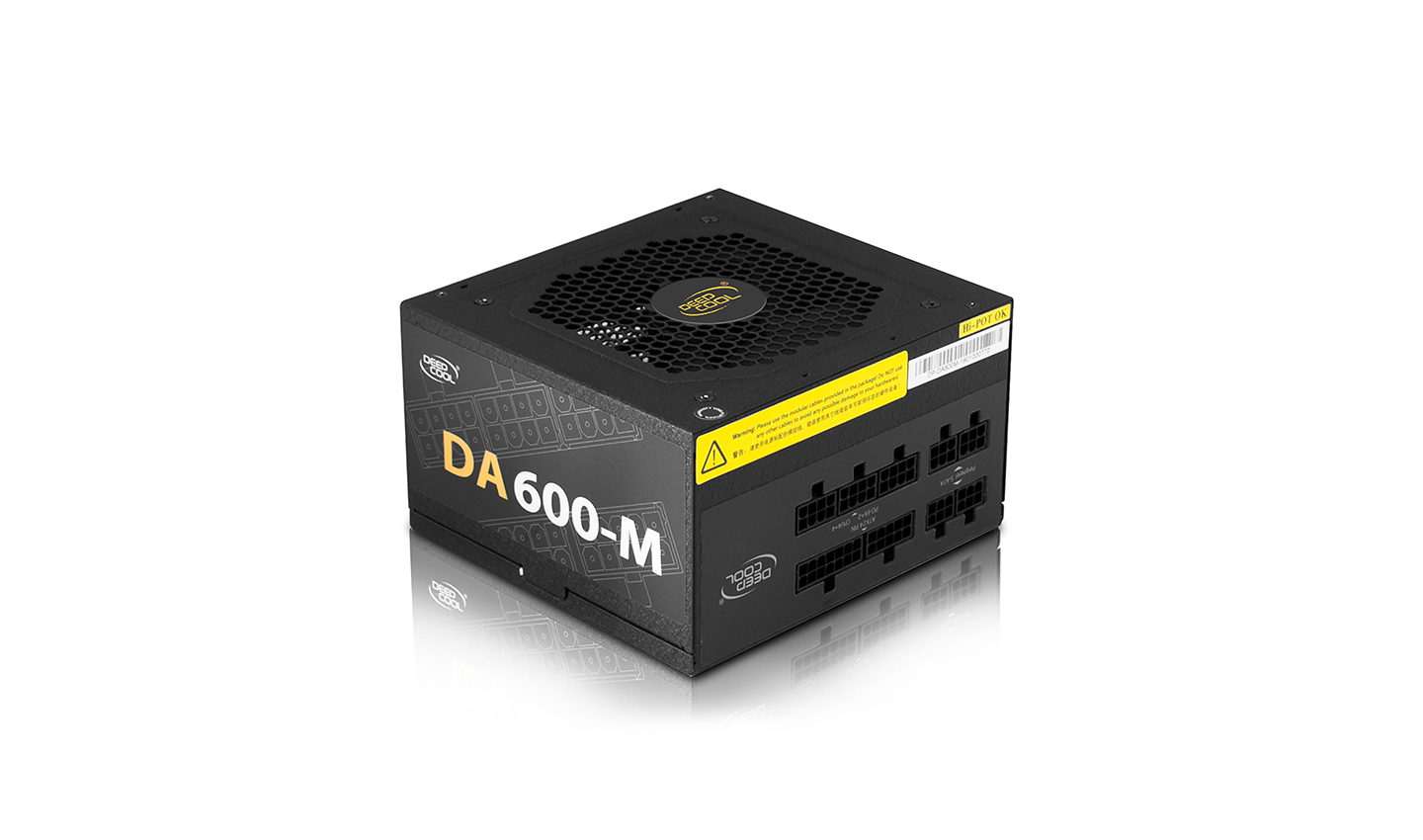

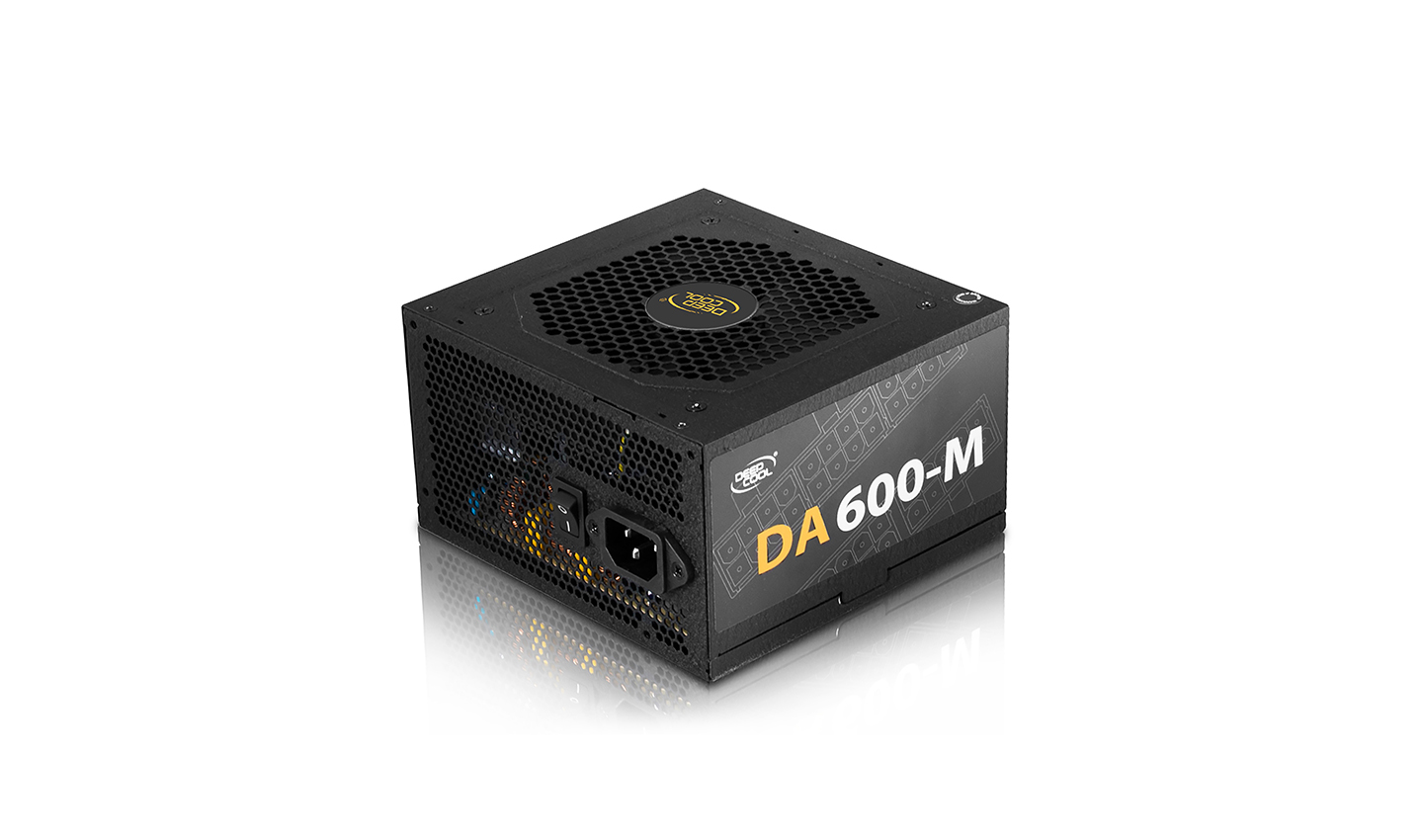

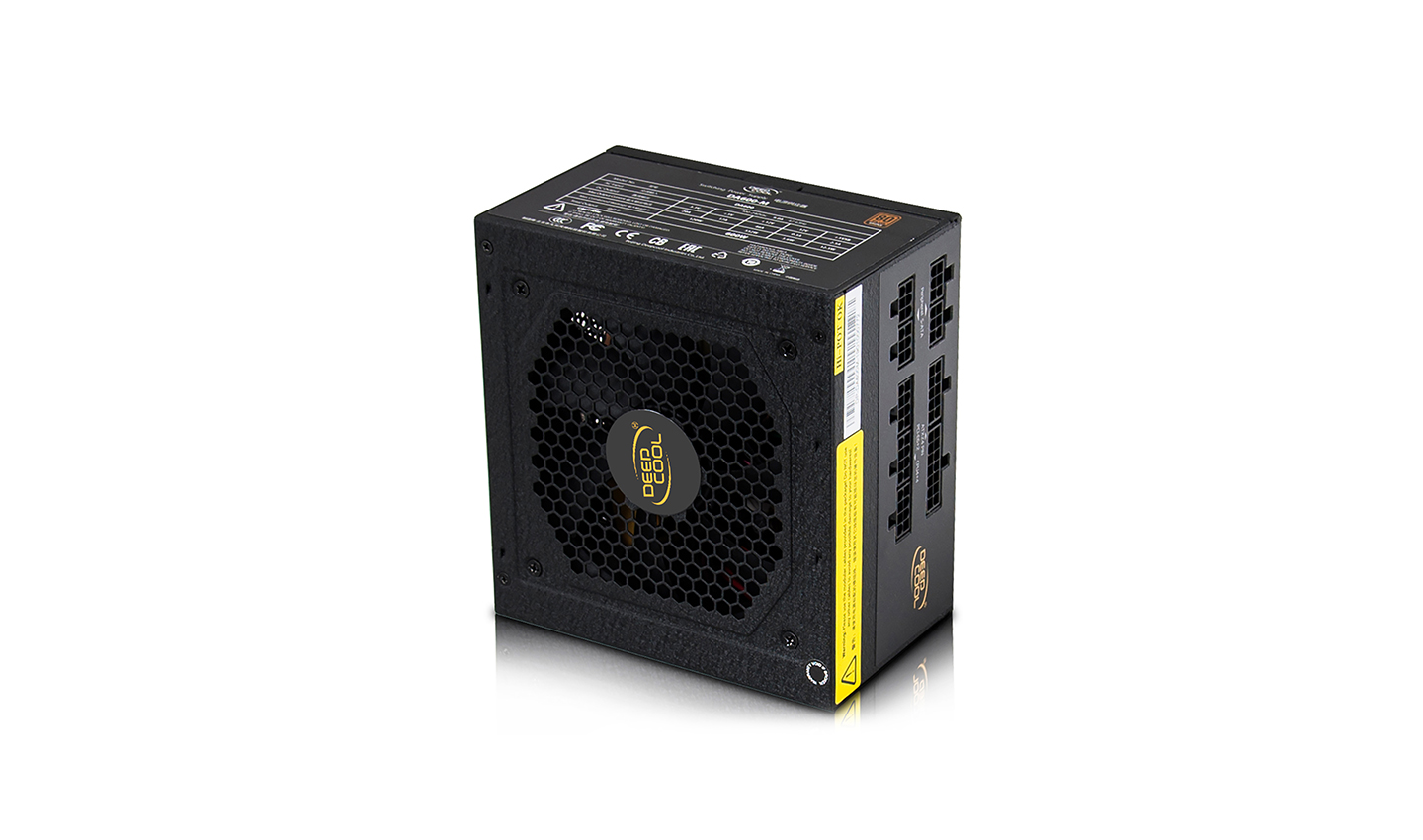

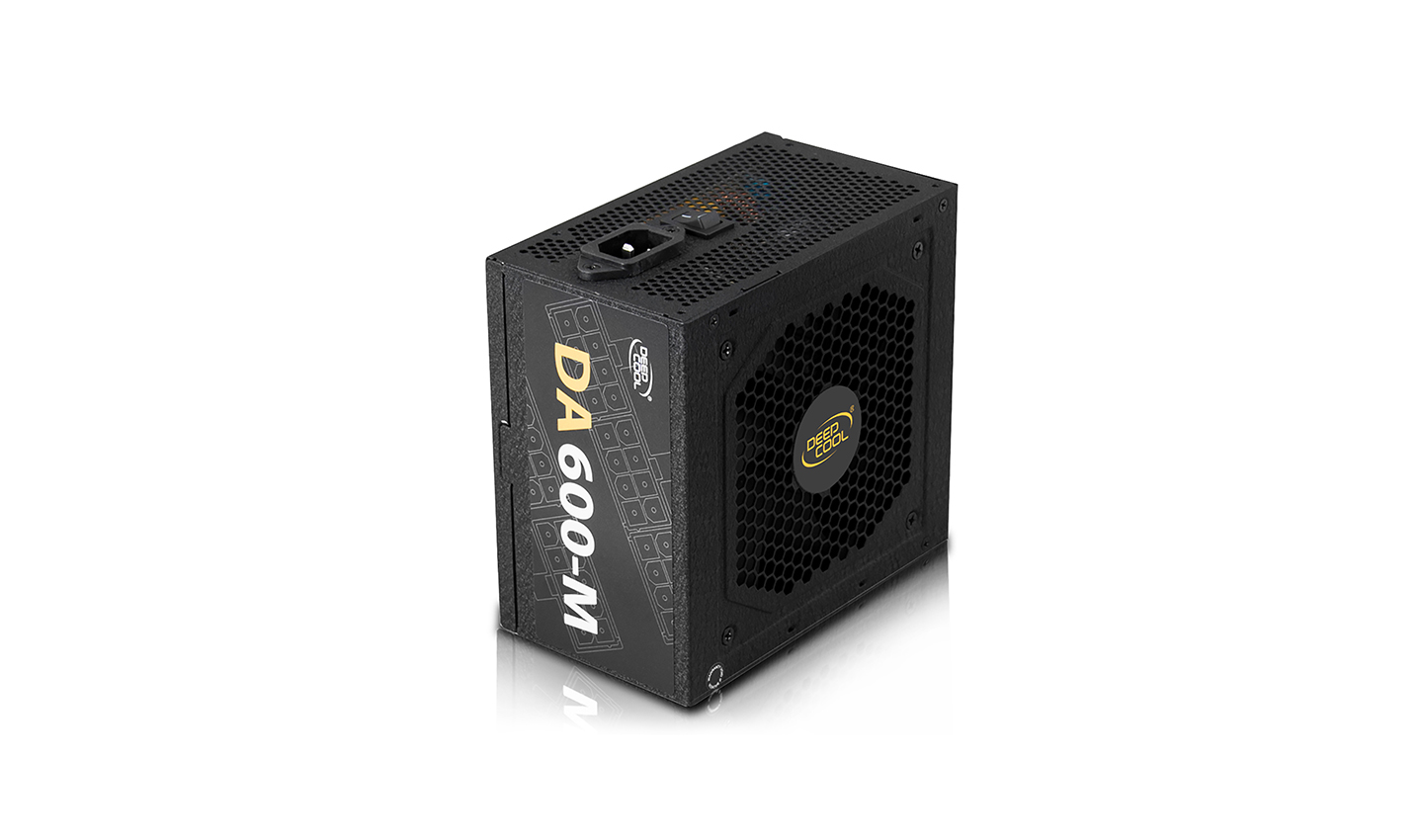

DA600-M
DA600-M built with Japanese 105℃ capacitors, featured low impedance, low voltage and long life, the outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.
COLOR
black
MODEL
DA600-M
80PLUS Bronze up to 85% Efficient PSU with 100% Full Modular
Japanese 105℃ Capacitors
DA600-M built with Japanese 105℃ capacitors, featured low impedance, low voltage and long life, the outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.
Powerful Single+12V Rail Design
Powerful single+12V rail for superior load balancing and VGA compatibility.

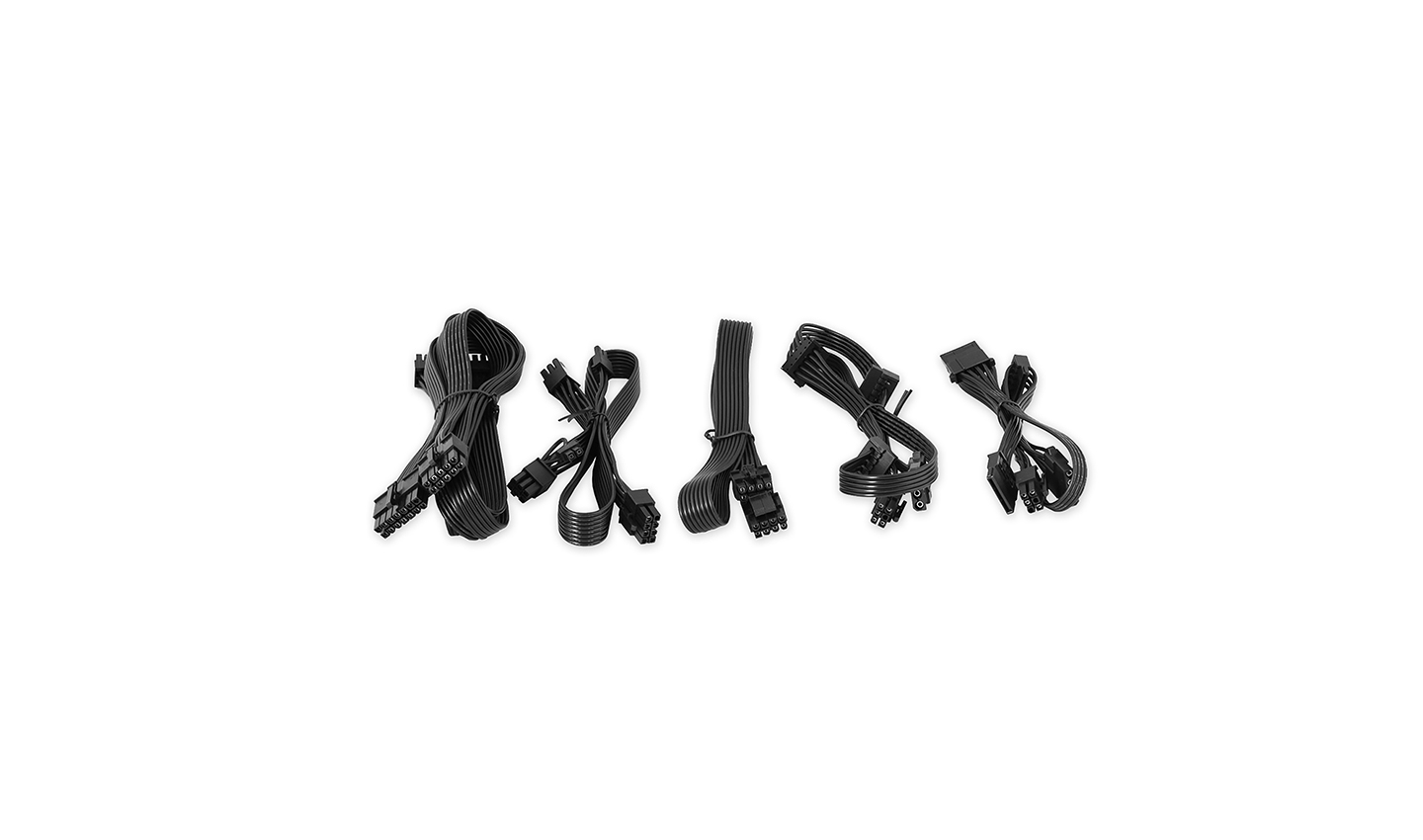

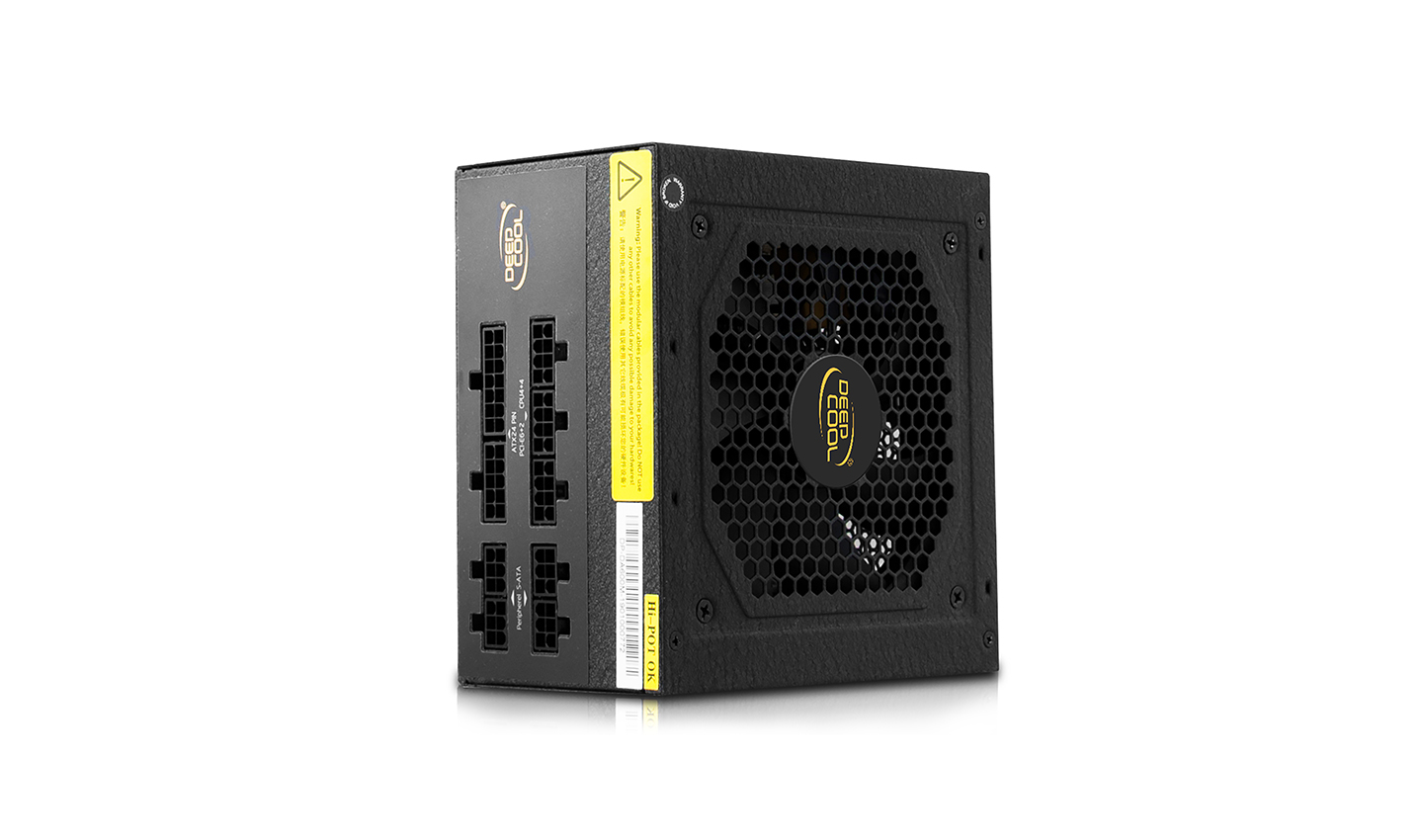

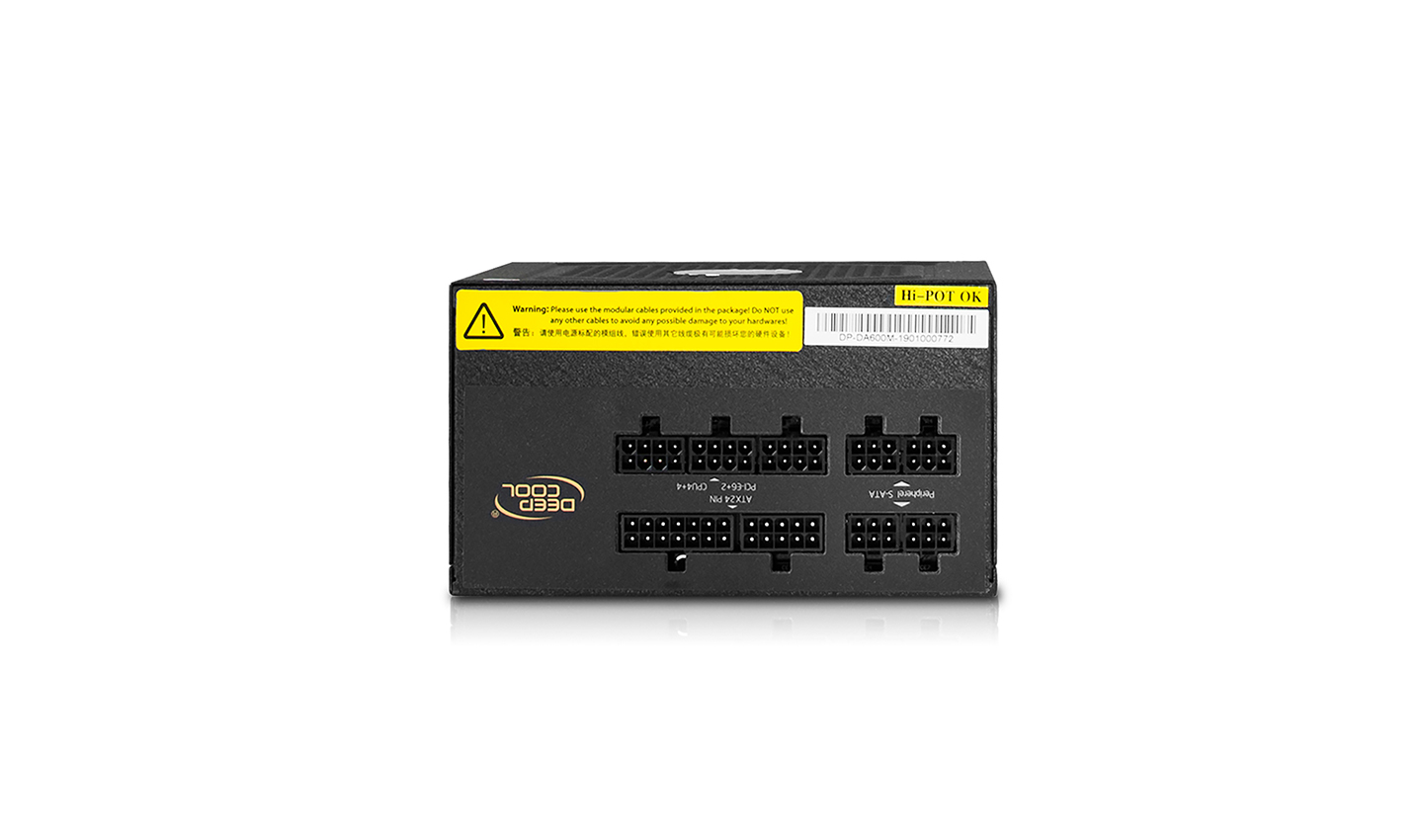

Full Modular Cable System
With full modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

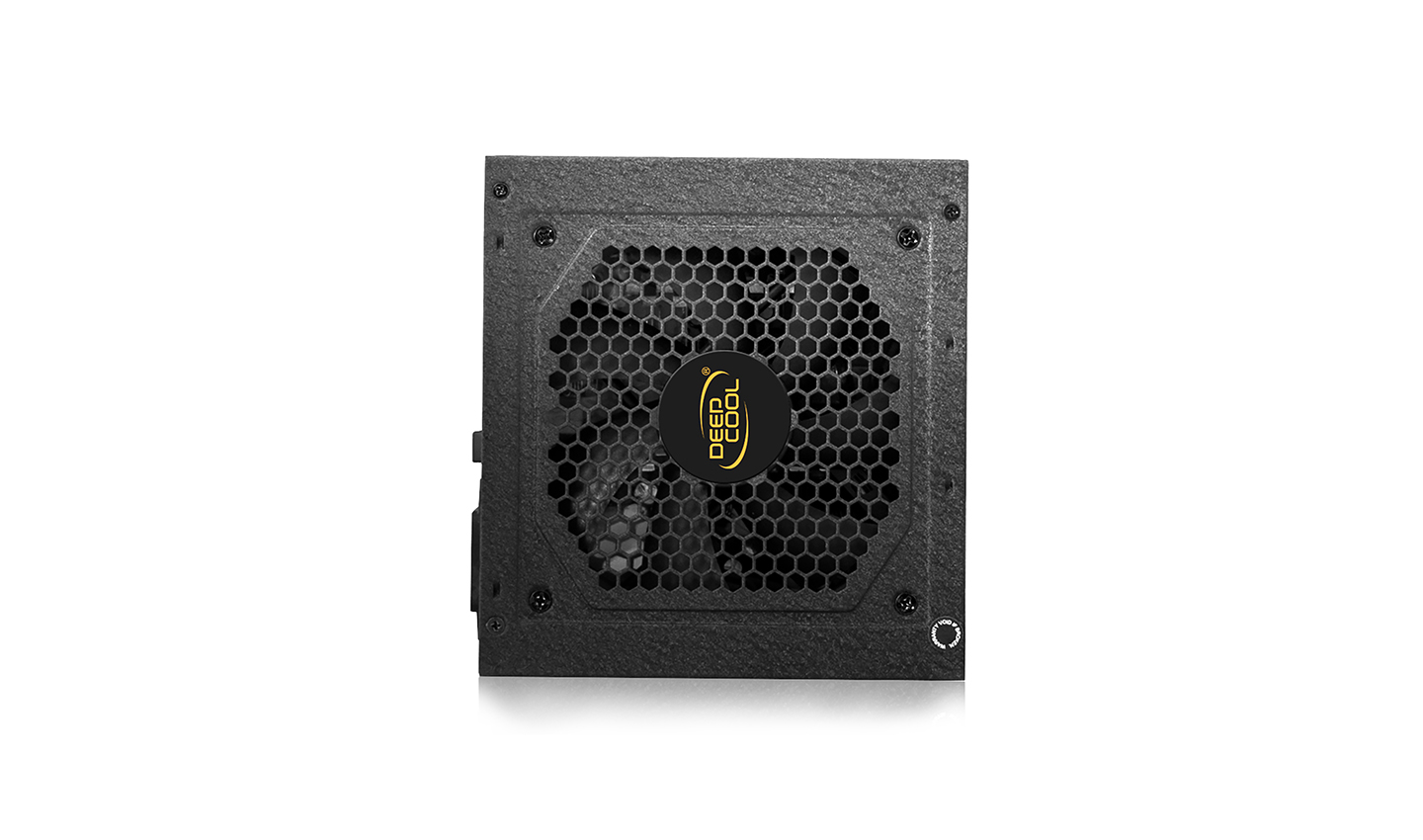

Silent and High Performance Fan
120mm silent fan with temperature function to provide incredible performance-noise ratio.
High Efficient Active PFC
Certified with 80 plus bronze with up to 82%-85% electrical efficiency enabling lower heat generation and lower operation cost.
Certification and Support
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Technical Spec
Model DA600-M (Model No. DA600)
Type ATX 12V V2.4
Certifications 80PLUS Bronze
Dimension 150×140×86mm (W x L x H)
Output Capacity 600W
Input Voltage 100~240V
Input Current 9.0A
Input Frequency Range 47~63Hz
Fan Size 120mm Black Fan
PFC Active PFC
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Under Typical Load
Protection OVP / UVP / SCP / OPP
Operation Temperature 0~40°C
Regulatory CE / FCC / CCC / CB / EAC
MTBF 100,000 Hours
EAN 6933412798583
P/N DP-BZ-DA600-MFM
