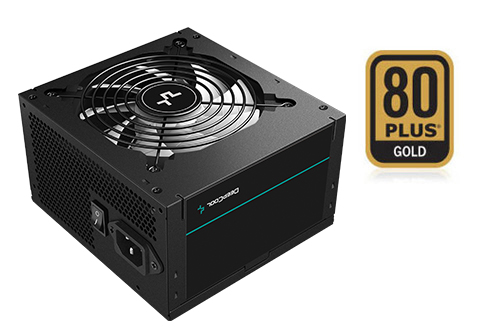

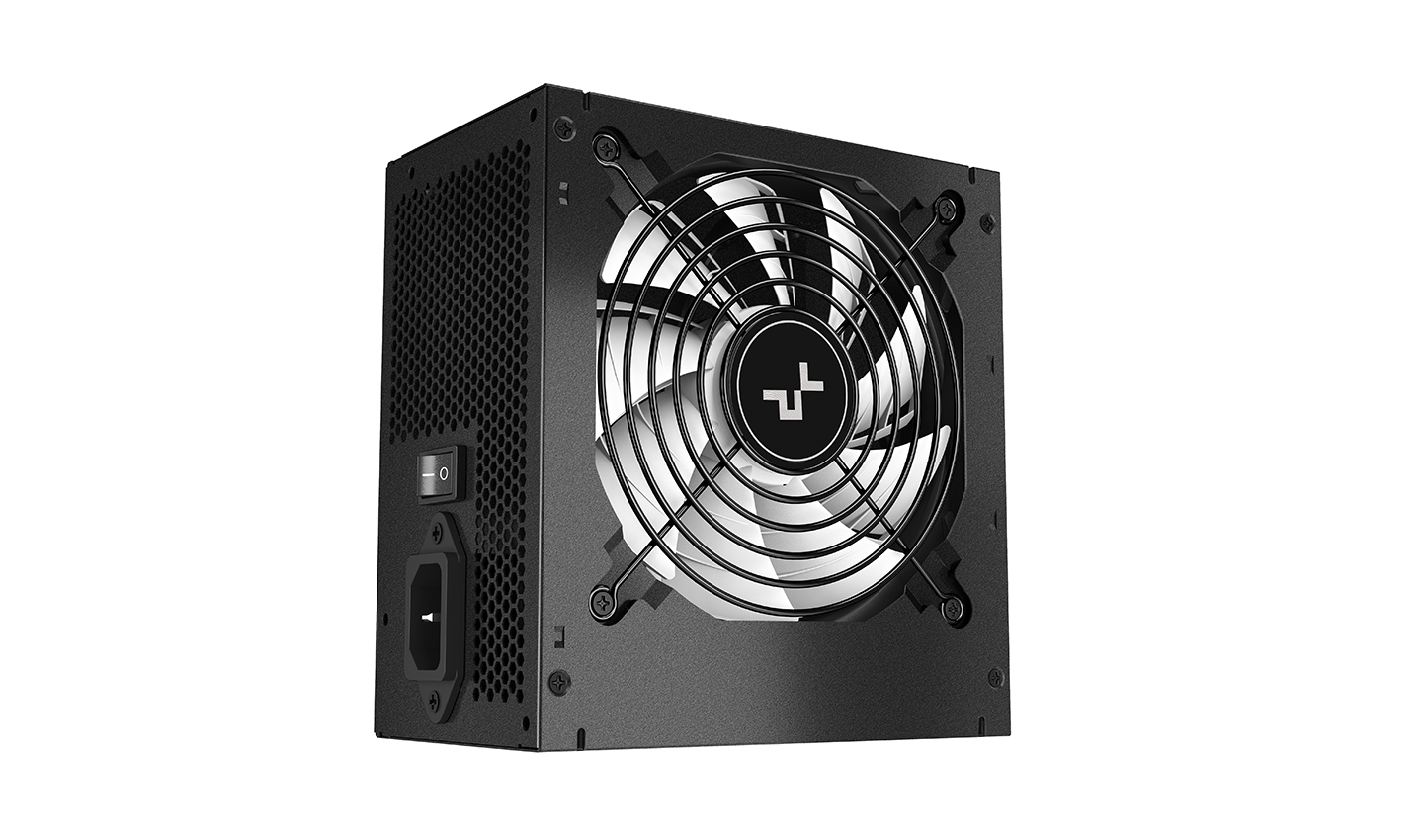

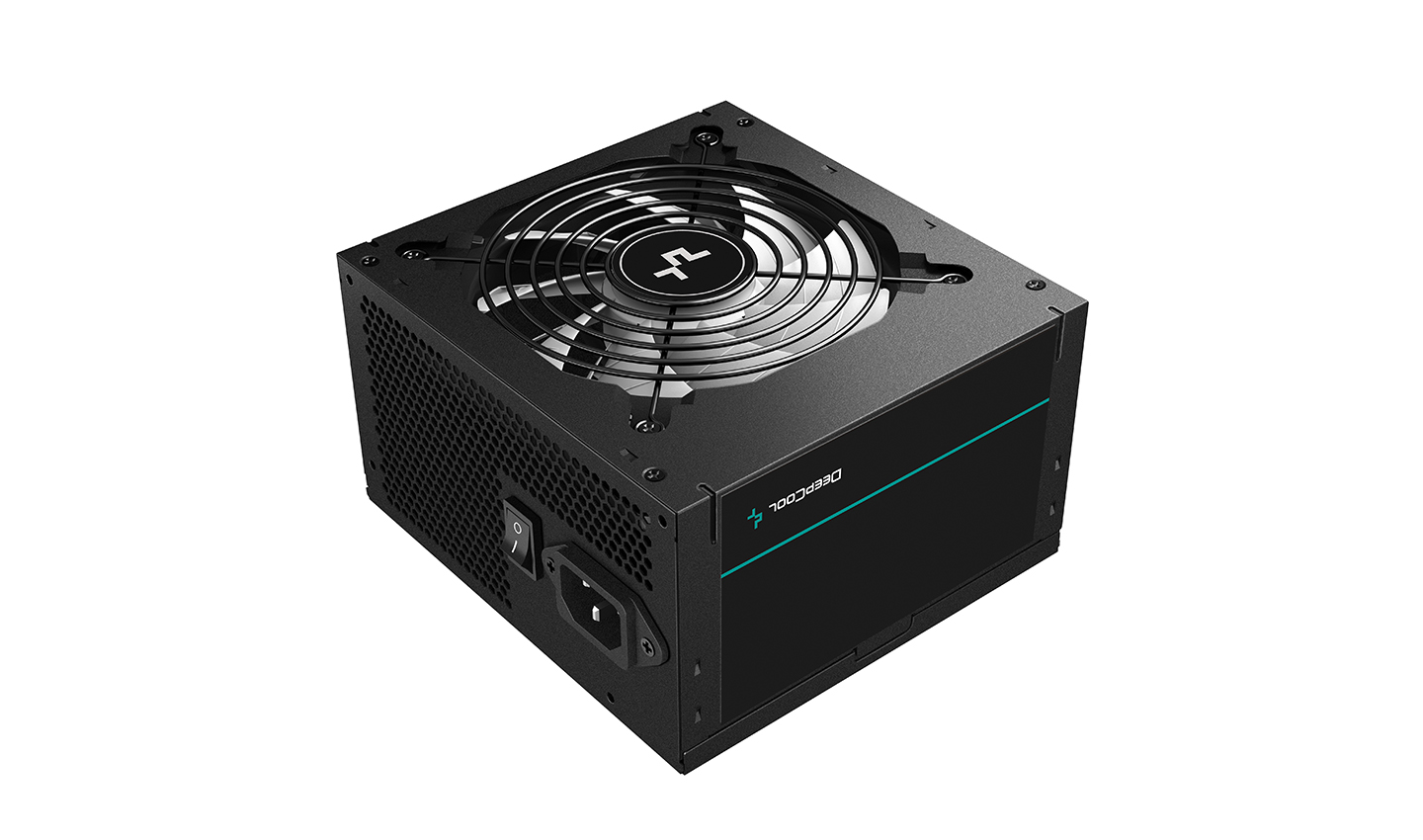

DQ750ST
DQ750ST is certified to 80 PLUS Gold, achieving up to 87-90% electrical efficiency. Cooling is achieved with a quiet 120mm variable-speed fan. DQ750ST is provided with all the features necessary for building the perfect gamer rig.
COLOR
black
MODEL
DQ750ST
750W real power supply with 80Plus Gold Certified and 120mm FDB Bearing PWM fan
Description
DQ750ST is certified to 80 PLUS Gold, achieving up to 87-90% electrical efficiency, lowering heat generation and reducing operational costs. This PSU offers outstanding and stable performance, making it one of the best DeepCool PSU solutions. DQ750ST is capable of providing a continuous 750W electrical supply under 50℃. Cooling is achieved with a quiet 120mm variable-speed fan. DQ750ST is provided with all the features necessary for building the perfect gamer rig.

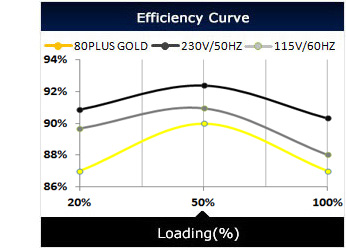

80PLUS GOLD
80 PLUS® Gold certified - Up to 87~90% efficient. Click here to view the certification.

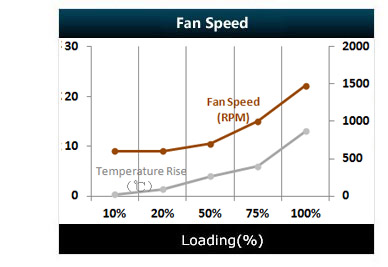

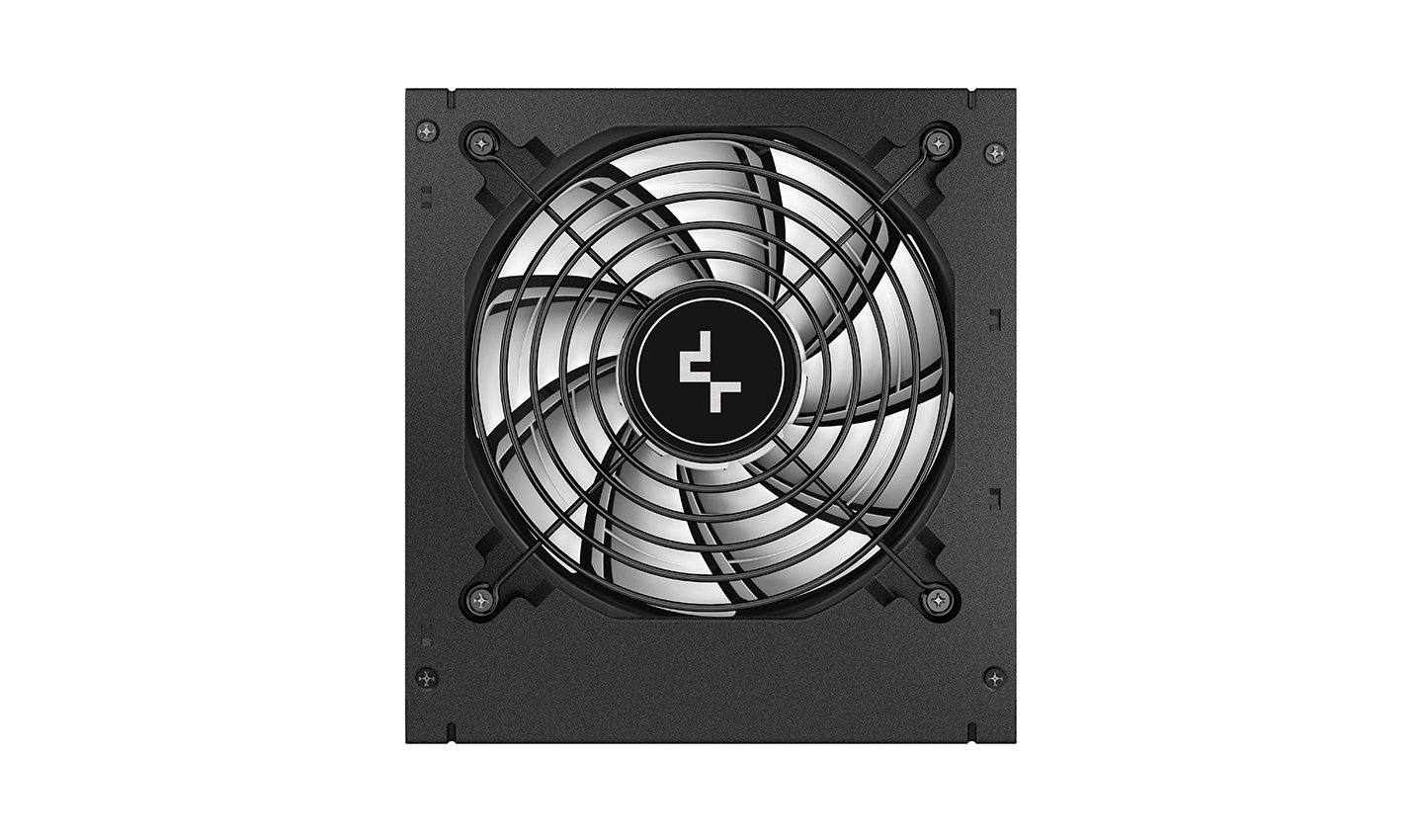

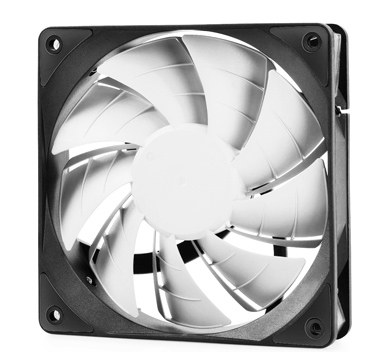

Silent, High Performance Fan
120 mm fan with Longlife bearing with specialized fan impeller that delivers stronger wind pressure, ultra-low noise operations, and excellent performance.
High Grade Components

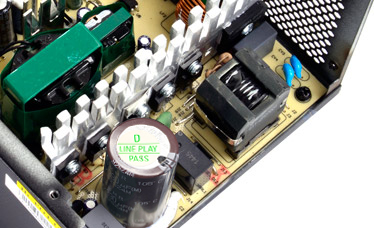

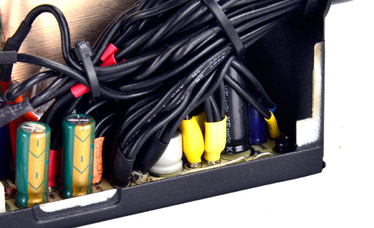

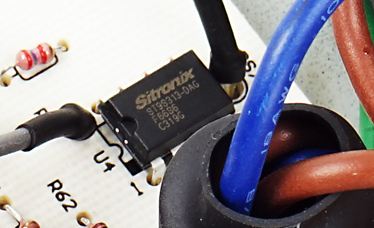

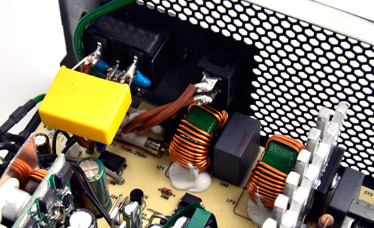

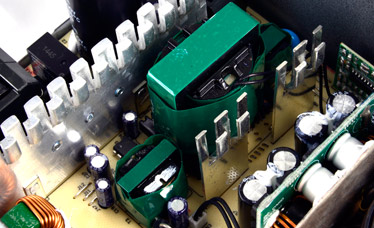

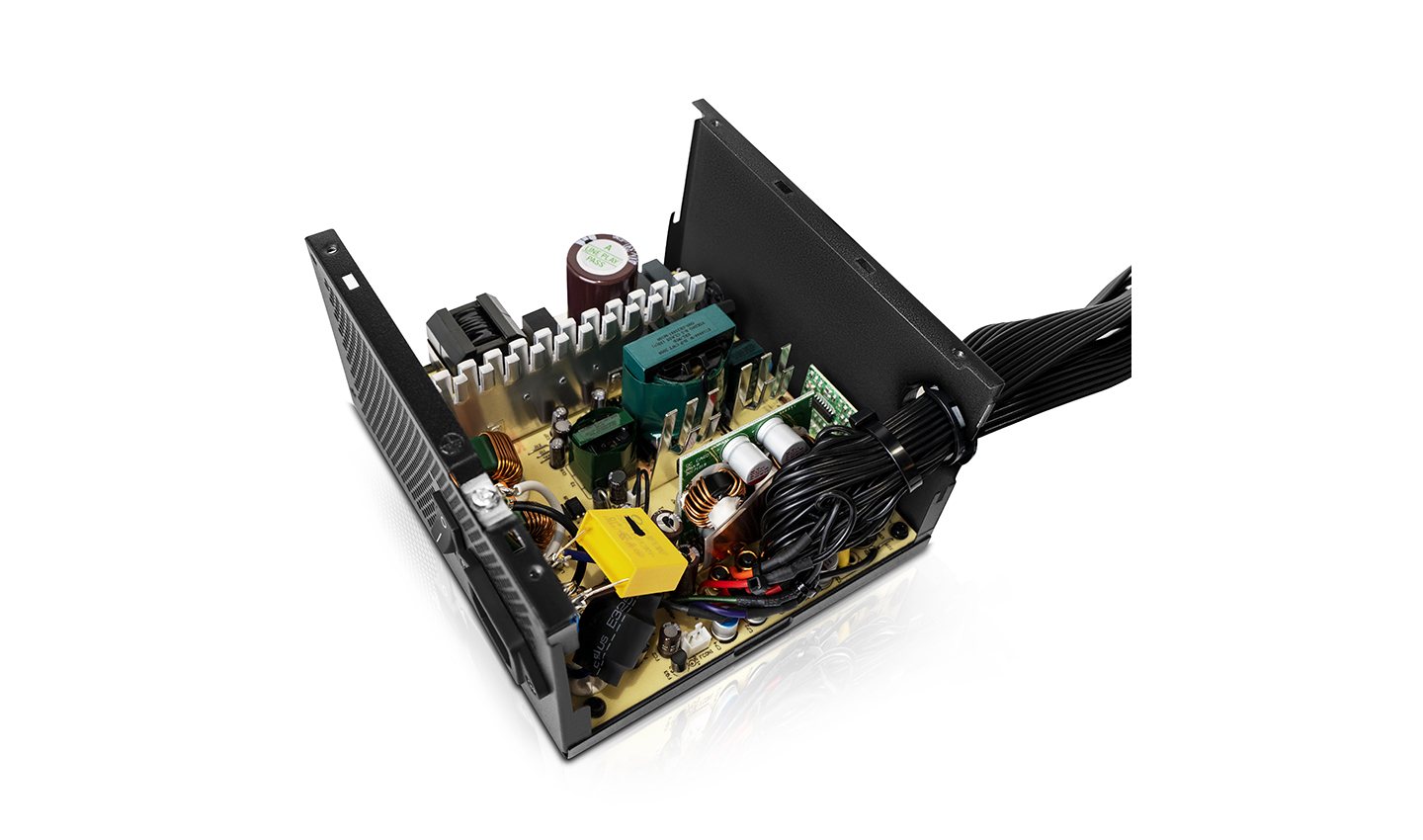

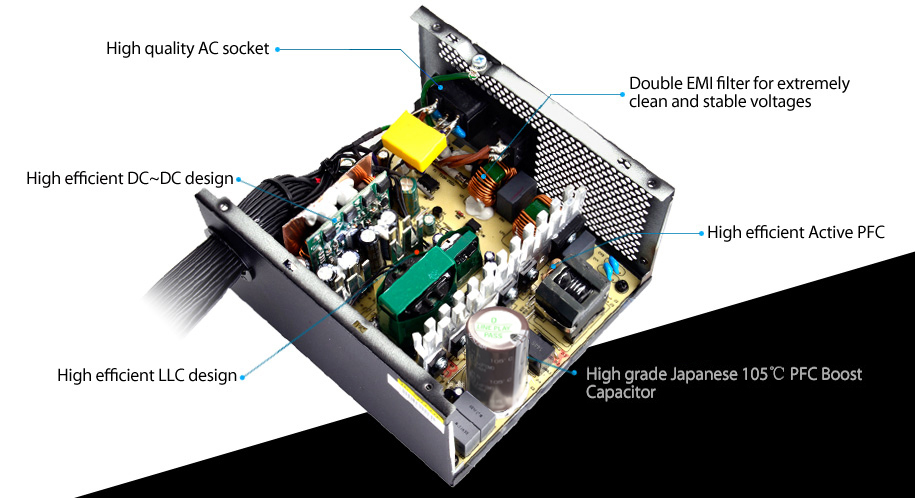

Insider details
Excellent 1- and 2-stage EMI filter circuit
Highly efficient Active PFC

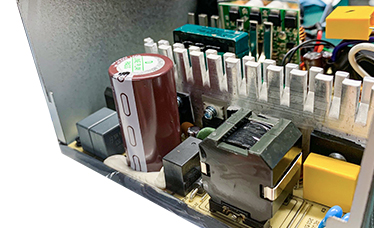

High grade Japanese 105℃ PFC Boost Capacitor
Highly efficient and stable transformer
Outstanding single +12V output
Highly reliable multi-layered protection

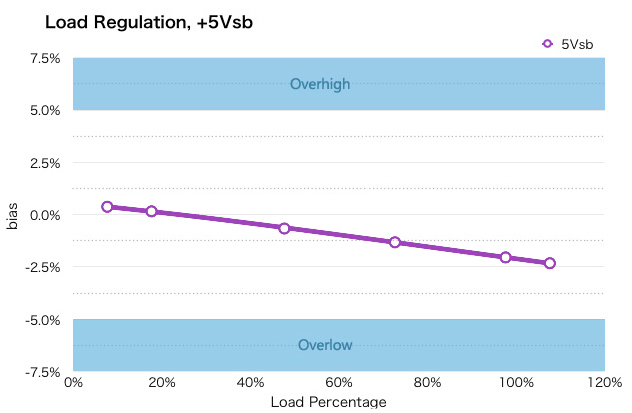

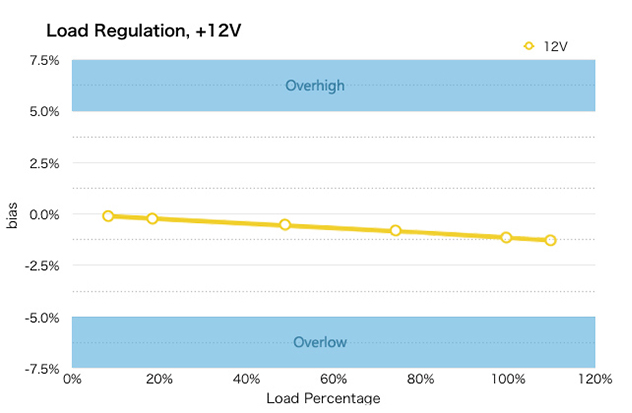

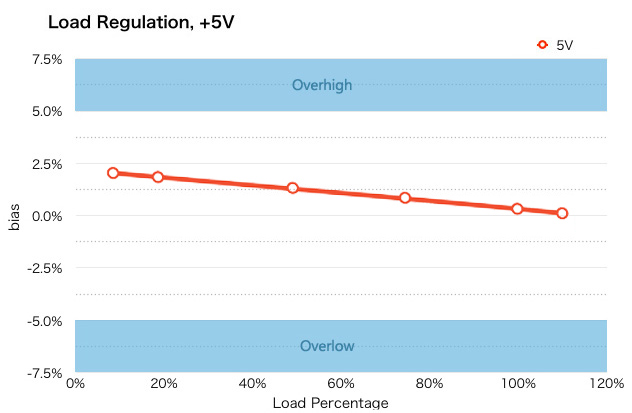

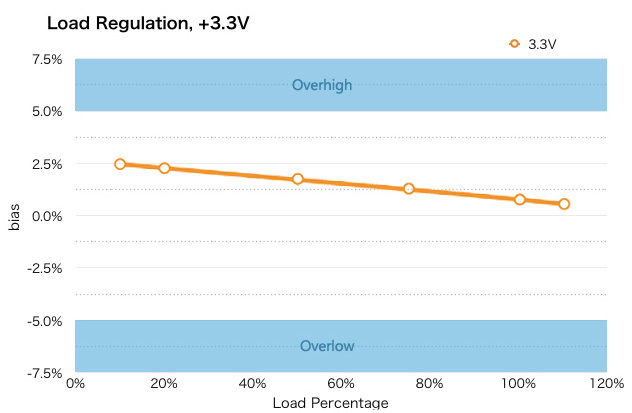

Voltage regulation

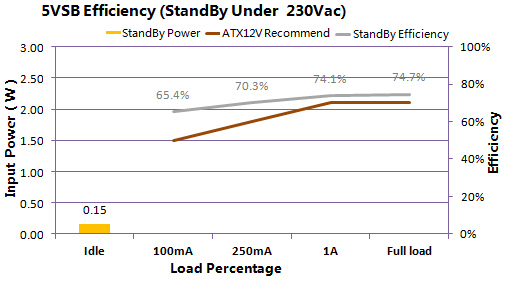

Idle / Standby Efficiency
Certification and Support
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X2
SATA×3+4pin Peripheral×1
X1
4Pin Peripheral x 2+SATA x 2
X1
Technical Spec
Model DQ750ST
Type ATX 12V V2.4
Certifications 80PLUS GOLD
Dimension 150×140×86mm (W x L x H)
Output Capacity 750W
Input Voltage 100~240V
Input Current 10A/5A
Input Frequency Range 47~63Hz
Fan Size 120mm
PFC Active PFC (>0.99)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 90% Under Typical Load
Protection OVP / UVP / SCP / OPP
Operation Temperature 0~40°C
Regulatory CE / FCC / CB / EAC
MTBF 120,000 Hours
EAN 6933412798545
P/N DP-GD-DQ750ST
