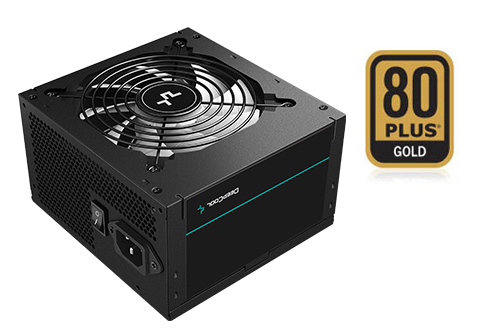

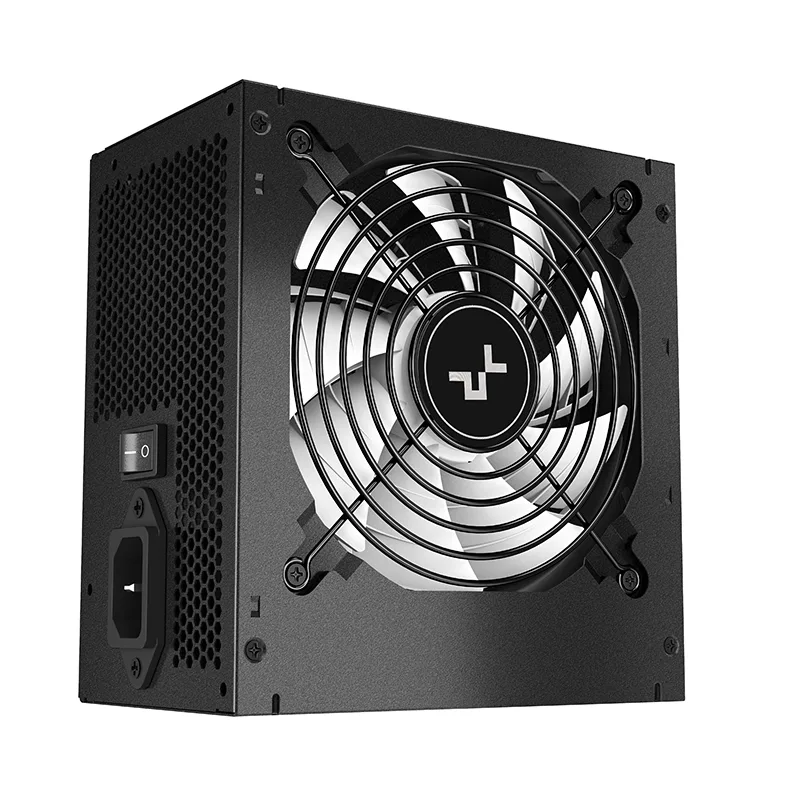

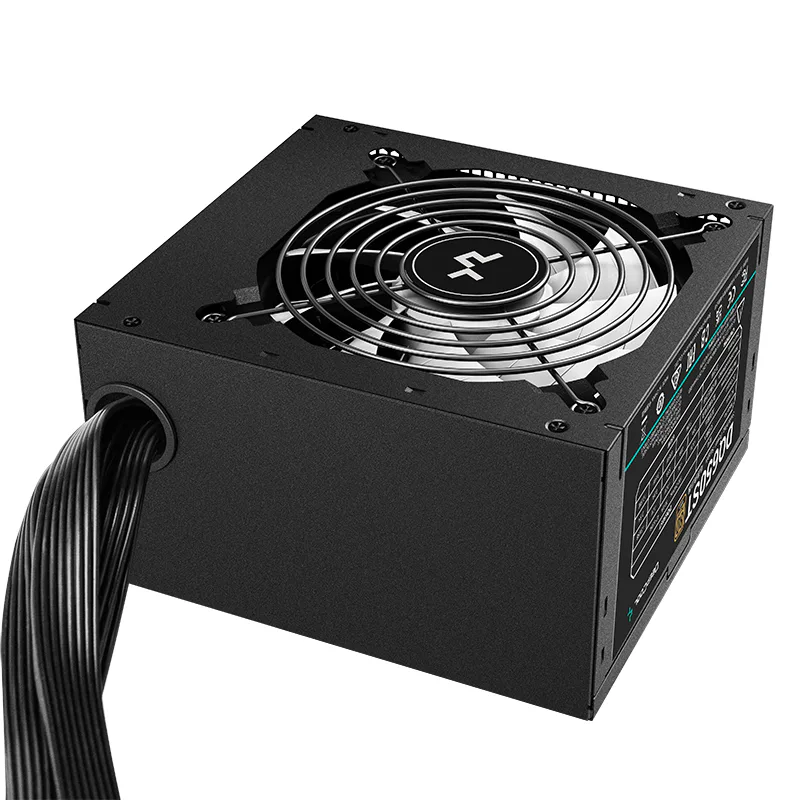

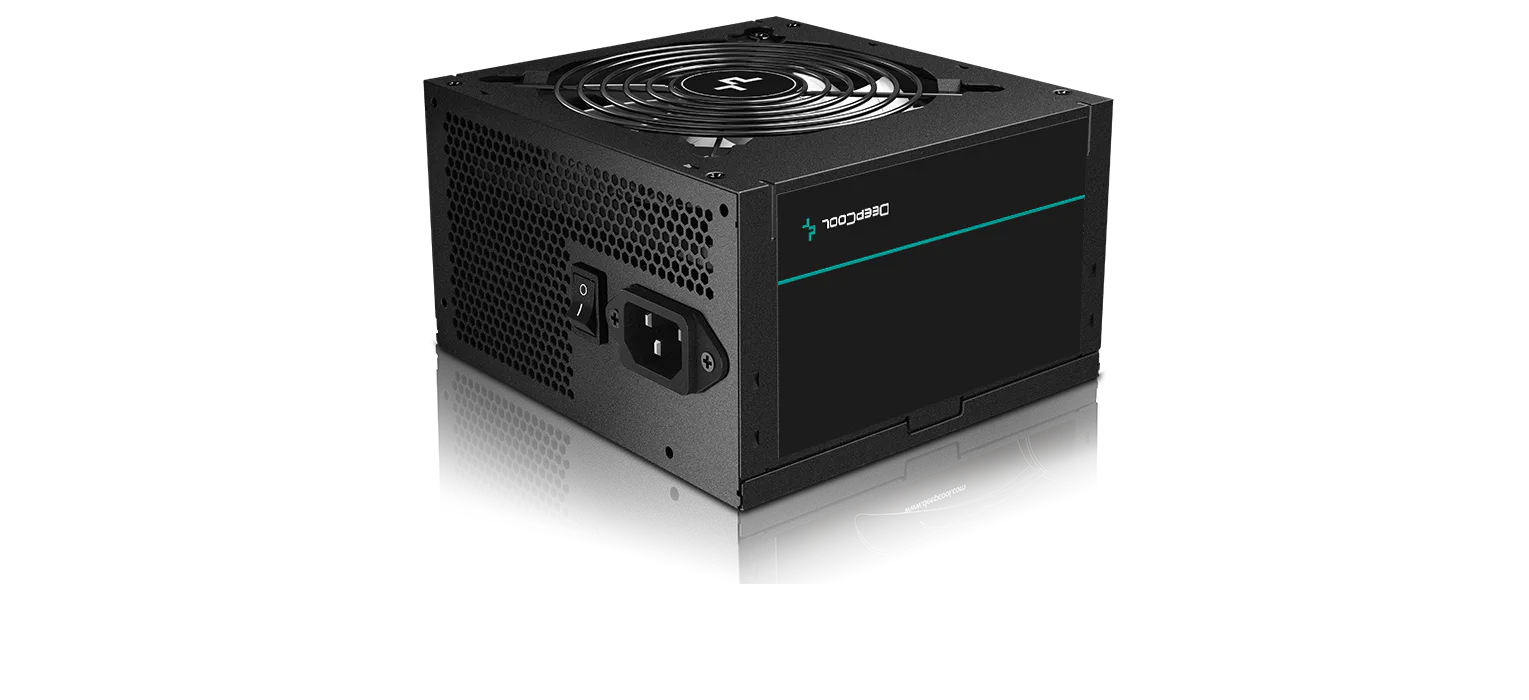

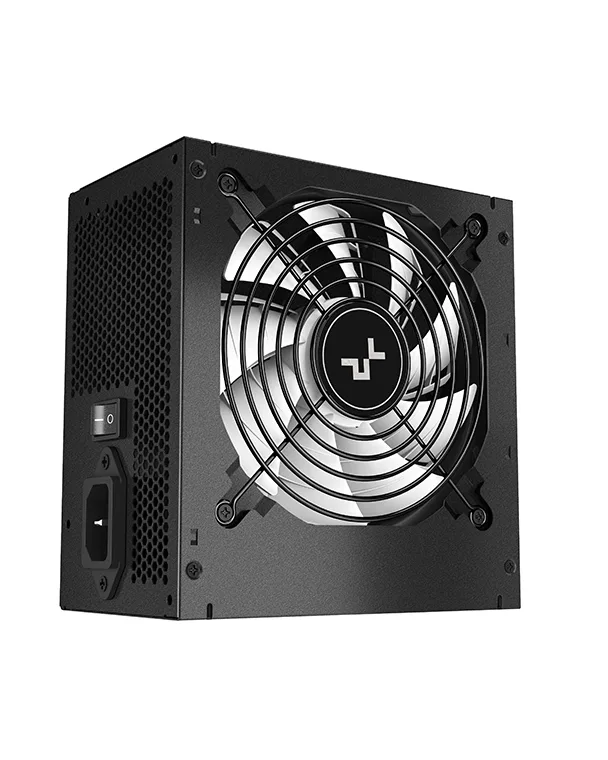

DQ650ST
650W real power supply with 80Plus Gold Certified and 120mm FDB Bearing PWM fan
Description
DQ650ST is certified to 80 PLUS Gold, achieving up to 87-90% electrical efficiency, lowering heat
generation and reducing operational costs. This PSU offers outstanding and stable performance, making it
one of the best DeepCool PSU solutions. DQ650ST is capable of providing a continuous 650W electrical
supply under 50℃. Cooling is achieved with a quiet 120mm variable-speed fan. DQ650ST is provided with
all the features necessary for building the perfect gamer rig.

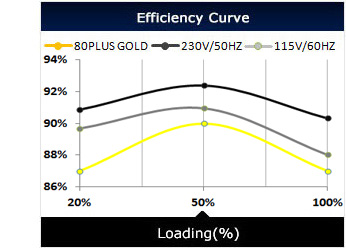

80 PLUS GOLD
80 PLUS® Gold certified - Up to 87-90% efficient.
Click here to view the certification.

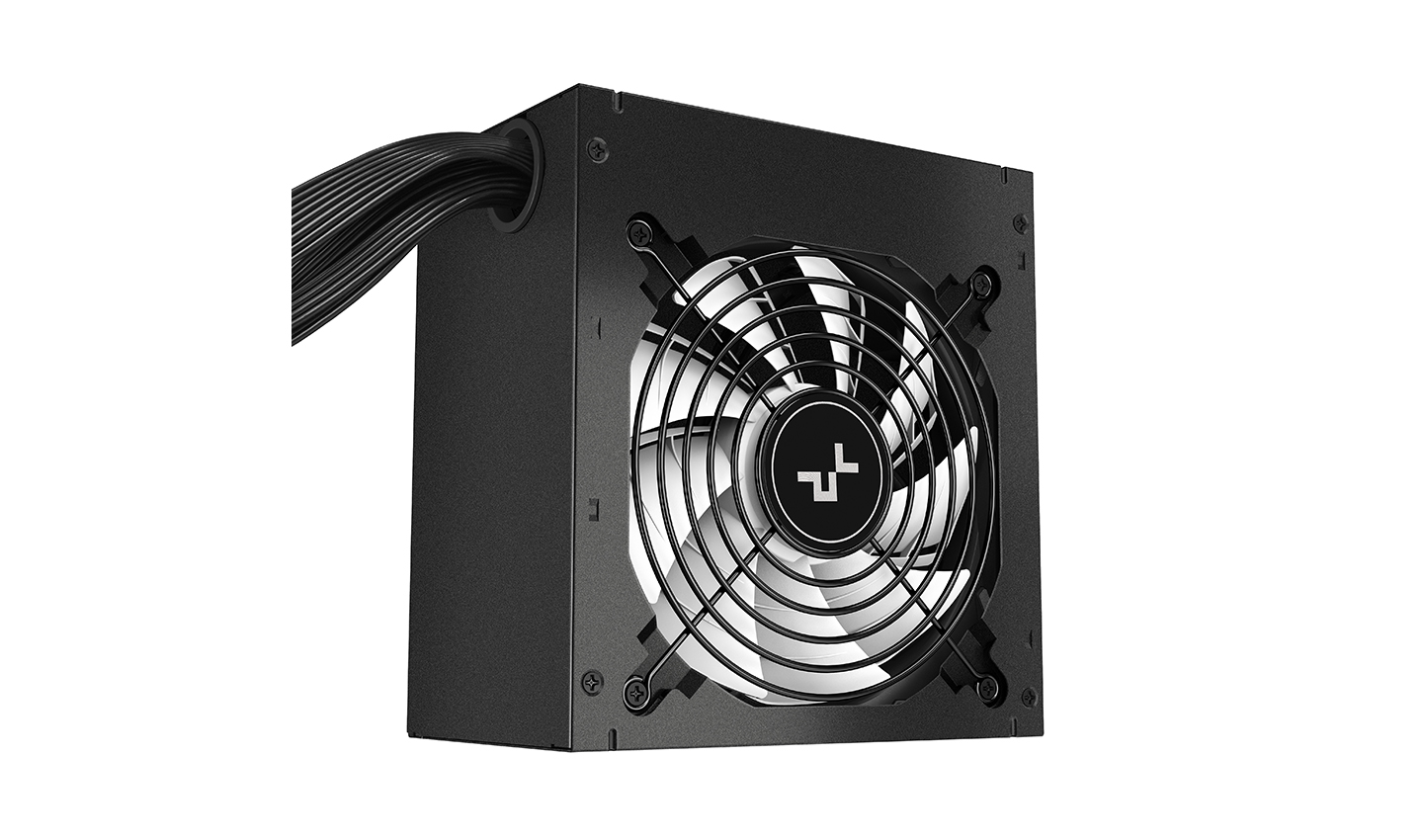

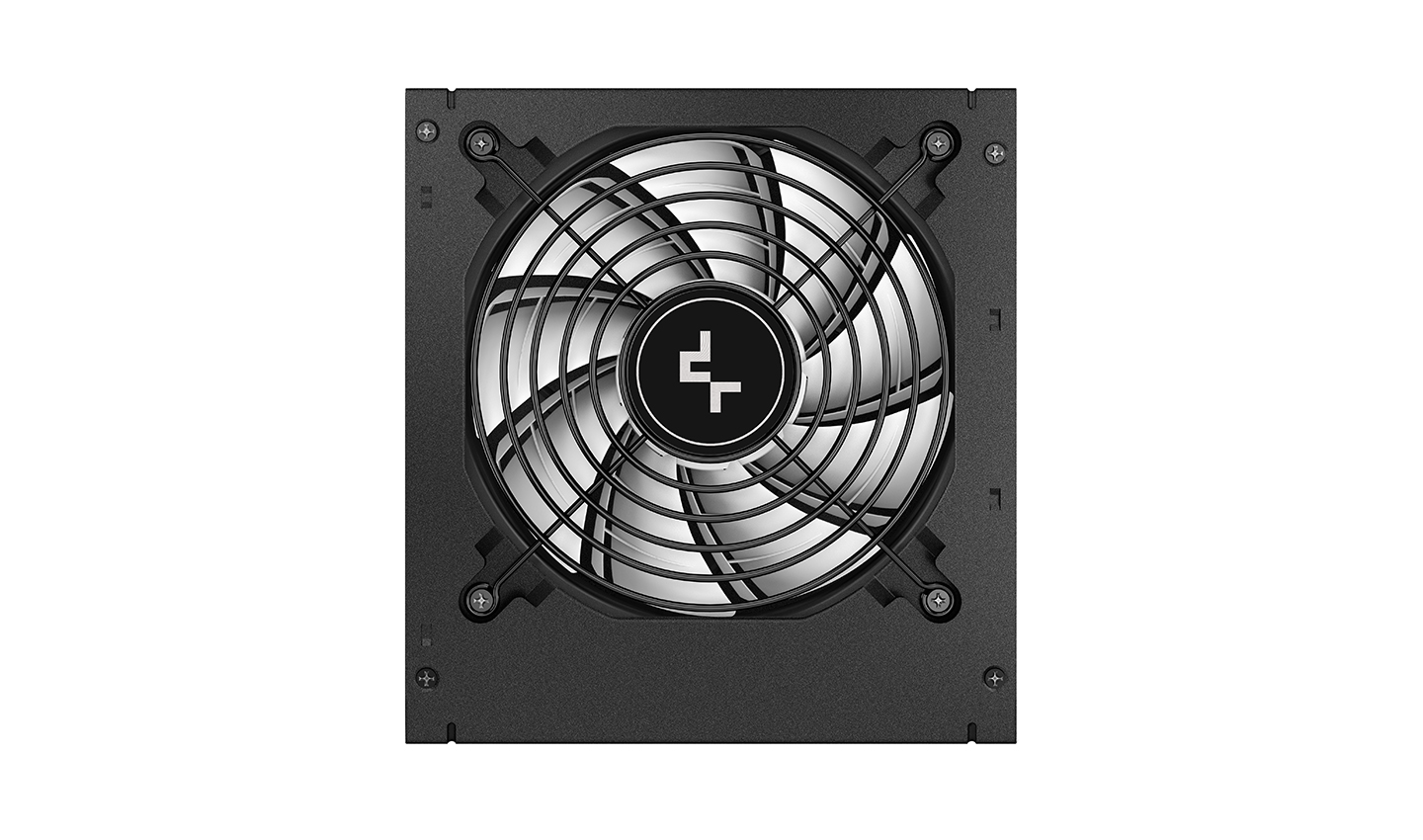

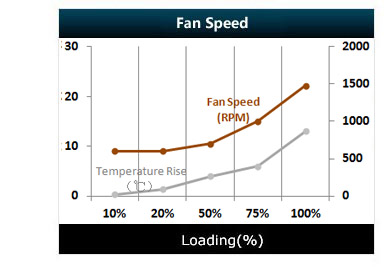

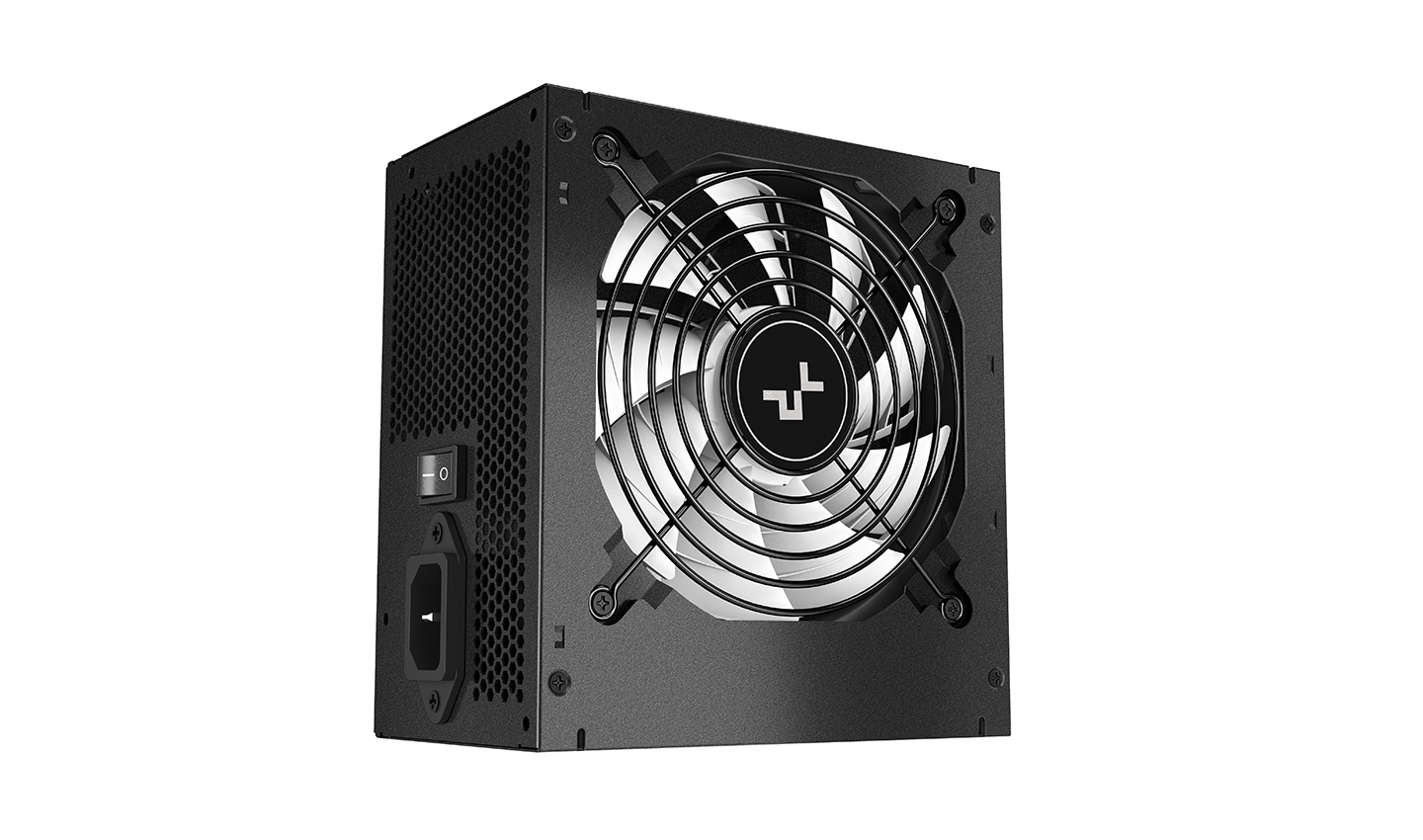

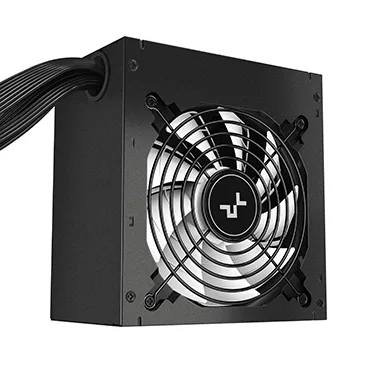

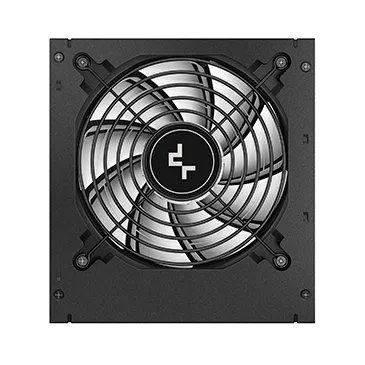

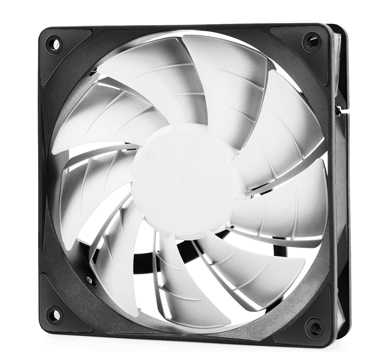

Silent, High Performance Fan
120 mm fan with FDB bearing with specialized fan impeller that delivers stronger
wind pressure, ultra-low noise operations, and excellent performance.

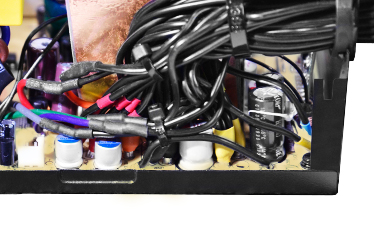

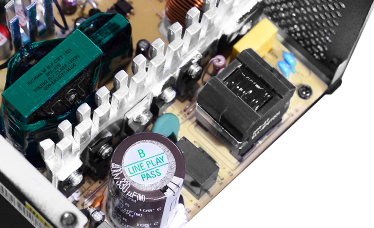

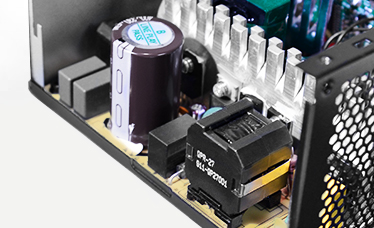

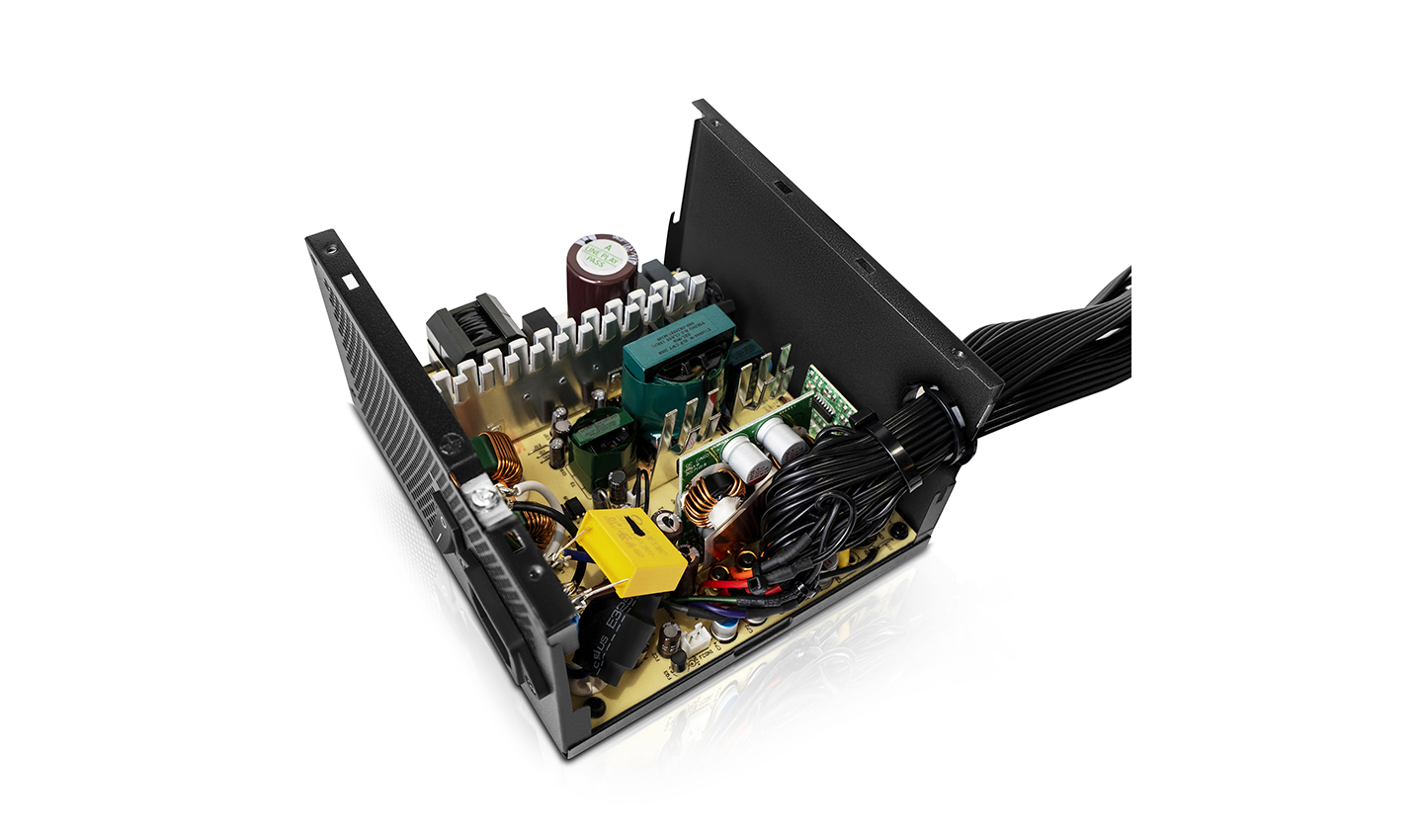

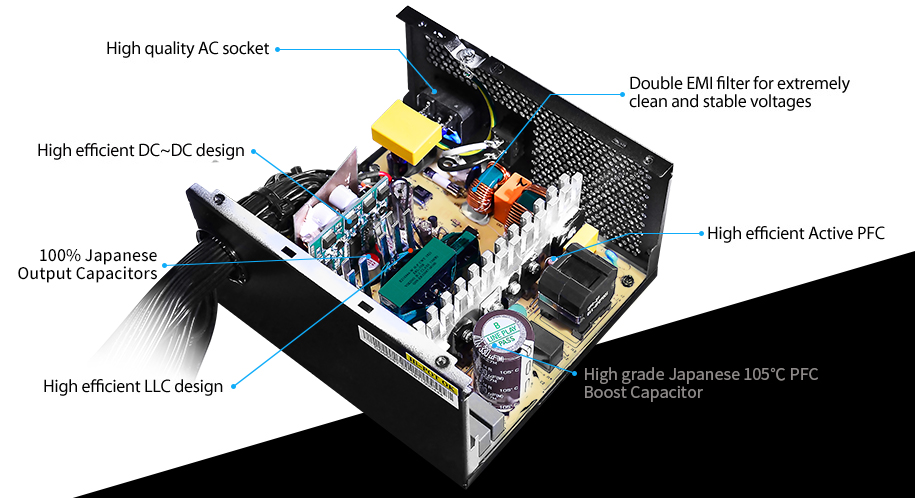

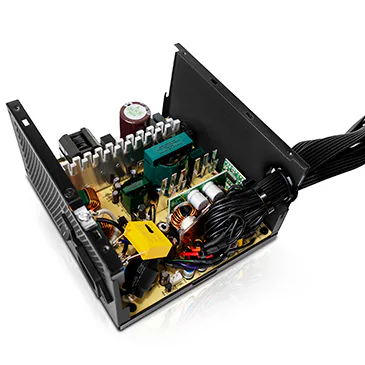

Insider details

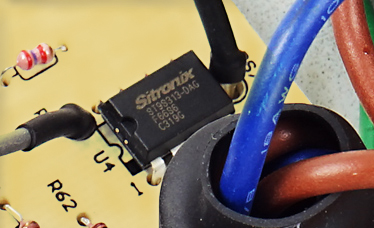

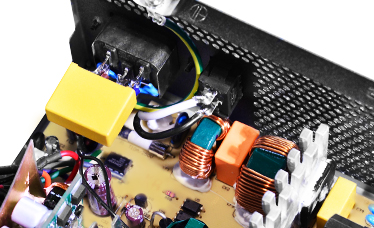

Excellent 1- and 2-stage EMI filter circuit
Highly efficient Active PFC
High grade Japanese 105℃ PFC Boost Capacitor

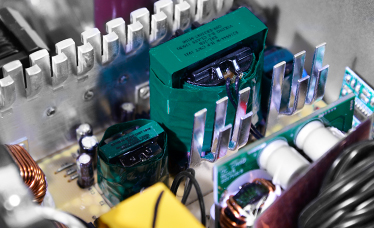

Highly efficient and stable transformer
Outstanding single +12V output
Highly reliable multi-layered protection

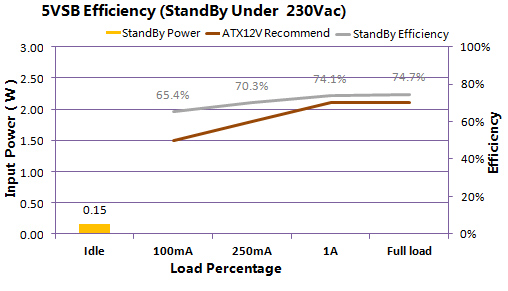

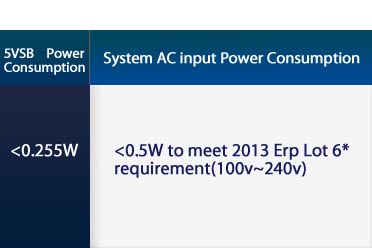

Idle / Standby Efficiency
Certification and Support
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power
Connector (20+4)Pin x 1
X1
SATA×3+4pin
Peripheral×1
X1
4Pin Peripheral
x 2+SATA x 2
X1
Technical Spec
|
Model |
DQ650ST |
|
Type |
ATX 12V V2.4 |
|
Certifications |
80PLUS Gold |
|
Dimension |
150×140×86mm (W x L x H) |
|
Output Capacity |
650W |
|
Input Voltage |
100~240V |
|
Input Current |
10A/5A |
|
Input Frequency Range |
47~63Hz |
|
Fan Size |
120mm |
|
PFC |
Active PFC (>0.99) |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms |
|
Efficiency |
90% Under Typical Load |
|
Protection |
OVP / UVP / SCP / OPP |
|
Operation Temperature |
0~40°C |
|
Regulatory |
CE / FCC / CB / EAC |
|
MTBF |
120,000 Hours |
|
EAN |
6933412798538 |
|
P/N |
DP-GD-DQ650ST |
