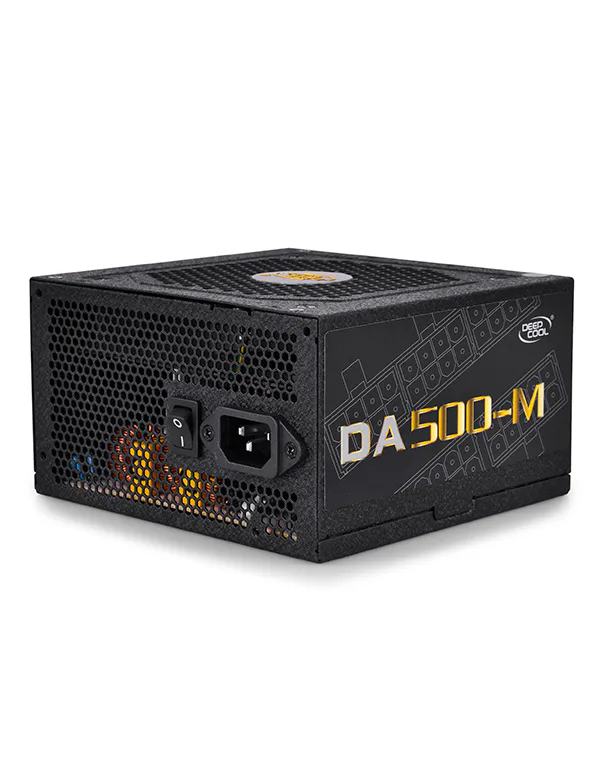

DA500-M

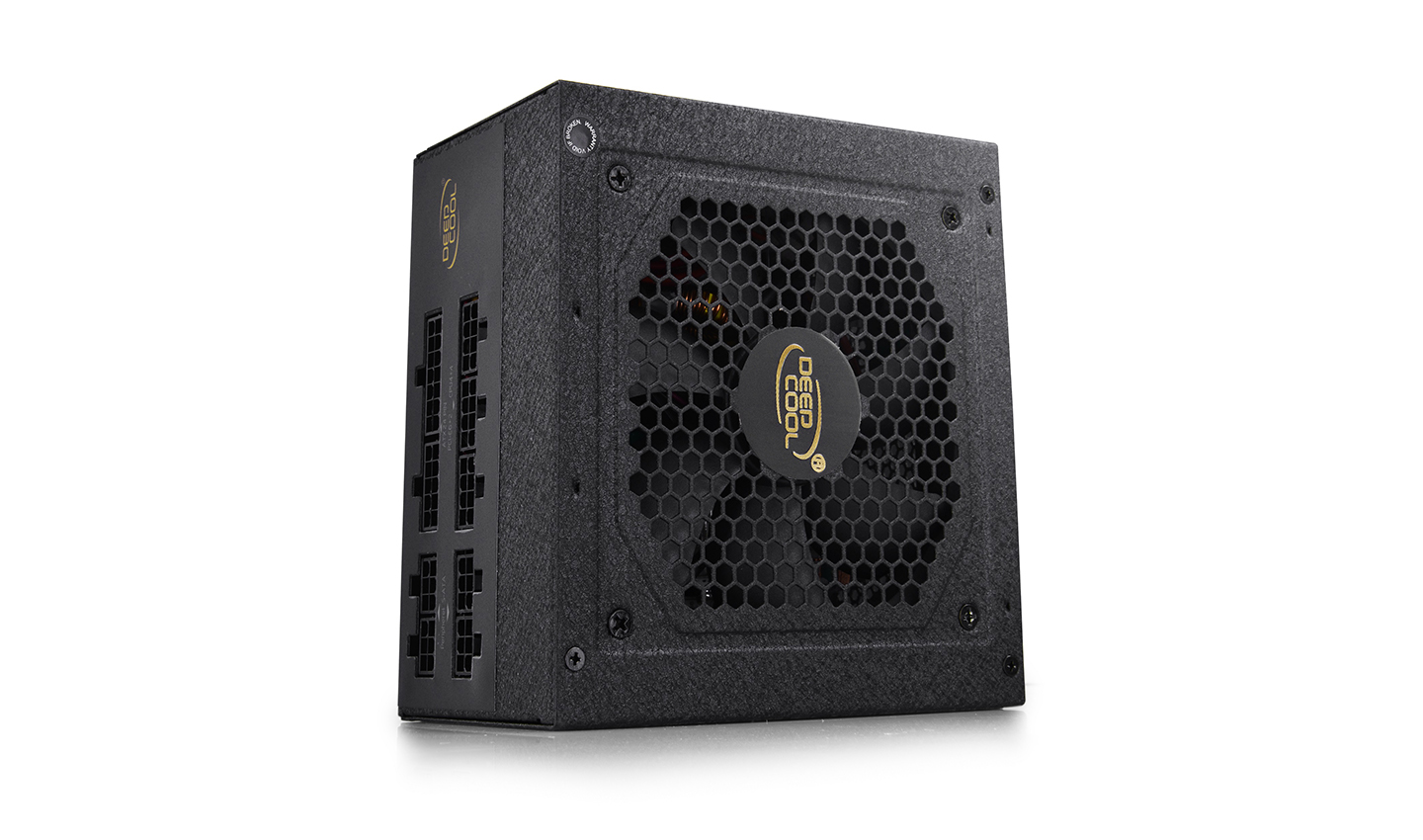

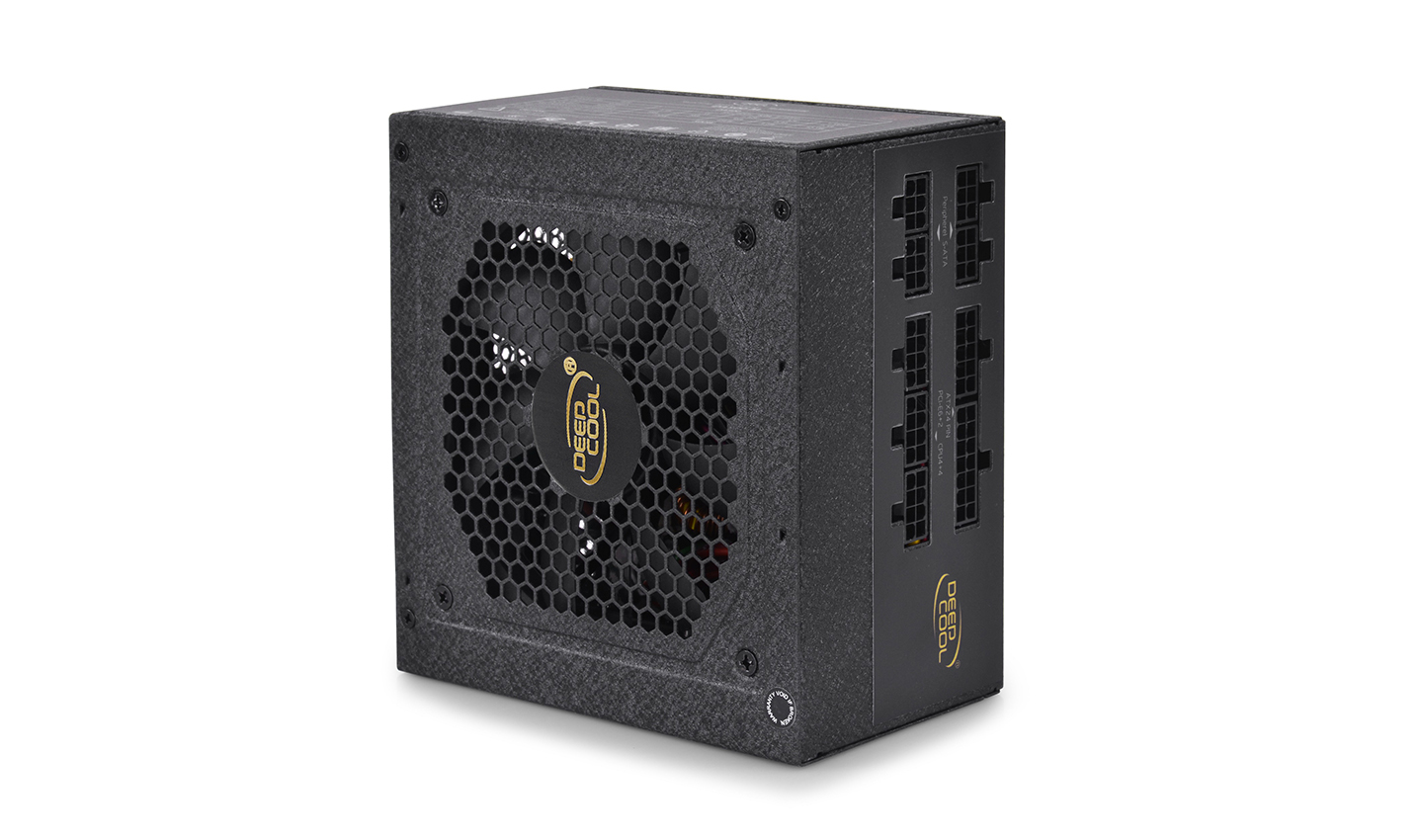

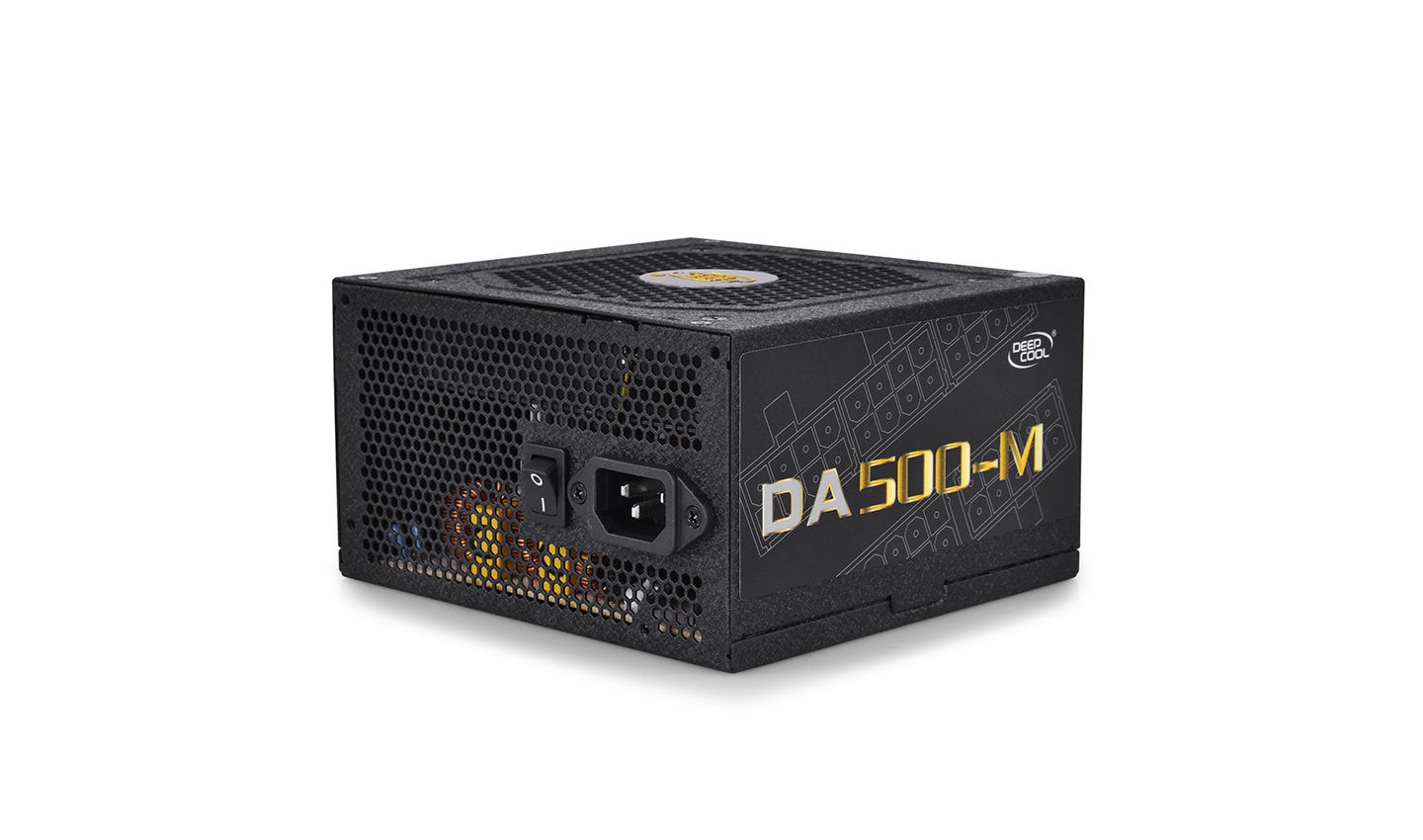

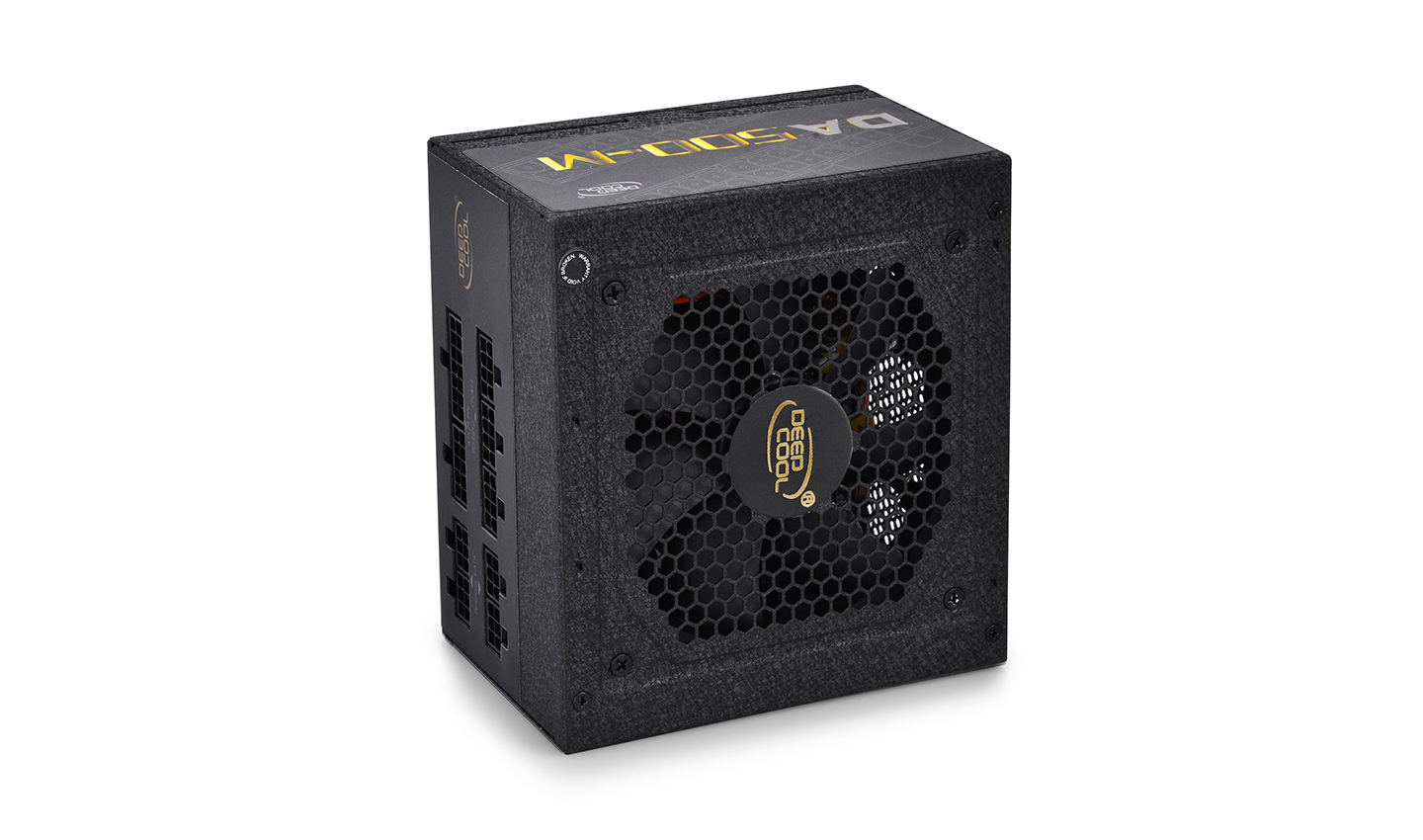

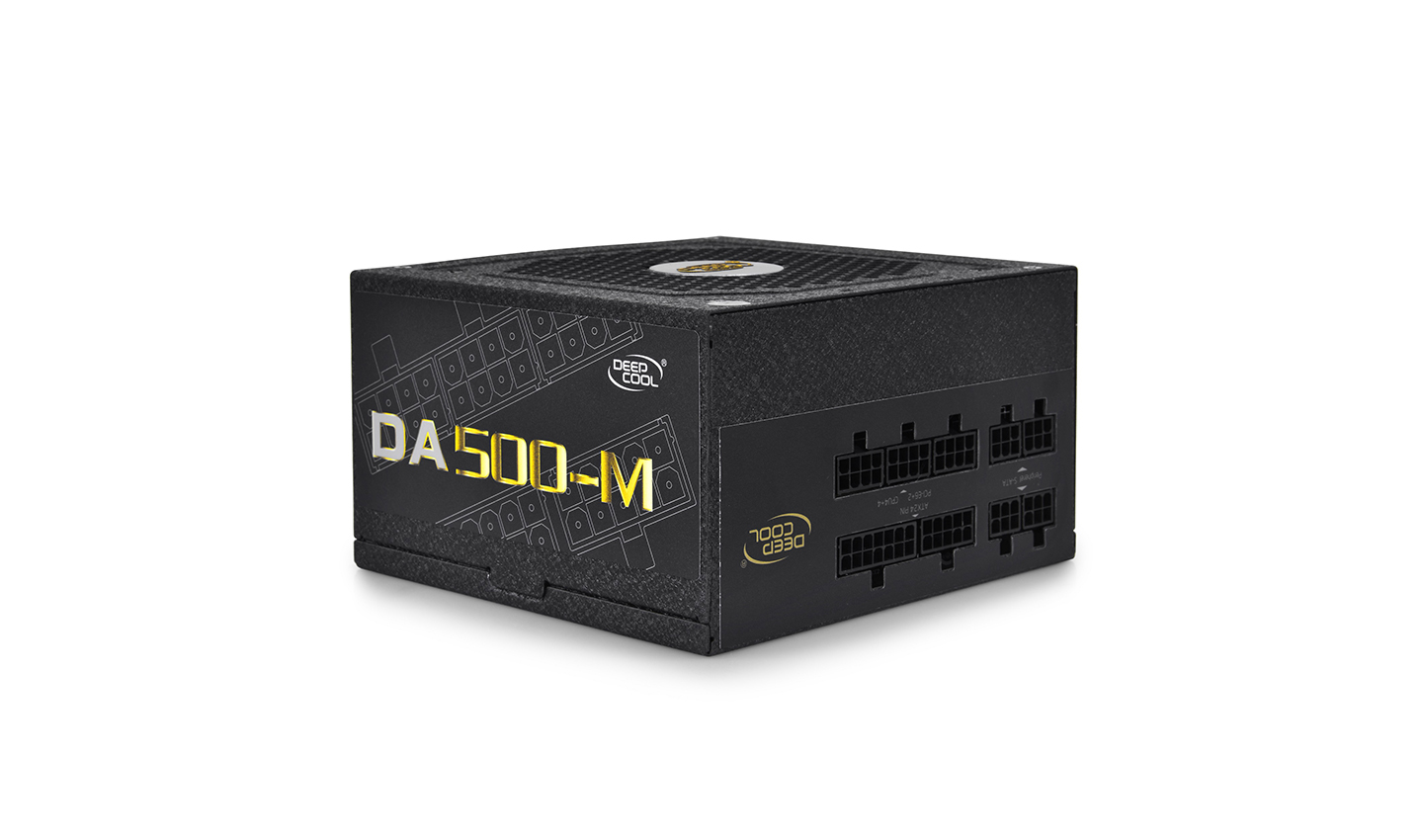

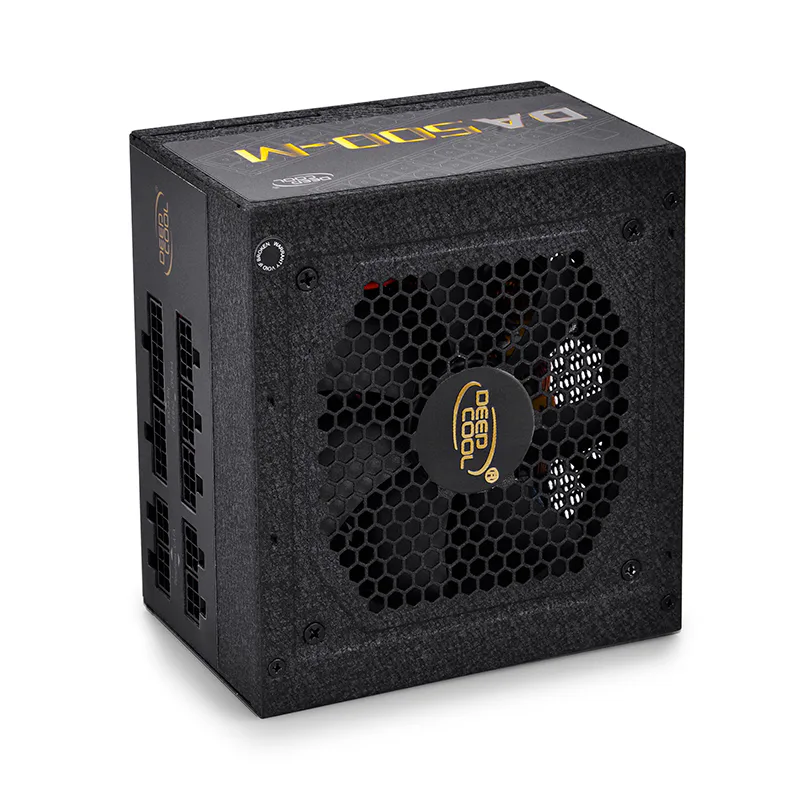

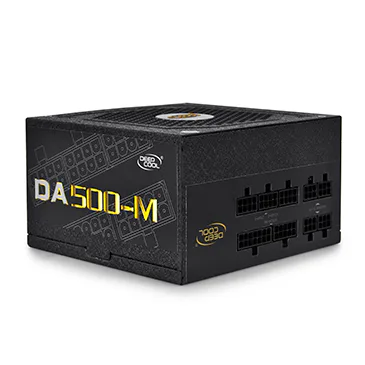

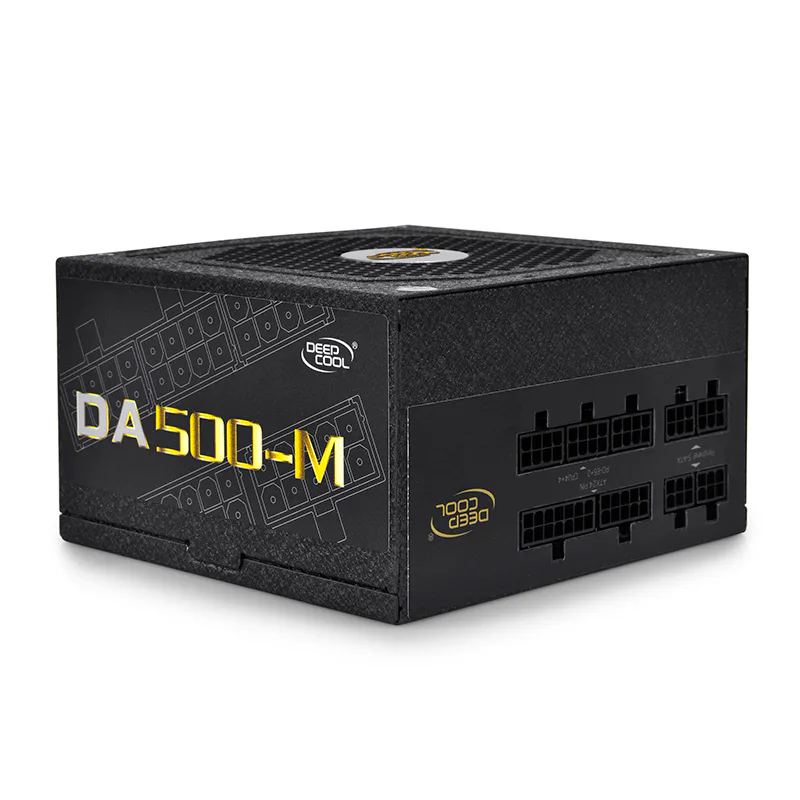

DA500-M (Model No. DA500) is a 100% fully modular power supply unit (PSU). This PSU is certified to 80 Plus Bronze, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications. Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.
COLOR
black
MODEL
DA500-M
80PLUS Bronze up to 85% Efficient PSU with 100% Full Modular
Description

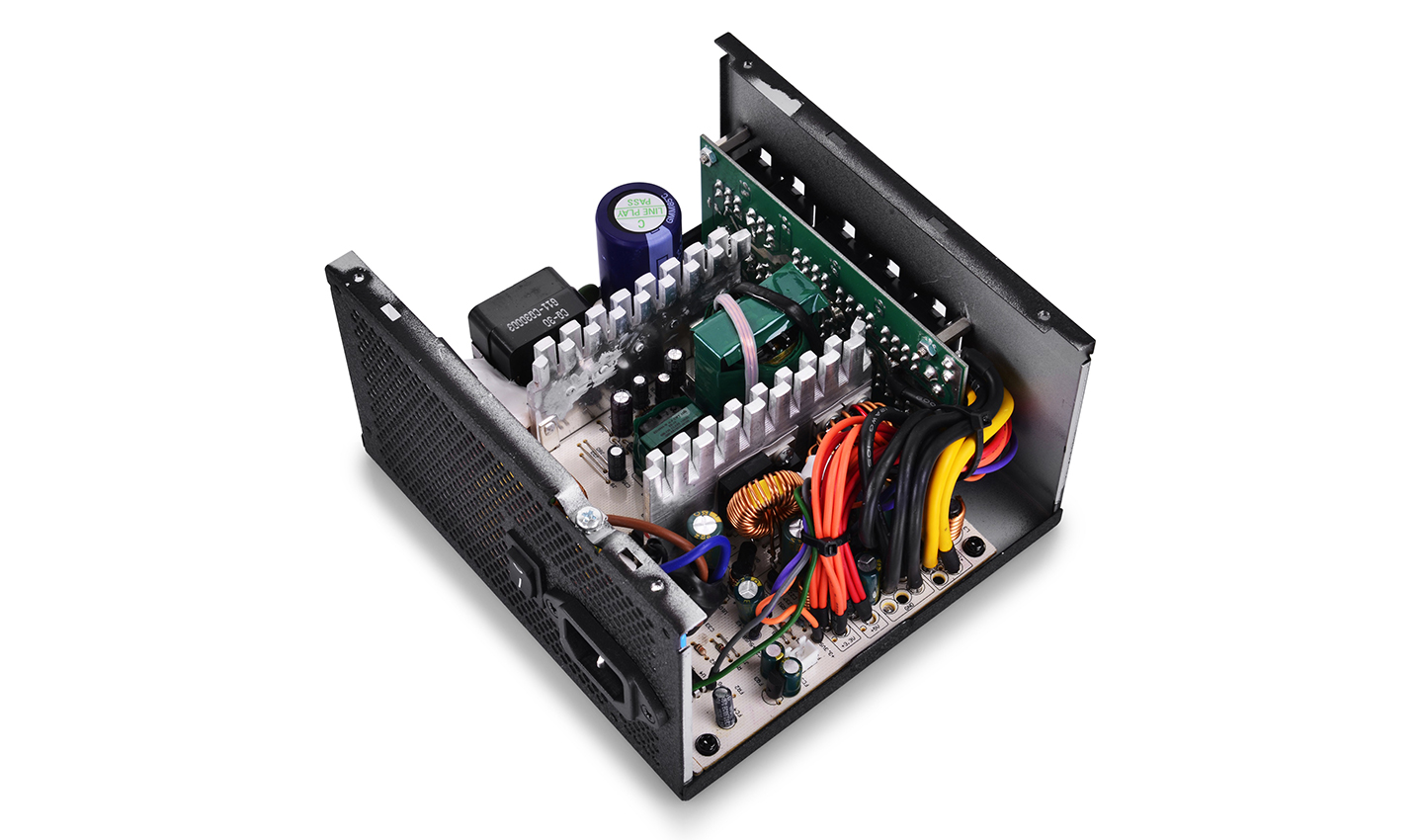

DA500-M (Model No. DA500) is a 100% fully modular power supply unit (PSU). This PSU is certified to 80 Plus Bronze, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications. Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.

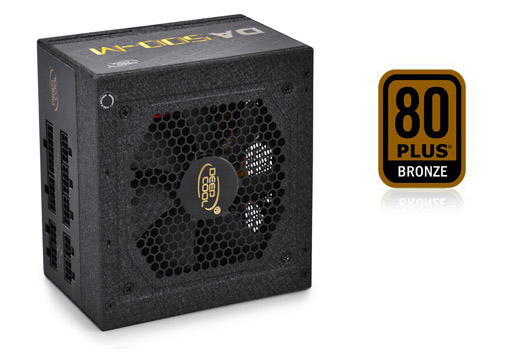

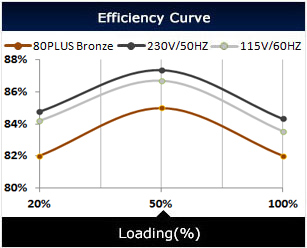

80PLUS BRONZE
80 PLUS Bronze certified provides a high energy efficiency up to 85%. Click here to view the certification.

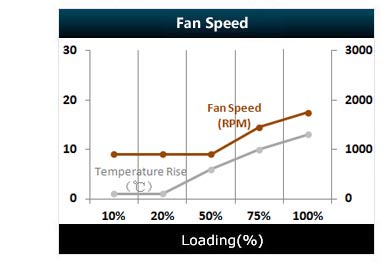

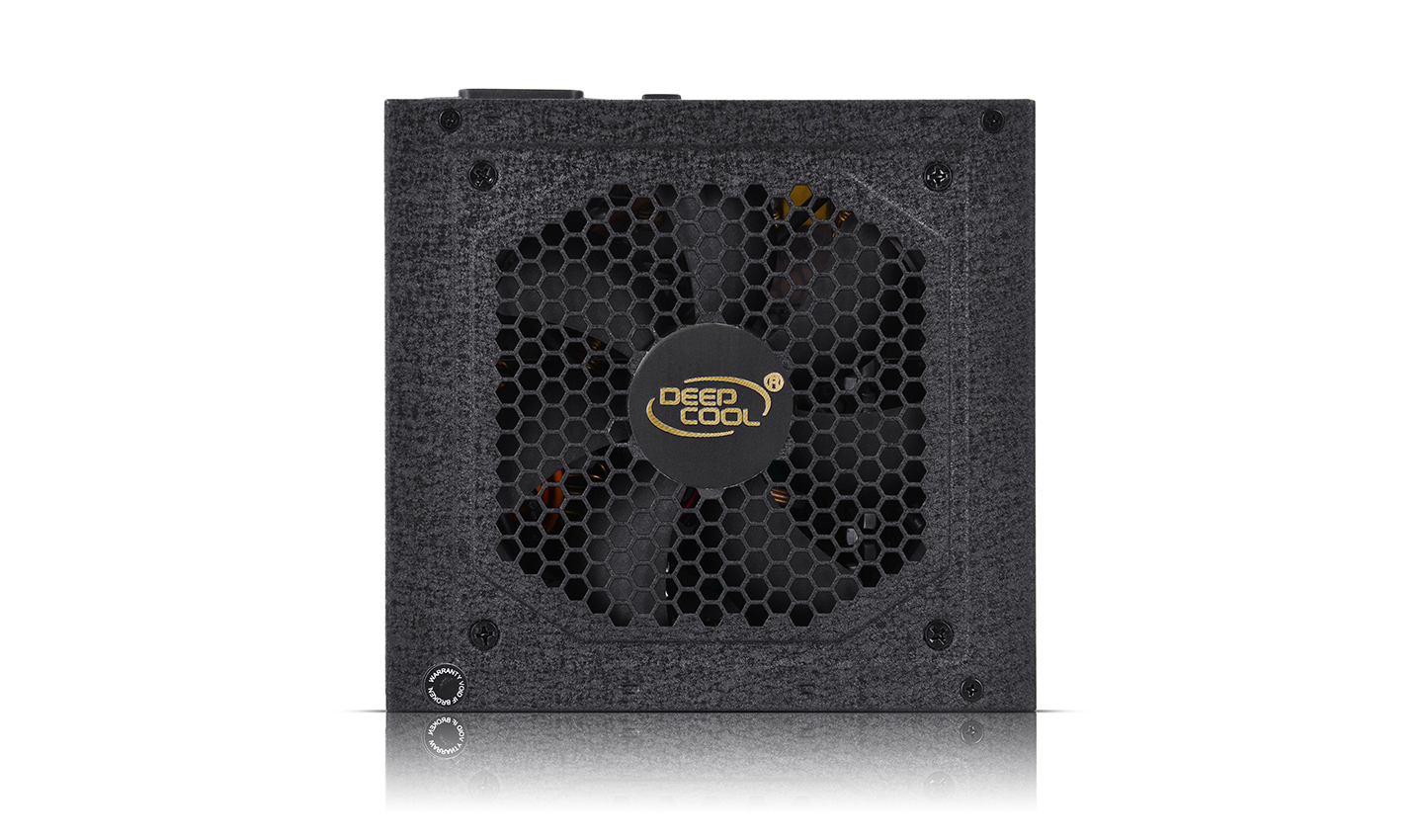

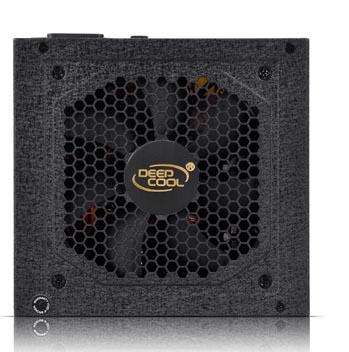

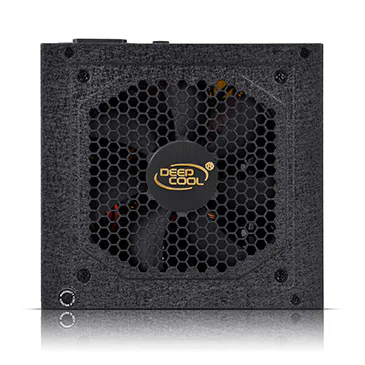

Silent, High Performance Fan
120 mm quiet PWM-capable fan with an incredible performance-to-noise ratio.

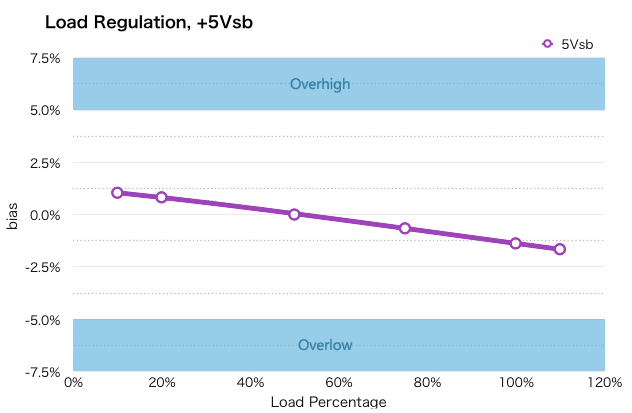

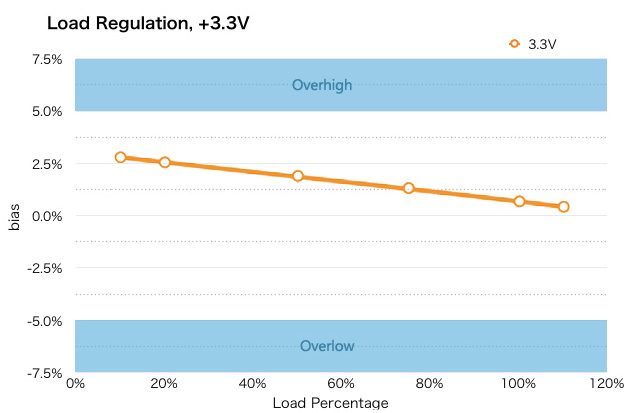

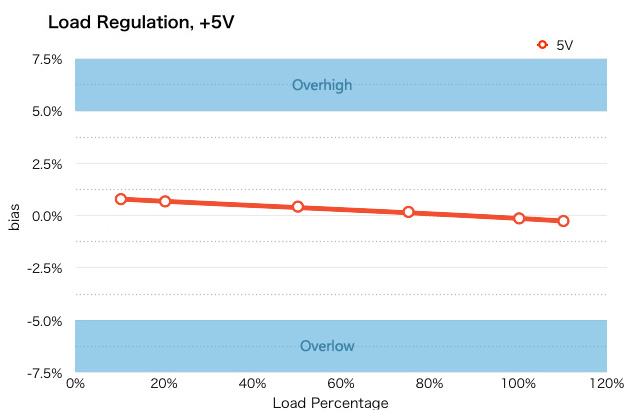

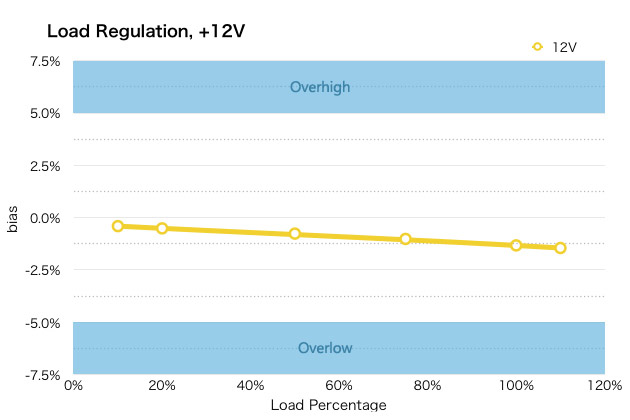

Voltage regulation

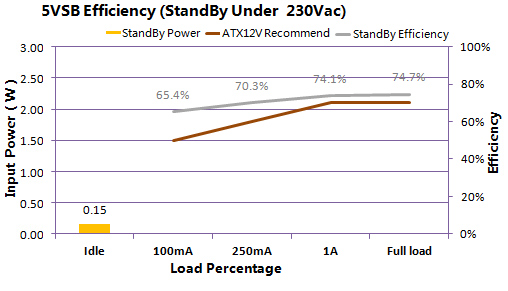

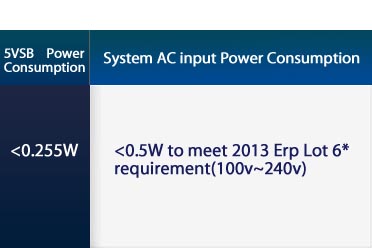

Idle / Standby Efficiency

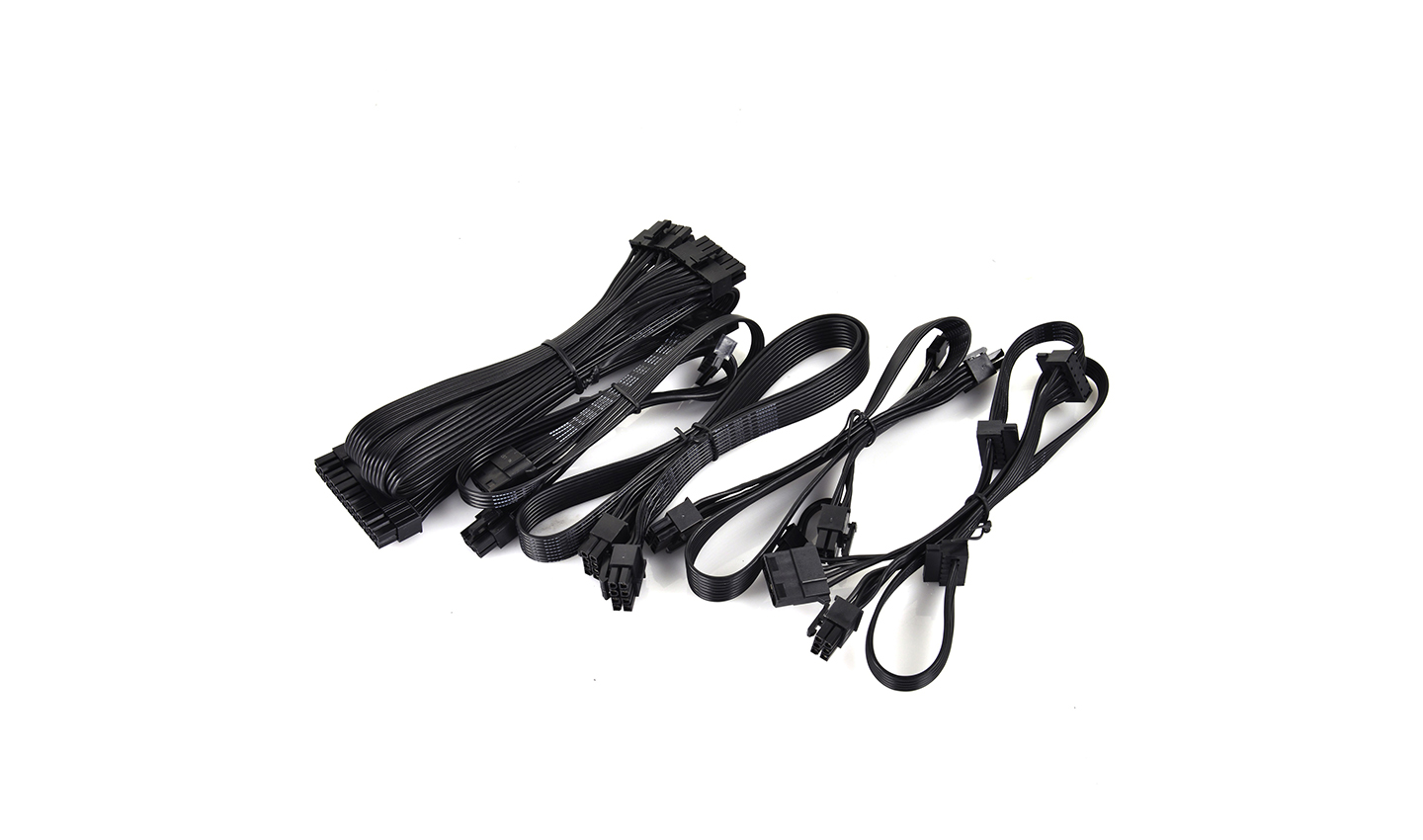

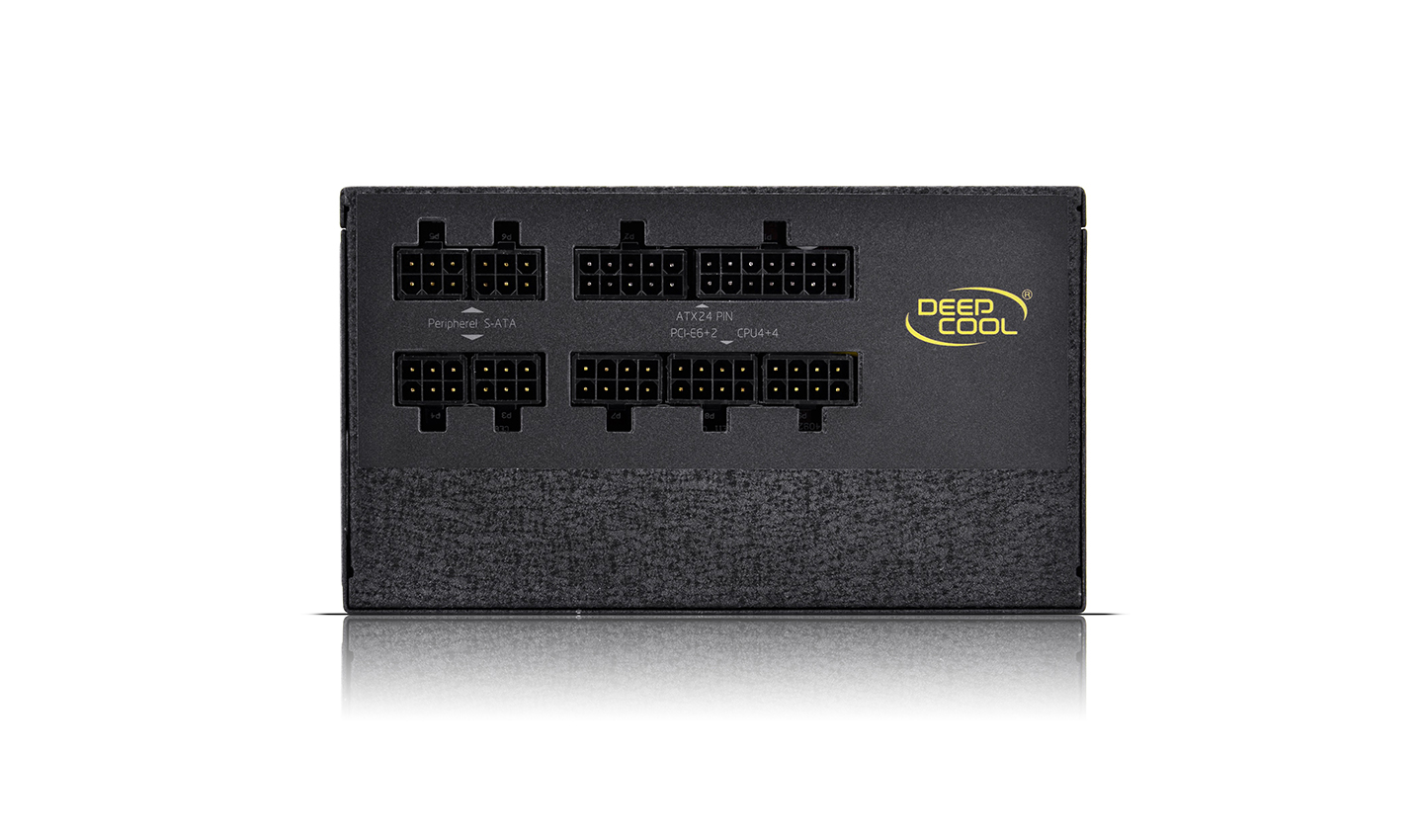

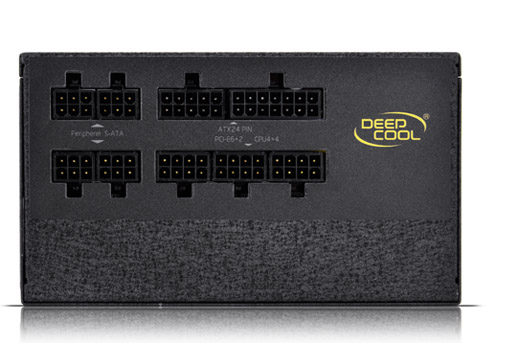

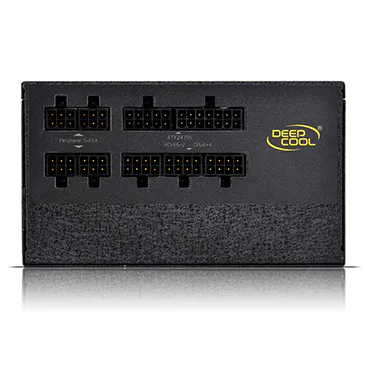

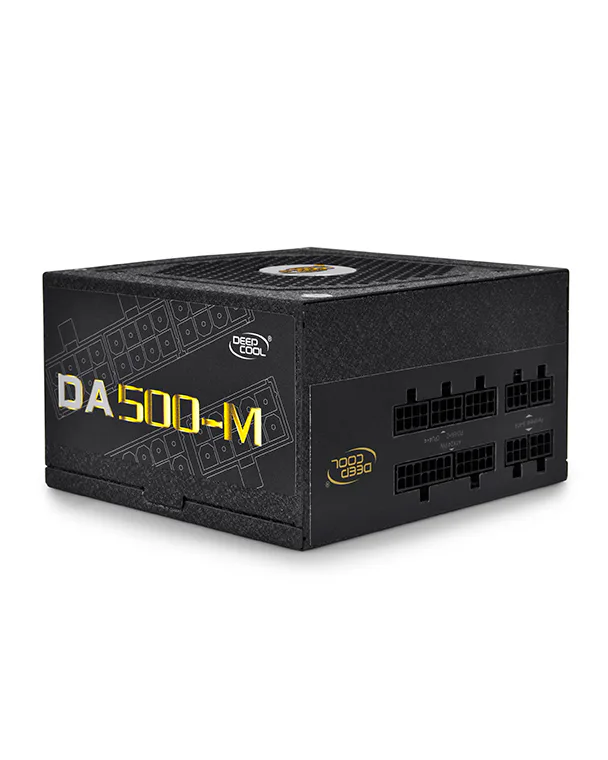

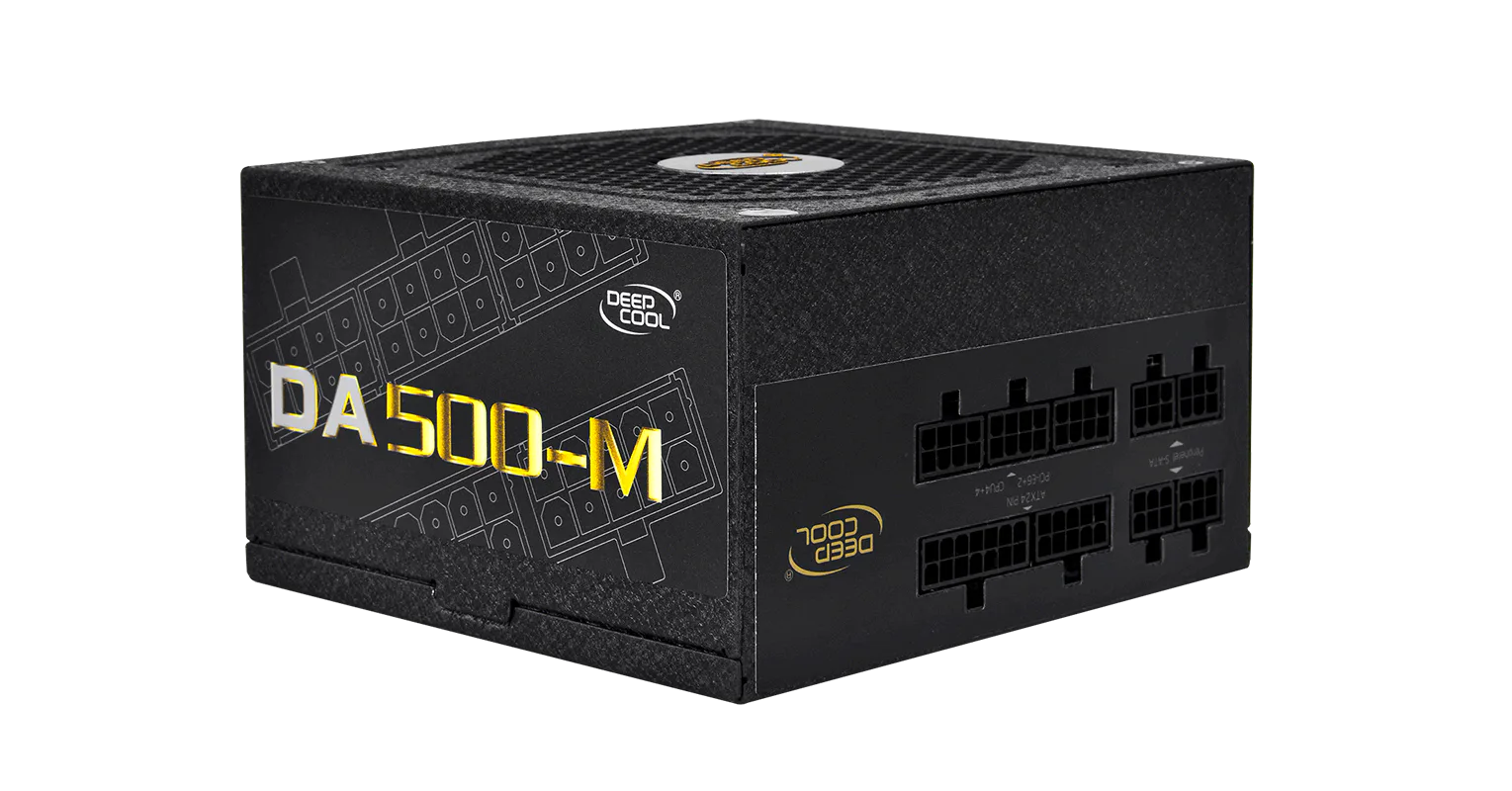

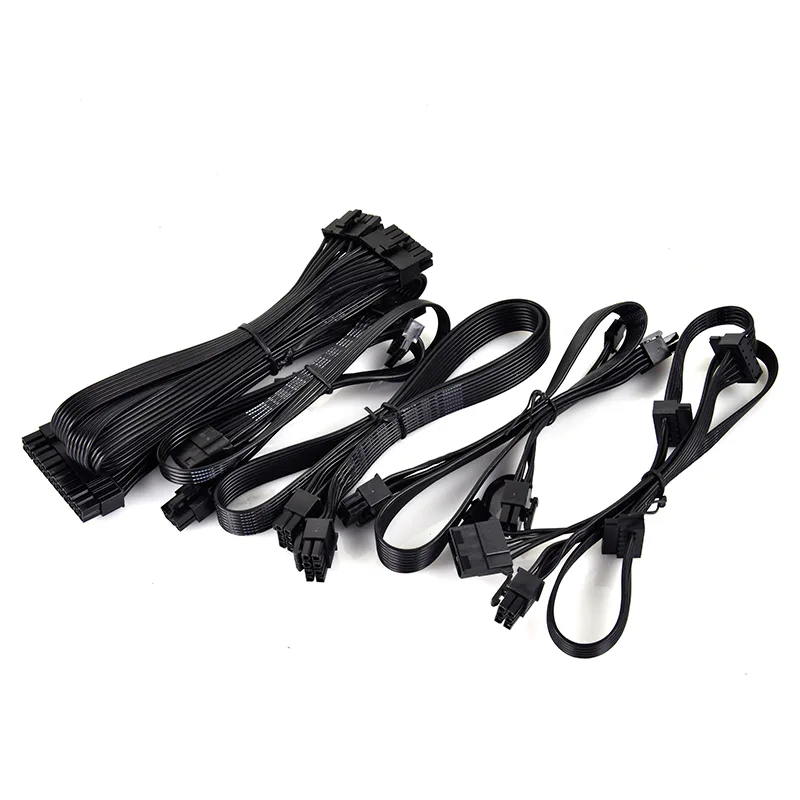

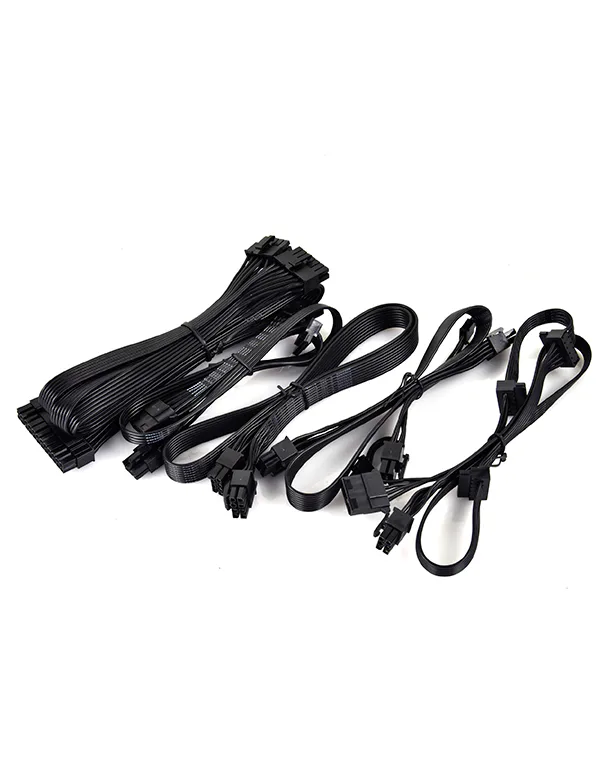

Fully Modular Cable Design

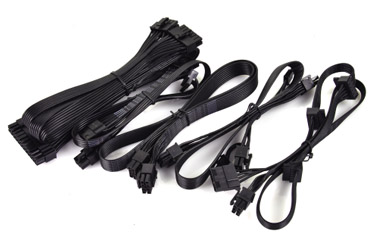

Modular Cable System
Modular cable system allows builders to use only cables they need, providing a tidier and better-looking system.
Certification and Support
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

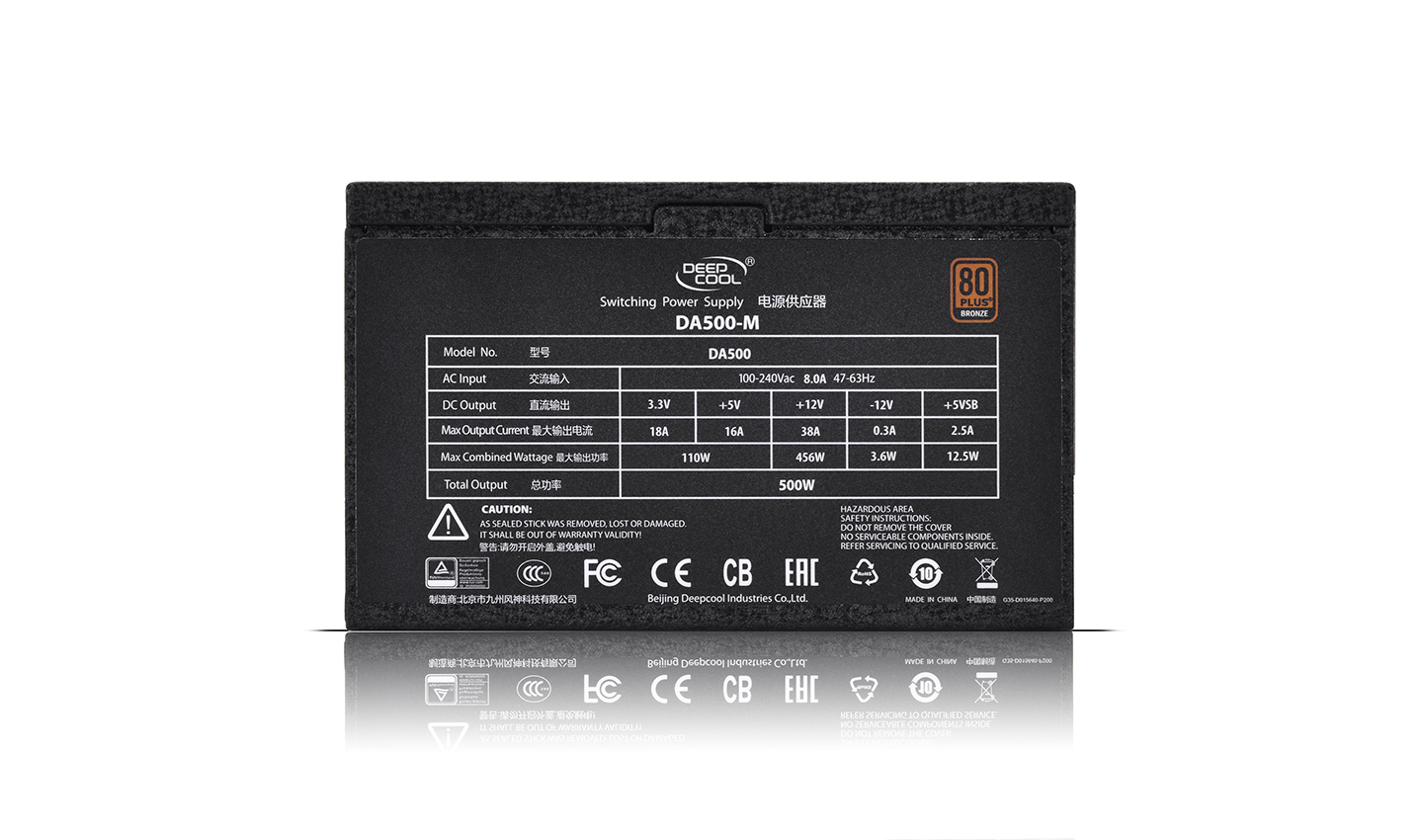

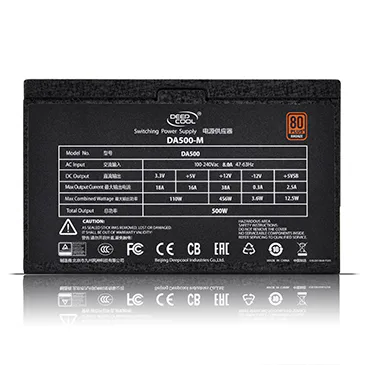

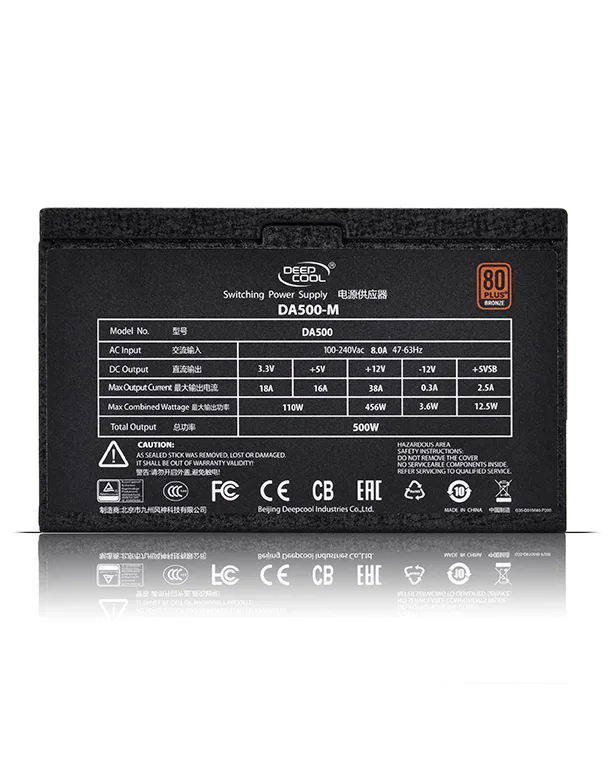

Technical Spec

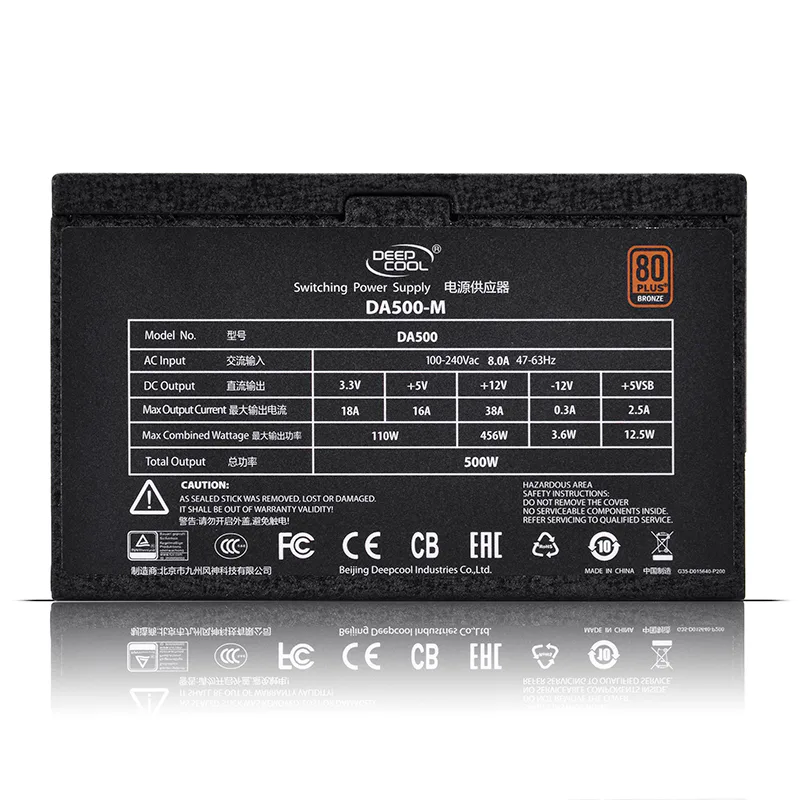

Model DA500-M (Model No. DA500)
Type ATX 12V V2.4
Certifications 80PLUS Bronze
Dimension 150×140×86mm (W x L x H)
Output Capacity 500W
Input Voltage 100~240V
Input Current 8A
Input Frequency Range 47~63Hz
Fan Size 120mm Black Fan
PFC Active PFC
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Under Typical Load
Protection OVP / UVP / SCP / OPP
Operation Temperature 0~40°C
Regulatory CE / FCC / CCC / CB / EAC
MTBF 100,000 Hours
EAN 6933412798743
P/N DP-BZ-DA500-MFM2
Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
