PK550D

80 PLUS Bronze Power Supply

PK550D

The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.

Beautiful in Bronze

The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.

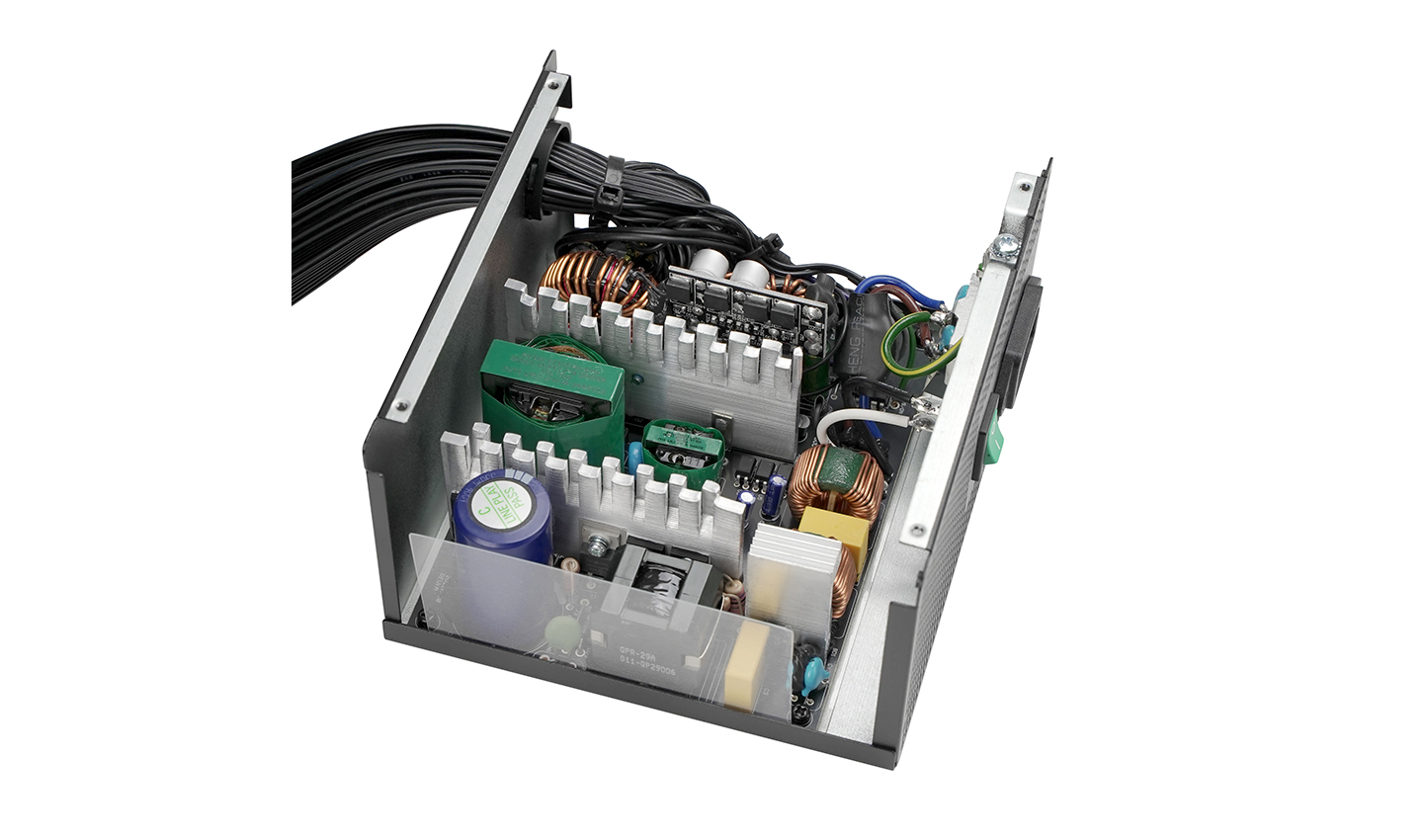

DC-DC Conversion

A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.

Tough and Durable

Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.

ErP Lot 6 Compliant

Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.

* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

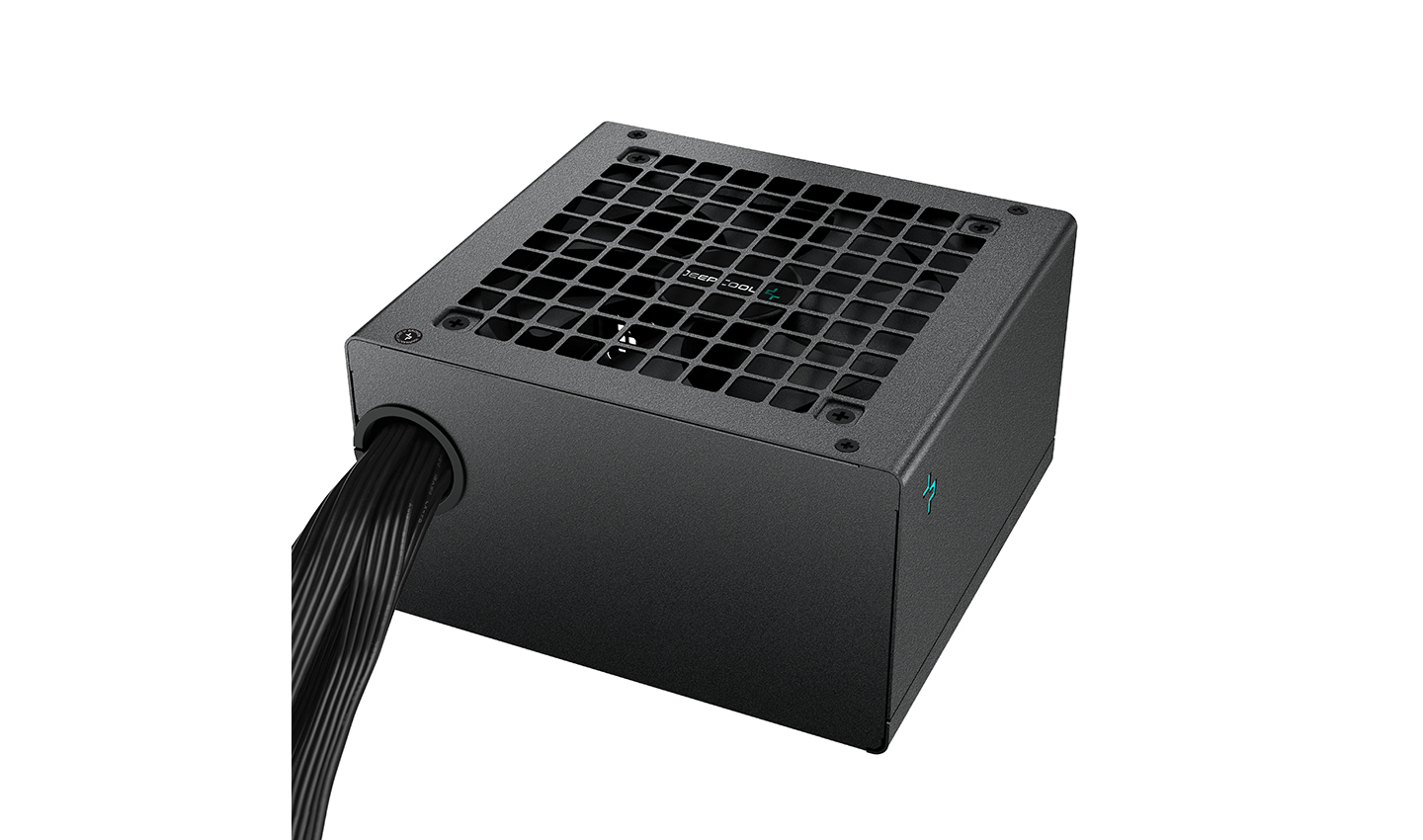

Stealth Black

Black direct power cables help blend in with other components.

Main Power Connector 24 (20+4)Pin x1

EPS 12V Connector 8 (4+4)Pin x2

PCI-E (6+2)Pin x2

SATA x3

4Pin Peripheral x3

Technical Spec

Type	ATX12V V2.4
Product Dimensions	150×140×86mm (W x L x H)
80PLUS Certifications	Bronze
Fan Size	120mm
Fan Bearing	Hypro Bearing
Topology	Active PFC+DC to DC
Capacitors	Taiwan capacitor
Power Good Signal	100-150ms
Hold Up Time	≥16ms(80% Load)

Efficiency	≥85% Under Typical Load(50% Loading)
Protection	SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature	0 - 40 °C
Regulatory	CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp Regulation	ErP 2013
MTBF	100,000 Hours
EAN P/N	6933412711933 R-PK550D-FA0B-CN 6933412711940 R-PK550D-FA0B-AU 6933412711957 R-PK550D-FA0B-EU 6933412711964 R-PK550D-FA0B-JP 6933412711971 R-PK550D-FA0B-UK 6933412711988 R-PK550D-FA0B-US 6933412711995 R-PK550D-FA0B-AR 6933412712008 R-PK550D-FA0B-BR 6933412712015 R-PK550D-FA0B-WO 6933412712022 R-PK550D-FA0B-BP
