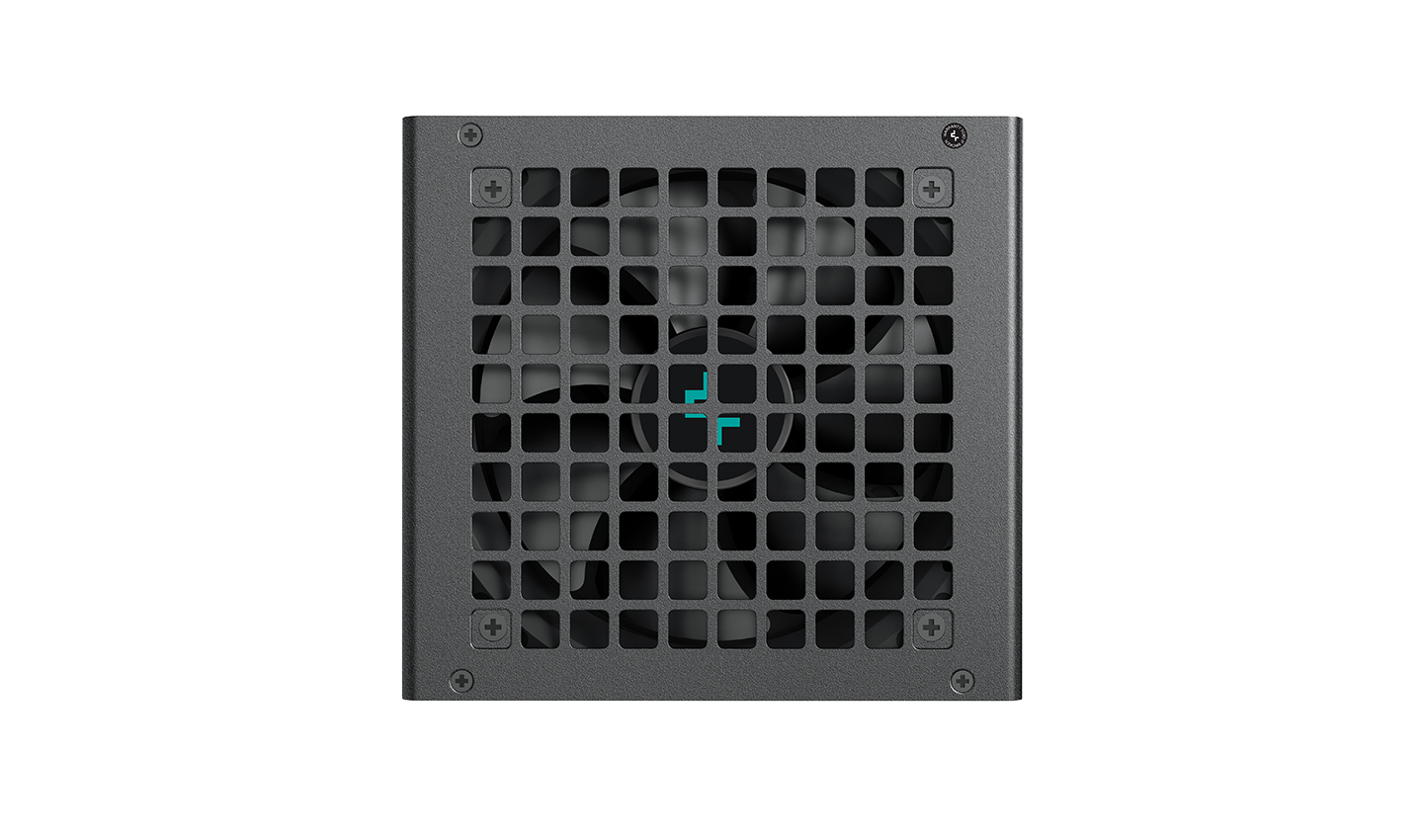

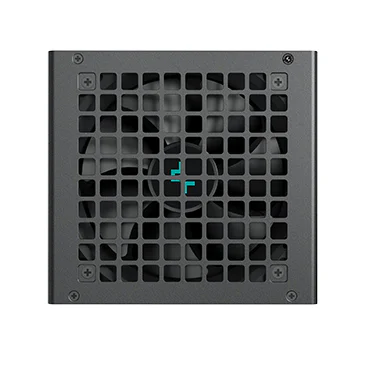

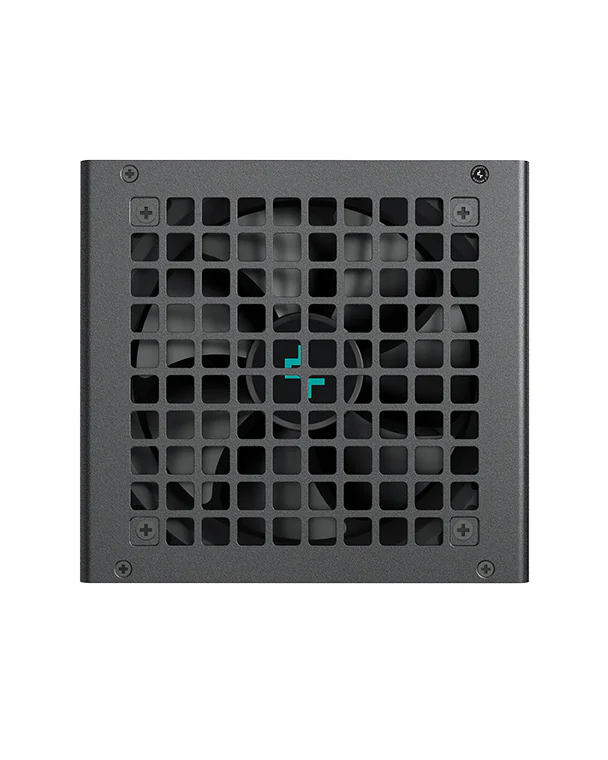

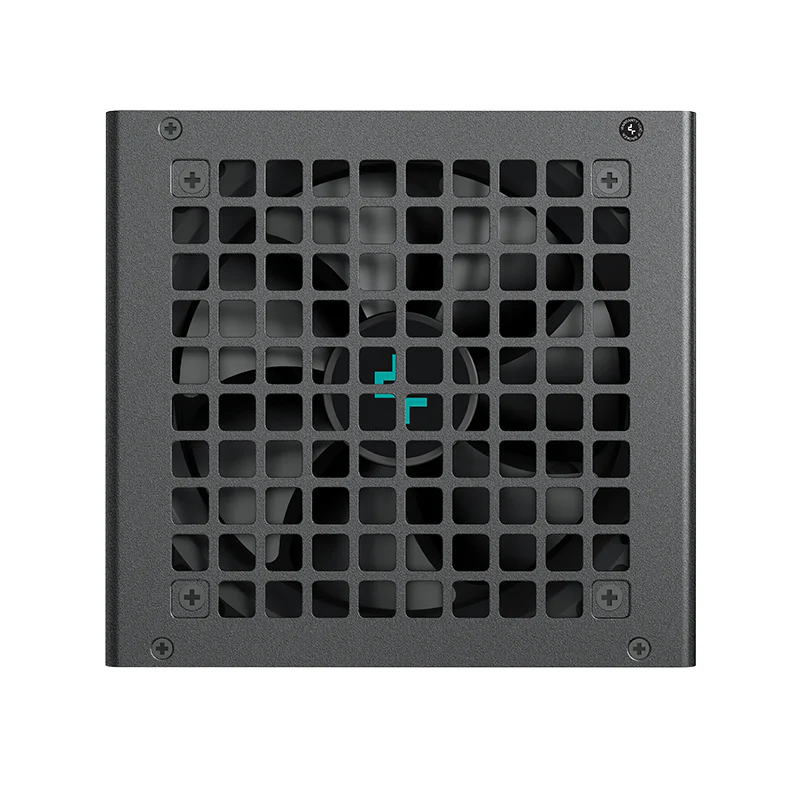

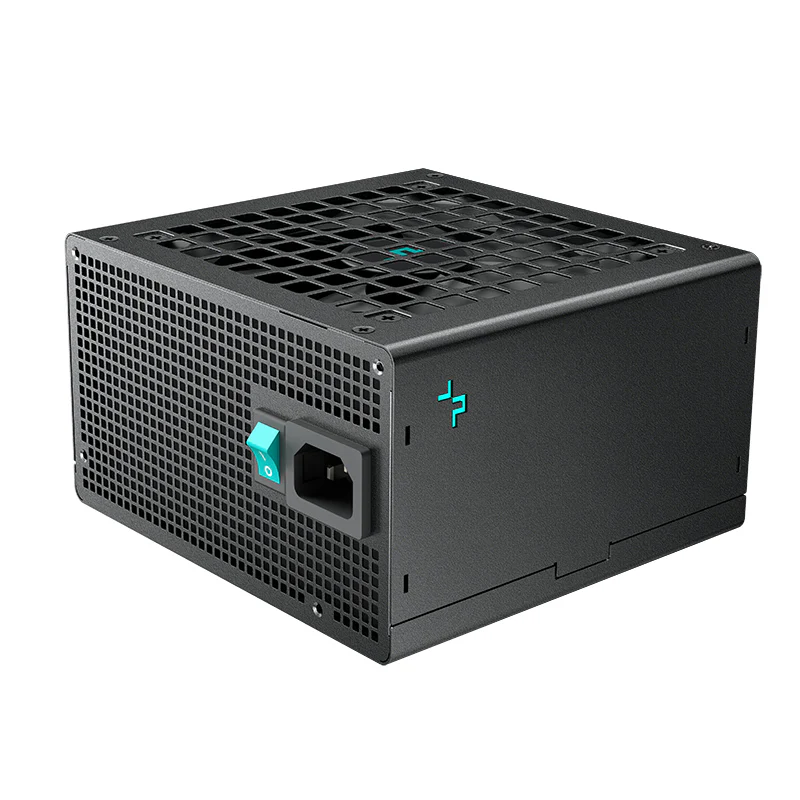

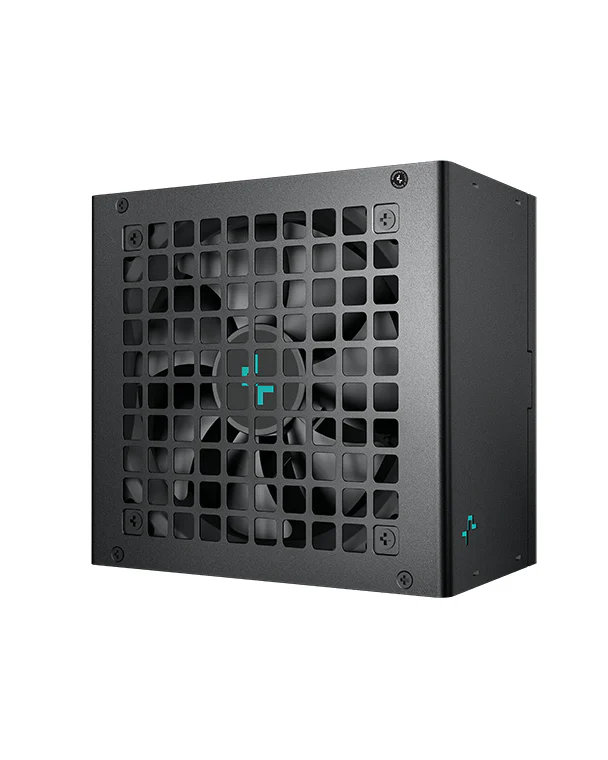

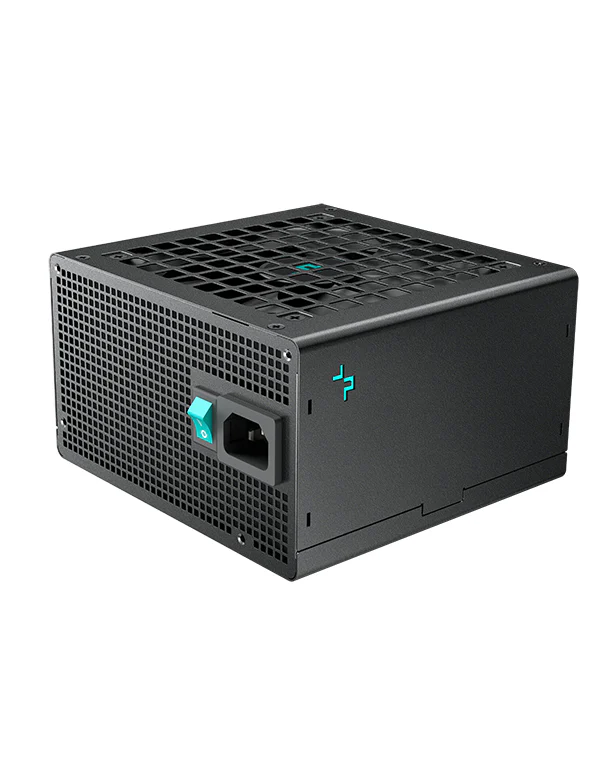

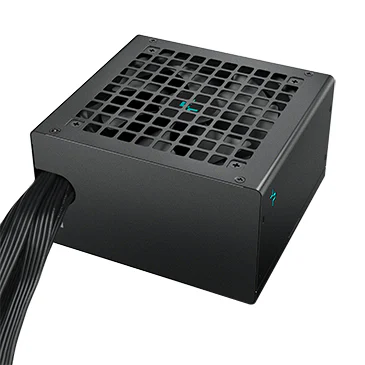

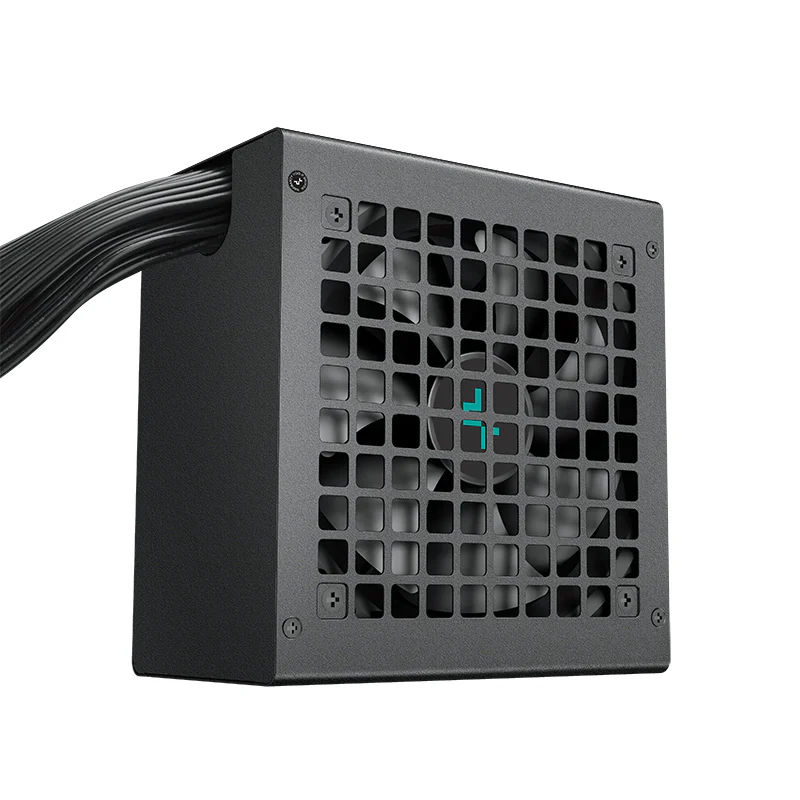

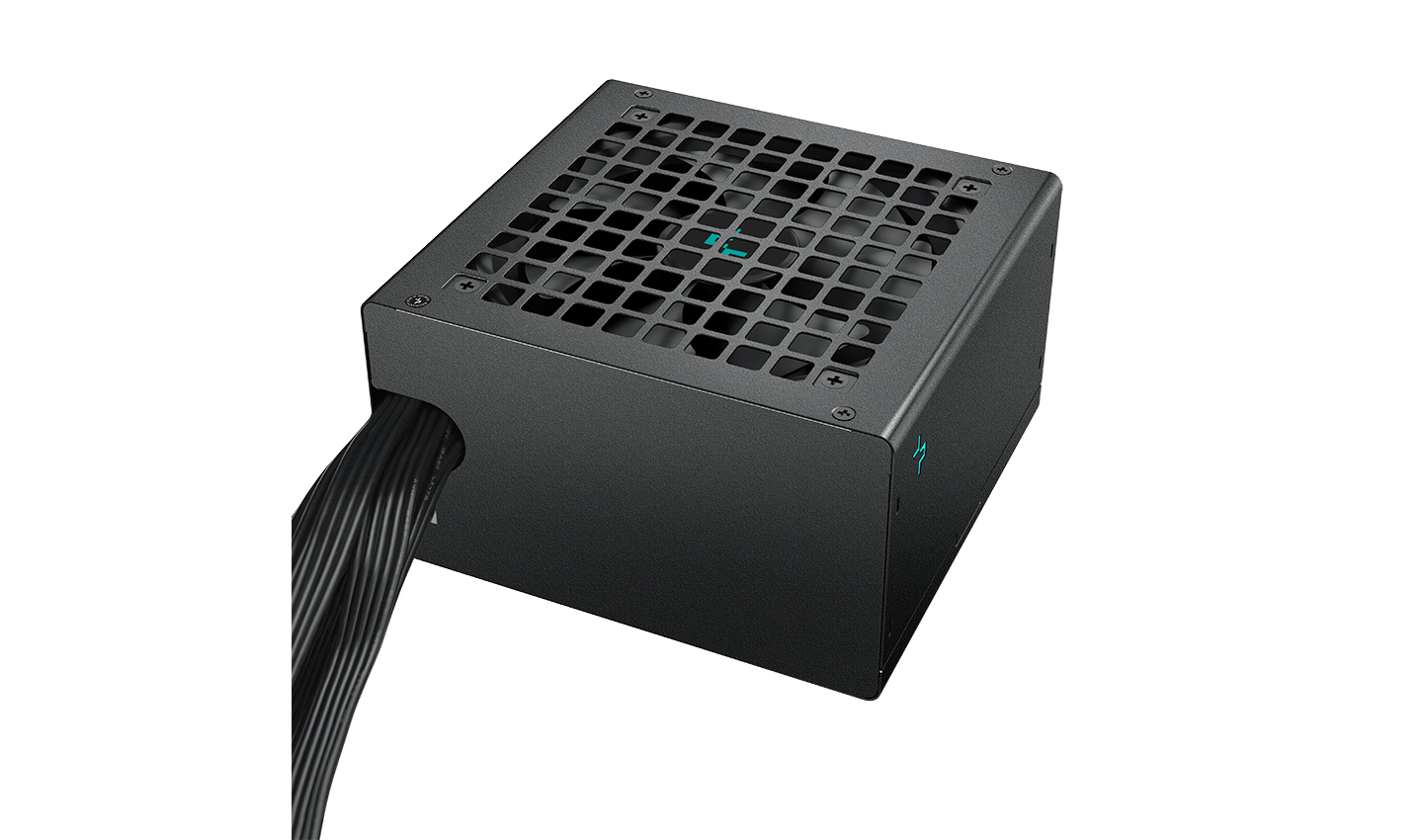

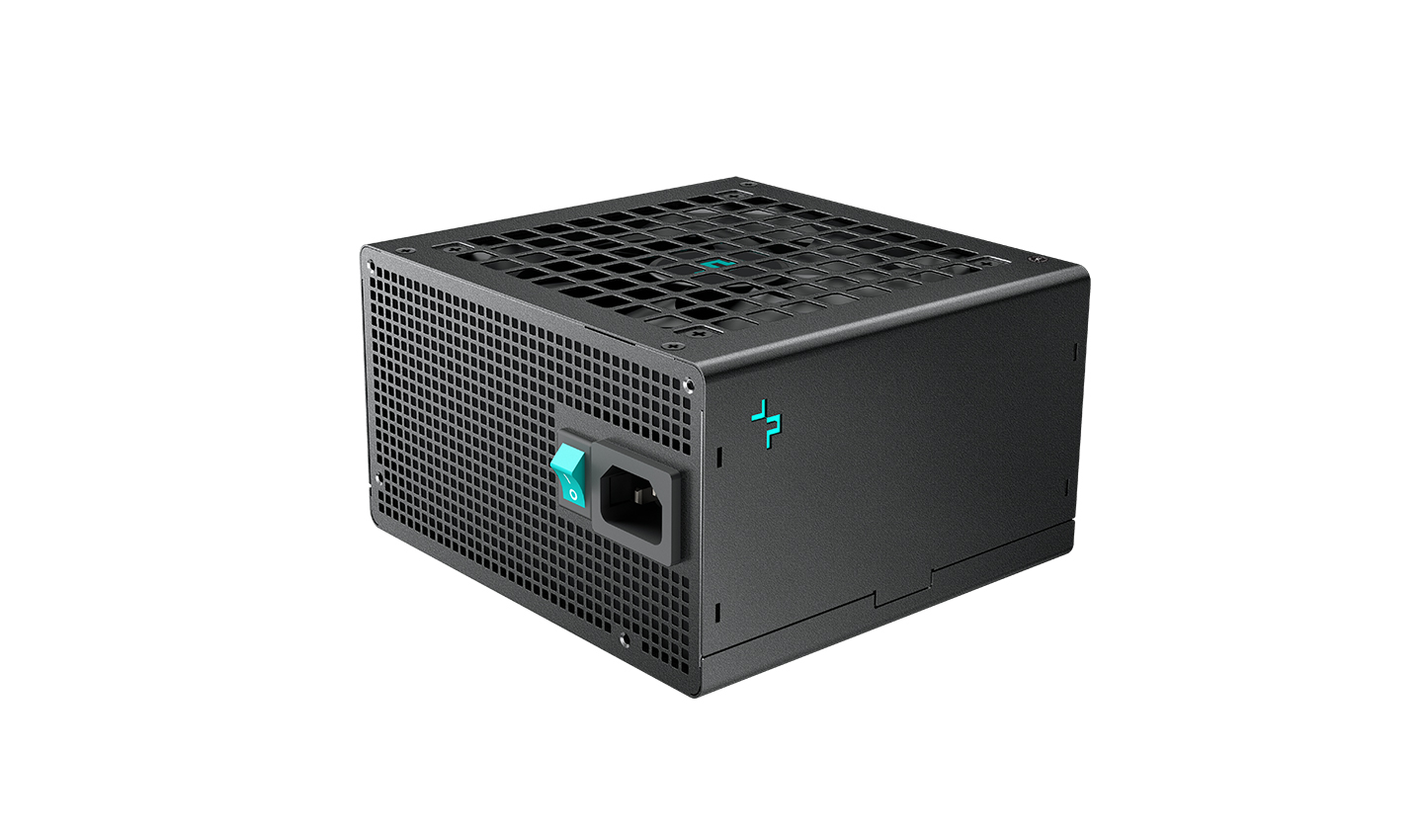

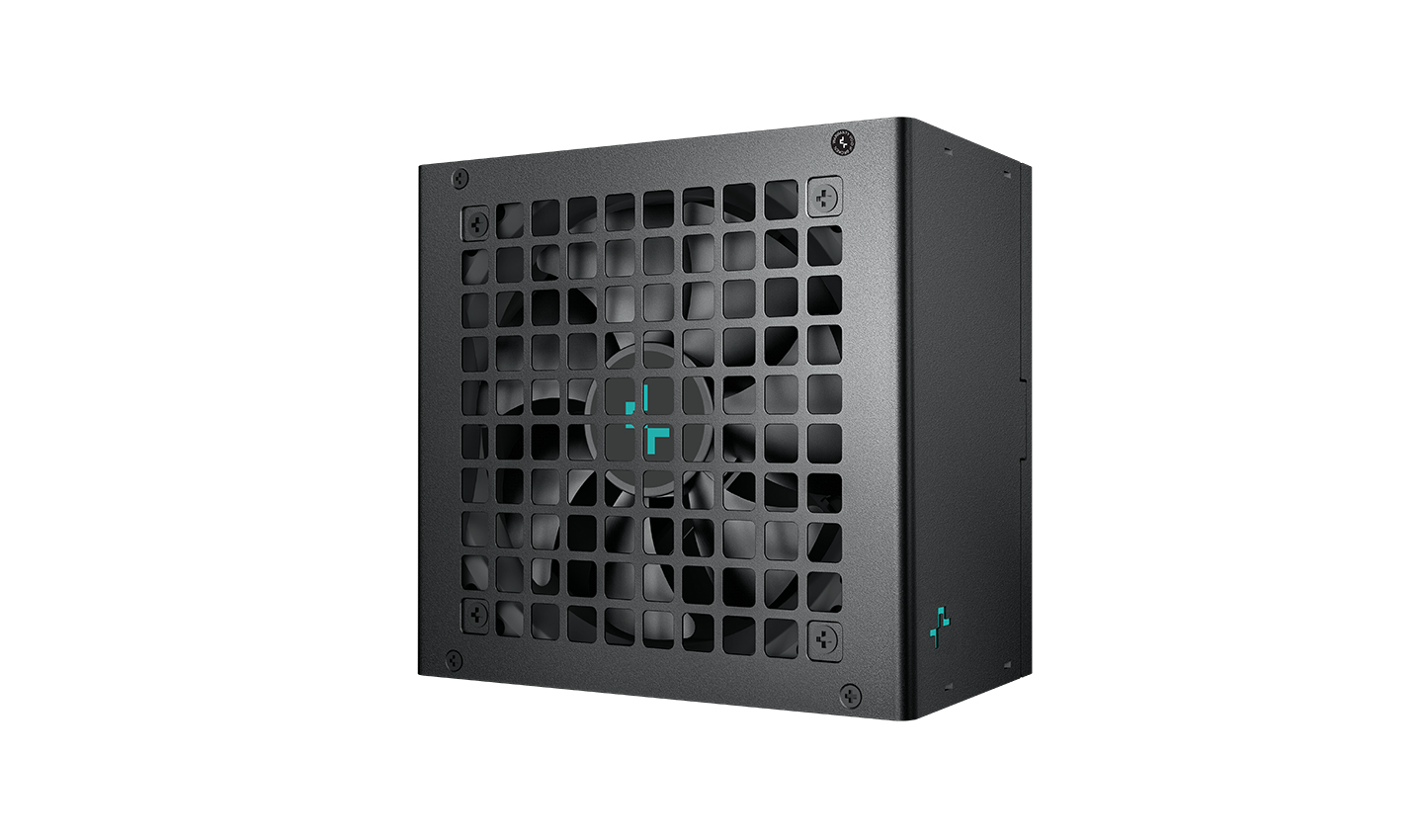

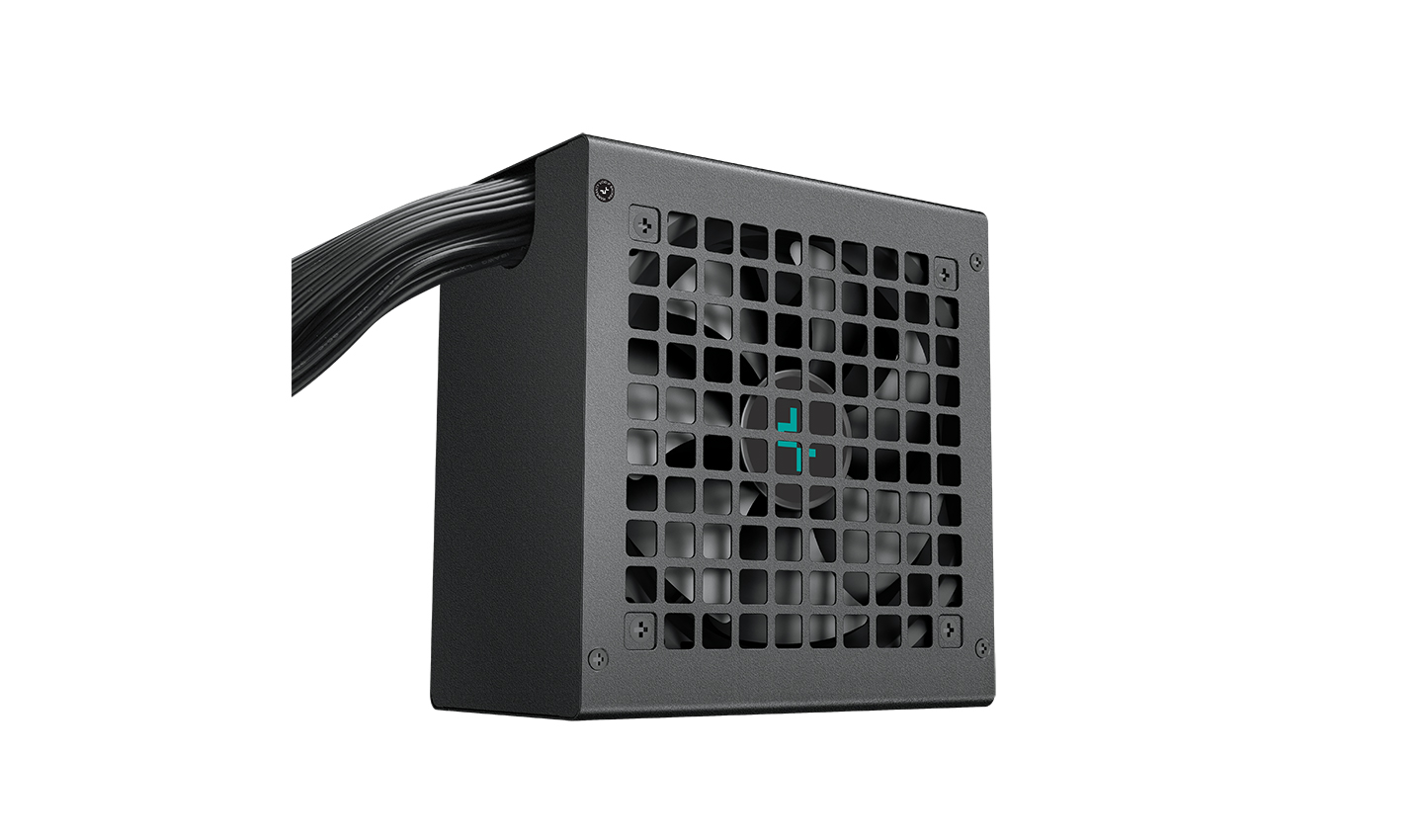

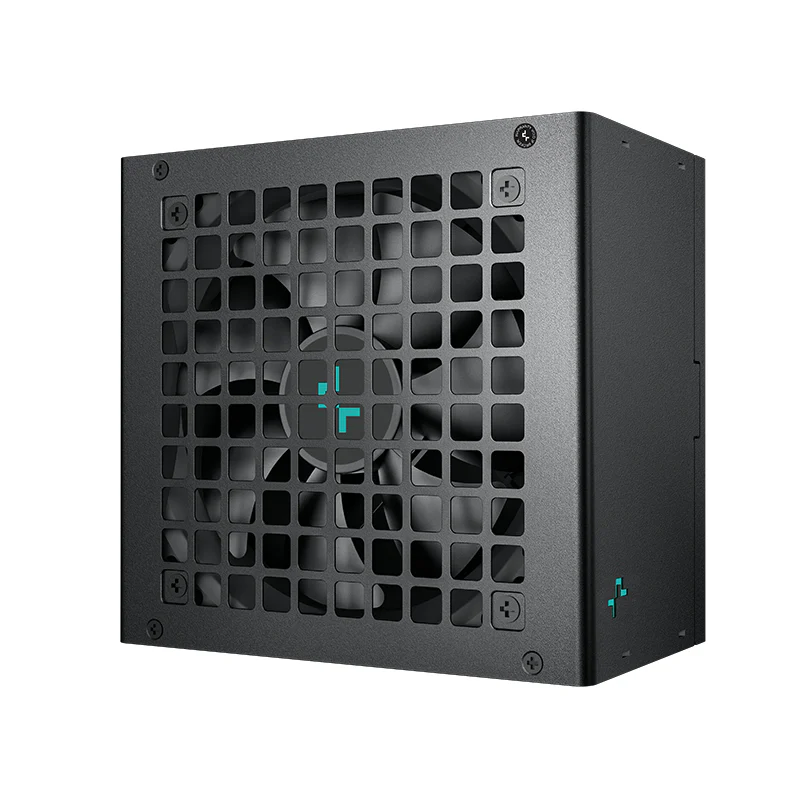

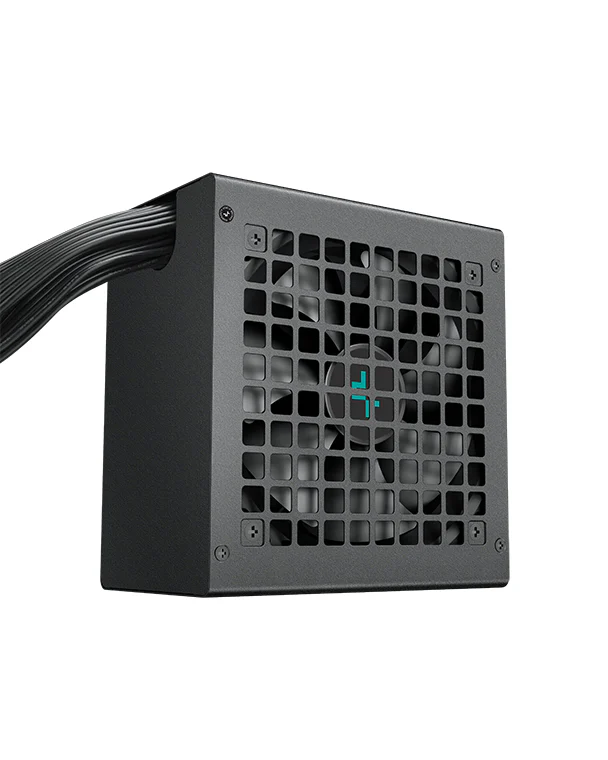

The PL550D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
COLOR
black
MODEL

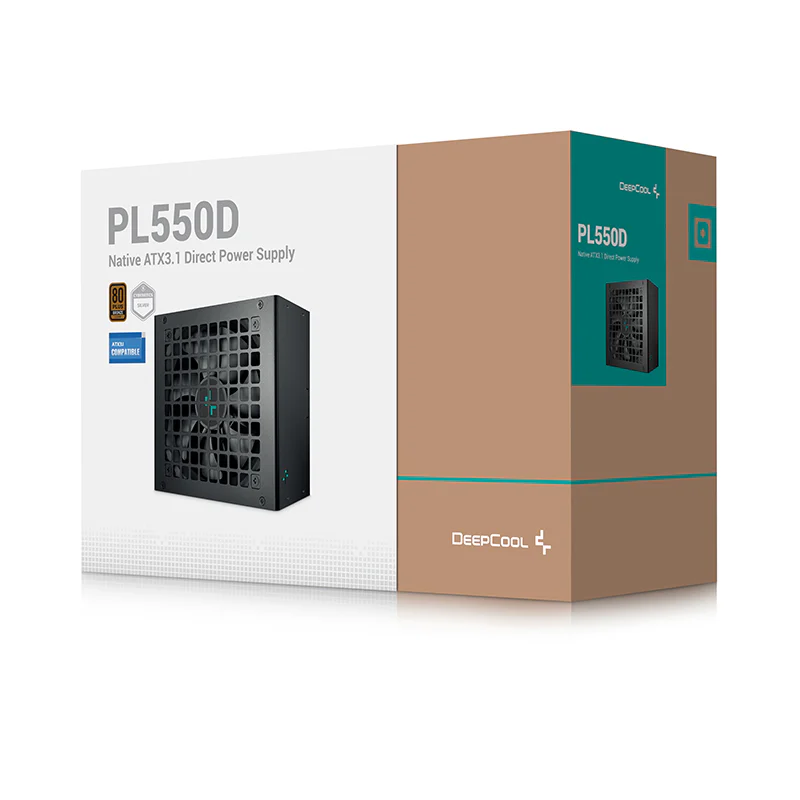

PL550D
Native ATX3.1 Power Supply
NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL550D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 300 watts.
2X
ATX 3.1
1.0X
ATX 2.0
Total Power Excursion
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY

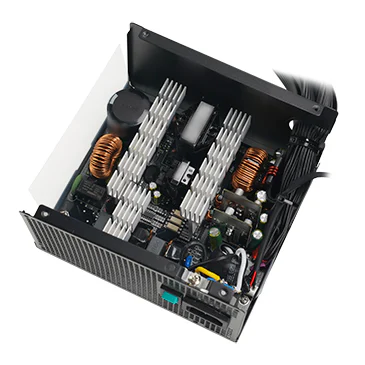

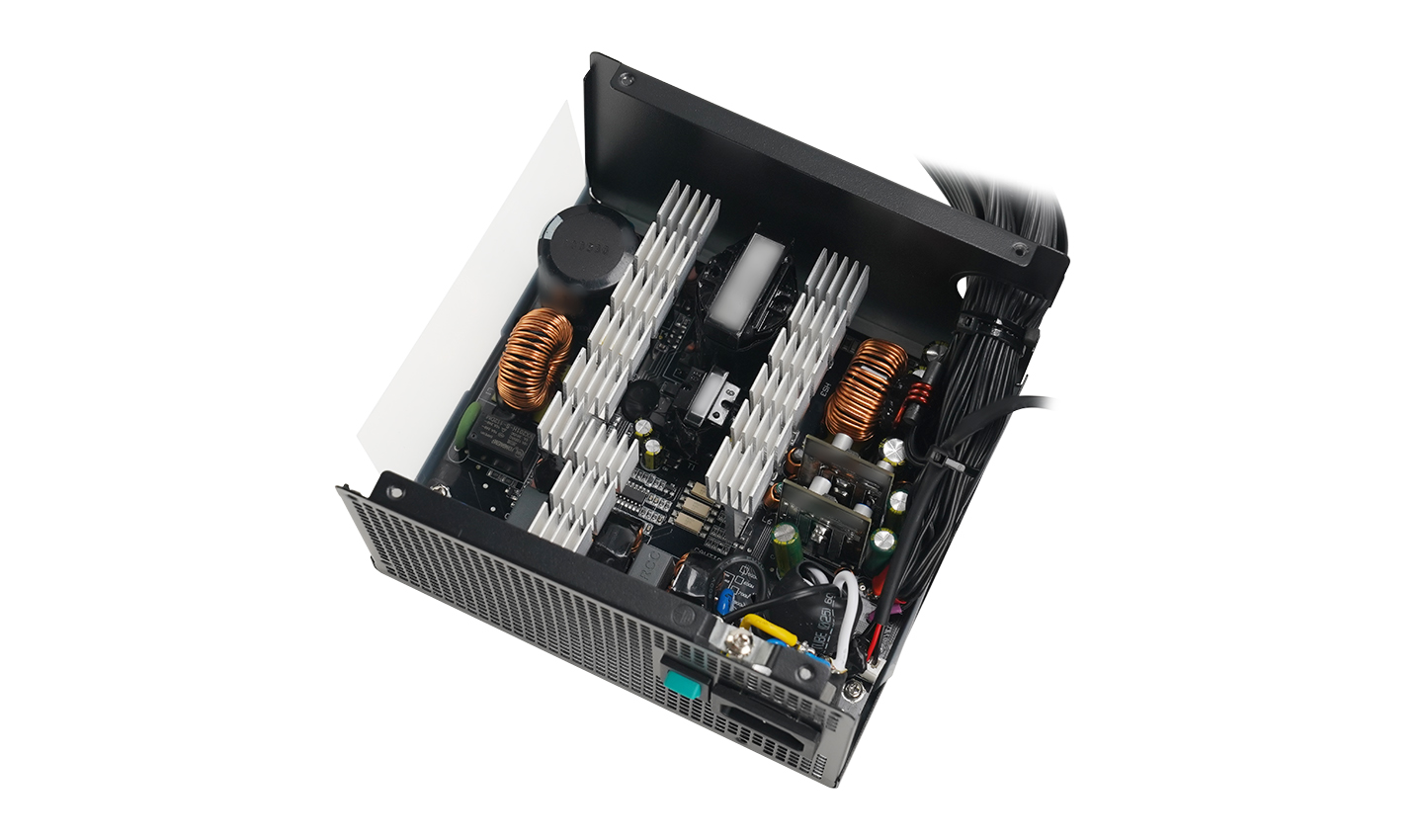

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
12V-2x6
CABLE
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
Surge & Inrush Protection
No Load Operation
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

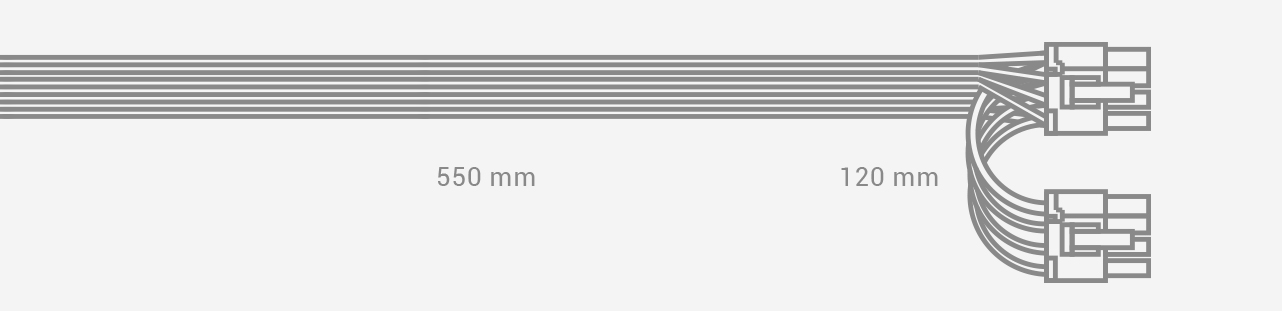

Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 2
X1
PCI-E(6+2)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
12V-2x6(16Pin) x 1
X1
SATA x 3 + 4Pin Peripheral x 1
X2
Technical Spec
Type
ATX12V V3.1
Product Dimensions
150×140×86mm (W x L x H)
Efficiency certification
80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级
Fan Size
120mm
Fan Bearing
HYB(Hydro Bearing)
Topology
Active PFC+DC to DC
Capacitors
Chinese Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
≥16ms
Efficiency
≥85% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0 - 40℃
Regulatory
CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH
