PN850D

NATIVE DIRECT ATX3.1

FUTURE PROOF

With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD

80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

GRACEFUL GOLD

80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.

12V-2x6
CABLE

PCI-E 5.1 POWER

Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN850D provides up to 600W for modern GPUs.

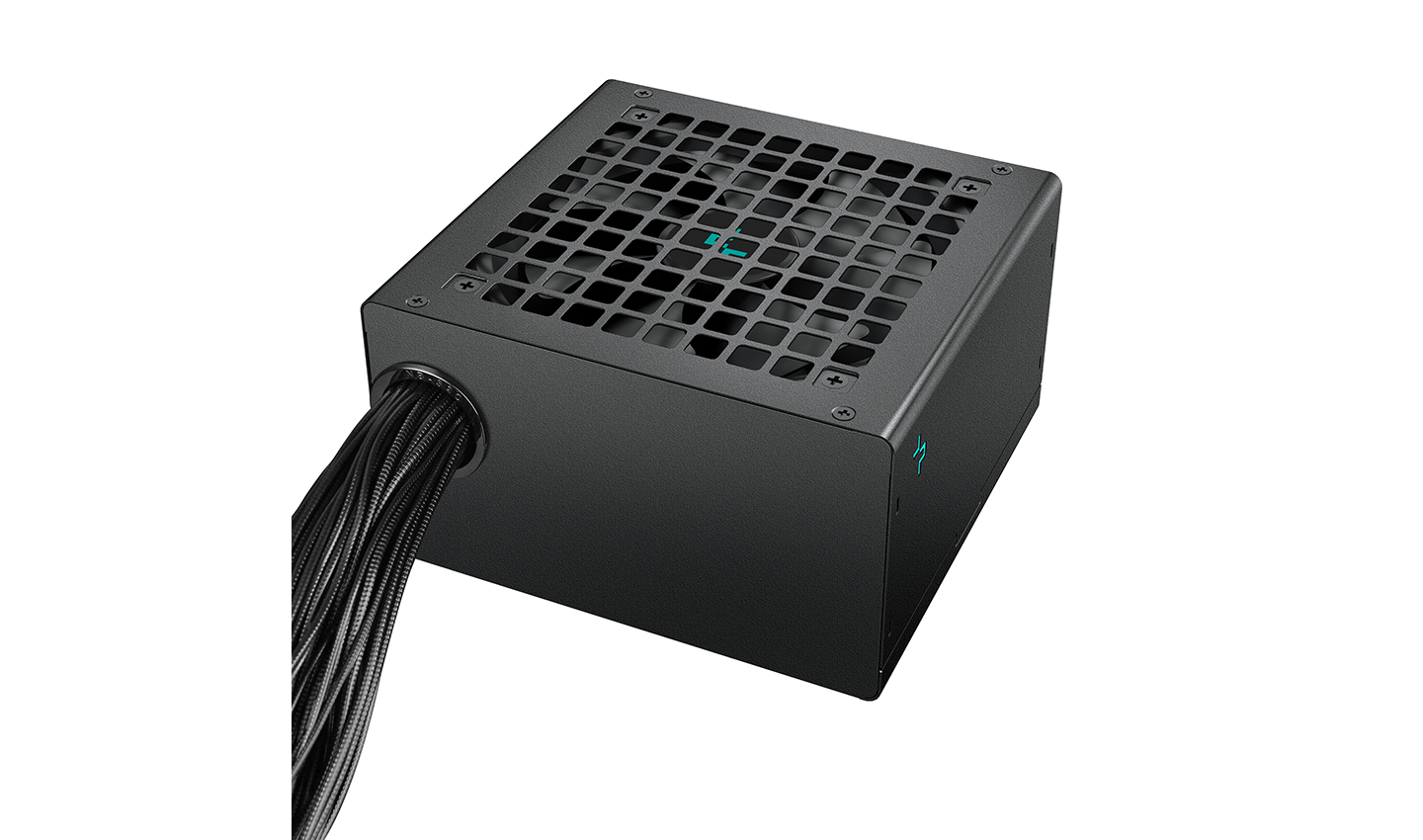

SLEEVED CABLES

The PN850D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

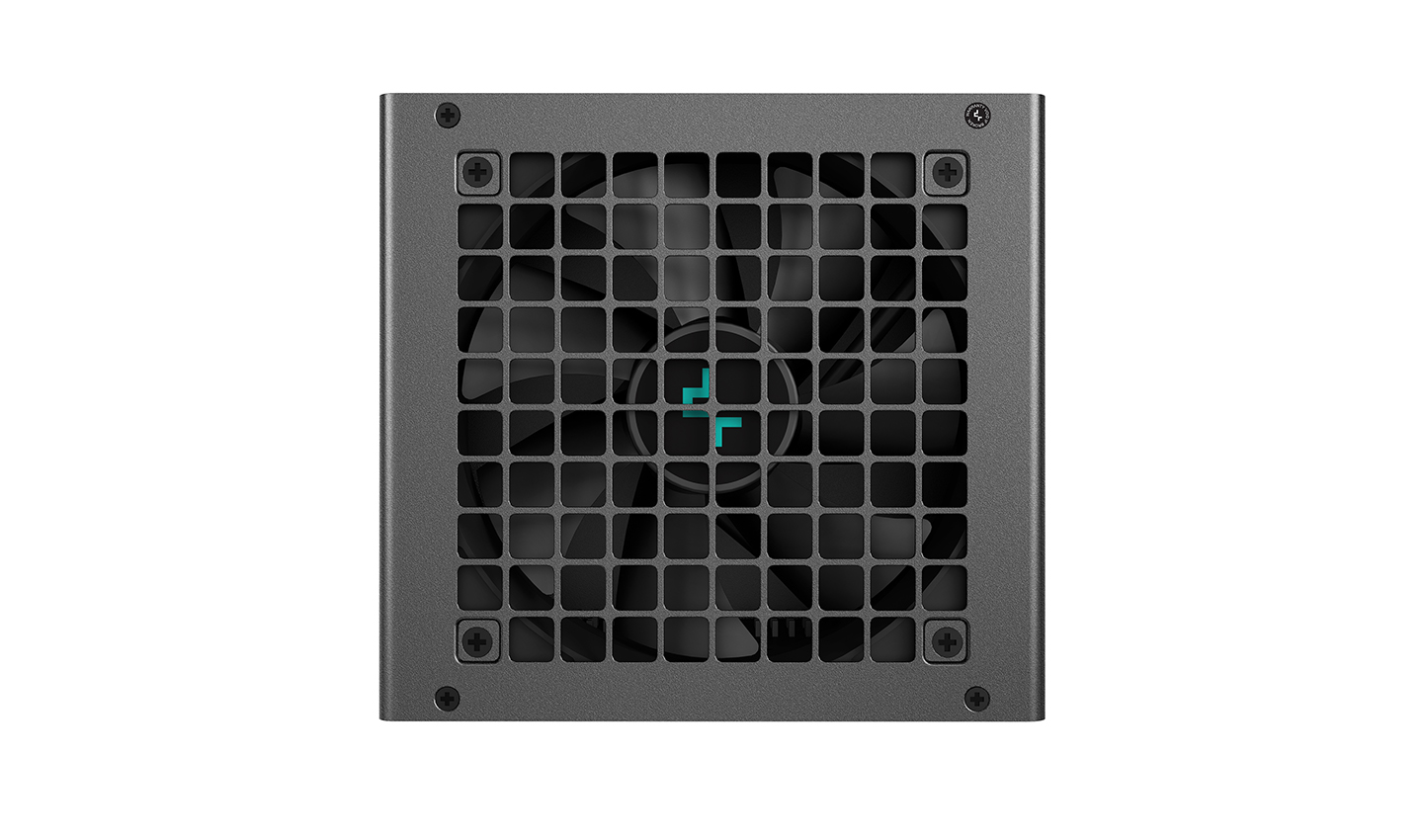

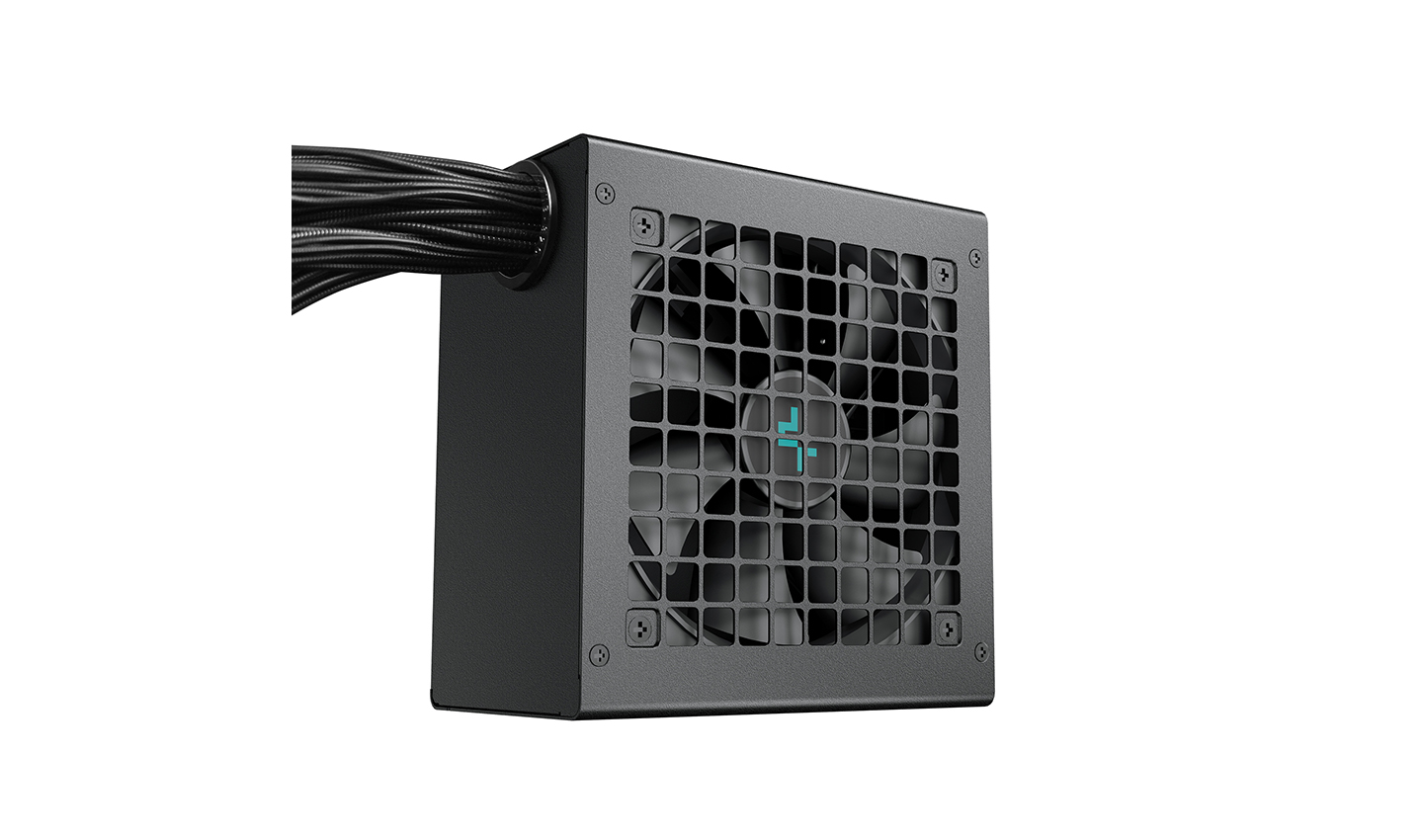

DYNAMIC HYDRO BEARING FAN

The PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

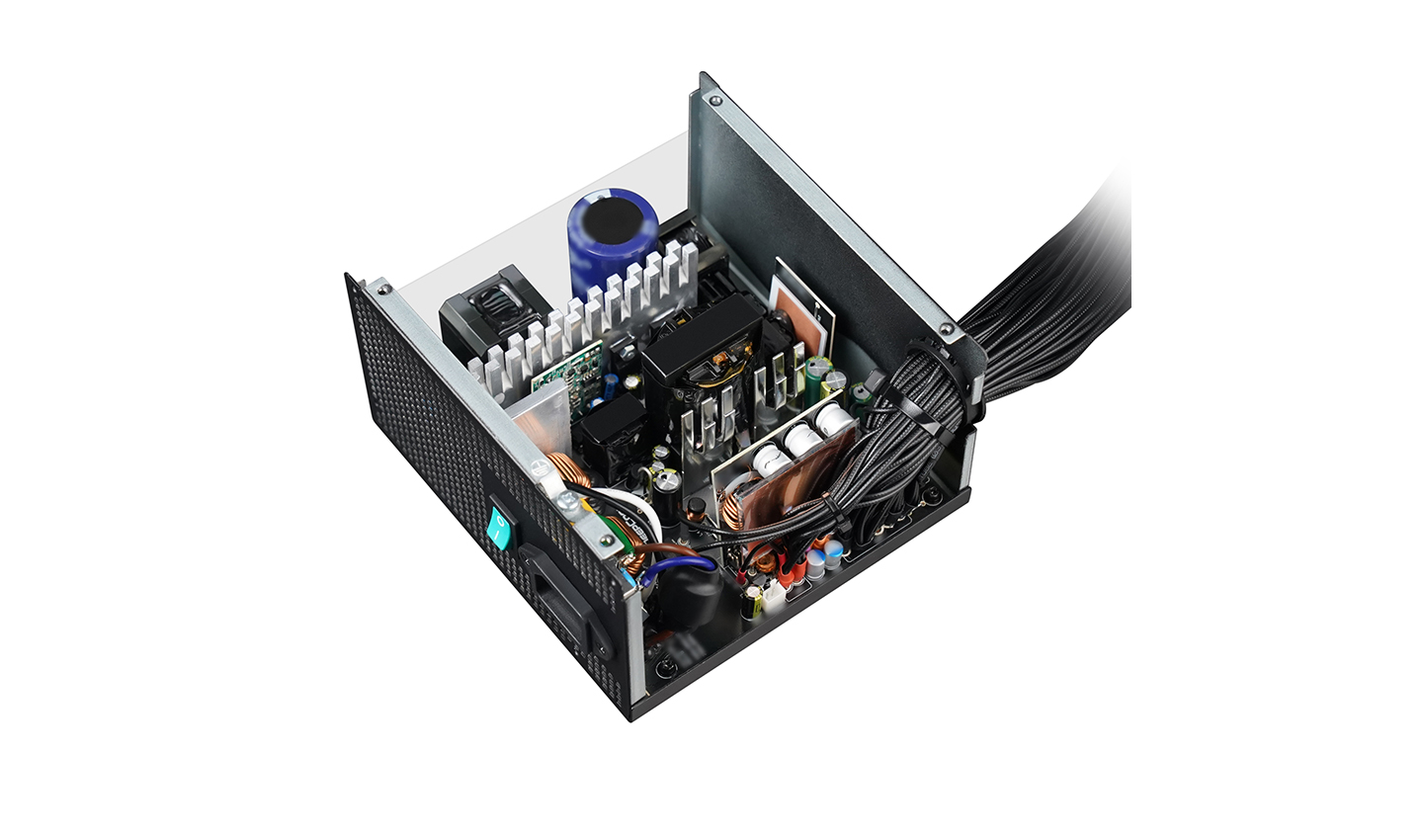

HIGH QUALITY BUILD

Due to the high quality of the parts utilized, the PN850D will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND

The PN850D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temp Protection

Over Current Protection

Under Voltage Protection

No Load Operation

Surge & Inrush Protection

EXCELLENT COVERAGE

The PN850D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

EXCELLENT COVERAGE

The PN850D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

Main Power Connector (20+4)Pin x 1

CPU(4+4)Pin x 1

PCI-E(6+2)Pin x 1

12V-2x6(16Pin) x 1

SATA x 4 + 4Pin Peripheral x 1

Technical Spec

Type	ATX12V V3.1
Product Dimensions	150×140×86mm (W x L x H)
Efficiency certification	80Plus Gold
Fan Size	120mm
Fan Bearing	HYB(Hydro Bearing)
Topology	Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors	Chinese Electrolytic Capacitors
Power Good Signal	100-150ms
Hold Up Time	≥16ms(80% Load)

Efficiency	≥90% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature	0 - 40℃
Regulatory	CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC
Erp Regulation	ErP 2014
Environment Protection	WEEE/中国 RoHS/Triman/P65
MTBF	100,000 Hours
EAN P/N	6933412722168 R-PN850D-FC0B-CN-V2 6933412722175 R-PN850D-FC0B-AU-V2 6933412722182 R-PN850D-FC0B-EU-V2 6933412722199 R-PN850D-FC0B-JP-V2 6933412722205 R-PN850D-FC0B-UK-V2 6933412722212 R-PN850D-FC0B-US-V2 6933412722229 R-PN850D-FC0B-WO-V2 6933412722236 R-PN850D-FC0B-BP-V2

Download

PN850D Manual.pdf

Download

PRODUCT ALBUM

Download

Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
