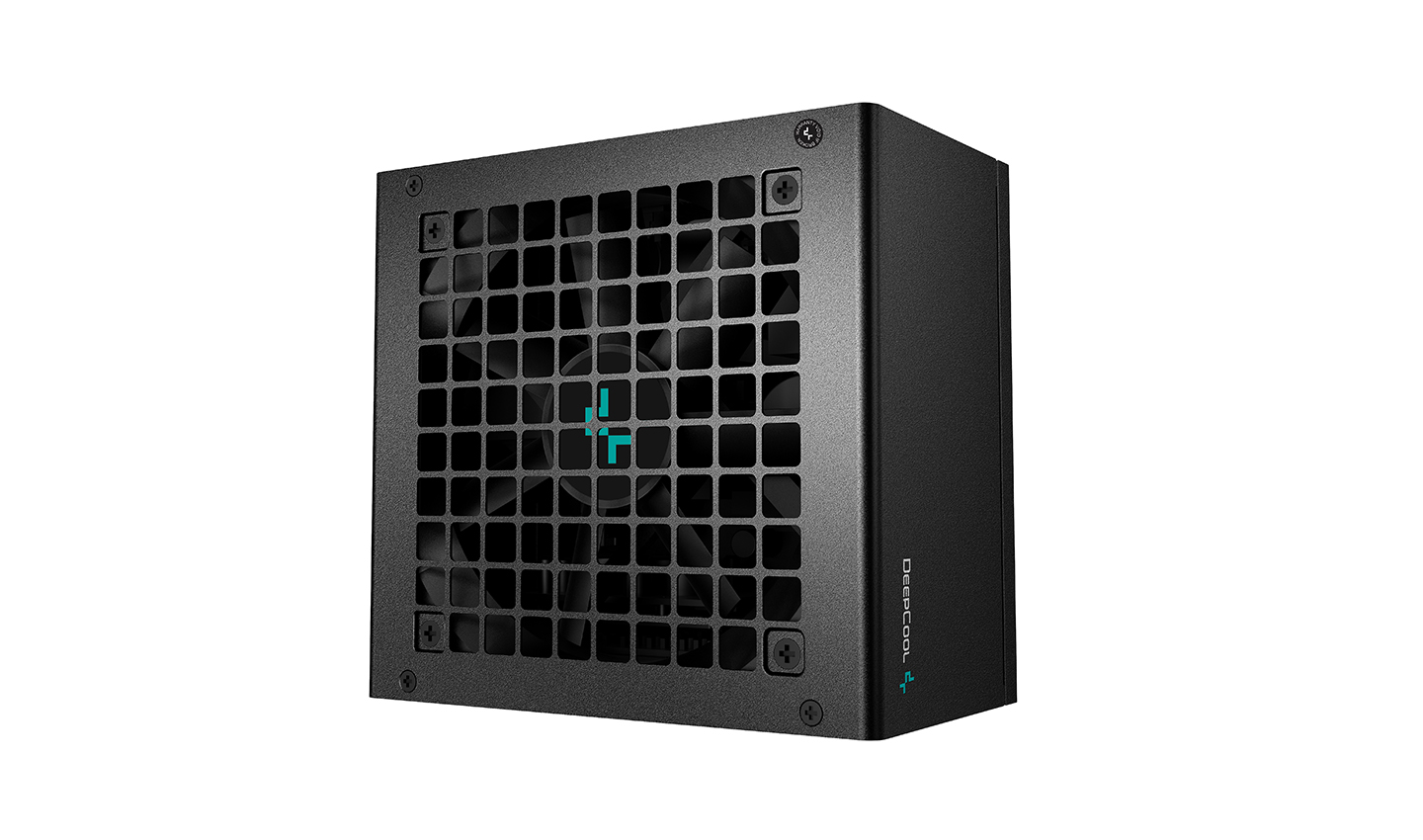

Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.
COLOR
black
MODEL
PQ850M
80 PLUS Gold Modular Power Supply
PQ850M
Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.
A New Generation
In our dedication to the mission of self-improvement and higher quality standards, the PQ-M Series PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.
A New Generation
In our dedication to the mission of self-improvement and higher quality standards, the PQ-M Series PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.
Go for Gold
Certified 80 PLUS Gold for generating clean and consistent power while reducing heat waste and noise. The PQ-M Series achieves 90% efficiency at 50% system loads.
Go for Gold
Certified 80 PLUS Gold for generating clean and consistent power while reducing heat waste and noise. The PQ-M Series achieves 90% efficiency at 50% system loads.
All 105℃ Japanese Capacitors
Dual EPS12V & Triple PCIe
Built Solid
Carefully constructed throughout with quality components to ensure pristine power output quality. The modular board is hard connected to the circuit platform instead of traditional cables for added rigidity and less signal noise.
PQ-M 80 PLUS Gold Modular Power Supply
Fanless Mode Disabled
Fanless Mode Enabled
Silence is Golden

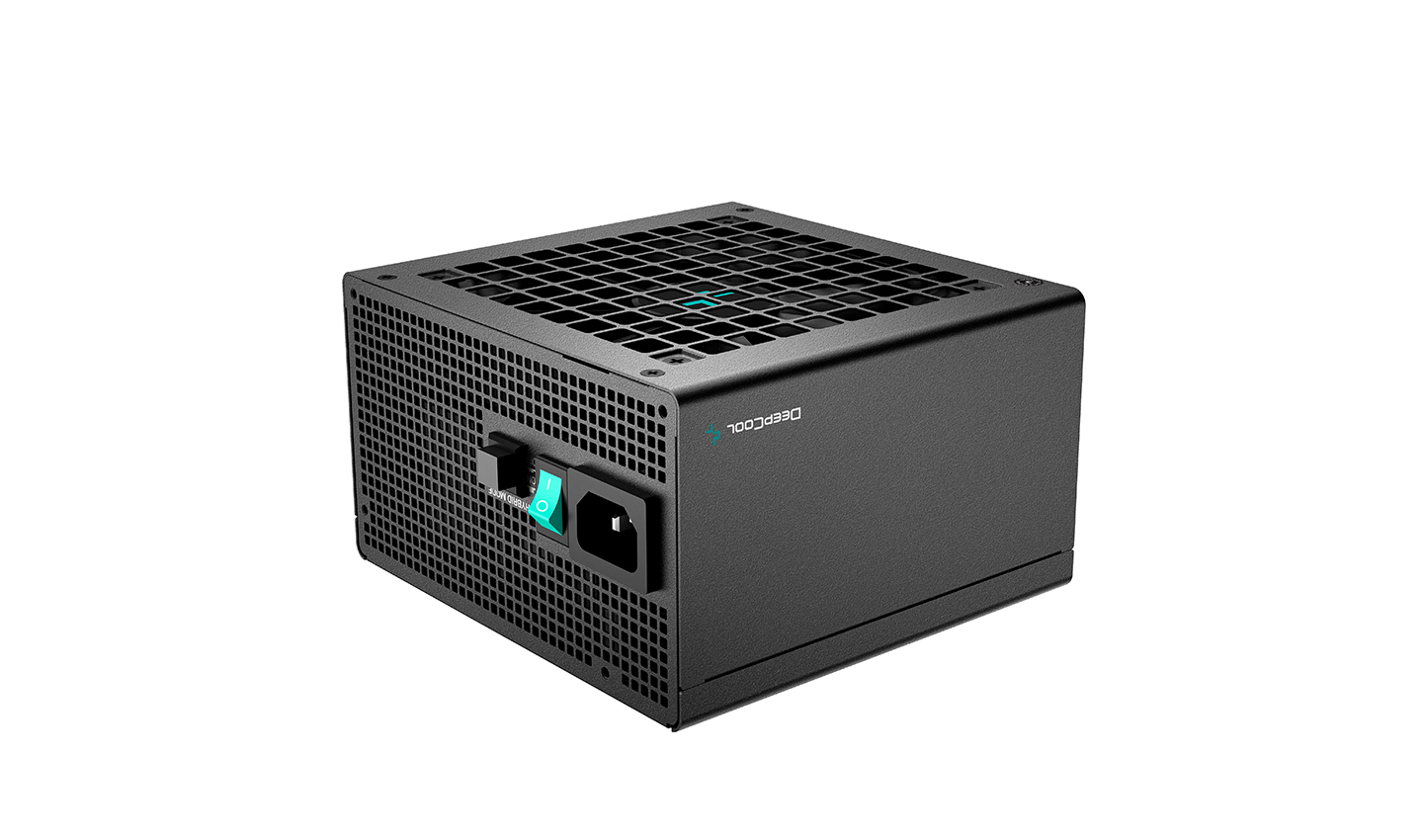

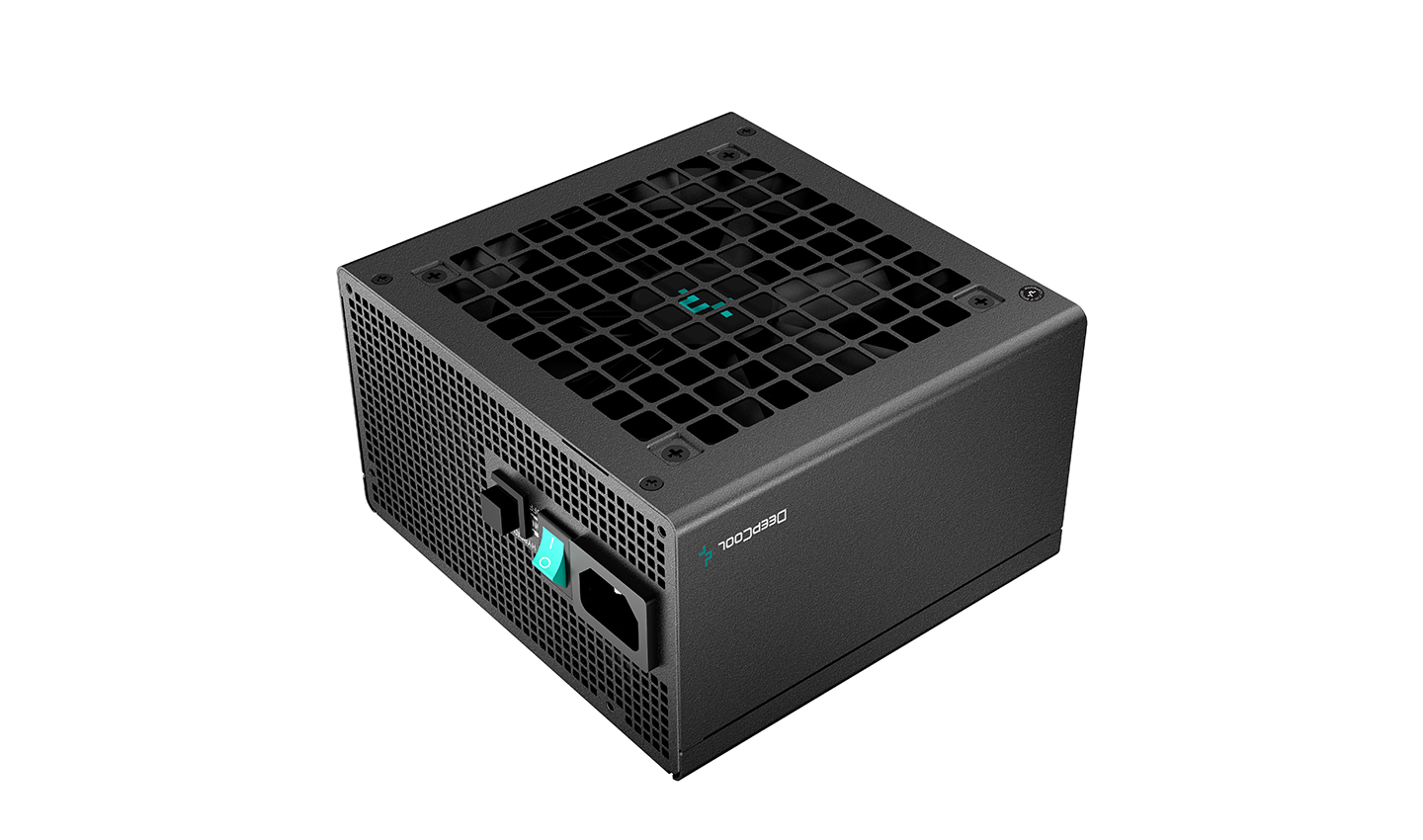

A fine-tuned silent fan curve helps produce a perfect balance between cooling and silence, with an additional fan stop option during low temperature conditions. A rear fan control button also allows the option for setting a minimum fan speed when fanless mode is not preferred.
- Optimized thermal performance
- Reduced noise levels overall
- Longer lasting lifespan
Fanless Mode ENABLED
Fanless Mode DISABLED
* The auto start-stop fan operates once the PSU reaches a specific temperature and stops when the PSU temperature is below it.
* The fan speed will also depend on the PSU temperature once it operates.
Best of the Best

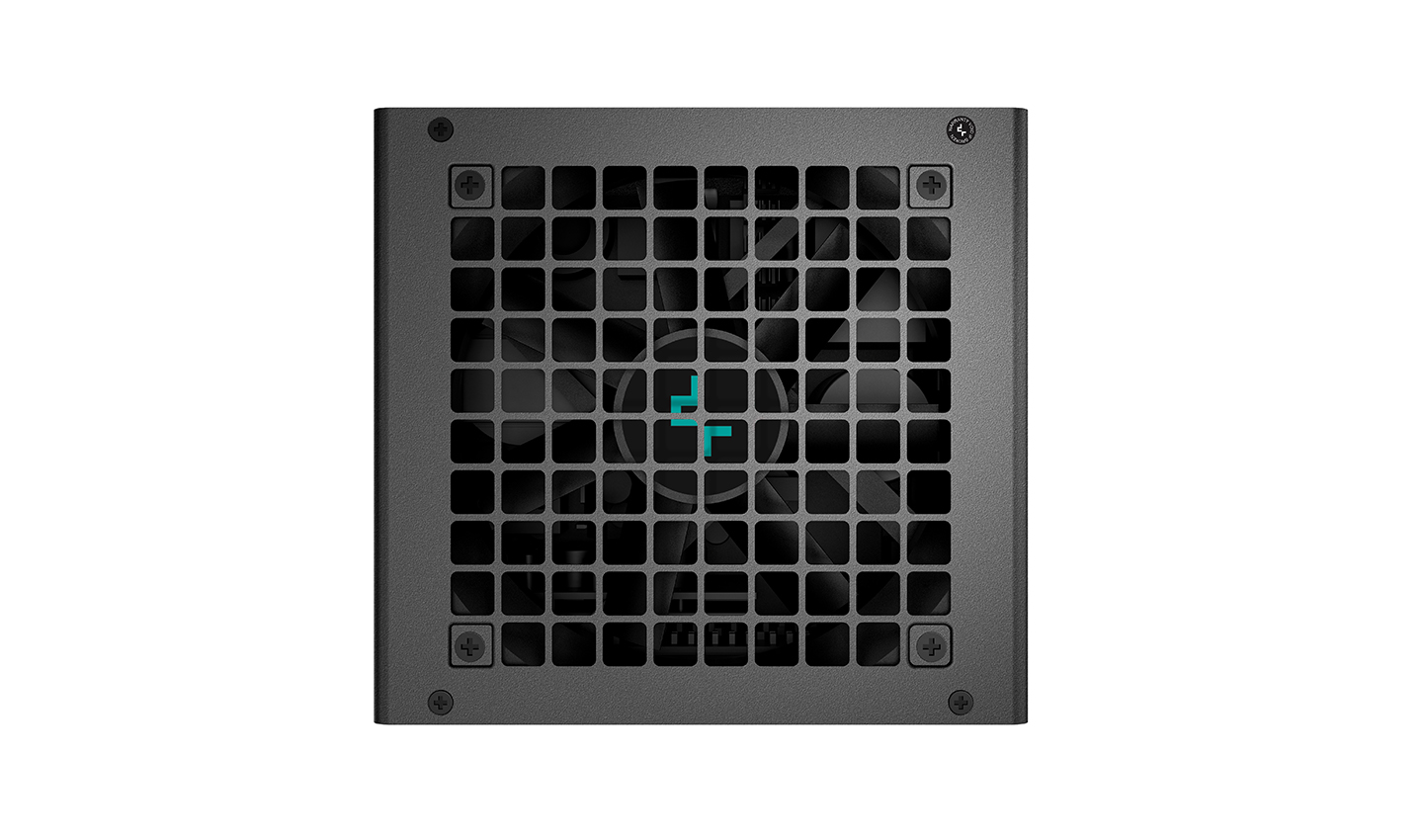

Fluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.
Best of the Best
Fluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X2
PCI-E(6+2)Pin x 1
X3
SATA x 4
X2
SATA x 2+4Pin Peripheral x 2
X1
4pin Peripheral x 3
X1
Technical Spec
Type
ATX12V V2.4
Product Dimensions
150×140×86mm (W x L x H)
80PLUS Certifications
GOLD
Fan Size
120mm
Fan Bearing
FDB
Topology
Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors
Full Japan Electrolytic Capacitors
Power Good Signal
100-500ms
Hold Up Time
≥16ms (90% load)
Efficiency
≥90% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
