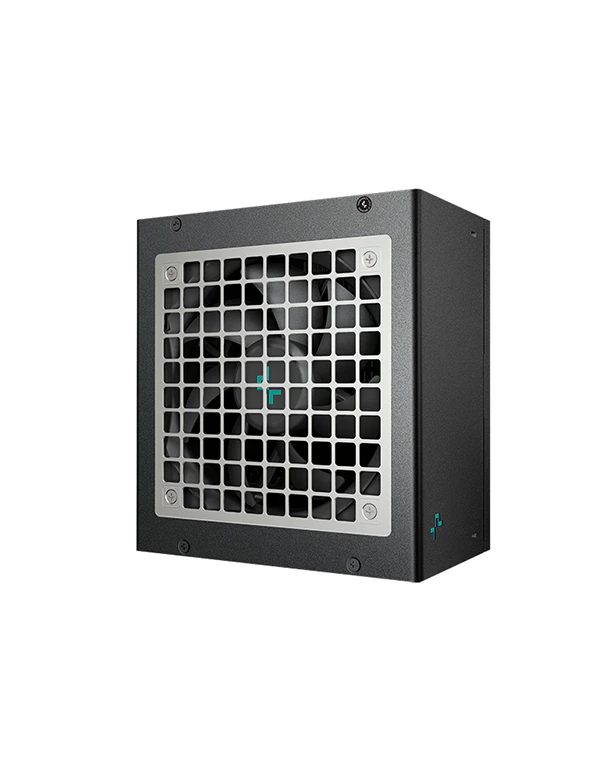

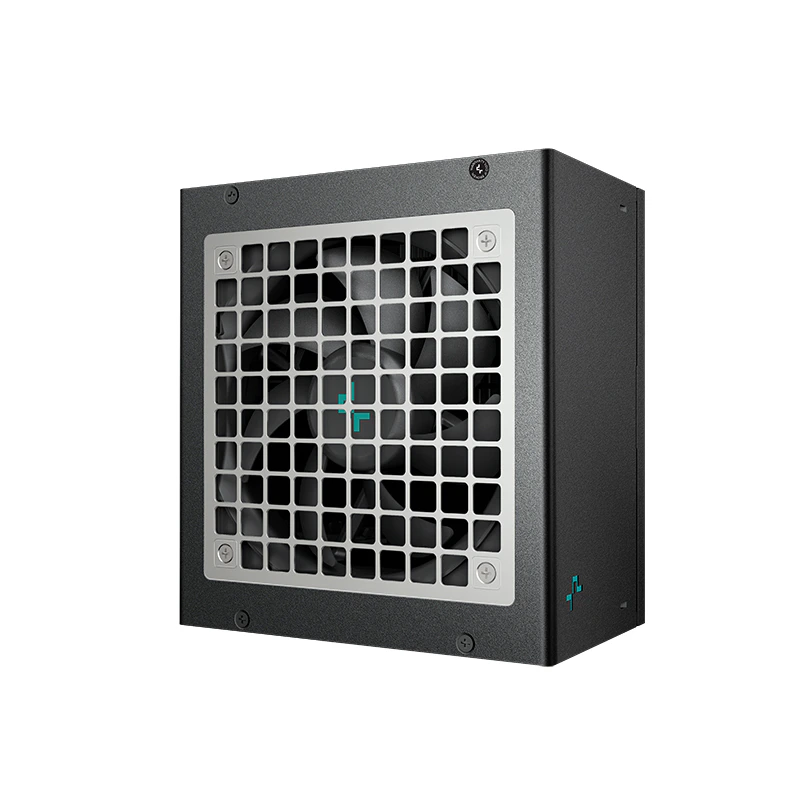

PX1000P

The Power of Platinum!

PAST, PRESENT,
AND FUTURE

With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, random power spikes will never be an issue. The PX1000P will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

ATX 3.0

1.0X

ATX 2.0

Total Power Excursion

PRISTINE PLATINUM

80 Plus and Cybenetics Platinum certified to meet a high level of power efficiency under typical loads.

PREMIUM QUALITY AT ITS FINEST

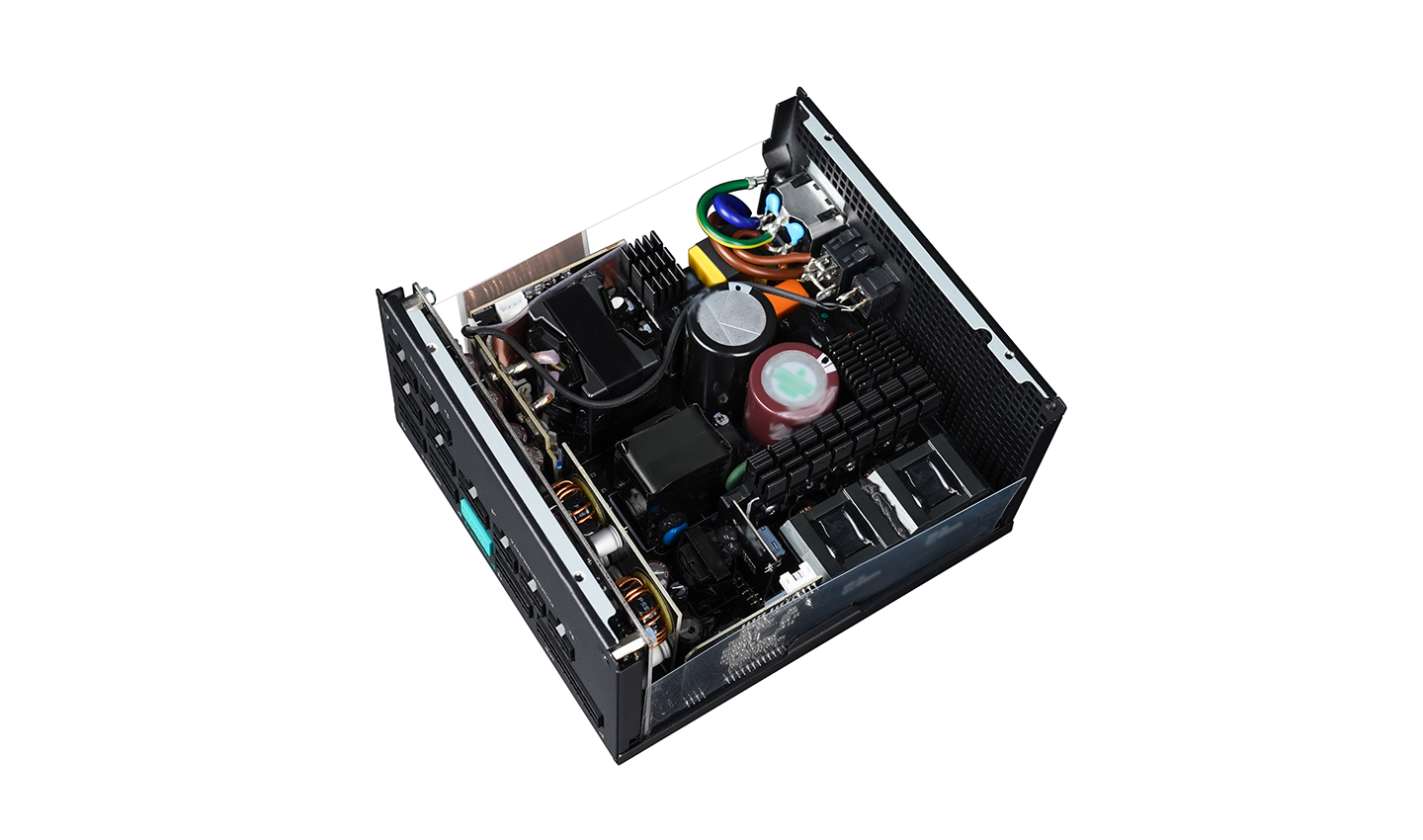

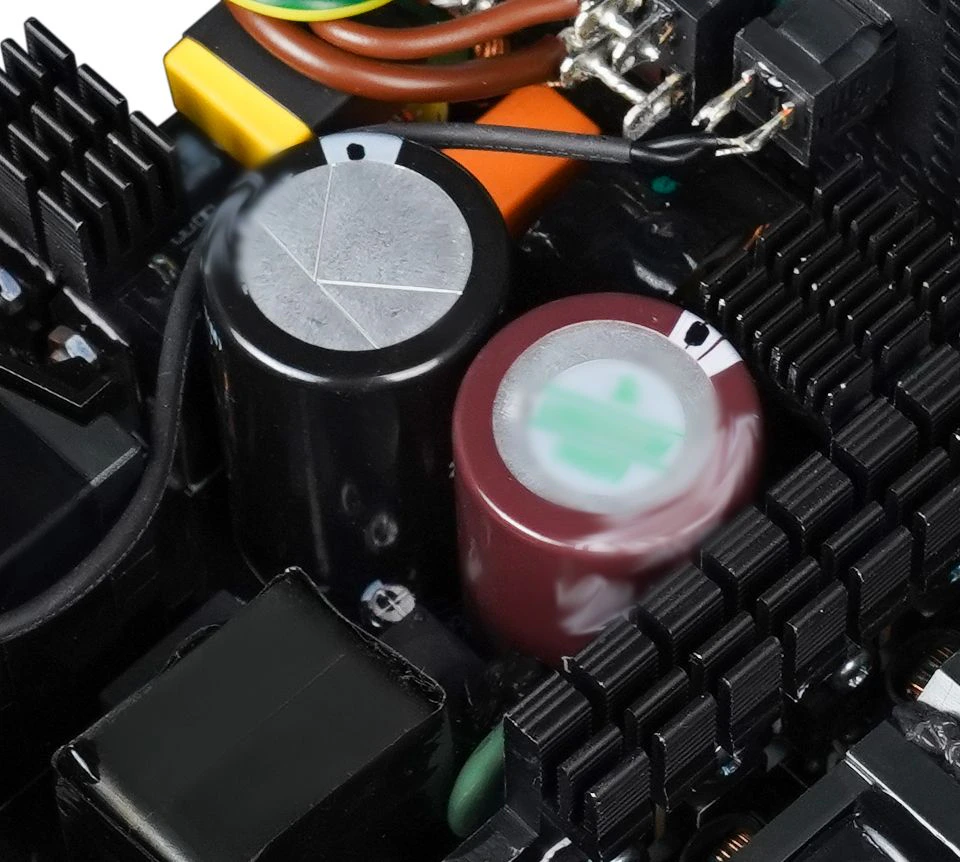

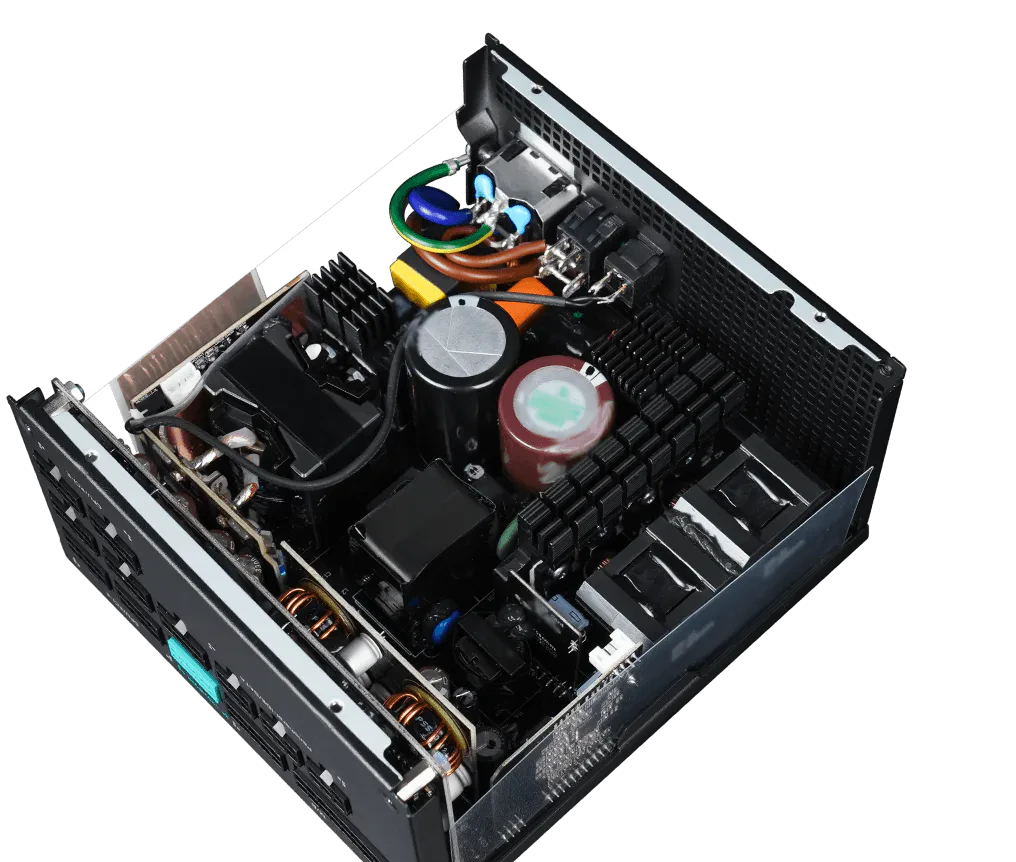

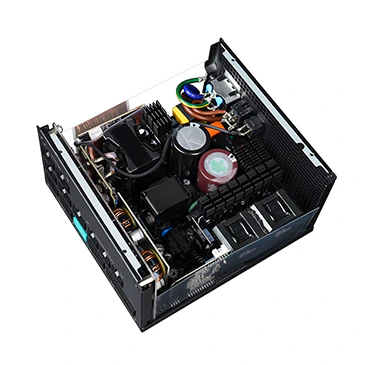

Solid and reliable power is provided through the use of all Japanese Electrolytic 105C capacitors and a dual main capacitor topology. Due to the high quality of the PSU build, the PX1000P will operate at altitudes up to 5000 meters above sea level.

RELIABLY STABLE

Through the use of a semi-digital, interleaved PFC, Full-Bridge & LLC, and a DC to DC dual main capacitor topology, the PX1000P can keep the hold-up time to ≥ 16 ms under full load.

◀

▶

12VHPWR
CABLE

PCI-E 5.0 POWER PERFECTED

Equipped with a high-grade 105C-resistant copper-core PCI-e Gen 5.0 12VHPWR cable, the PX-P provides up to 600W for power-hungry GPUs.

STATIC TO DYNAMIC

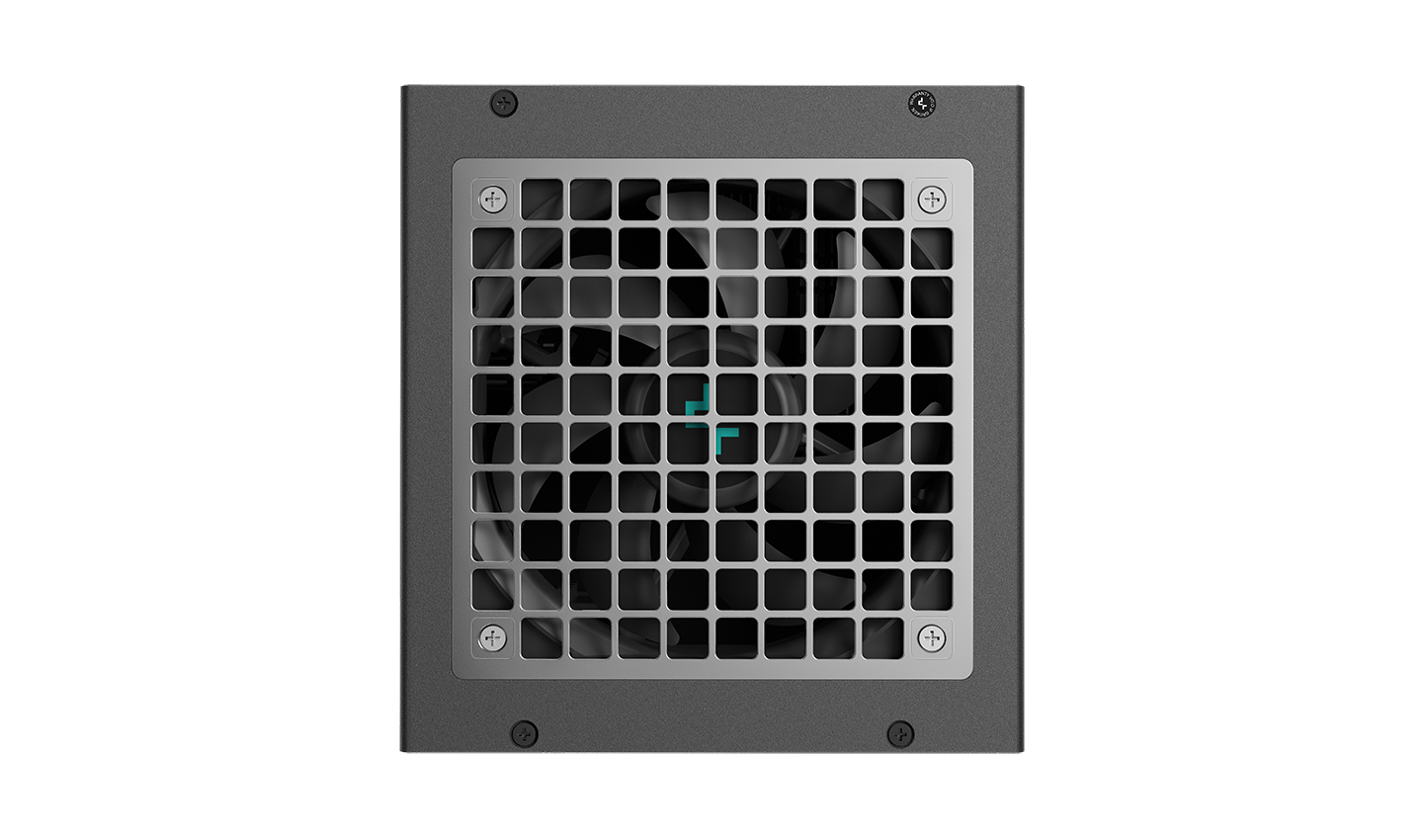

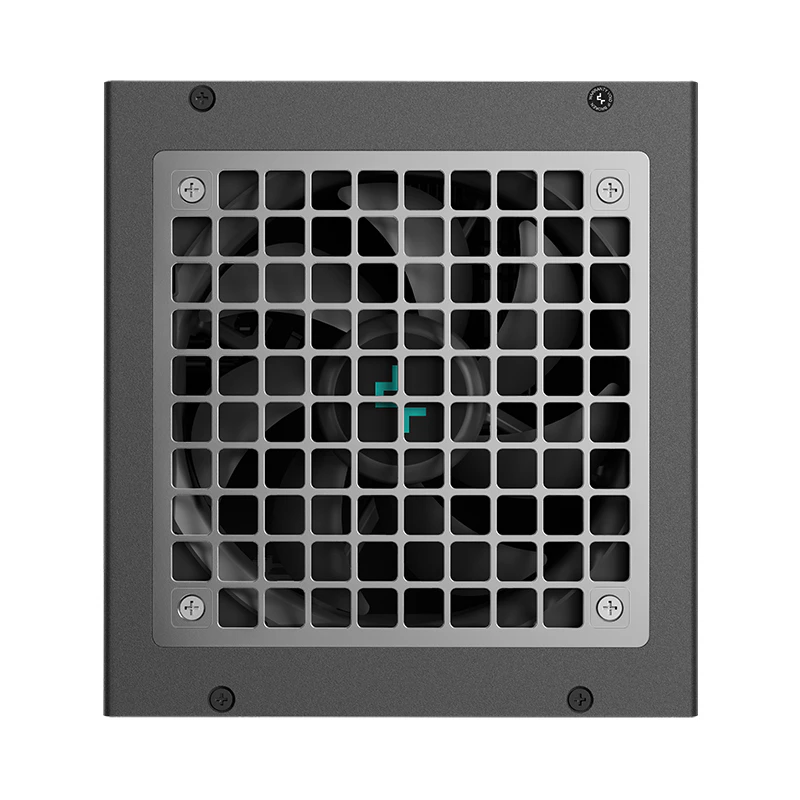

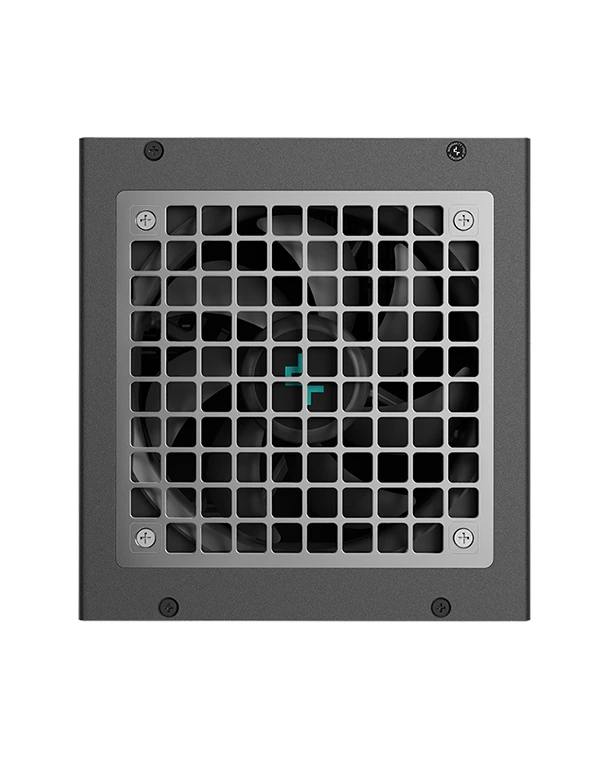

The PX1000P comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 120mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.

Fanless Mode DISABLED

Fanless Mode ENABLED

* The auto start-stop fan operates once the PSU reaches a specific temperature and stops when the PSU temperature is below it.
* The fan speed will also depend on the PSU temperature once it operates.

PEACE OF MIND

The PX1000P includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temp Protection

Over Current Protection

Under Voltage Protection

No Load Operation

Surge & Inrush Protection

MAXIMUM COVERAGE

The PX-P is engineered and manufactured at such a high level that DeepCool is offering a lengthy 12 years of trouble-free limited warranty coverage.

* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

MAXIMUM COVERAGE

The PX-P is engineered and manufactured at such a high level that DeepCool is offering a lengthy 12 years of trouble-free limited warranty coverage.

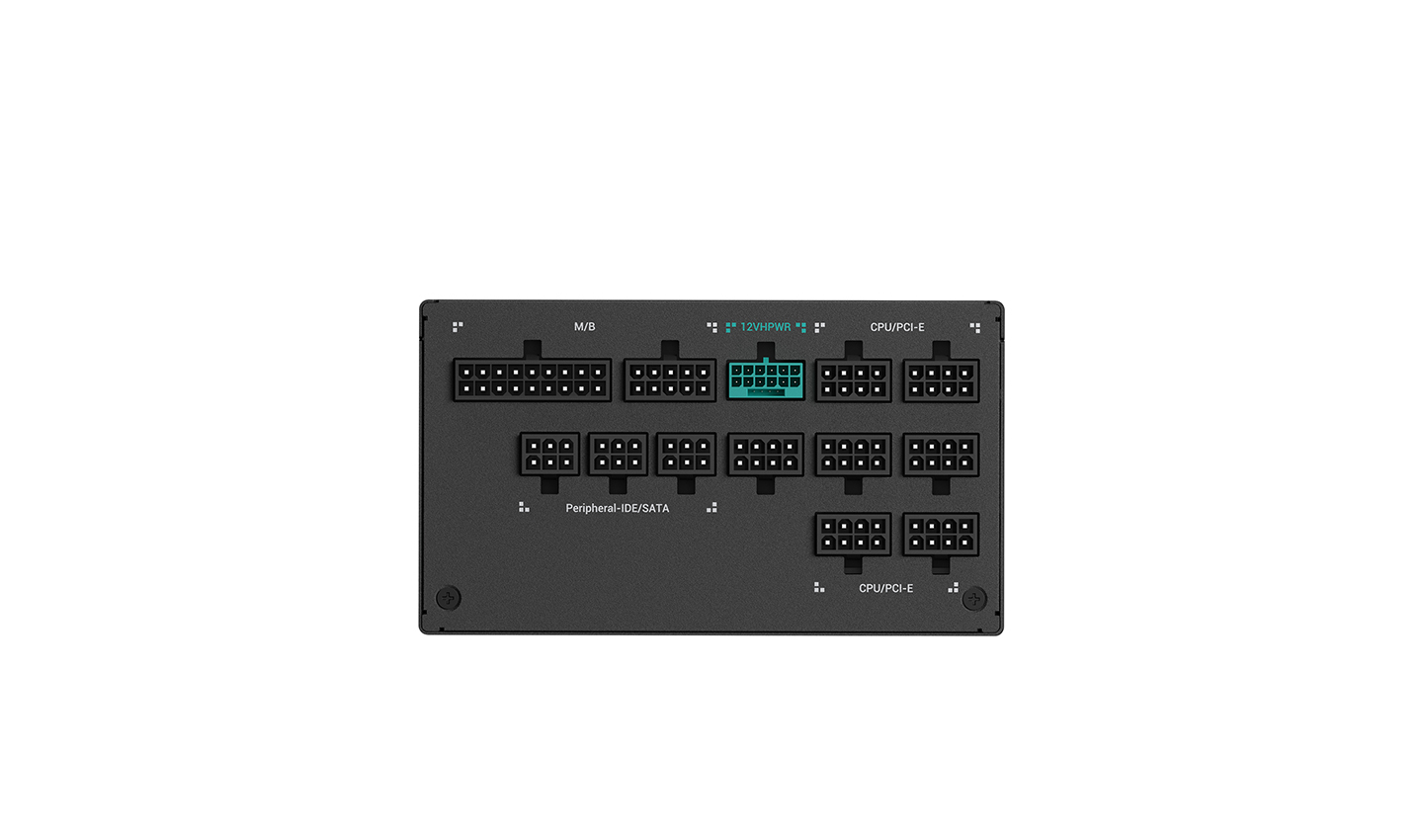

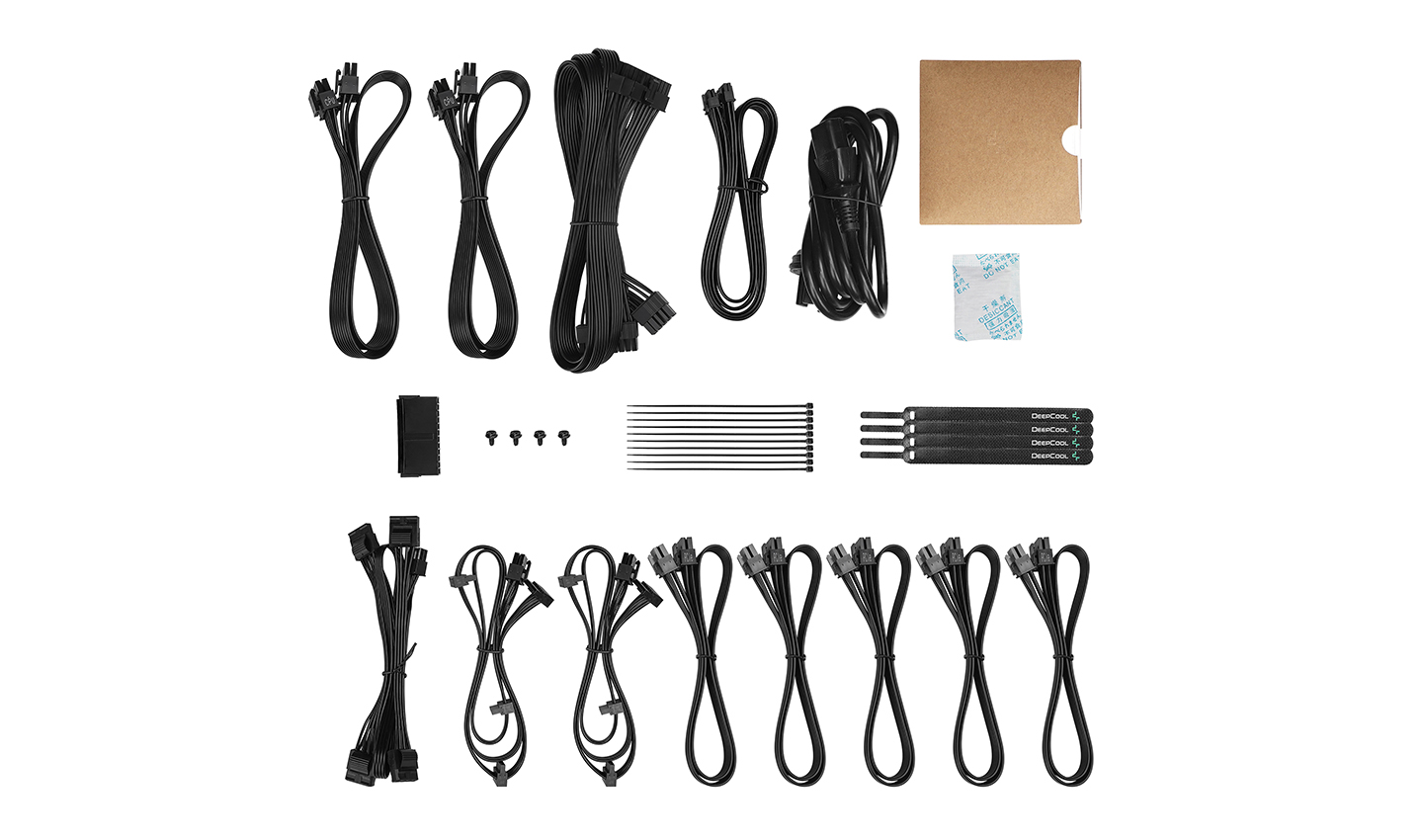

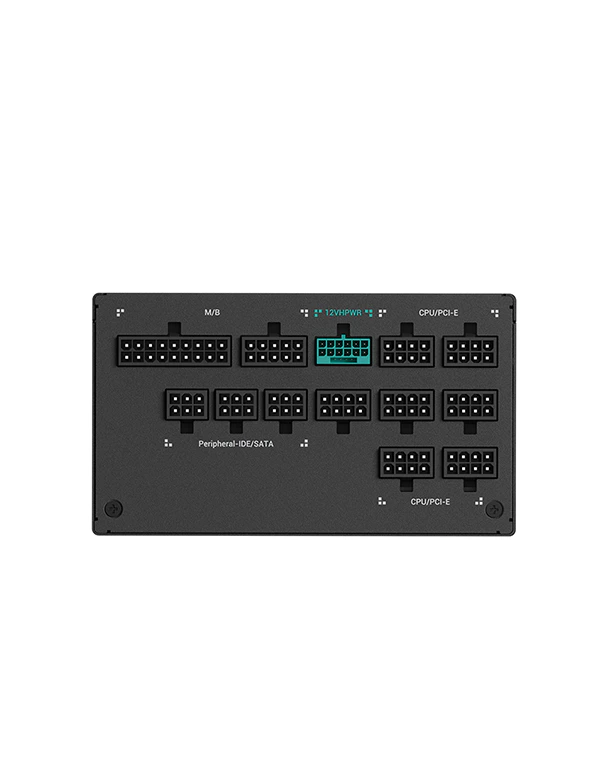

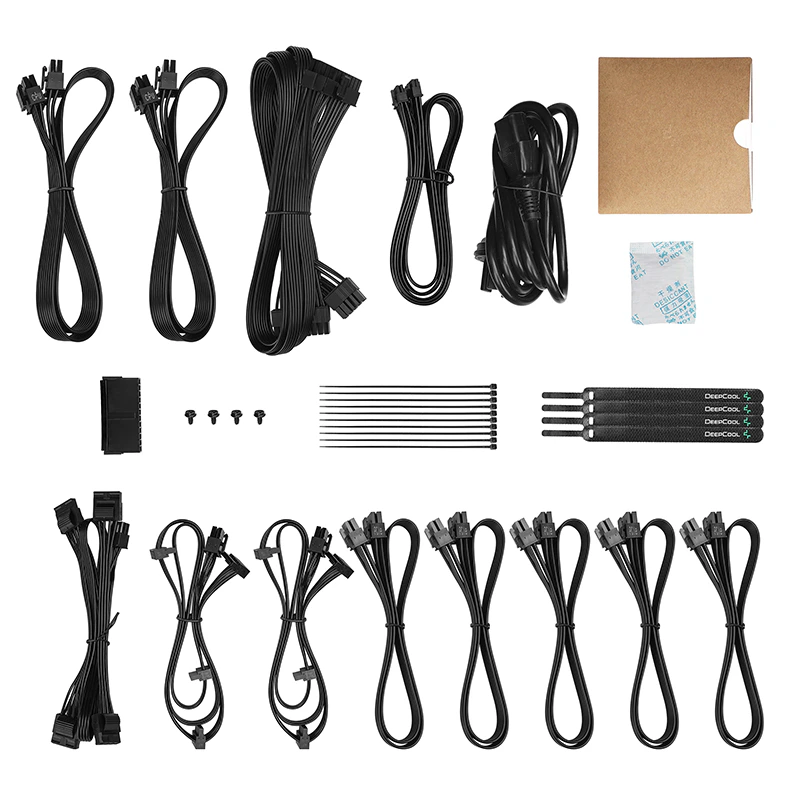

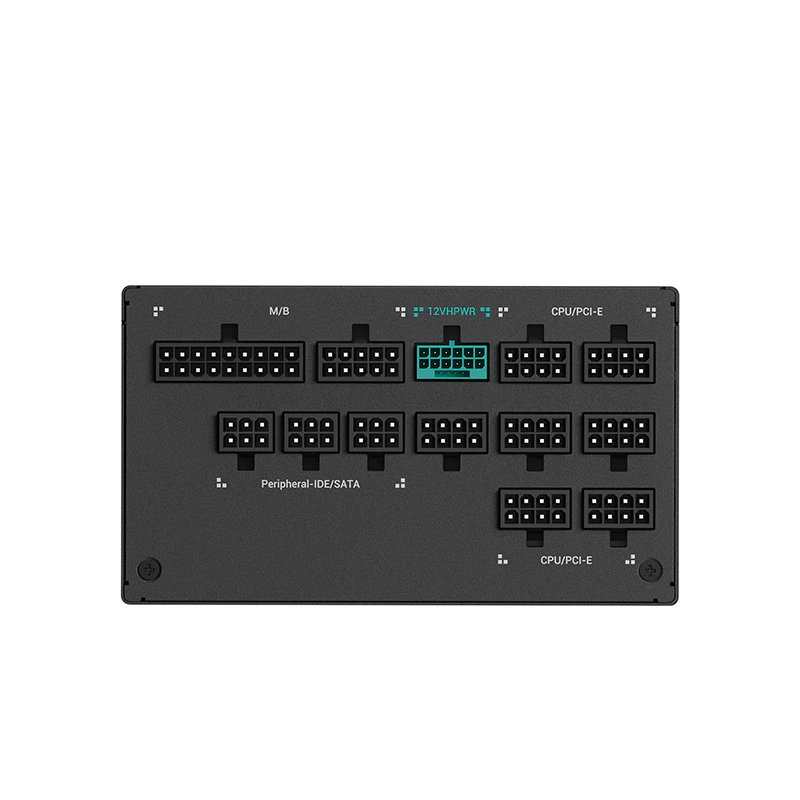

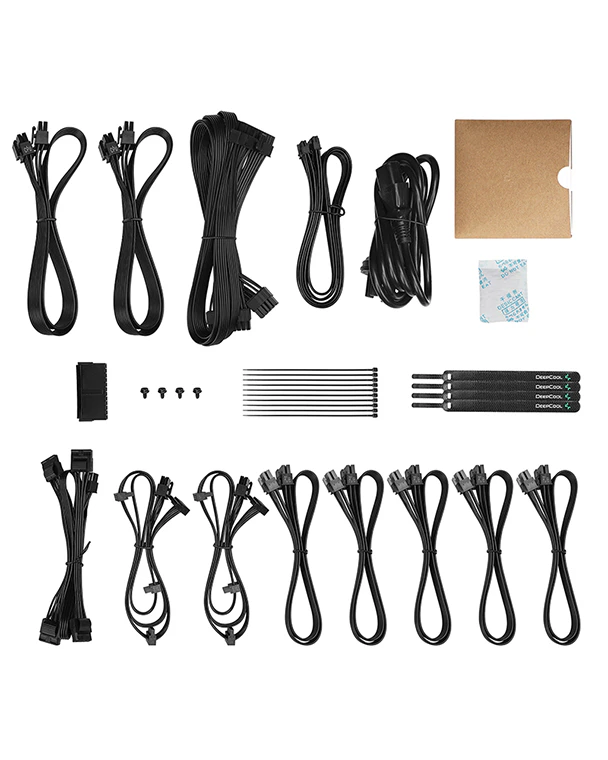

Main Power Connector 24 (20+4)Pin x1

CPU (4+4)Pin x 1

PCI-E (6+2)Pin x1

SATA x4

12VHPWR (16Pin) x1

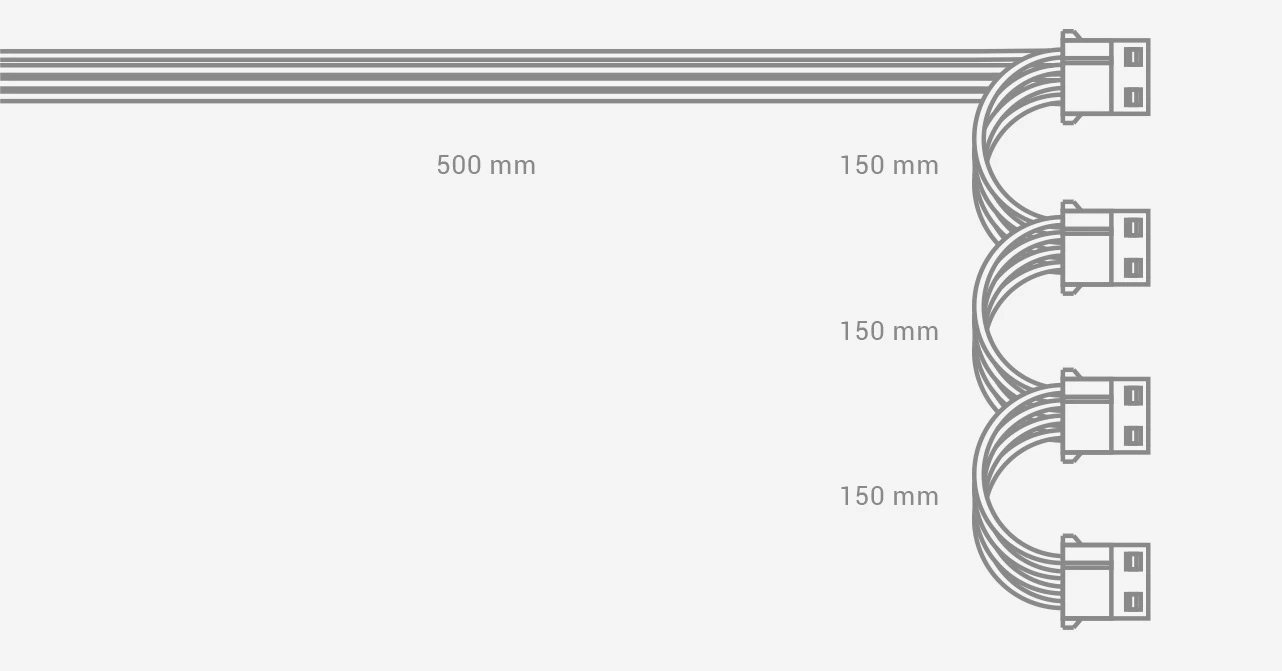

4Pin Peripheral x4

Technical Spec

Type	ATX12V V3.0
Product Dimensions	150×160×86mm (W x L x H)
Efficiency certification	80Plus Platinum/Cybenetics_Platinum
Fan Size	120mm
Fan Bearing	FDB (Fluid Dynamic Bearing)
Topology	Interleaved PFC, Full-Bridge & LLC + DC to DC
Capacitors	Full Japan Electrolytic Capacitors
Power Good Signal	100-150ms
Hold Up Time	≥16ms
Efficiency	≥92% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP
Operation Temperature	0 - 50℃
Regulatory	CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/;
Erp Regulation	ErP 2014
Environment Protection	WEEE/中国 RoHS/Triman/P65
MTBF	100,000 Hours
EAN P/N	6933412717171 R-PXA00P-FC0B-CN 6933412717188 R-PXA00P-FC0B-AU 6933412717195 R-PXA00P-FC0B-EU 6933412717201 R-PXA00P-FC0B-JP 6933412717218 R-PXA00P-FC0B-UK 6933412717225 R-PXA00P-FC0B-US 6933412717232 R-PXA00P-FC0B-WO 6933412717249 R-PXA00P-FC0B-BP 6933412717492 R-PXA00P-FC0B-IN

Download

PX1000P Manual.pdf
