DeepCool 5 PRO WATER PUMP

As a new generation of powerful liquid pump developed independently by DeepCool, 5 PRO is optimized and improved in its structure and material, with the 43% increment of cooling area of the copper-base skived fins which effortlessly cools mainstream high-end processors while ensuring excellent quietness.

Durable Stability, Unwavering Reliability

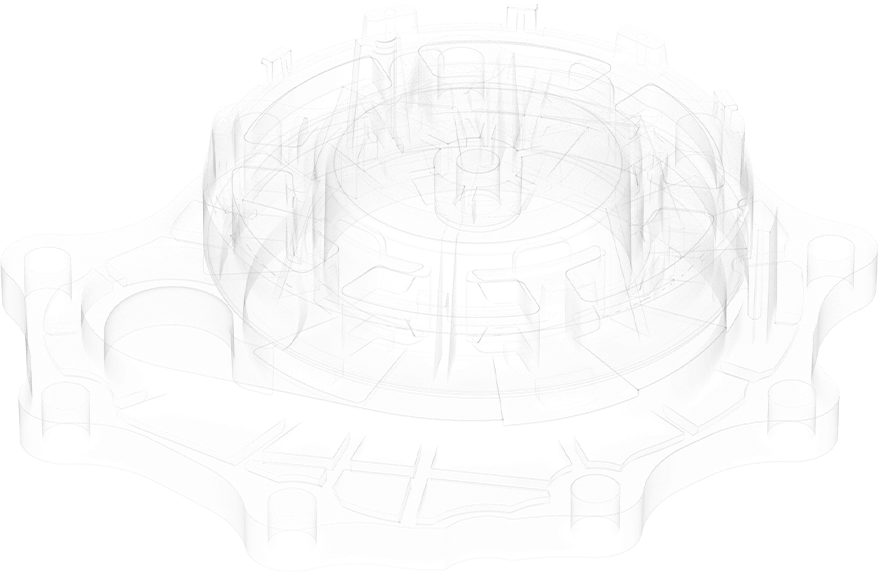

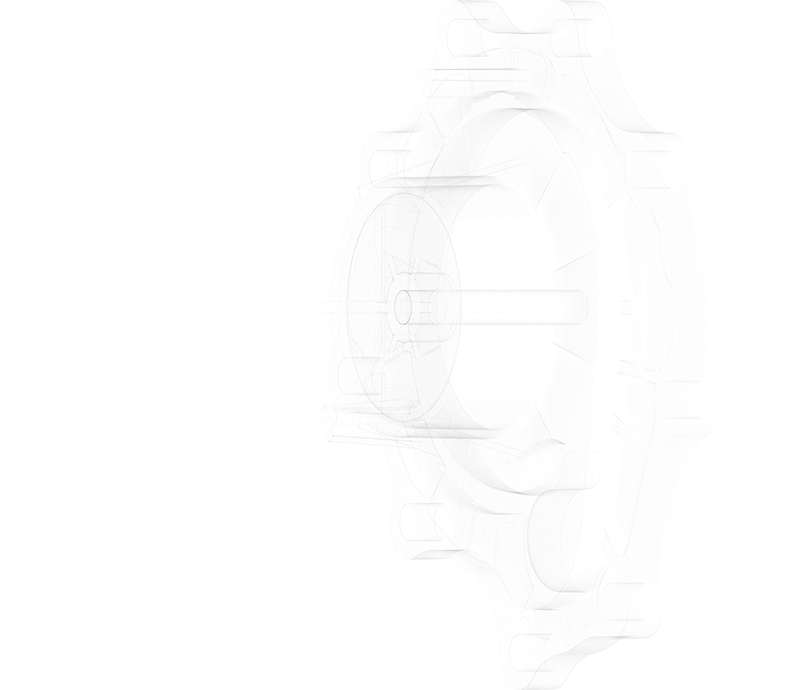

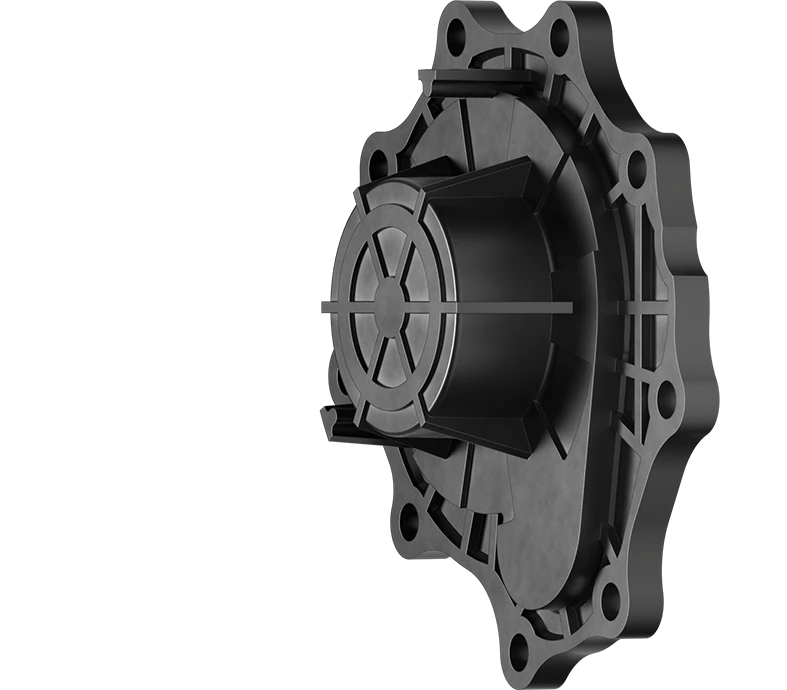

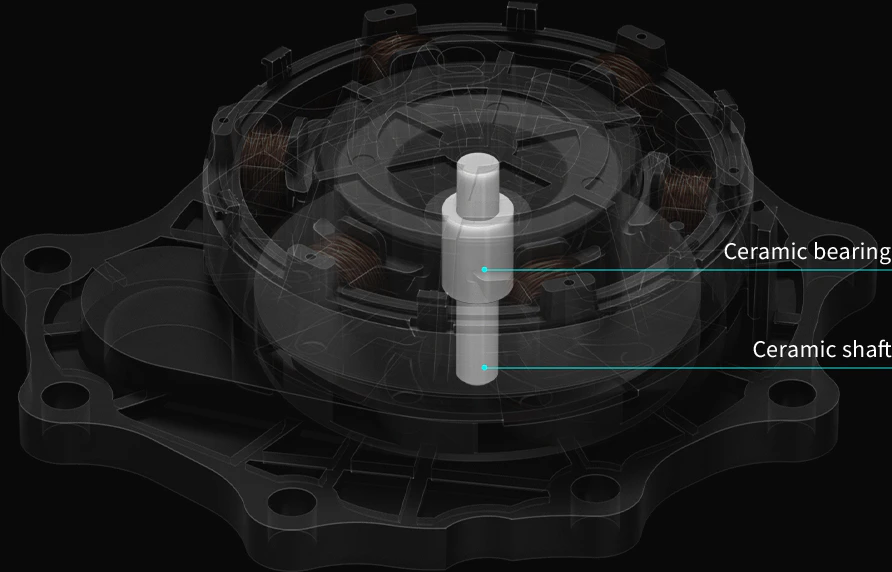

Equipped with ceramic bearing and shaft, the core motor are with excellent wear resistance, high-temperature tolerance, and corrosion resistance. With 50,000 hours of Mean Time Between Failures (MTBF) , it can ensure faster and more lasting water cooling experience in a longer operation time.

Wear resistance

High-temperature tolerance

Corrosion resistance

Leading Technology, Unparalleled Silence

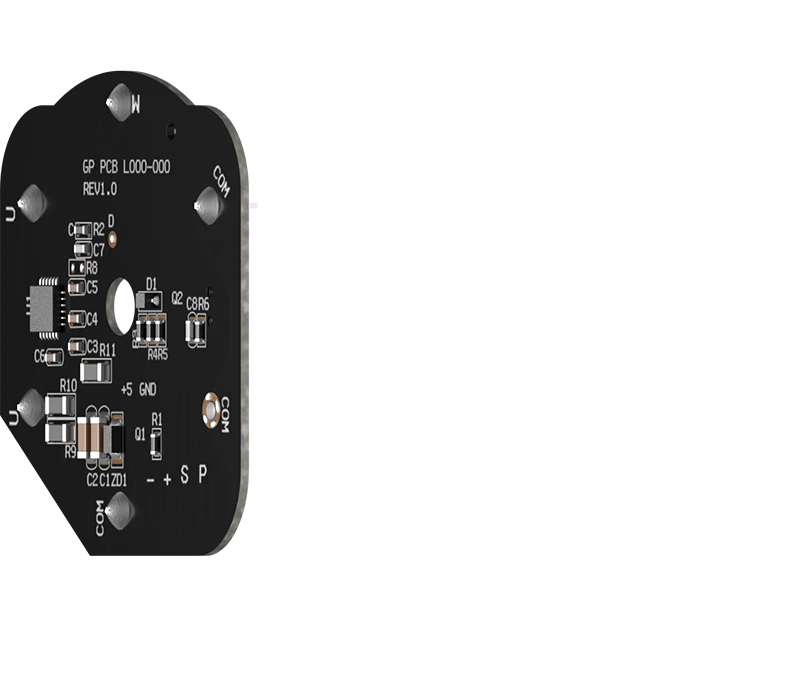

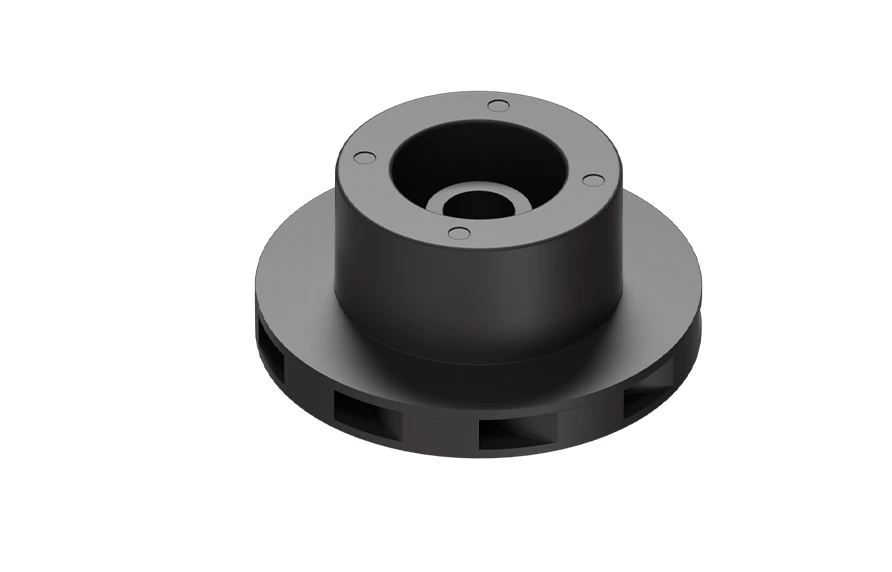

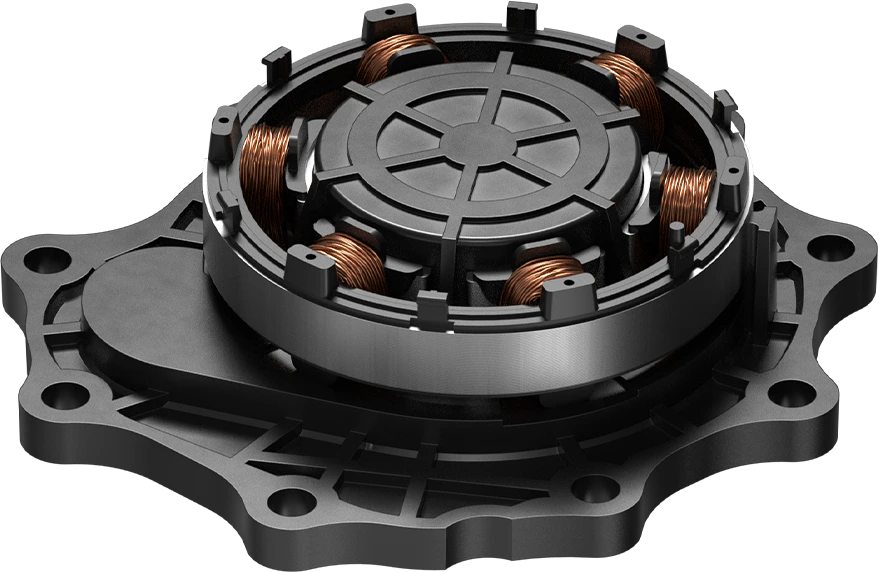

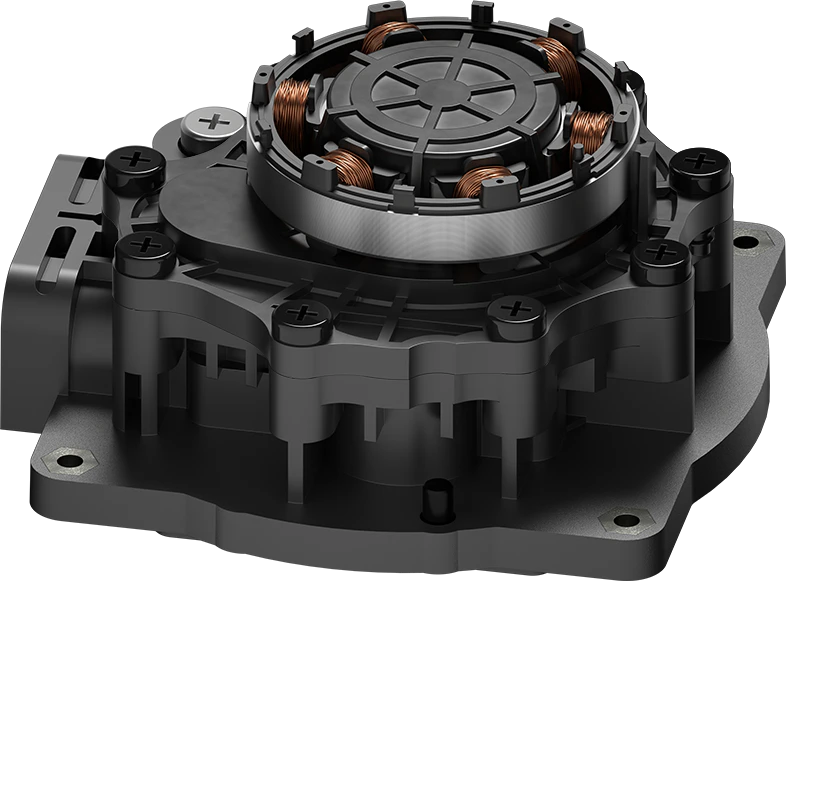

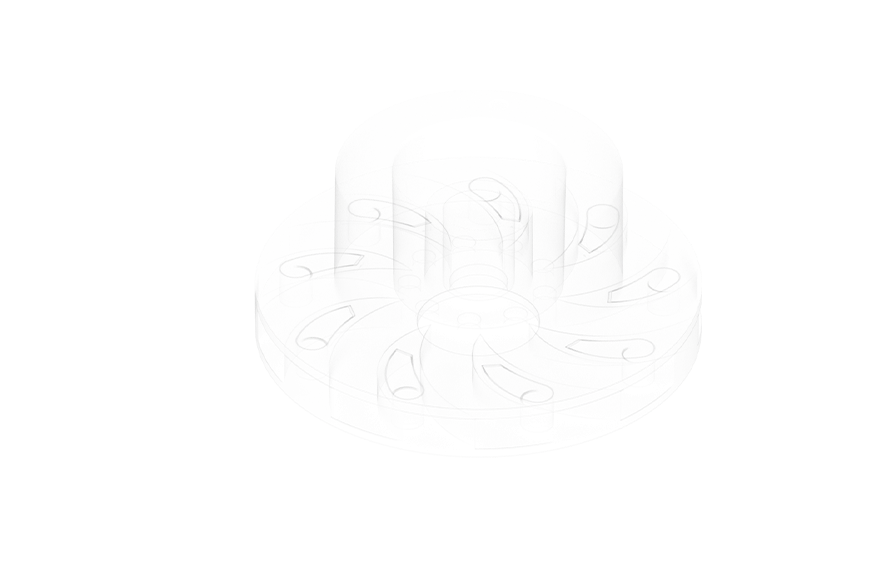

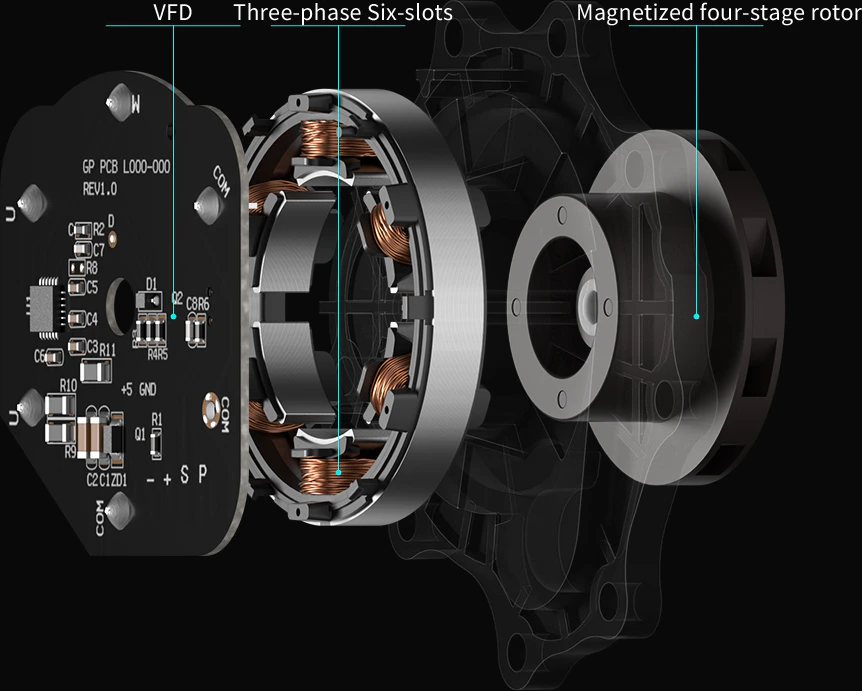

Quiet operation of motor is key to avoid noise during operation. This 5 PRO pump features a three-phase, six-slots, four-poles motor with field-oriented control (FOC) technology and a sinusoidal waveform magnetizing rotor. This fundamentally eliminates the noise caused by high-speed pump operation and delivers stable and efficient motor torque for exceptionally quiet water cooling.

Field-oriented control, also known as vector control, is a technology that controls three-phase motors with variable-frequency drive (VFD). It allows individual control of the magnetic field and torque of the motor, also known as vector control since the three-phase output current and voltage will be represented as vectors during processing. FOC controls the magnitude and direction of a magnetic field so that the motor can run with a steady torque, low noise, high efficiency, and high-speed dynamic response.

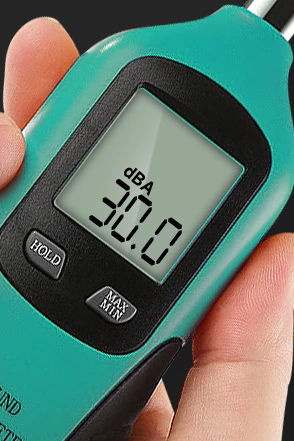

5PRO noise level 30dBA

Precision Craftsmanship, Efficient Operation

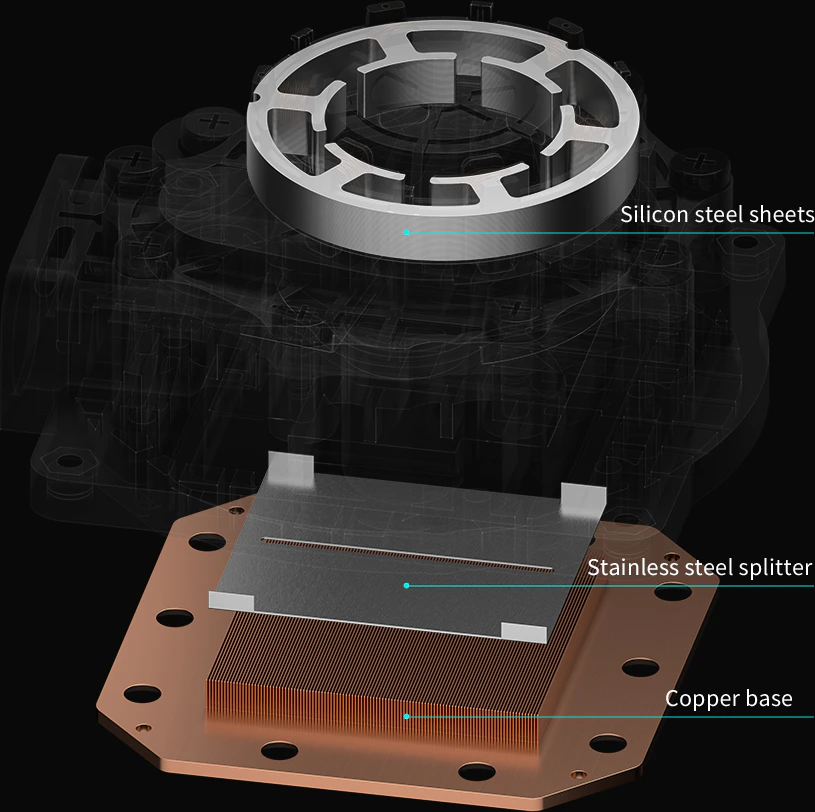

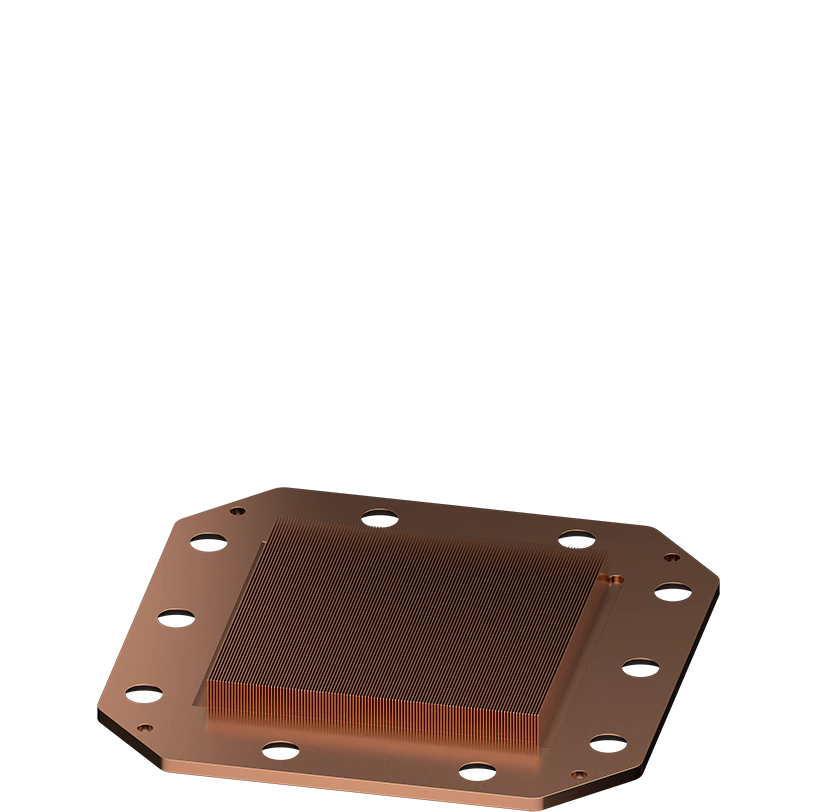

The optimized copper base structure enhances the cooling area of the fin while preventing clogging from impurities.

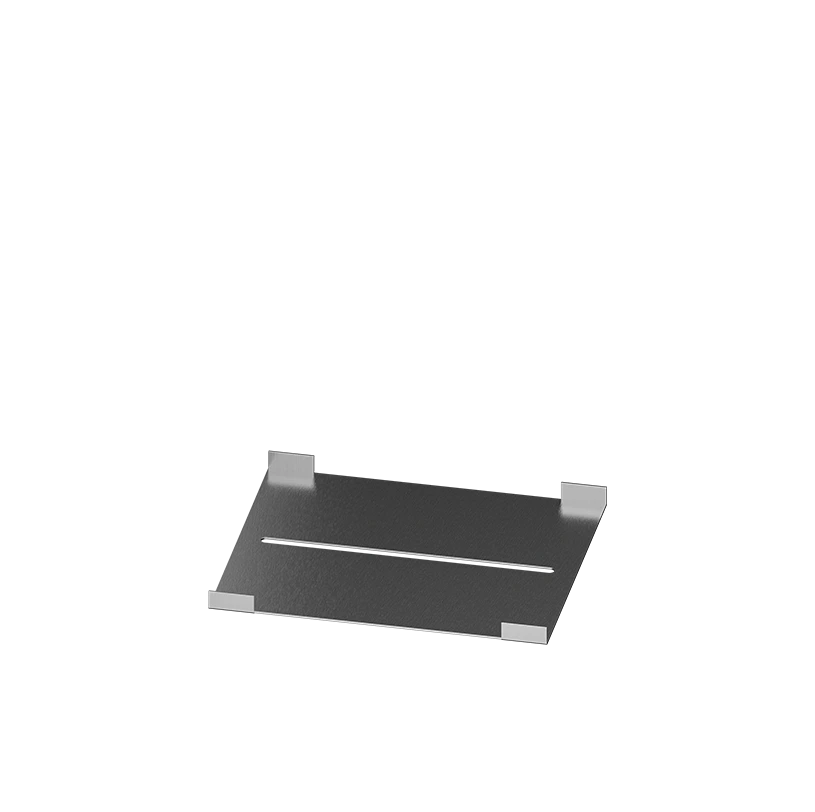

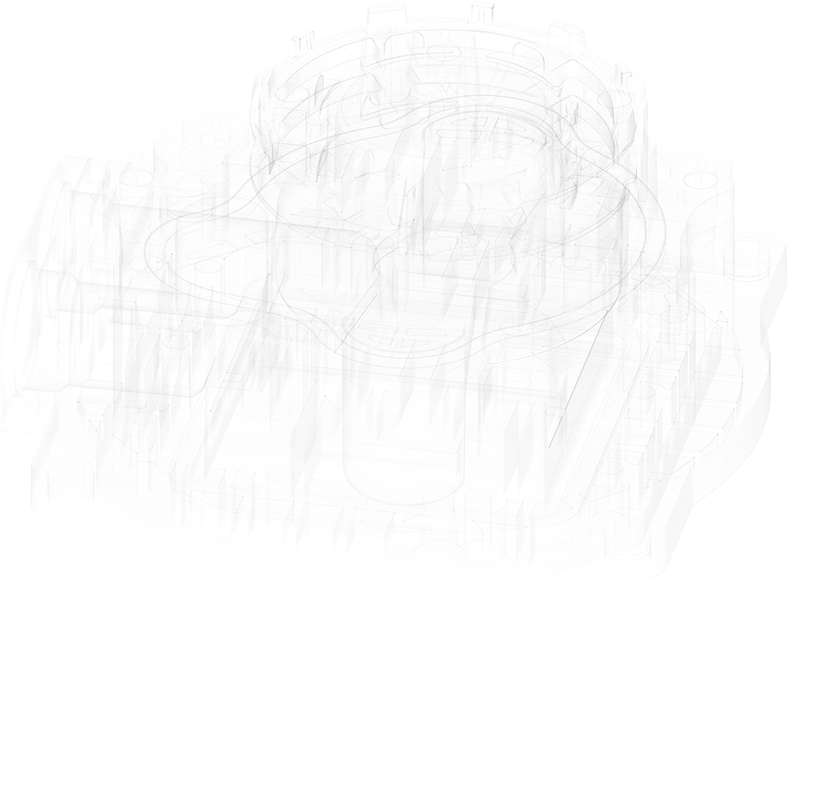

Equipped with stainless steel splitter, it proportionally increases the coolant flow velocity and volume, in junction with the thin copper base to quickly dissipate CPU heat.

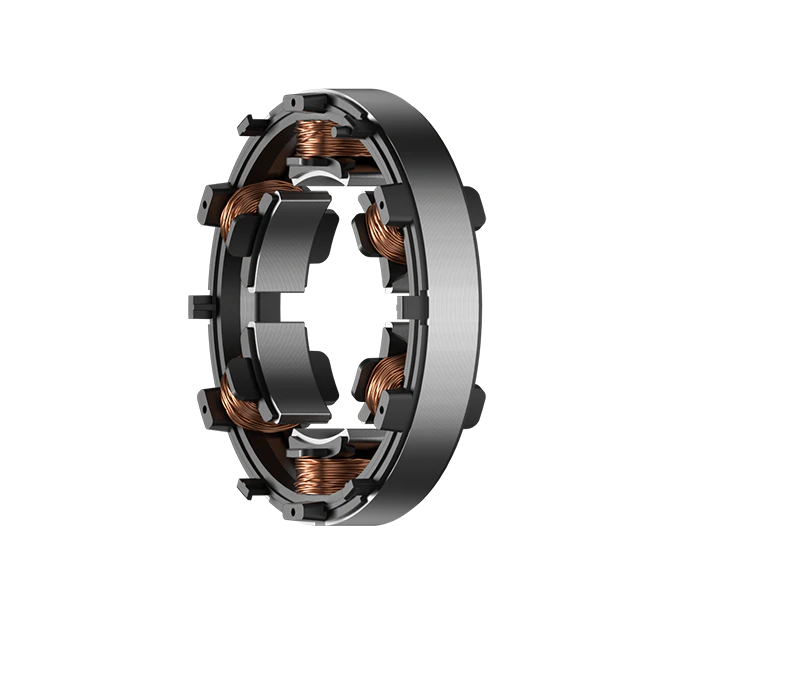

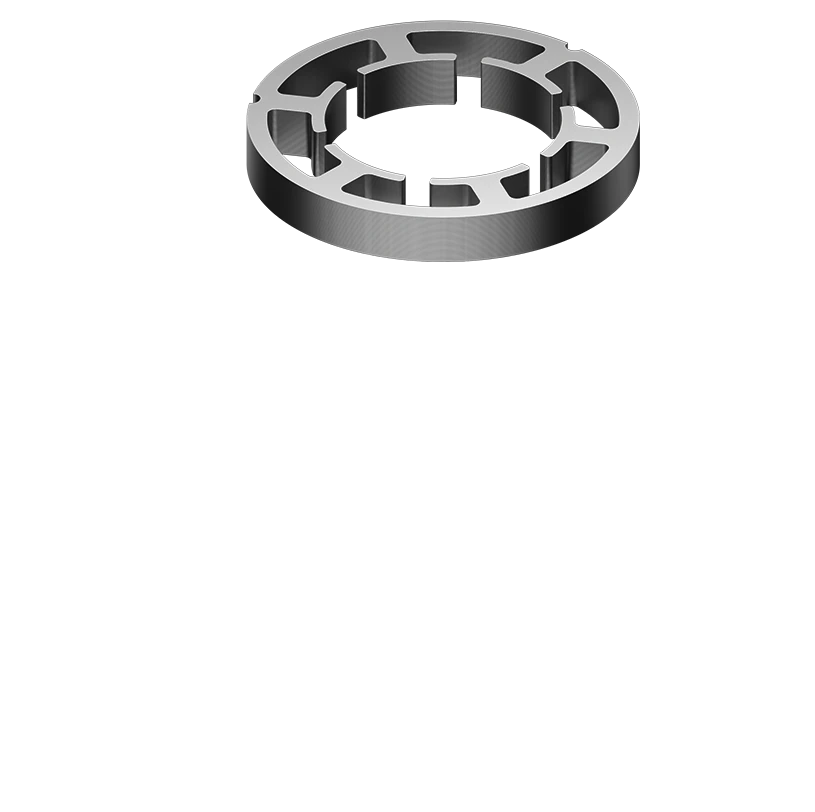

The laminated stator is made of high-quality imported silicon steel sheets for energy-efficient motor operation.

Product Name	5 PRO	LED type	Size	Click to view
LQ240		ARGB	282×120×27 mm(L×W×H)
LQ360		ARGB	402×120×27 mm(L×W×H)
LP240		ARGB	282×120×27 mm(L×W×H)
LP360		ARGB	402×120×27 mm(L×W×H)
LT240 ARGB		ARGB	282×120×27 mm(L×W×H)
LT360 ARGB		ARGB	402×120×27 mm(L×W×H)
MYSTIQUE 240		/	282×120×27 mm(L×W×H)
MYSTIQUE 360		/	402×120×27 mm(L×W×H)
MYSTIQUE 240 ARGB		ARGB	282×120×27 mm(L×W×H)
MYSTIQUE 360 ARGB		ARGB	402×120×27 mm(L×W×H)
LD240		ARGB	282×120×27 mm(L×W×H)
LD360		ARGB	402×120×27 mm(L×W×H)
